The basic principle of diesel fuel injection is that the right amount of fuel must be injected at the right time to meet the engine's horsepower demands. The fuel injector is a key component in the fuel injection system, delivering diesel fuel into the pistons to enable combustion. Fuel injectors can be mechanical or electronic, depending on the engine model, and single or multi-spray. The fuel injection pump is another critical component, introducing the right volume of diesel into the cylinder chamber at the right time. The pump operates thousands of times a minute, and its reliability is crucial. Regular maintenance and the use of official Perkins repair products are essential to ensure optimal performance and longevity.
| Characteristics | Values |
|---|---|
| Basic principle | The right amount of fuel must be injected at the right time to satisfy engine horsepower demands. |
| Fuel Injector | A major component in the fuel injection system that delivers the right amount of diesel fuel at the right time into the pistons to allow the combustion process to take place. |
| Fuel Injector Shape | Nozzle |
| Fuel Injector Function | A measured volume of fuel enters it at high pressure and emerges in the chamber surrounding a needle valve, held shut by a spring. |
| Fuel Injector Opening | The valve will open only when it comes under a pre-set specified pressure. |
| Fuel Injector Atomisation | Fuel is broken up into fine drops to create a mist that will combust easily when exposed to intense pressures. |
| Fuel Injection Pump | Supplies fuel to the manifold and injectors at pressures up to 200 MPa (29,000 psi). |
| Fuel Injection Timing | Precisely set according to the model of the engine it services, ensuring the right volume of diesel is introduced at the right time. |
| Fuel Injection Maintenance | Regular maintenance is required to ensure the engine lasts as long as possible. |
| Fuel Injection Types | Mechanical or electronic, single or multi-spray. |
Explore related products
What You'll Learn
Injector nozzle's pressure limitation
Injector nozzles play a critical role in the performance and emissions of diesel engines. The design of the nozzle, including the number of holes, hole size, and geometry, significantly impacts fuel atomization, combustion, and engine efficiency.
The pressure at which fuel is injected through the nozzle is a key factor in the overall injection system. When the fuel pressure exceeds the injector nozzle's pre-set pressure limitation, the nozzle opens, and fuel is released into the combustion chamber. This pre-set pressure limitation is an essential safety feature to prevent over-fuelling and potential engine damage.
The number of injector holes and the fuel injection pressure (IP) are inversely proportional to the droplet size of the fuel. Increasing the number of holes and IP results in smaller droplets, improving atomization and mixing rates, leading to more efficient combustion. However, there is a limitation to these improvements. As observed in experiments, after a certain number of holes and IP, the benefits plateau, and further increases may even be detrimental.
The specific pressure limitations depend on the engine model and the type of fuel injector. For example, common rail fuel systems can supply fuel at pressures up to 200 MPa (29,000 psi). Mechanical and electronic fuel injectors, such as those offered by Perkins, have different operating characteristics, with electronic injectors often providing more precise control over fuel delivery.
In conclusion, injector nozzles' pressure limitations are a critical aspect of diesel engine design. These limitations ensure safe and efficient engine operation while optimizing fuel atomization and combustion through careful control of fuel injection pressure and injector nozzle design.
Spotting Diesel: Quick and Easy Ways to Tell
You may want to see also
Explore related products
Injecting the right amount of fuel
The fuel injector is shaped like a nozzle. A measured volume of fuel enters it at high pressure and emerges in the chamber surrounding a needle valve, held shut by a spring. That valve will open only when it comes under a pre-set specified pressure, and then the fuel is forced into a second, lower chamber and then out into the main combustion chamber of the engine through a series of tiny holes. These small holes are deliberately designed to break the fuel into fine drops, creating a mist that will combust easily when exposed to the intense pressures generated in the cylinder. This process is known as atomisation.
The timing of the fuel injection is critical. The fuel injection pump introduces the right volume of diesel into the cylinder chamber only a fraction of a second before the cylinder reaches the top dead centre position of its compression stroke. This ensures the fuel only becomes available from the fuel injector at the critical point of the cycle. At this point, the heat generated from the very high compression in the piston causes the diesel fuel to ignite, generating power for the engine.
The fuel injection pump is a complex piece of engineering. Each one is calibrated to deliver the right quantity of fuel via the fuel injector into the combustion chamber. This ensures maximum power output and optimum fuel efficiency. The pump operates thousands of times a minute, so reliability is key.
Enhancing Diesel Mileage: Winter Edition
You may want to see also
Explore related products
Mechanical and electronic fuel injectors
The basic principle of fuel injection is that the right amount of fuel must be injected at the right time to meet the engine's horsepower demands. Mechanical and electronic fuel injection systems have been developed to implement and control this process.
Mechanical Fuel Injection
Mechanical fuel injection systems were used in the 1960s and 1970s by many manufacturers in their higher-performance sports cars and sports saloons. Mechanical fuel injectors are spring-loaded into the closed position and are opened by fuel pressure. The most complicated part of a mechanical fuel injection system is the distributor, which meters pressurised fuel to the injectors. The distributor works like a fuel metering valve, opening more or less for the fuel pressure to reach the injectors. The amount of fuel sprayed is increased or decreased by a mechanical control unit. Mechanical fuel injection systems are often mechanically complex and have a poor response to backing off the throttle.
Electronic Fuel Injection
Electronic fuel injection systems (EFI) have now largely superseded mechanical fuel injection systems due to their increasing reliability and decreasing costs. In an electronic system, the injector is held closed by a spring but is opened by an electromagnet built into the injector body. The electronic control unit determines how long the injector stays open. Electronic systems use sensors to control the process, making it easier than in a pure mechanical system. Electronic fuel injection systems were first used in cars in 1958, in the Chrysler 300D, DeSoto Adventurer, Dodge D-500, and Plymouth Fury.
Eradicating Algae Growth in Diesel Fuel Tanks
You may want to see also
Explore related products
Injector pump repair and calibration
Over time, injector pumps may experience wear and tear, leading to diminished performance and fuel efficiency. Repairing and calibrating injector pumps involves several steps:
- Dismantling and Assessment: The problematic injector pump is carefully dismantled, and its internal components are inspected for any damage or worn-out parts.
- Part Replacement: Worn-out parts, such as gaskets and seals, are replaced with genuine OEM (Original Equipment Manufacturer) parts to ensure quality and compatibility.
- Reassembly and Calibration: The injector pump is reassembled, and a full calibration is performed on a test bench to meet or exceed factory specifications. Calibration involves adjusting the timing and fuel delivery to ensure optimal performance, fuel efficiency, and emission control. This process may require specialised tools like timing lights and dial gauges to fine-tune the injector pump's settings.
- Testing and Verification: After calibration, the injector pump undergoes rigorous testing to ensure it meets the required standards for spray pattern, atomisation, nozzle leak, and opening pressure.
It is important to engage reliable suppliers and service providers, like Performance Diesel Injection and Perkins Diesel Service, for injector pump repairs and calibrations. Regular maintenance, including injector pump checks and services, is crucial to maximising the lifespan of diesel engines.
Winter Diesel: How to Identify Quality Fuel
You may want to see also
Explore related products

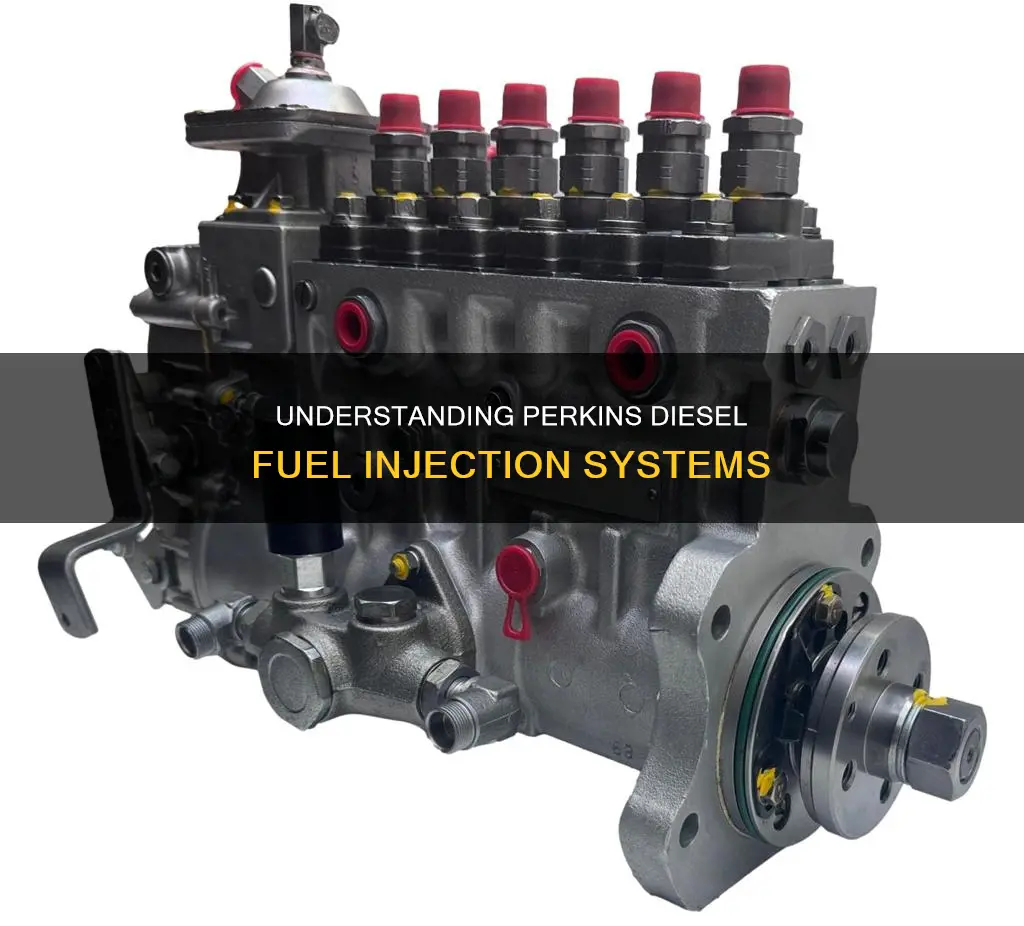

Fuel injection pumps and injectors
The basic principle of fuel injection is that the right amount of fuel must be injected at the right time to meet the engine's horsepower demands. The fuel injector is a major component of the fuel injection system, delivering the right amount of diesel fuel at the right time into the pistons to allow the combustion process to take place. The fuel injector is shaped like a nozzle. A measured volume of fuel enters it at high pressure and emerges in the chamber surrounding a needle valve, held shut by a spring. When the fuel pressure exceeds the injector nozzle's pre-set pressure limitation, the valve opens, and fuel is injected into the combustion chamber. Any excess fuel is sent out through a return line back to the fuel tank.
The fuel injection pump is a very complex piece of engineering. Each one is calibrated to deliver just the right quantity of fuel via the fuel injector into the combustion chamber. This ensures maximum power output and optimum fuel efficiency. The timing is precisely set according to the model of the engine it services, so the fuel injection pump introduces the right volume of diesel at the right time.
Depending on the model of the engine, the fuel injectors will either be mechanically or electrically controlled and they will feature single or multi-spray atomisers. Mechanical Electronic Unit Injectors (MEUI) and Hydraulic Electronic Unit Injectors (HEUI) were among the first technologies to successfully replace mechanical components on the high-pressure side of the fuel system. They replace the injection pump, fuel lines, and nozzles used in mechanical engines with an electronically triggered unit injector in each cylinder.
Regular maintenance is the best way of ensuring your engine lasts as long as possible. There are regular checks that should be carried out in line with the recommended schedules. Using official Perkins repair products can considerably enhance the performance of your engine and extend its life.
The Ultimate Guide to Fueling Your Diesel Boat
You may want to see also
Frequently asked questions
The basic principle of diesel fuel injection is that the right amount of fuel must be injected at the right time to satisfy engine horsepower demands.
Perkins fuel injectors can be mechanical or electronic, depending on the engine model, and can be single or multi-spray.
A measured volume of fuel enters the nozzle of the injector at high pressure. This fuel emerges in a chamber surrounding a needle valve, which is held shut by a spring. The valve opens when it comes under a pre-set specified pressure, and the fuel is forced into a second, lower chamber and then out into the main combustion chamber of the engine.
The fuel injection pump introduces the right volume of diesel into the cylinder chamber only a fraction of a second before the cylinder reaches the top dead centre position of its compression stroke.
