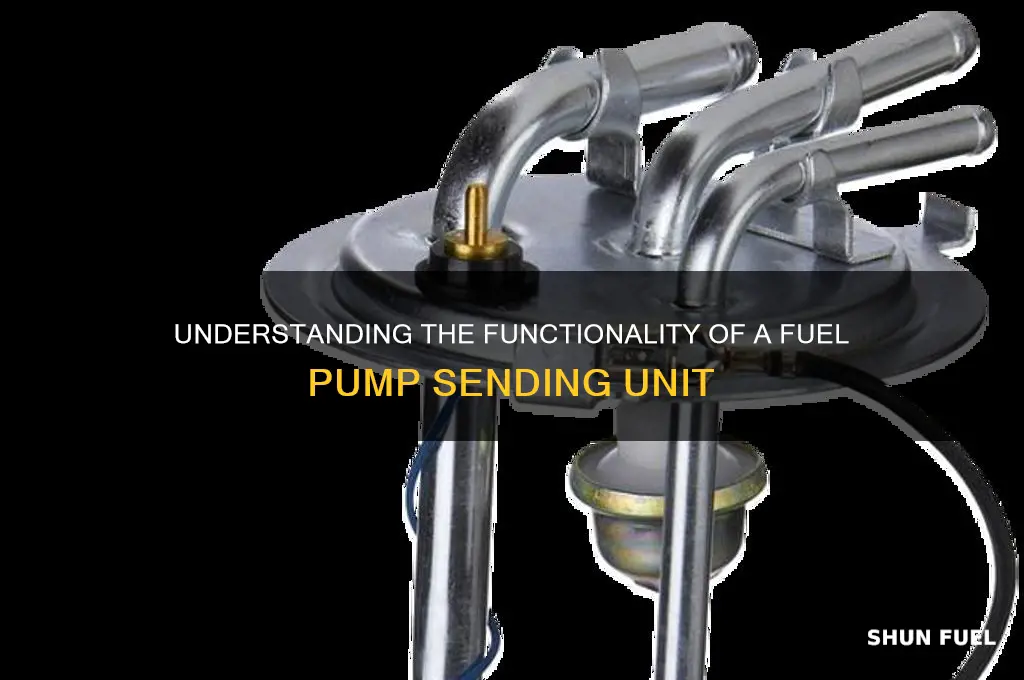

A fuel pump sending unit is a critical component in a vehicle's fuel system, responsible for both delivering fuel from the tank to the engine and accurately measuring the fuel level. It typically consists of two main parts: the fuel pump, which pressurizes and transports the fuel, and the sending unit, which includes a float and a variable resistor. As the fuel level in the tank changes, the float moves up or down, altering the resistance in the circuit. This change in resistance is interpreted by the fuel gauge on the dashboard, providing the driver with an accurate reading of the remaining fuel. The sending unit ensures that the fuel pump operates efficiently and that the driver is aware of the fuel level, preventing unexpected fuel depletion and maintaining the vehicle’s performance.
Explore related products
What You'll Learn
- Fuel Level Sensor Operation: Measures fuel level via a float and variable resistor, sending data to gauge
- Electrical Circuitry: Uses wiring to transmit fuel level signals from the tank to the dashboard
- Float Mechanism Design: A buoyant float moves with fuel level, adjusting the sensor’s resistance accordingly
- Fuel Gauge Interaction: Receives signals from the sending unit to display accurate fuel level visually
- Common Failure Modes: Issues like faulty resistors, broken floats, or corroded connections disrupt functionality
Fuel Level Sensor Operation: Measures fuel level via a float and variable resistor, sending data to gauge
The fuel level sensor, a critical component of the fuel pump sending unit, operates on a deceptively simple principle: it uses a float and a variable resistor to measure the fuel level in your vehicle's tank. This mechanism is both elegant and reliable, ensuring that drivers have an accurate reading of their fuel levels at all times. The float, typically made of foam or a similar buoyant material, rises and falls with the fuel level. Attached to this float is a metal rod connected to a variable resistor, also known as a potentiometer. As the float moves, the resistor's resistance changes, providing a measurable electrical signal that corresponds to the fuel level.
To understand the process in more detail, consider the following steps. First, the float's position directly reflects the fuel level—when the tank is full, the float is at its highest point, and when the tank is empty, the float rests at the bottom. Second, the variable resistor is designed to alter its resistance based on the float's position. At the full mark, the resistor offers maximum resistance, while at the empty mark, it provides minimal resistance. This change in resistance is then converted into an electrical signal, which is sent to the fuel gauge on the dashboard. The gauge interprets this signal and displays the corresponding fuel level to the driver.
One of the key advantages of this system is its simplicity and durability. Unlike more complex electronic sensors, the float and variable resistor mechanism has fewer components that can fail, making it a reliable choice for automotive applications. However, it’s important to note that over time, the resistor or the float can wear out or become contaminated with debris, leading to inaccurate readings. Regular maintenance, such as cleaning the fuel tank and inspecting the sending unit, can help prevent these issues. For DIY enthusiasts, accessing the sending unit often requires removing the fuel tank, a task that should be approached with caution due to the flammable nature of fuel.
Comparing this system to modern alternatives, such as ultrasonic or capacitive fuel level sensors, highlights its strengths and limitations. While newer technologies offer greater precision and can be integrated with advanced vehicle systems, the float and variable resistor method remains cost-effective and widely used in many vehicles today. Its longevity in the automotive industry is a testament to its effectiveness, though it may not provide the same level of accuracy as more sophisticated systems, especially in vehicles with irregularly shaped fuel tanks.
In practical terms, understanding how the fuel level sensor works can help drivers diagnose issues with their fuel gauge. For instance, if the gauge reads empty even after refueling, the problem could be a stuck float or a faulty resistor. Conversely, a gauge that always reads full might indicate a disconnected or damaged rod. In such cases, consulting a professional mechanic is advisable, as repairing or replacing the sending unit requires specialized knowledge and tools. By grasping the basics of this system, drivers can make informed decisions about their vehicle’s maintenance and ensure they’re never caught off guard by an unexpectedly empty tank.
Quadmaster 500 Fuel Pump: Does It Come Equipped?
You may want to see also
Explore related products
Electrical Circuitry: Uses wiring to transmit fuel level signals from the tank to the dashboard
The fuel pump sending unit relies on a precise electrical circuit to communicate the fuel level from the tank to the dashboard gauge. This circuit operates on a simple principle: variable resistance. A float arm, connected to a resistor within the sending unit, rises and falls with the fuel level. As the float moves, it alters the resistance in the circuit. This change in resistance is directly proportional to the fuel level, creating an electrical signal that travels through dedicated wiring to the dashboard.
Think of it like a dimmer switch for your lights – the more you turn it, the brighter the light, but in this case, the resistance change corresponds to the fuel level displayed on your gauge.
Key Components:
- Sending Unit Resistor: This variable resistor is the heart of the system, translating physical float position into an electrical signal.
- Wiring Harness: A dedicated set of wires acts as the highway for the signal, connecting the sending unit to the fuel gauge.
- Fuel Gauge: This instrument on the dashboard interprets the electrical signal and displays the corresponding fuel level visually.
Understanding this circuitry is crucial for diagnosing fuel gauge issues. A faulty sending unit resistor, damaged wiring, or a malfunctioning gauge can all lead to inaccurate readings. For example, a broken wire would result in a constant "empty" reading, while a stuck float could cause the gauge to remain at "full".
Does Your Fuel Pump Run When the Engine is Off?
You may want to see also
Explore related products
Float Mechanism Design: A buoyant float moves with fuel level, adjusting the sensor’s resistance accordingly
The float mechanism in a fuel pump sending unit is a marvel of simplicity and precision, relying on the principle of buoyancy to accurately measure fuel levels. A buoyant float, typically made of materials like foam or hollow plastic, is designed to sit atop the fuel surface. As the fuel level rises or falls, the float moves vertically, directly translating the fuel height into a mechanical signal. This movement is the cornerstone of the system’s functionality, ensuring real-time monitoring of fuel levels without complex electronics.
At the heart of this mechanism is the variable resistor, or rheostat, which works in tandem with the float. A rod or arm connects the float to a wiper on the resistor, which slides along a resistive track as the float moves. When the fuel tank is full, the float rises, positioning the wiper near the high-resistance end of the track. Conversely, as the tank empties, the float descends, moving the wiper toward the low-resistance end. This resistance change is proportional to the fuel level, providing a precise electrical signal that the fuel gauge interprets.
Designing an effective float mechanism requires careful consideration of material properties and geometry. The float’s density must be lower than that of the fuel to ensure it remains buoyant across all fuel types, including diesel and gasoline. Additionally, the float’s shape and size must minimize sloshing effects, which can introduce noise into the readings. Engineers often incorporate dampening features, such as weighted bases or stabilizers, to counteract these effects and ensure consistent performance even during vehicle movement.
Practical implementation of this design involves calibrating the resistor’s range to match the fuel tank’s dimensions. For instance, a 20-gallon tank might correspond to a resistance sweep from 0 to 90 ohms, with 0 ohms indicating empty and 90 ohms indicating full. This calibration is critical for accuracy and is typically performed during manufacturing. Regular maintenance, such as checking for debris or corrosion in the float assembly, can prevent inaccurate readings and extend the unit’s lifespan.
In summary, the float mechanism’s elegance lies in its ability to transform a physical property—buoyancy—into an electrical signal with minimal components. By understanding its design principles and ensuring proper calibration, vehicle owners and technicians can maintain reliable fuel level monitoring, avoiding the inconvenience of unexpected empty tanks. This mechanism remains a testament to the effectiveness of simple, well-engineered solutions in automotive systems.
Testing Airtex Fuel Pumps: A Comprehensive Step-by-Step Guide
You may want to see also
Explore related products
Fuel Gauge Interaction: Receives signals from the sending unit to display accurate fuel level visually
The fuel gauge is the driver's window into the fuel tank, a critical component that relies on precise communication from the sending unit. This interaction is a delicate dance of electrical signals and mechanical design, ensuring the driver is informed of the fuel level at all times. When the sending unit, typically a float and arm mechanism, moves in response to the fuel level, it alters the resistance in the circuit, sending a variable voltage signal to the gauge. This signal is the lifeblood of the fuel gauge, translating the physical position of the float into a visual representation on the dashboard.
Consider the process as a language, where the sending unit speaks in voltages and the fuel gauge listens, interpreting these signals to display the fuel level. For instance, a full tank might correspond to a higher voltage, while an empty tank sends a lower voltage signal. The gauge, calibrated to understand this language, moves the needle accordingly, providing an at-a-glance assessment of the vehicle's fuel status. This system is particularly crucial for long journeys, where accurate fuel level information can mean the difference between a smooth trip and an unexpected roadside stop.
In modern vehicles, this interaction has evolved with the integration of digital displays and more sophisticated sending units. Some systems now use ultrasonic or capacitive sensors instead of traditional floats, offering improved accuracy and reliability. These advanced sending units communicate with the fuel gauge via digital protocols, ensuring a more precise and faster update of the fuel level. For example, a digital fuel gauge might receive a signal every few seconds, providing a near-real-time update, which is especially useful in vehicles with larger fuel tanks or those used for commercial purposes where fuel efficiency is critical.
The accuracy of this interaction is paramount, as it directly impacts the driver's decision-making. An incorrect fuel level display can lead to running out of fuel, causing inconvenience and potential safety hazards. Regular maintenance and calibration of both the sending unit and the fuel gauge are essential to ensure this communication remains reliable. This includes checking for corrosion, ensuring proper grounding, and verifying the gauge's accuracy against known fuel levels. By understanding this intricate relationship, vehicle owners can better appreciate the technology behind this everyday feature and take proactive steps to maintain its functionality.
To optimize this system's performance, vehicle manufacturers often provide specific guidelines. For instance, some recommend periodic cleaning of the sending unit to prevent debris from affecting its movement. Others suggest using high-quality fuel additives to maintain the overall health of the fuel system, which can indirectly impact the sending unit's longevity. Additionally, for vehicles with digital gauges, software updates might be necessary to ensure the gauge interprets the sending unit's signals correctly, especially as vehicles age and components wear. This proactive approach to maintenance ensures that the fuel gauge interaction remains a reliable source of information for the driver.
Does Your Boat's Electric Fuel Pump Receive Signal During Startup?
You may want to see also
Explore related products
Common Failure Modes: Issues like faulty resistors, broken floats, or corroded connections disrupt functionality
A fuel pump sending unit is a critical component in a vehicle's fuel system, responsible for both pumping fuel from the tank to the engine and providing accurate fuel level readings to the driver. However, its reliability can be compromised by several common failure modes. Faulty resistors, broken floats, and corroded connections are among the most frequent culprits, each disrupting functionality in distinct ways. Understanding these issues is essential for diagnosing and addressing problems before they escalate into costly repairs or leave you stranded.
Faulty resistors within the sending unit are a common issue, particularly in older vehicles. These resistors are part of the variable resistor mechanism that measures fuel levels. Over time, they can wear out due to heat, vibration, or electrical surges, leading to inaccurate fuel gauge readings. For instance, a failing resistor might cause the gauge to fluctuate wildly or stick at a certain level, regardless of the actual fuel amount. To identify this problem, monitor the gauge for inconsistencies and compare it with the mileage driven. If discrepancies arise, a resistor replacement may be necessary, typically costing between $50 and $150, depending on the vehicle model and labor rates.
Broken floats are another frequent failure point in fuel pump sending units. The float, usually made of plastic or foam, rises and falls with the fuel level, actuating the resistor mechanism. Exposure to ethanol-blended fuels or extreme temperatures can cause the float to crack, warp, or detach, leading to incorrect fuel level readings. For example, a broken float might cause the gauge to read "empty" even when the tank is full or vice versa. Inspecting the float during a fuel pump replacement or tank cleaning can help catch this issue early. Replacing the float alone is often inexpensive, around $20 to $50, but accessing it may require removing the fuel pump assembly, adding to labor costs.
Corroded connections are a pervasive problem, especially in vehicles exposed to harsh weather or road salt. Moisture and contaminants can infiltrate the sending unit’s electrical connectors, causing corrosion that disrupts the signal between the unit and the fuel gauge. Symptoms include an erratic or non-responsive gauge, often accompanied by a "Check Engine" light. Preventive measures include regular inspection of the wiring harness and applying dielectric grease to connectors during maintenance. If corrosion is detected, cleaning the terminals with a wire brush and applying an anti-corrosion spray can restore functionality. Ignoring this issue can lead to complete signal loss, requiring a more extensive repair.
In summary, faulty resistors, broken floats, and corroded connections are common failure modes that can disrupt the functionality of a fuel pump sending unit. Each issue presents unique symptoms and requires specific diagnostic and repair approaches. Regular maintenance, such as inspecting the wiring harness and monitoring fuel gauge accuracy, can help identify these problems early. Addressing them promptly not only ensures reliable fuel system operation but also prevents more significant issues down the road, saving time and money in the long run.
Do All Electric Fuel Pumps Need a Pump Relay?
You may want to see also
Frequently asked questions
A fuel pump sending unit is a component in a vehicle's fuel system that combines the fuel pump and a fuel level sensor. Its primary functions are to pump fuel from the tank to the engine and to measure the amount of fuel remaining in the tank, sending this information to the fuel gauge on the dashboard.
The fuel pump sending unit uses a float mechanism connected to a variable resistor. As the fuel level changes, the float moves up or down, altering the resistance in the circuit. This change in resistance is interpreted by the fuel gauge to display the fuel level accurately.
Yes, a faulty fuel pump sending unit can cause engine performance issues. If the fuel pump fails, the engine may not receive enough fuel, leading to stalling, misfires, or difficulty starting. Additionally, an inaccurate fuel level reading can leave you stranded if the tank runs empty unexpectedly.
Common signs of a failing fuel pump sending unit include an inaccurate fuel gauge reading, the engine sputtering or stalling, difficulty starting the vehicle, or unusual noises coming from the fuel tank. If you experience any of these symptoms, it’s advisable to have the unit inspected and replaced if necessary.
