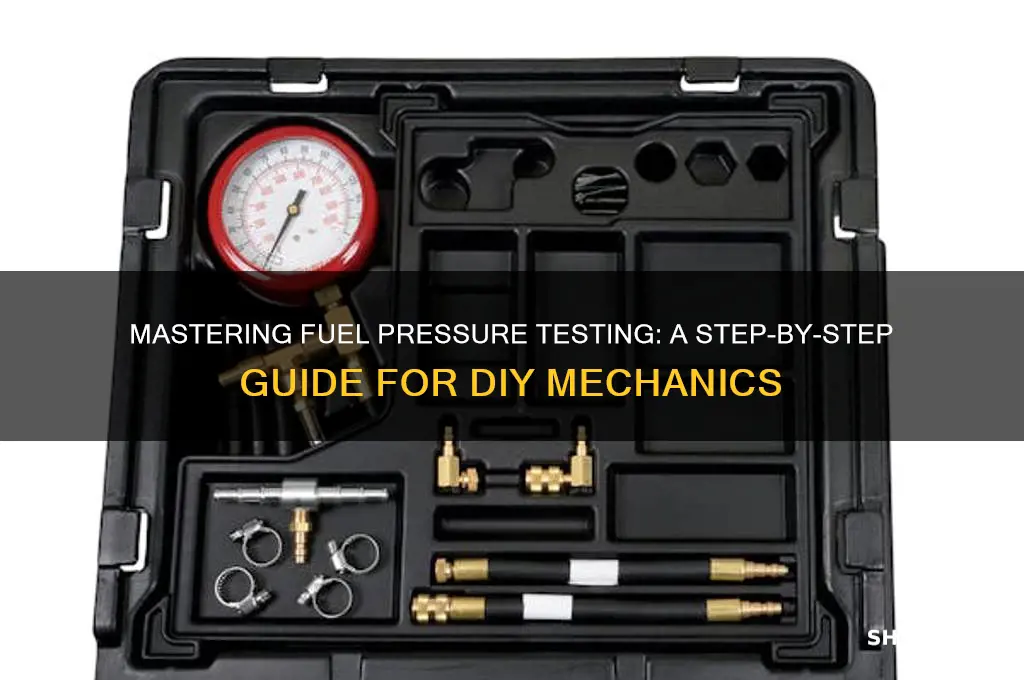

Using a fuel pressure tester is essential for diagnosing issues in a vehicle's fuel system, ensuring optimal engine performance. To begin, locate the fuel rail's Schrader valve, typically near the engine, and connect the tester's gauge securely. Relieve fuel system pressure by depressing the valve, then attach the tester and start the engine to observe the pressure reading. Compare the result to the manufacturer's specifications to identify any discrepancies, such as low or high pressure, which could indicate clogged fuel filters, faulty pumps, or regulator issues. This tool is invaluable for pinpointing fuel delivery problems and maintaining efficient vehicle operation.
| Characteristics | Values |
|---|---|
| Purpose | To measure fuel pressure in a vehicle's fuel system for diagnostic purposes. |
| Tools Required | Fuel pressure tester, wrench or socket set, safety gloves, safety goggles. |
| Safety Precautions | Work in a well-ventilated area, avoid open flames, disconnect battery if necessary. |
| Steps | 1. Locate the fuel pressure test port (schrader valve). 2. Relieve fuel system pressure. 3. Connect the fuel pressure tester to the test port. 4. Start the engine and observe the pressure gauge. 5. Compare readings to manufacturer specifications. 6. Disconnect the tester and reconnect the fuel system. |
| Pressure Range | Typically measures 0–100 psi (pounds per square inch), depending on the tester. |
| Compatibility | Ensure the tester is compatible with the vehicle's fuel system (e.g., gasoline, diesel). |
| Types of Testers | Analog gauge tester, digital gauge tester, inline tester. |
| Common Issues Detected | Clogged fuel filter, weak fuel pump, faulty fuel pressure regulator. |
| Maintenance | Clean the tester after use, store in a dry place, inspect hoses for leaks. |
| Manufacturer Specifications | Refer to the vehicle's service manual for specific pressure values. |
| Frequency of Testing | Test when diagnosing fuel system issues or during routine maintenance. |
| Environmental Considerations | Dispose of fuel safely and follow local regulations for hazardous materials. |
| Cost | Testers range from $20 to $200 depending on type and brand. |
| Professional vs. DIY | Can be used by both professionals and DIY enthusiasts with proper knowledge. |
Explore related products
What You'll Learn
- Prepare the Tester: Gather tools, locate fuel rail, relieve pressure, and connect tester
- Attach Gauge: Securely connect the gauge to the fuel pressure tester port
- Start Engine: Run engine, observe pressure, and compare to specifications
- Check for Leaks: Inspect connections for fuel leaks during testing
- Interpret Results: Analyze readings, diagnose issues, and adjust as needed
Prepare the Tester: Gather tools, locate fuel rail, relieve pressure, and connect tester
Before you can diagnose fuel system issues with a fuel pressure tester, proper preparation is key. This ensures accurate readings and, more importantly, your safety. Here's a breakdown of the crucial steps involved in preparing your tester:
Gather Your Arsenal: Think of this as assembling your diagnostic toolkit. You'll need the fuel pressure tester itself, a wrench or socket set to loosen fuel lines, safety goggles to protect your eyes from fuel spray, and nitrile gloves to shield your skin from contact with gasoline. Some testers may require additional adapters, so consult your tester's manual for specifics.
Locate the Fuel Rail: The Heart of the System
Imagine the fuel rail as the central highway for fuel delivery. It's a metal tube, typically located near the engine's intake manifold, that distributes fuel to each cylinder. Consult your vehicle's manual or online resources for the exact location of your fuel rail. It's often marked with a label or easily identifiable by its connection to the fuel injectors.
Relieve the Pressure: Safety First
Fuel systems operate under pressure, and releasing this pressure is crucial before connecting the tester. Failure to do so can lead to dangerous fuel spray and potential injury. Locate the fuel pressure relief valve, often found on the fuel rail or near the fuel pump. Depress the valve to release the pressure. You may hear a hissing sound as the pressure escapes. Connect the Tester: Establishing the Link
With pressure relieved, it's time to connect your tester. Attach the tester's hose to the fuel rail's Schrader valve (similar to a tire valve stem). Ensure a tight connection to prevent leaks. Some testers may require specific adapters, so refer to your tester's instructions for proper attachment. Once connected, you're ready to proceed with testing, armed with a properly prepared fuel pressure tester.
