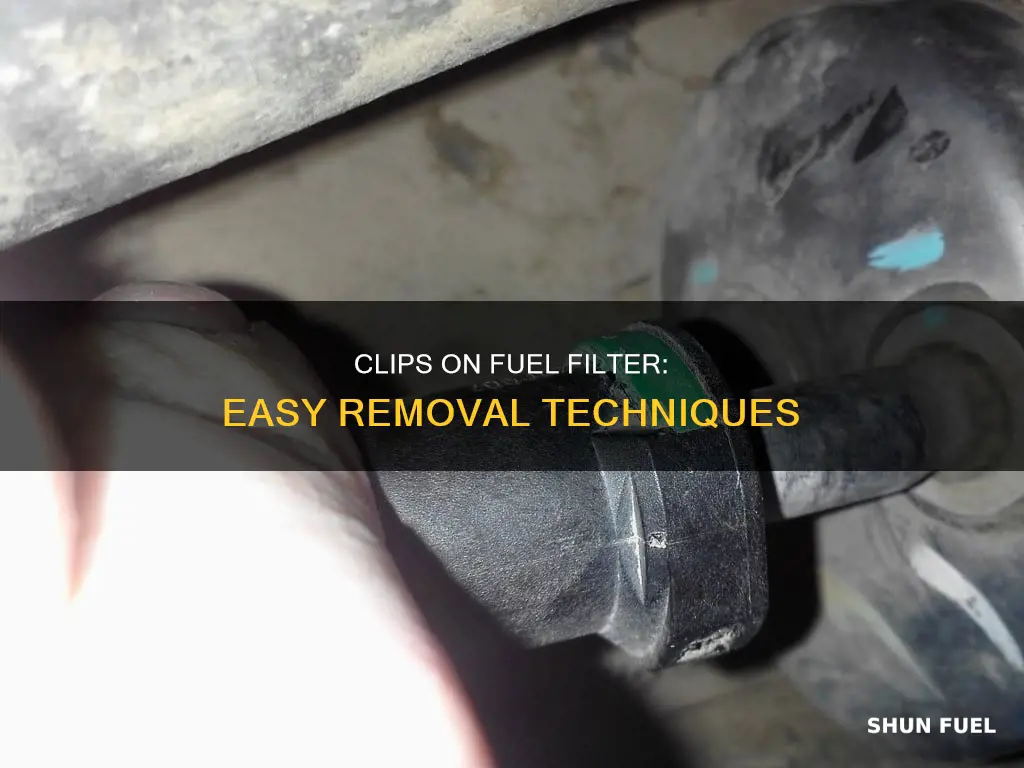

Changing the fuel filter is a part of regular vehicle maintenance. The fuel filter should be replaced at the manufacturer's recommended interval. This guide will explain how to remove a fuel filter with clips.
| Characteristics | Values |
|---|---|
| Fuel filter clip types | C-shaped, O-shaped |
| Tools for removal | Flat-head screwdriver, pliers, zip ties, baling wire, needle-nose pliers |
| Techniques | Push from the open end and pull from the closed end, squeeze and push clip, press the "magic" button, push down on the safety clip |
| Tips | Place a bowl or bucket underneath to catch any fuel, wear eye protection and gloves |
Explore related products
What You'll Learn
Use a screwdriver to lift the tab and remove the clips
Removing a fuel filter with clips can be a tricky task, but with the right tools and precautions, it can be done efficiently and safely. Here is a detailed, step-by-step guide on how to use a screwdriver to lift the tab and remove the clips from a fuel filter:
First, it is important to understand the different types of fuel filter clips. Common types include push-type clips, lever-type clips, and screw-type clips. Push-type clips have a spring-loaded mechanism that releases when pushed, lever-type clips have a lever that needs to be moved to disengage, and screw-type clips require a screwdriver to loosen and remove them. Identify which type of clip is on your fuel filter before proceeding.
Now, locate the clips on either side of the cylindrical fuel filter. Fuel filters typically have two plastic clips that hold them in place. These clips may be C-shaped or O-shaped. If the clips are O-shaped, you may need to squeeze the clip between the top and bottom or push the clip from the top toward the bottom to release it.
Once you have located the clips, use a flat-head or flat-blade screwdriver to lift the tab. Gently insert the screwdriver under the tab and apply gentle upward pressure to lift it. Be careful not to use excessive force, as the clips may break during removal. It is recommended to purchase replacement clips along with your new fuel filter in case of breakage.
With the tab lifted, you can now remove the clips. For push-type clips, use the screwdriver to gently push the release tab on the clip. The clip should disengage and detach from the housing. If you are dealing with lever-type clips, locate the lever and move it to the release position to disengage the clip. As for screw-type clips, use a screwdriver to loosen the screw on the clip before removing it.
After removing the clips, be sure to catch any spilled fuel with a bowl or bucket placed underneath the fuel filter. Fuel is highly flammable, so it is crucial to take safety precautions such as working in a well-ventilated area and wearing appropriate safety gear, including gloves and eye protection.
By following these steps, you can successfully use a screwdriver to lift the tab and remove the clips from a fuel filter. Remember to work carefully and take the necessary precautions to ensure a safe and efficient fuel filter replacement.
Draining Water from Your EcoDiesel Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Push from the open end and pull up from the closed end of C-shaped clips
To remove a fuel filter, you must first relieve the pressure in the fuel line. Place a bowl or bucket beneath the fuel filter to catch any fuel that drips or pours out. Next, remove the clips holding the fuel filter in place. Most fuel filters are held in place by two plastic clips. Locate the clips on either side of the cylindrical fuel filter, then use a flat-head screwdriver to pop them out of the holes they are in.
There are two kinds of clips: C-shaped and O-shaped. C-shaped clips can be removed by pushing from the open end and pulling up from the closed end. O-shaped clips are a little more challenging to remove. One method is to squeeze the clip between the top and bottom and then push the clip from the top towards the bottom. Another method is to use a suitable tool to release the quick-release coupling locking clip.
Once the clips are removed, slide the fuel lines away from the filter and tip the fuel lines towards the bowl or bucket to catch any spilled gasoline. Wear eye protection and gloves to protect yourself from fuel splatter. With the fuel lines disconnected, slide the fuel filter out of its bracket. The fuel filter will have a slight bell shape, allowing it to slide out in only one direction.
When installing a new fuel filter, slide the new filter into the bracket. The fuel filter should stop when it is seated properly and should only be able to slide all the way out in one direction. Fasten the fuel filter to the fuel line by sliding the fuel lines onto the front and back of the filter. Then, slide the plastic clips through the holes on the fuel line nozzle to secure the line in place on the fuel filter.
Fuel Filter Size: A Tiny Detail With Big Impact
You may want to see also
Explore related products
Squeeze the clip and push it from the top towards the bottom
To remove a fuel filter with clips, you must first relieve the pressure in the fuel line and place a bowl or bucket beneath the filter to catch any fuel that spills out. It is important to wear eye protection and gloves during this process.
Most fuel filters are held in place by two plastic clips. These clips can be removed by locating them on either side of the cylindrical fuel filter and using a flat-head screwdriver to pop them out of the holes. You may need to purchase replacement clips as these can break during removal.
If you are struggling to remove the clips, there are a few methods you can try. One method is to use two zip ties, taking the pointy end and sticking one in each side to press the tabs down. With pressure applied to the zip ties, push the fitting toward the filter until it clicks, and then pull it out. Another method is to use a screwdriver to lift up on the tab to help remove the clips. You can also try squeezing the two sides of the clip in while you push it a little, then using a small screwdriver to pull it the rest of the way.
If your fuel filter has C-shaped clips, you can push from the open end and pull up from the closed end. However, if your fuel filter has O-shaped clips, you may need to use a suitable tool to remove them. One method is to use a screwdriver to press a "magic" button that locks the connection, and then insert a second screwdriver to gently push the clip to the side.
Once the clips are removed, you can slide the fuel lines away from the filter and then slide the fuel filter out of its bracket.
Fitting a Fuel Filter: Corsa Edition
You may want to see also
Explore related products
Depress the 'magic' button to unlock the connection
Removing a fuel filter can be a challenging task, but it is possible with careful planning and execution. Before attempting to remove the fuel filter, it is advisable to relieve the fuel pressure in the system. This can be done by disconnecting the fuel line at the filter or by using a pressure relief valve. It is also important to wear protective gear, such as safety glasses and gloves, to safeguard your eyes and hands from any fuel splatter. Additionally, ensure adequate ventilation to avoid inhaling fuel fumes, and have a fire extinguisher readily available.
Now, let's focus on "Depress the magic button to unlock the connection." This step is crucial when removing fuel filters with clips, especially those used in Volkswagen (VW) vehicles. The clips that connect the fuel lines to the filter have a "magic" button or release button that needs to be depressed to unlock the connection. This button is often indicated by a yellow arrow. By depressing this button, you can easily remove the clips without breaking them. If you don't depress the button, you will most likely break the clip, leading to a major repair job.
To depress the "magic" button, you can use a flat-head screwdriver. Place the screwdriver against the button and apply gentle pressure to depress it. It doesn't take much force. While depressing the button, you can use another screwdriver (preferably a wider flat-head screwdriver) to gently pry the clip off the filter. Alternatively, you can use your fingers to squeeze the clip from the top and bottom while pushing it from the top toward the bottom. This two-step process of depressing the button and then removing the clip ensures a safe and efficient detachment of the fuel filter.
In some cases, the fuel filter clips may have different shapes, such as C-shaped or O-shaped. For C-shaped clips, you can push from the open end and pull up from the closed end. For O-shaped clips, one end is usually flush, while the other end protrudes slightly. You need to push the protruding end to release the clip. It is important to be gentle and not use excessive force to avoid damaging the fuel line or fittings.
By following these steps and paying attention to the specific clip shapes and the "magic" button, you can successfully remove the fuel filter clips and unlock the connection without causing any damage to your vehicle's fuel system. Remember to have the necessary tools, such as screwdrivers or zip ties, and always prioritize safety during the removal process.
Filtering Cooking Oil for Fuel: DIY Guide
You may want to see also
Explore related products
Push down on the safety clip to clear the fangs
To remove a fuel filter with clips, you will need to place a bowl or bucket beneath the fuel filter to catch any fuel that drips or pours out. It is important to wear eye protection and gloves to protect yourself from fuel splatter.
Most fuel filters are held in place by two plastic clips. To remove the clips, locate them on either side of the cylindrical fuel filter, then use a flat-head screwdriver to pop them out of the holes. These clips may break as you remove them, so purchasing replacement clips along with your new fuel filter is advised.
There are two common types of clips: C-shaped and O-shaped. For C-shaped clips, push from the open end and pull up from the closed end. O-shaped clips are a little more challenging to remove. One method is to squeeze the clip between the top and bottom and then push the clip from the top toward the bottom. Alternatively, you can use two zip ties: take the pointy end and stick one in each side to press the tabs down, then push the fitting toward the filter until it clicks, and then pull it out.
Once the clips are removed, slide the fuel lines away from the filter and tip them toward the bowl or bucket to catch any spilled gasoline. Now, you can slide the fuel filter out of its bracket. The fuel filter will have a slight bell shape, allowing it to slide out in only one direction.
Where is the Fuel Filter on a 3600 Onan Generator?
You may want to see also
Frequently asked questions
Push from the open end and pull up from the closed end.
Depress the "magic" button to unlock the connection. Then, insert a flat-head screwdriver between the clip and the filter and rotate it to push the clip to the side. Finally, slide the clip off with your hands.
Push down on the safety clip to clear the fangs, then pop off the clip.
