Reading a fuel oil tank gauge is a simple process that can help you manage your heating oil levels effectively. The gauge is usually a transparent glass or plastic cube or cylinder, located on top of the tank, with markings like F for Full, 3/4, 1/2, and 1/4, or sometimes E for Empty. The oil level can be estimated by observing the position of an indicator disc or float inside the gauge. While these gauges are useful, they are not always precise, especially when the tank is low, so it's recommended to order more oil when the gauge reads around 1/4 full. If your tank doesn't have a gauge, or it's faulty, you can use a long, slender stick to manually measure the oil level.
| Characteristics | Values |
|---|---|
| Purpose | To give an idea of how much oil is in the tank |
| Usual location | On top of the tank |
| Common markings | F, 3/4, 1/2, 1/4, E (Empty) |
| Reading method | Observe where the indicator disc/float aligns with the markings |
| Ordering oil | Recommended at around 1/4 or 30% full |
| Alternative methods | Use a slender, long stick that fits through the fill hole to manually measure |
| Tank capacity | Varies, e.g., 275 gallons, 330 gallons, 340 gallons, 420 gallons |
| Factors influencing oil usage | Outdoor temperature, heating equipment efficiency, home insulation |
Explore related products
What You'll Learn
- The gauge is usually a clear glass or plastic cube or cylinder with markings
- The markings are usually F, 3/4, 1/2, 1/4, E
- A quarter full tank is recommended when ordering a refill
- A float gauge may malfunction and need to be pushed down to test
- A manual method involves using a stick to measure fuel levels

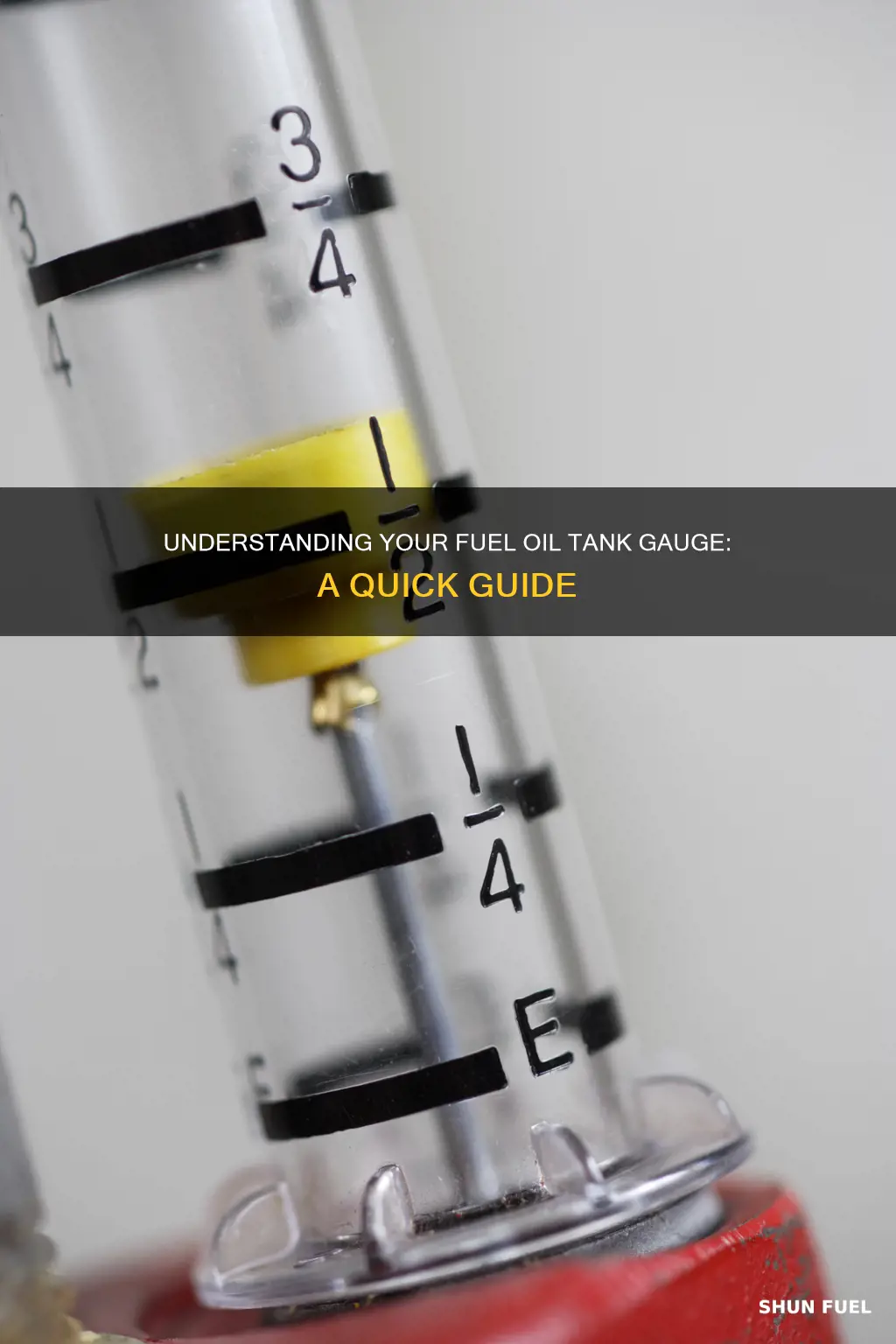

The gauge is usually a clear glass or plastic cube or cylinder with markings
The gauge on a fuel oil tank is usually a clear glass or plastic cube or cylinder with markings. It is typically located on top of the tank and features an indicator disc inside. This disc moves up and down according to the oil level, with markings on the side of the cylinder indicating the amount of oil remaining. Common markings include F for Full, 3/4, 1/2, 1/4, and E for Empty.
It is important to note that these gauges are not always precise, especially when the tank is low, due to the rounded bottom of the tank. As a result, it is recommended to reorder oil when the gauge reads around 1/4 full to prevent running out. This translates to approximately 60 gallons of oil remaining in a 240-gallon tank.
If the gauge is not functioning or the tank does not have a gauge, there are manual methods to determine the fuel level. One way is to use a long, slender stick that can fit through the tank's fill hole and span its entire height. After a recent refill, immerse the stick to mark the uppermost level of the fuel when the tank is full. In subsequent checks, compare the new mark to the "full" line to estimate how much oil is left.
Another option for a more precise reading is to use a Smart Oil Gauge or a yardstick, which can provide a better indication of the tank level. It is also important to regularly check the functionality of the gauge by removing the outer casing and gently pushing the float downward. If the float rises back up to its original position, the gauge is working properly.
Disconnecting Fuel Lines: A Guide to Safely Detaching from Gas Tanks
You may want to see also
Explore related products
The markings are usually F, 3/4, 1/2, 1/4, E
The markings on a fuel oil tank gauge, often labelled as F, 3/4, 1/2, 1/4, and E, are designed to indicate the level of fuel in the tank. These markings serve as a guide to help you monitor your fuel levels and plan refills accordingly. While the specific meanings of "F" and "E" may vary slightly depending on the context and automaker's calibration, here's a general understanding of these markings:
F (Full): The "F" marking on the fuel oil tank gauge typically indicates that the tank is full or very close to full. When the float in the tank is at its highest position, the needle on the gauge should point to or be near the "F" marking. In some cases, the tank may even be filled slightly above the "F" mark, but this is not recommended as oil expands and contracts with temperature changes.
3/4, 1/2, and 1/4: These fractions provide a visual representation of the fuel level in the tank. For example, when the needle points to 1/2, it indicates that the tank is approximately half full. These markings help you monitor your fuel usage and anticipate when you may need to refill.
E (Empty or Emergency): The "E" marking on the fuel oil tank gauge is often associated with an empty or near-empty fuel level. However, it's important to note that "E" does not necessarily mean the tank is completely empty. Most vehicles still have a reserve of fuel, typically around one to two gallons, remaining when the gauge reaches "E." Therefore, some interpret "E" as standing for "emergency," indicating that it's time to refuel to prevent running out of fuel.
It's worth mentioning that the fuel oil tank gauge may not always provide an accurate reading due to potential issues with the float mechanism or calibration. In such cases, alternative methods like manual measurement using a long stick can be employed to check the fuel level. Additionally, it is generally recommended to order a refill when the tank reaches the 1/4 mark to ensure a consistent fuel supply.
Accessing Your Chainsaw's Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
A quarter full tank is recommended when ordering a refill
Fuel oil tank gauges are designed to give you an idea of how much oil is in your tank. It is recommended that you order a refill when your tank is about a quarter full. This is because a quarter of a tank can last a few weeks, but scheduling a refill sooner rather than later is a good idea. For example, if outdoor temperatures average about 32° over a 24-hour period, a 2,500 square foot house will burn about six or seven gallons of heating oil per day. So, if you have a quarter of a tank of oil left in your 275-gallon tank, you will have enough oil to last about a week.
Additionally, it is important to note that a tank cannot be filled to the top as oil expands and contracts with temperature. There is a whistle about 6 inches down from the top of the tank that alerts the driver when to shut down the delivery. Therefore, by ordering a refill at the quarter mark, you ensure that you never run out of oil unexpectedly.
In the case of a faulty gauge or a tank without a float gauge, you can use a manual measurement method. This involves using a long, slender stick that fits through the tank's fill hole. After a recent refill, immerse the stick to identify the fuel's uppermost level, and mark this point. In subsequent checks, you can use the marked stick to gauge how much the fuel level has dropped.
Furthermore, letting your oil tank level drop below an eighth of a tank increases the odds of damaging your fuel system. This is because running the gas too low can pick up sediment from the bottom of the tank, which can then clog your fuel filter. Therefore, it is advisable to refill your tank when it is about a quarter full to avoid any issues with your fuel system.
Overall, by ordering a refill when your fuel oil tank is about a quarter full, you can ensure that you have enough oil to last a short period, avoid running out unexpectedly, and prevent potential damage to your fuel system.
Building a Go-Kart Fuel Tank: DIY Guide
You may want to see also
Explore related products
A float gauge may malfunction and need to be pushed down to test
A float gauge is a handy tool for estimating fuel levels in your tank. It is usually located on top of the tank and consists of a clear glass or plastic cube or cylinder with a float inside. The float rises and falls with the fuel level, indicating the amount of fuel in the tank. While these gauges are useful, they are not immune to issues and may occasionally malfunction.
If you suspect that your float gauge is not working correctly, there is a simple test you can perform to verify its functionality. First, carefully remove the protective casing or outer case of the gauge. Then, gently push the float downward and release it. If the float moves back up to its original position, your gauge is working properly. This test is similar to how you would test a float in a car's fuel gauge.
Upon releasing the float, if it does not rise back to its original position, your gauge may be malfunctioning. In this case, it is advisable to contact a professional for further assistance. It is worth noting that float gauges are not considered precision equipment, and the float can be prone to wear over time or lose buoyancy. Therefore, they should only be used as an approximation of the fuel level in your tank.
To manually measure the fuel level in your tank, you can use a long, slender stick that fits through the tank's fill hole. After a recent refill, immerse the stick to mark the fuel's uppermost level. In subsequent checks, use the marked stick to gauge the fuel level drop and ensure you don't unexpectedly run out of fuel. Remember that ordering a refill when your tank is at least a quarter full is generally recommended.
Fueling Full Tank: US Pumping Essentials
You may want to see also
Explore related products
A manual method involves using a stick to measure fuel levels
If you encounter a faulty gauge or a tank without a float gauge, there is no need to worry, as there are alternative methods to determine the fuel level. One such method is a manual technique that involves using a slender, long stick that can easily fit through the tank's fill hole and span its entire height.
To use this method, start by immersing the stick into the tank immediately after a recent refill to identify the fuel's uppermost level when the tank is near its full capacity. Mark this point on the stick. During subsequent checks, you can use this marked stick to gauge how much the fuel level has dropped, ensuring you never run out unexpectedly.
Additionally, you can measure the fuel level by lowering the stick into the tank as straight as possible until it gently touches the bottom. Then, remove the stick and note how many inches up the stick the oil reached. Afterward, measure the dimensions of your tank and use an online tank calculator to estimate your fuel level accurately.
For those with a round tank, a depth measurement with a stick is recommended as the most accurate method. Mark the stick at the diameter divided by four. Dip the stick into the tank, push it to the bottom, and then pull it out to see the wet mark. This method accounts for the change in the volume of fuel in each quarter of the tank due to its shape.
Remember, it is always recommended to schedule a refill when your tank reaches around 30% full to ensure you never run out unexpectedly.
Buick Century Fuel Tank: How Big Is It?
You may want to see also
Frequently asked questions
Your heating oil tank gauge is a clear glass or plastic cube or cylinder, usually located on top of the tank.
The markings on the gauge indicate how full the tank is. The markings are usually F, 3/4, 1/2, 1/4, and E (Empty). If the marker is at the bottom of the gauge or not visible, your tank is empty or nearly empty.
If your gauge is faulty, you can use a manual method to measure the fuel level. Use a slender, long stick that can fit through the tank's fill hole and span its entire height. After a recent refill, immerse the stick to identify the fuel's uppermost level and mark this point. In subsequent checks, use the stick to gauge how much the fuel level has dropped.
It is recommended to order more fuel when your tank is around 30% full. This gives you a few days for the oil to arrive before running out.
