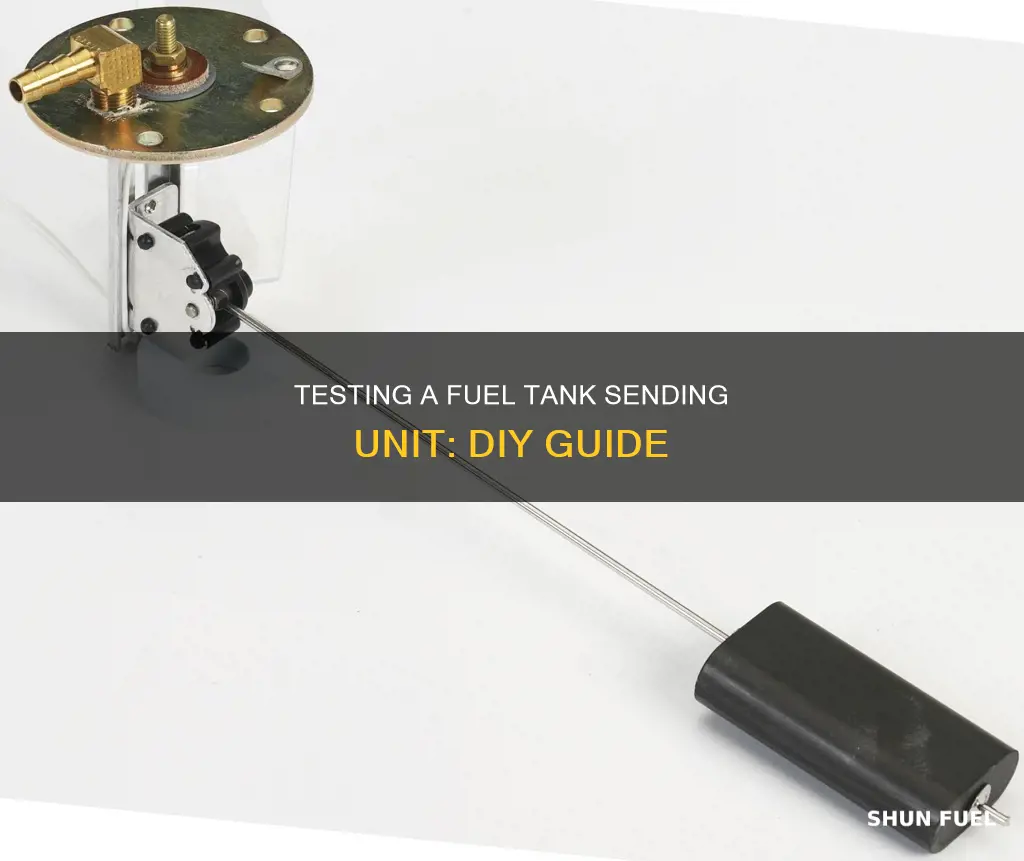

Testing a fuel tank sending unit is important to ensure the safety of the vehicle and its occupants. A faulty fuel sender can cause the fuel quantity indicator to fluctuate, leading to potential fuel exhaustion in critical situations. To test a fuel tank sending unit, you can start by checking the power and ground connections, as well as the voltage. You can then disconnect the sender wires and connect them to an ohmmeter or multimeter to test for resistance. For an aviation fuel sending unit, you can test the resistance output to ensure accurate fuel level readings. Additionally, you can refer to specific guides and videos available online for detailed instructions on how to test different types of fuel sending units.
| Characteristics | Values |
|---|---|
| Testing tools | Battery-powered probe, ohmmeter, multimeter, DVM |
| Testing process | Check for ground, check for power to the sending unit, disconnect sender wires, connect wires to ohmmeter/multimeter, set signal to resistance, check for continuity |
| Expected readings | Empty: 240 ohms, 237 ohms, 73 ohms; Half-full: 103 ohms; Full: 33 ohms, 30 ohms, 10 ohms |
| Troubleshooting | Check wiring and gauge, investigate resistance output, test across two wires coming out of the top of the sender, refer to manufacturer specifications |
Explore related products
What You'll Learn
Check for continuity between the two posts on the fuel tank sender
To check for continuity between the two posts on the fuel tank sender, you will need to perform a continuity test. This can be done by using a multimeter, which can be set to the Ω setting. First, disconnect the wires at both ends. Next, take the red probe of the multimeter and connect it to the post that is the gauge lead. Then, take the black probe and connect it to the ground post or the body of the fuel sender. This will allow you to test the continuity of the run.
It is important to note that the sender's resistance should match that of the gauge. For example, the resistance of a stock gauge in a 55 Chevy is zero ohms when empty and 30 ohms when full. If your gauge reads full but the tank is not, the sender may not have a proper ground or there could be a break in the sender lead wire.
Additionally, the wiring colours can be important. For instance, the sender wire should be yellow with a white tracer, and the ground for both circuits is the chassis. However, it is recommended to refer to the wiring diagram that comes with the kit, as there may be variations.
If you are still unsure about the continuity or electrical issues, it is advised to consult a professional or refer to a detailed troubleshooting guide specific to your vehicle's make and model.
Dual Fuel Tanks: Understanding the System Diagrammatically
You may want to see also
Explore related products
Check for power, ground, and voltage
To check the power, ground, and voltage of a fuel tank sending unit, you can perform the following steps:
First, disconnect the wires at the tank sender. This will allow you to check the resistance and ensure there is no power still running to the sending unit. For American Standard senders, the empty tank position should read around 240 ohms, the half-level position should be around 103 ohms, and the full position should read approximately 33 ohms. You can interpolate the readings for different estimated fuel levels.
If you are using a battery-operated test probe, you should see at least a faint light on the sender connections. If there is no light, it could indicate a problem with the sending unit or the battery.
Next, check for power to the sending unit. With the key turned on, you should see a response, such as a blinking light. If there is no response, check the wiring and connections to ensure proper power delivery.
Additionally, verify the ground connection. The ground wire must be properly grounded to a common ground or the negative terminal of the battery. The wiring connector to the sender should have two wires, and you can identify the ground wire by its colour code. For some models, the ground for both circuits is the chassis.
By following these steps, you can effectively check the power, ground, and voltage of a fuel tank sending unit, helping to diagnose any issues and ensure accurate fuel gauge readings.
Ford F-350 Fuel Tank Capacity: How Big Is It?
You may want to see also
Explore related products
![[2-Pack] Reusable Ethanol Testing Kit - Wide Mouth Fuel Test Bottle for E85 and Ethanol Levels - Fewer Spills and Clear Results in Minutes - Test Hundreds of Times - Two Ethanol Test Bottles Included](https://m.media-amazon.com/images/I/71sU-J0V11L._AC_UL320_.jpg)
Check the sending unit's ground wire
When troubleshooting fuel gauge anomalies, it is recommended to start with the fuel tank's sending unit as this is the most common source of incorrect readings. The sender draws power through the gauge connection. The sending unit's ground wire must be properly grounded to a common ground or to the negative on the battery.
To check the sending unit's ground wire, you can perform the following steps:
- Disconnect the sender wires at the sending unit.
- Connect the two wires to an ohmmeter or multimeter and set the signal to resistance.
- Take a measurement of the sender at empty and full positions. This can be done by either draining and then refilling the tank or removing the sending unit from the tank and manually operating the float by hand. For American Standard, the meter will show 240 ohms at empty and 30 ohms at full. On a 1983 model, the sending unit should read 73 ohms empty and 10 ohms full.
- Sweep the sending unit from full to empty or vice versa, and observe if the change in the ohms reading is smooth.
- If the sending unit is not installed, you will need to provide a ground to complete the connection.
- Check if the ground wire is mixed up or broken.
- If the tank is grounded, the sending unit is also grounded. Ensure that the ground wire is properly connected to the sending unit and the tank.
- Run a wire from a clean area of the body of the sending unit to a clean and unpainted area on the frame or body and observe if the behaviour changes.
- If the gauge needle doesn't drop to empty with the sender wire disconnected, the gauge is defective.
- Power up the gauge and use a paper clip to jump the S terminal to the G terminal. This creates a direct path to ground, and if the gauge is functioning properly, the needle will jump from empty to full with the paper clip in place and drop from full to empty when the paper clip is removed.
A Dry Fuel Tank: Removing Moisture, the Right Way
You may want to see also
Explore related products
Disconnect the sender wires and connect to an ohmmeter or multimeter
Disconnecting the sender wires and connecting them to an ohmmeter or multimeter is a crucial step in testing a fuel tank sending unit. This process allows you to measure the electrical resistance in the circuit and determine if the sending unit is functioning correctly. Here's a detailed guide on how to approach this step:
- Disconnect the Sender Wires: Turn off the vehicle or disconnect the battery to ensure no power is running through the system. Locate the wiring harness connected to the fuel tank sending unit. Carefully disconnect the wires from the sending unit, making sure you know which wire connects to which terminal.
- Prepare the Ohmmeter or Multimeter: Set the device to measure resistance, typically denoted by the omega symbol (Ω). Ensure the ohmmeter or multimeter is functioning properly by performing a simple test, such as measuring the resistance of a known resistor.
- Connect the Wires to the Ohmmeter or Multimeter: Identify the two wires coming from the sending unit. Connect one wire to the positive terminal of the ohmmeter or multimeter, and the other wire to the negative terminal. Ensure a secure connection between the wires and the meter terminals.
- Take Measurements: With the wires connected to the meter, you can now take resistance measurements. For an accurate assessment, it is recommended to measure the resistance at both the empty and full fuel tank levels. This can be done by draining and refilling the tank or manually operating the float by hand if the sending unit has been removed from the tank. Take note of the resistance values at each level.
- Interpret the Results: Compare the measured resistance values with the expected values for your specific fuel tank sending unit. For example, for American Standard, the resistance should be approximately 240 ohms at empty and 30 ohms at full. If your measurements fall within the acceptable range, the sending unit is likely functioning correctly. However, if the readings are significantly off, it may indicate a faulty sending unit or an issue with the wiring or gauge.
By following these steps and analyzing the results, you can gain valuable insights into the functionality of your fuel tank sending unit and take appropriate action, such as repairing or replacing the unit if necessary.
Monitoring Your Fuel Oil Tank Levels
You may want to see also
Explore related products
Measure the sender at empty and full positions
To measure the sender at empty and full positions, you can either drain and then refill the tank with the sending unit installed, or you can remove the sending unit from the tank and manually operate the float by hand.
If you are testing a 1983 model, the sending unit should read 73 ohms when empty and 10 ohms when full. When sweeping the sending unit from full to empty, the change in ohms reading should be smooth.
To test the resistance output of a fuel sending unit, you can use a multimeter. Set the multimeter to the Ω setting and put the red probe on the post that is the gauge lead. Put the black probe on the ground post or on the body of the fuel sender. Record your readings with the fuel sender in the empty position and in the full position. These two numbers will tell you the ohm range of your sender.
If you are testing a resistive fuel level sender, the unit should be on a test bench and cleaned of any debris or excess fuel. Connect the black test lead to the common (ground) terminal. Connect the red test lead to the reference terminal (marked with a “V”). Set your multimeter to measure ohms and refer to your specific model’s manual for instructions. Attach the black lead to the sender’s flange or ground terminal. Attach the red lead to the center stud of the sender. Check the multimeter for a resistance reading (ohms). If no value is displayed, adjust the lead positions until you get a reading. Ensure the multimeter is set correctly. Slowly move the float arm from its lowest to highest position. Observe the resistance value; it should change consistently. Check your maintenance manual for expected values and directions of change.
Get Licensed to Drive Fuel Tankers in the UK
You may want to see also
Frequently asked questions
There are a few ways to test a fuel tank sending unit. One way is to check the sending unit's ground and power. Check for continuity between the two posts on the fuel tank sender. You can also try testing the sending unit with a battery-powered probe.
A properly working fuel tank sending unit will read between 33Ω and 240Ω. If you have a European boat or a boat with VDO gauges, the resistance readings may differ.
Disconnect the wires at the tank sender and check the resistance. If the sender and gauge are American Standard, the sender is wired to just one helm gauge, and empty should be ~240 ohms, 1/2 level ~103 ohms, and full ~33 ohms.
Disconnect the two wires from the sender. Turn the key on. The gauge should read empty. Now, connect the two wires together. The gauge should read full. If the desired results are not observed, it could be an issue with the wiring.
