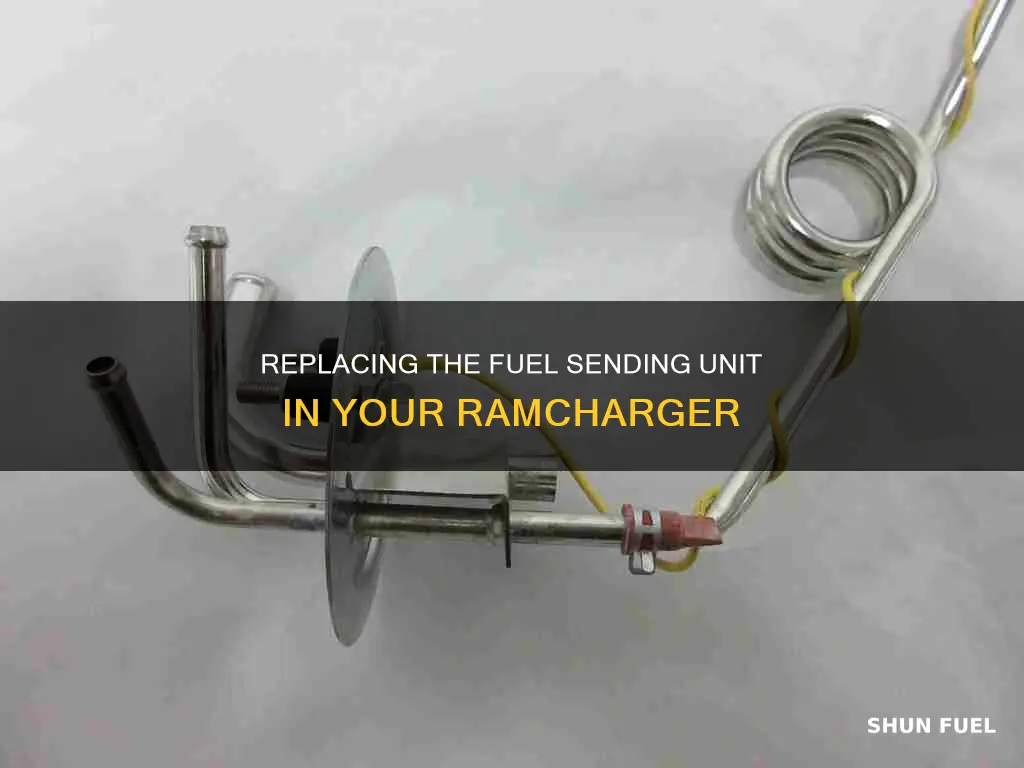

Replacing The Fuel Sending Unit: A Step-By-Step Guide For Your Ramcharger

Replacing the fuel sending unit on a Ramcharger can be a challenging but rewarding task. This process involves removing the old unit and installing a new one, ensuring your vehicle's fuel system operates efficiently. Here's a step-by-step guide to help you through the process, covering the necessary tools, safety precautions, and the replacement procedure.

Accessing the Fuel Sending Unit: Locate the unit under the hood or in the fuel tank, disconnect electrical connections

To access the fuel sending unit on a Ramcharger, you'll need to locate it, which can be found either under the hood or in the fuel tank. The specific location may vary depending on your vehicle's model and year, so it's essential to consult your vehicle's manual or online resources for precise guidance. Once you've identified the unit's position, carefully inspect the area to ensure you have a clear view and access to all necessary components.

Under the hood, the fuel sending unit is typically mounted near the engine or in the firewall. It is often connected to the fuel pump and the fuel gauge. Carefully inspect the electrical connections to the unit. These connections are usually in the form of small wires or terminals, and they may be secured with clips or screws. Take note of the arrangement and color-coding of these connections to ensure proper re-connection later.

If the fuel sending unit is located in the fuel tank, you will need to drain the fuel tank and remove any debris or sediment that may have accumulated. This process ensures a safe and clean environment for working on the unit. Once the tank is empty, carefully remove the unit from the tank, taking note of its orientation and any securing mechanisms.

When disconnecting the electrical connections, exercise caution to avoid damaging the wires or terminals. Gently pull the wires apart, being mindful of any clip or retention mechanism that holds them in place. It is crucial to label or photograph the connections to remember their original configuration, as this will be essential for re-installation.

By following these steps, you can safely and effectively access the fuel sending unit on your Ramcharger, setting the stage for the subsequent replacement process. Remember to work systematically and refer to your vehicle's manual for any specific instructions or precautions related to your particular model.

Removing the Old Unit: Carefully detach the old sending unit, ensuring no fuel spills

To replace the fuel sending unit on a Ramcharger, you'll need to carefully follow these steps to ensure a successful and safe repair. Begin by locating the old sending unit, which is typically found under the hood or in the fuel tank area. It is crucial to identify the specific type of sending unit your Ramcharger uses, as different models may have varying configurations. Once located, you'll need to detach the unit from its mounting. Start by disconnecting any electrical connections and hoses attached to the sending unit. Take note of the connections and their positions to make reinstallation easier.

Carefully lift the sending unit out of its housing, ensuring you do not force it to avoid damage. If the unit is difficult to remove, you may need to pry it out gently with a flathead screwdriver or a similar tool. As you remove the unit, be cautious of any fuel lines or hoses that may be connected. If you encounter any, disconnect them and set them aside, ensuring they are not damaged during the process. The key to this step is to take your time and be gentle to prevent any fuel spills, which can be messy and potentially dangerous.

Once the old sending unit is out, inspect the area for any signs of corrosion or damage. Cleaning the fuel tank and surrounding components is essential to ensure optimal performance. If you notice any issues, address them before proceeding with the replacement. With the old unit removed, you can now prepare for the installation of the new sending unit. Ensure you have the correct replacement part and follow the manufacturer's instructions for a successful installation.

Remember, when working with fuel systems, safety should always be a priority. Take the necessary precautions, such as wearing protective gear and ensuring proper ventilation, to minimize any potential hazards. By carefully detaching the old sending unit and taking the time to prevent fuel spills, you'll be well on your way to a successful fuel sending unit replacement on your Ramcharger.

Preparing the New Unit: Inspect and clean the new sending unit, check for any defects

Before you begin the replacement process, it's crucial to ensure that the new fuel sending unit is in optimal condition. Start by carefully inspecting the unit for any visible defects or damage. Check for any cracks, corrosion, or signs of wear and tear. If you notice any issues, it's best to contact the manufacturer or a qualified mechanic to obtain a replacement unit that meets the required specifications.

Once you have a new sending unit, it's essential to clean it thoroughly. Remove any packaging or protective covers to expose the unit. Use a mild detergent or a specialized cleaner designed for fuel system components to clean the unit. Pay attention to the electrical connections and ensure they are free from any dirt or corrosion. Rinse the unit thoroughly with clean water to remove any residue and allow it to dry completely.

After cleaning, perform a visual inspection to ensure the unit is in good shape. Check for any loose connections, damaged wiring, or bent pins. Verify that all components are properly aligned and functioning as intended. It's important to identify any potential issues early on to avoid complications during the installation process.

Additionally, consider testing the new sending unit's functionality. You can use a multimeter to check the continuity and resistance of the electrical circuits within the unit. This step will help ensure that the unit is operational and ready for installation. If any defects or issues are found, address them promptly to guarantee a successful replacement.

By following these preparation steps, you'll be well-prepared to install the new fuel sending unit on your Ramcharger. Taking the time to inspect, clean, and test the unit will contribute to a smooth and efficient replacement process, ensuring your vehicle's fuel system operates optimally.

Installation Process: Follow a step-by-step guide, reconnect electrical wiring, and secure the new unit

To replace the fuel sending unit on your Ramcharger, follow these detailed steps to ensure a successful installation:

Step 1: Prepare the Vehicle and Gather Tools

Before you begin, ensure you have the necessary tools and a clean workspace. Park your Ramcharger on a level surface, engage the parking brake, and allow the engine to cool down. Gather the replacement fuel sending unit, a new fuel filter (if required), and the appropriate tools, including a socket set, wrenches, and a new fuel line if needed.

Step 2: Locate the Old Fuel Sending Unit

Locate the old fuel sending unit, which is typically mounted near the fuel tank. It is usually connected to the fuel line and has electrical connections. Carefully inspect the unit and take note of its position and any unique features or mounting clips. This will help you align the new unit correctly.

Step 3: Remove the Old Unit

Start by disconnecting the electrical connections. Carefully detach the wires and set them aside. Then, remove any mounting clips or fasteners securing the old fuel sending unit. Lift the unit out of its mounting position and set it aside, ensuring you don't lose any small parts.

Step 4: Install the New Fuel Sending Unit

Place the new fuel sending unit into the mounting position, aligning it with the existing fuel line and electrical connections. Secure the unit using the appropriate fasteners and ensure it is tightly in place. Double-check that all connections are secure and that there is no movement or play in the unit.

Step 5: Reconnect Electrical Wiring

Carefully reconnect the electrical wires to the new fuel sending unit, ensuring they are properly aligned and secured. Use electrical tape or heat shrink to insulate the connections and prevent any short circuits. Double-check the wiring diagram or consult the vehicle's manual to ensure correct polarity and connection.

Step 6: Final Checks and Security

Once the new fuel sending unit is installed, perform a few final checks. Ensure that all connections are tight and secure. Check for any leaks around the fuel lines and fittings. Start the engine and monitor for any unusual noises or vibrations. If everything is functioning correctly, you can now secure the new unit with any remaining fasteners, ensuring it is firmly in place.

Remember, if you encounter any specific issues or complexities during the installation, consult the vehicle's manual or seek professional assistance to ensure a safe and successful replacement.

Testing and Calibration: Verify proper function, check fuel levels, and calibrate the system if necessary

Before you begin the replacement process, it's crucial to ensure that the fuel sending unit is functioning correctly and that the entire system is calibrated properly. This step is essential to prevent any potential issues with the fuel gauge and the engine's performance. Here's a detailed guide on how to verify and calibrate the system:

Verifying Proper Function:

Start by checking the fuel gauge's accuracy. Ensure that it reflects the correct fuel level when the tank is full and empty. You can do this by adding a small amount of fuel and observing if the gauge reads the appropriate level. Similarly, drain some fuel and check if the gauge accurately displays the decreasing fuel level. This verification process ensures that the fuel sending unit is sending the correct signals to the gauge. If the gauge readings are inconsistent, it might indicate a faulty sending unit or a problem with the wiring.

Checking Fuel Levels:

Physically inspect the fuel tank to determine the actual fuel level. This step is crucial as it provides a reference point for calibration. Remove the fuel cap and visually inspect the fuel level. Compare it with the fuel gauge reading. If there's a significant discrepancy, it suggests that the fuel sending unit may need adjustment or replacement. Note the actual fuel level and use this information for calibration.

Calibration Process:

Calibration is necessary to ensure accurate fuel level readings. If the fuel sending unit is functioning correctly but the gauge is still inaccurate, you may need to calibrate it. This process involves adjusting the unit's sensitivity to match the actual fuel level. You can typically find calibration procedures in the vehicle's service manual. It often involves using a specialized tool to adjust the sending unit's float or arm. Carefully follow the manufacturer's instructions to avoid any damage. After calibration, retest the fuel gauge to ensure it now provides accurate readings.

System Testing:

After replacing or calibrating the fuel sending unit, conduct a thorough system test. Start the engine and monitor the fuel gauge's response to various fuel levels. Ensure that it accurately reflects the changes in fuel quantity. Check for any error codes or warning lights on the dashboard related to the fuel system. If any issues persist, further investigation may be required to identify and resolve the problem.

Remember, proper testing and calibration are critical to ensuring the reliability of your fuel system. By following these steps, you can verify the functionality of the fuel sending unit and calibrate the system to provide accurate fuel level readings, ultimately contributing to the overall performance and safety of your vehicle.
