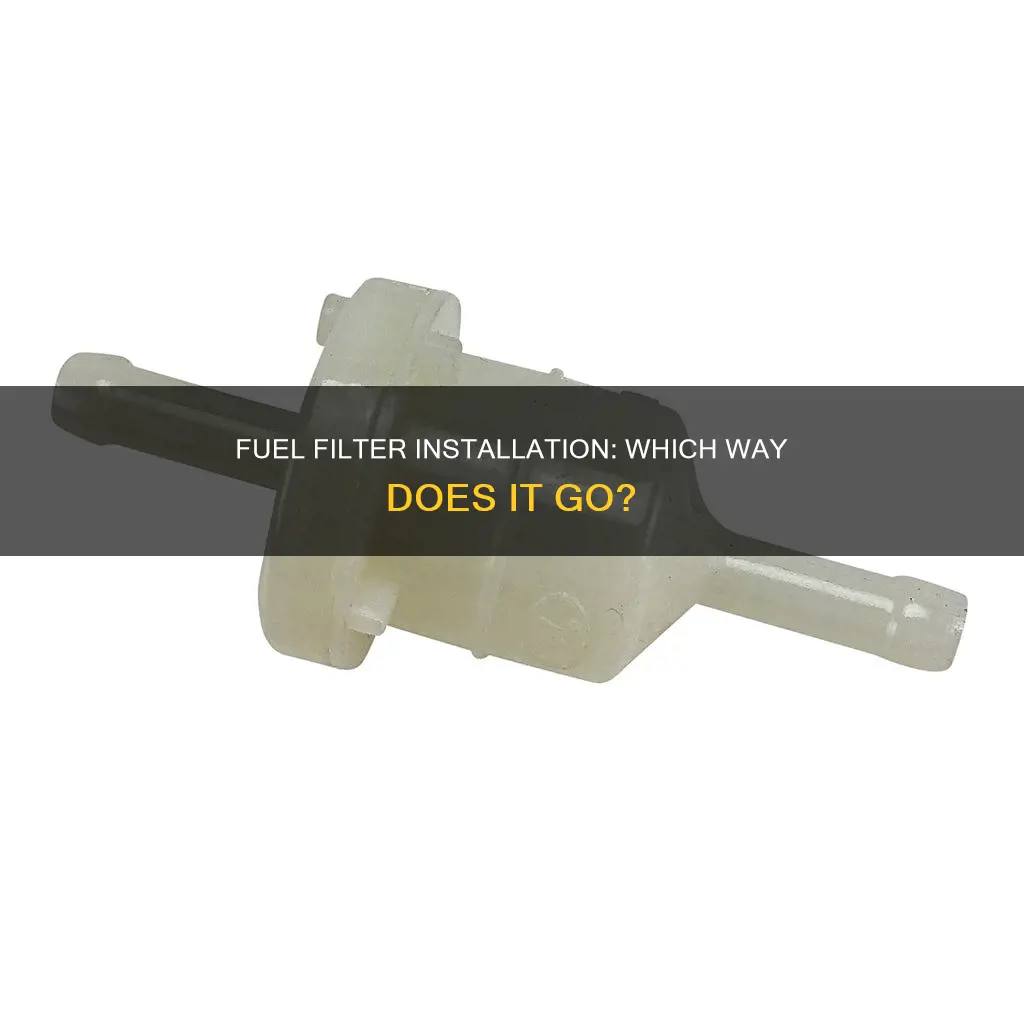

Installing a fuel filter the wrong way can cause a lot of problems, from poor engine performance to engine damage. It is important to know the correct way to install a fuel filter. The direction of the fuel filter is determined by the type of filter. For instance, log-style filters flow from the outside in and should be installed with the closed end of the filter toward the fuel cell. On the other hand, the direction of small screen filters does not matter. However, paper pleated filters should have the closed end of the cone facing the tank.
Characteristics and Values pertaining to 'how do I know which way my fuel filter goes'
| Characteristics | Values |
|---|---|
| Fuel filter direction | The arrow on the fuel filter should point towards the fuel pump, which is between the fuel source and the fuel pump. |
| Fuel filter installation | The closed end of the cone-shaped filter should face the tank. The filter should be installed with the closed end towards the fuel cell and the spring at the closed end. |
| Fuel line identification | The fuel line coming from the side and below the vehicle is usually from the tank, while the other one leads to the engine. |
| Fuel flow | Fuel typically flows from the tank to the fuel pump, then to the fuel filter, and out through the left side to the short black hose. |
| Fuel filter replacement | When replacing the fuel filter, ensure the new filter slides easily into its bracket and stops when seated properly. The fuel lines should be snug on the nozzles before sliding the clips into place. |
Explore related products
$6.82
$51.99
What You'll Learn
- Fuel filter direction: closed end of the cone always faces the tank
- Fuel flow: from the tank to the fuel pump, then the filter
- Fuel line: the hose coming up from the side and below comes from the tank
- Fuel filter installation: slide the fuel lines onto the front and back of the filter
- Fuel filter orientation: the arrow on the filter should point toward the fuel pump
Fuel filter direction: closed end of the cone always faces the tank
When installing a fuel filter, it is important to know which way it goes to ensure that your vehicle functions properly and safely. While the direction may not seem immediately obvious, there are some indicators to help you.
For cone-shaped fuel filters, the closed end of the cone should always face the tank. This is because sediment will build up around the outside base of the element, rather than on the inside, which could choke off the fuel supply. This means that the wider portion, or base, of the cone should face the carburettor.
Some fuel filters also have an arrow embossed on the housing, indicating the direction of flow. If you are still unsure, you can try blowing through the filter and feeling the output with your finger. The direction with greater flow is the direction it should be mounted.
It is important to note that for small screen filters, it does not matter which side faces the carburettor or tank. However, for paper pleated filters, the closed end should always face the tank.
