Sylvie Willis

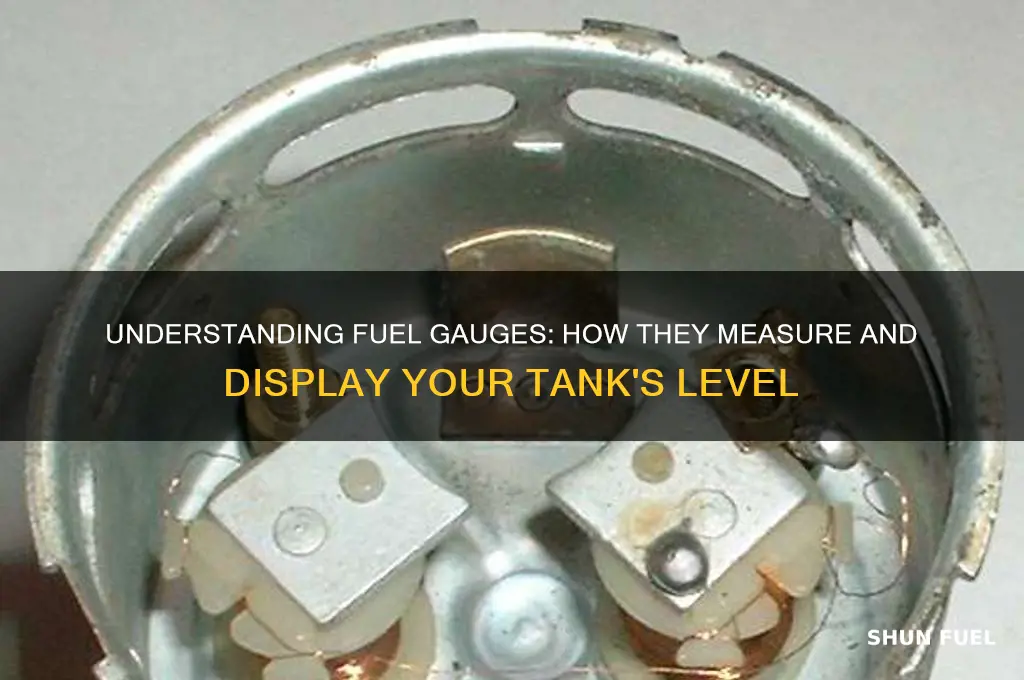

Fuel gauges are essential components in vehicles that provide drivers with real-time information about the amount of fuel remaining in the tank. They operate based on a simple yet ingenious system involving a float, a variable resistor, and an electrical circuit. Inside the fuel tank, a float is connected to a metal rod that moves up and down as the fuel level changes. This rod is linked to a variable resistor, which adjusts its resistance based on the float's position. The electrical circuit measures this resistance and sends the data to the fuel gauge on the dashboard, where it is translated into a visual indicator—typically a needle or a digital display—showing the driver how much fuel is left. This system ensures accurate and reliable fuel level monitoring, helping drivers avoid running out of fuel unexpectedly.
| Characteristics | Values |
|---|---|
| Operating Principle | Measures fuel level using a float and potentiometer or sensor system. |
| Components | Float, potentiometer/sensor, gauge display, wiring harness. |
| Float Material | Typically foam or plastic (low density to float on fuel). |
| Sensor Type | Resistive (potentiometer) or capacitive sensors (modern vehicles). |
| Gauge Display | Analog (needle) or digital (LCD/LED) display. |
| Accuracy | Varies; modern systems are more accurate (±2-5% error). |
| Power Source | Vehicle’s electrical system (12V or 24V). |
| Range | Typically 0-100% or E (Empty) to F (Full). |
| Calibration | May require calibration for aftermarket installations or repairs. |
| Common Issues | Float sticking, sensor failure, wiring faults, inaccurate readings. |
| Modern Enhancements | Digital fuel gauges with real-time fuel consumption and range estimates. |
| Compatibility | Works with gasoline, diesel, and other liquid fuels. |
| Environmental Impact | Minimal; no direct emissions, but accuracy affects fuel efficiency. |
| Maintenance | Rarely requires maintenance; check for loose connections or corrosion. |
| Cost | Replacement parts range from $50 to $200 depending on vehicle and type. |
Explore related products
What You'll Learn
- Float and Resistor Mechanism: Explains how a float moves along a resistor to measure fuel level
- Capacitive Fuel Sensors: Describes sensors using capacitors to detect fuel level changes accurately
- Digital vs. Analog Displays: Compares how digital and analog gauges show fuel levels differently
- Sending Unit Functionality: Details the role of the sending unit in transmitting fuel data
- Calibration and Accuracy: Discusses how fuel gauges are calibrated for precise readings
Float and Resistor Mechanism: Explains how a float moves along a resistor to measure fuel level
The float and resistor mechanism is a cornerstone of traditional fuel gauge systems, offering a simple yet effective way to measure fuel levels in vehicles. At its core, this system relies on the principles of buoyancy and variable resistance. A float, typically made of a lightweight material like foam or hollow plastic, is designed to sit atop the fuel in the tank. As the fuel level changes, the float moves up or down accordingly. This vertical movement is then translated into an electrical signal that the fuel gauge can interpret.
Attached to the float is a metal rod or arm that connects to a variable resistor, often called a potentiometer. This resistor is grounded at one end and connected to the fuel gauge at the other. As the float rises or falls with the fuel level, the rod slides along the resistor, altering the resistance in the circuit. When the tank is full, the float is at its highest point, and the resistance is minimal, sending a high current to the gauge, which displays a full tank. Conversely, when the tank is empty, the float drops, increasing resistance and reducing the current, signaling an empty tank.
Understanding this mechanism is crucial for troubleshooting fuel gauge issues. For instance, if the gauge reads inaccurately, the problem could stem from a stuck float, a worn resistor, or a faulty connection. Mechanics often test the system by manually moving the float to see if the gauge responds correctly. Additionally, corrosion or debris in the fuel tank can hinder the float’s movement, leading to inconsistent readings. Regular maintenance, such as cleaning the tank and inspecting the float mechanism, can prevent these issues.
One practical tip for vehicle owners is to monitor fuel gauge behavior over time. If the needle fluctuates wildly or fails to move smoothly, it may indicate a problem with the float or resistor. In older vehicles, replacing the sending unit—which includes the float and resistor—is a common repair. Modern vehicles, however, often use more advanced systems, but the float and resistor mechanism remains prevalent in many models due to its reliability and cost-effectiveness.
In summary, the float and resistor mechanism is a testament to the elegance of analog engineering. By leveraging basic physical principles, it provides a straightforward solution to the complex task of measuring fuel levels. While newer technologies are emerging, this system’s durability and simplicity ensure its continued relevance in automotive design. Whether you’re a mechanic or a car owner, understanding this mechanism empowers you to diagnose and address fuel gauge issues with confidence.
Mastering the Brewing Stand: Essential Fueling Tips for Efficient Brewing
You may want to see also
Explore related products
Capacitive Fuel Sensors: Describes sensors using capacitors to detect fuel level changes accurately
Fuel level measurement has evolved significantly, with capacitive fuel sensors emerging as a precise and reliable solution. These sensors operate on the principle of capacitance, a fundamental electrical property that measures the ability of a system to store energy in an electric field. In the context of fuel gauges, capacitive sensors utilize this principle to detect changes in fuel levels with remarkable accuracy.
At the heart of a capacitive fuel sensor is a capacitor, consisting of two conductive plates separated by a dielectric material. In this case, the fuel itself acts as the dielectric. As the fuel level changes, the distance between the plates and the dielectric properties of the fuel vary, causing a corresponding change in capacitance. This change is then measured and converted into a fuel level reading. The beauty of this system lies in its simplicity and direct relationship between fuel level and capacitance, allowing for precise measurements without the need for complex mechanical components.
Implementation and Design:
To implement capacitive fuel sensors, a probe is inserted into the fuel tank, containing multiple capacitor plates. These plates are positioned at various heights, enabling the sensor to detect fuel levels across the entire tank range. As the fuel level rises or falls, the capacitance between the plates changes, providing a continuous and accurate measurement. Modern designs often incorporate advanced materials and coatings to ensure compatibility with different fuel types and to minimize the risk of corrosion, which is crucial for long-term reliability.
One of the key advantages of capacitive sensors is their ability to provide linear output. Unlike traditional float-based systems, which may suffer from non-linearity due to mechanical constraints, capacitive sensors offer a direct and proportional relationship between fuel level and output signal. This linearity simplifies the calibration process and ensures consistent accuracy across the entire fuel range. For instance, a 50% fuel level will always correspond to a specific capacitance value, making it easier to program and integrate with vehicle systems.
Practical Considerations:
When installing capacitive fuel sensors, it's essential to consider the tank's geometry and the sensor's positioning. The sensor should be placed in a location that ensures consistent and representative fuel level measurements. Calibration is another critical aspect, requiring careful mapping of capacitance values to corresponding fuel levels. This process may involve filling the tank to various levels and recording the sensor's output, creating a lookup table for accurate fuel level indication. Regular maintenance and inspection are also necessary to ensure the sensor's longevity, especially in harsh environments where fuel contamination or extreme temperatures could impact performance.
In summary, capacitive fuel sensors offer a sophisticated yet straightforward approach to fuel level measurement. By harnessing the principles of capacitance, these sensors provide accurate, linear, and reliable data, contributing to more efficient fuel management systems in vehicles and other applications. Their design and implementation require careful consideration, but the result is a robust solution that enhances the overall functionality of modern fuel gauges.
Does G Fuel Need Ice? Exploring the Best Ways to Enjoy It
You may want to see also
Explore related products
Digital vs. Analog Displays: Compares how digital and analog gauges show fuel levels differently
Fuel gauges, whether digital or analog, serve the same purpose: to inform drivers about their vehicle's fuel level. However, the way they convey this information differs significantly, impacting user experience and perception. Analog gauges, typically found in older vehicles, use a needle that moves along a curved scale, often marked with 'E' for empty and 'F' for full. This visual representation relies on a float inside the fuel tank connected to a potentiometer, which adjusts the needle's position based on fuel volume. The simplicity of this design offers an at-a-glance estimate but lacks precision, as the needle’s position can be influenced by factors like vehicle tilt or worn components.
Digital displays, on the other hand, present fuel levels numerically or via segmented bars, often integrated into a larger dashboard screen. These systems use the same float mechanism but translate the data into a digital signal processed by the vehicle’s computer. The result is a more precise reading, often down to fractions of a gallon or percentage points. For instance, a digital gauge might show "3.2 gallons" or "27%," providing drivers with a clearer understanding of their remaining fuel. This precision is particularly useful for long trips or when planning fuel stops, as it reduces the guesswork inherent in analog systems.
One key advantage of digital displays is their ability to incorporate predictive features, such as range-to-empty calculations. By analyzing fuel consumption rates and tank capacity, the system can estimate how many miles the vehicle can travel before running out of fuel. Analog gauges, while intuitive, cannot offer this level of detail without additional instrumentation. However, some drivers prefer the tactile, immediate feedback of an analog needle, which can feel more direct and less reliant on complex electronics.
Despite their differences, both systems have limitations. Analog gauges can be less accurate due to mechanical wear or environmental factors, while digital displays may fail entirely if the vehicle’s computer malfunctions. For example, a stuck analog needle might falsely indicate a full tank, whereas a digital display could show an error message or freeze at a specific value. Maintenance and calibration are critical for both types, though digital systems often require specialized tools or software for diagnostics.
In practice, the choice between digital and analog displays often comes down to personal preference and vehicle age. Modern vehicles overwhelmingly favor digital gauges for their versatility and integration with other onboard systems, while classic car enthusiasts may prefer the nostalgic appeal of analog designs. Regardless of the type, understanding how these gauges work can help drivers interpret their readings more effectively, ensuring they stay informed and avoid running out of fuel unexpectedly.
Fuel Injection Cleaning Frequency: Essential Maintenance Tips for Optimal Performance
You may want to see also
Explore related products
Sending Unit Functionality: Details the role of the sending unit in transmitting fuel data
The sending unit is the unsung hero of your vehicle's fuel gauge system, a component that bridges the physical reality of your fuel tank's contents with the digital or analog display on your dashboard. Nestled inside the fuel tank, this device is tasked with a critical mission: to accurately measure the fuel level and transmit this data to the gauge. But how does it accomplish this feat? The sending unit operates on a simple yet ingenious principle—it uses a float connected to a variable resistor. As the fuel level changes, the float moves, altering the resistance in the circuit. This variation in resistance is then translated into an electrical signal, which is sent to the fuel gauge, providing a real-time update of your fuel status.
Consider the process as a dynamic conversation between the sending unit and the fuel gauge. The sending unit doesn’t just send a static signal; it continuously adjusts its output based on the fuel level. For instance, when the tank is full, the float is at its highest point, minimizing resistance and sending a signal that corresponds to a full gauge reading. Conversely, as the fuel level drops, the float descends, increasing resistance and signaling a lower fuel level. This mechanism ensures that the gauge reflects the actual amount of fuel in the tank with remarkable precision, typically within a margin of error of just a few gallons.
One of the most fascinating aspects of the sending unit is its adaptability to different tank shapes and sizes. Fuel tanks are not uniform; they come in various designs to fit the contours of different vehicles. The sending unit must account for these variations, often featuring a custom-designed float arm that matches the tank’s geometry. This ensures that the float moves in a predictable manner, regardless of the tank’s shape, maintaining accuracy across diverse vehicle models. For example, in a saddle-style tank (common in trucks), the sending unit might have a longer float arm to span the tank’s width, while a more compact car might use a shorter arm.
Despite its reliability, the sending unit is not immune to issues. Over time, the components can wear out, leading to inaccurate readings. Common problems include a stuck float, a corroded resistor, or a broken wire connection. If your fuel gauge starts behaving erratically—sticking at full, dropping to empty prematurely, or fluctuating wildly—the sending unit is often the culprit. Diagnosing such issues typically involves a multimeter to test the unit’s resistance at different fuel levels. Replacement is usually straightforward but requires draining the fuel tank, a task best left to professionals or experienced DIYers.
In conclusion, the sending unit is a marvel of automotive engineering, seamlessly integrating mechanical and electrical principles to keep drivers informed about their fuel levels. Its role is both critical and understated, operating silently in the background to ensure that you’re never caught off guard by an empty tank. Understanding its functionality not only demystifies the fuel gauge but also empowers vehicle owners to troubleshoot issues effectively, ensuring that this vital component continues to perform its duty without fail.
Does MTOW Include Fuel? Understanding Aircraft Weight Limits
You may want to see also
Explore related products
Calibration and Accuracy: Discusses how fuel gauges are calibrated for precise readings
Fuel gauges, those unassuming dashboard fixtures, rely on precise calibration to deliver accurate readings. This calibration process involves adjusting the gauge's response to the fuel sender unit's electrical signal, ensuring the needle or digital display reflects the actual fuel level in the tank. Manufacturers employ various methods, from manual adjustments during assembly to automated systems that fine-tune the gauge based on pre-programmed parameters. This initial calibration is critical, as it establishes the baseline for all future readings.
The sender unit, a float-and-arm mechanism or a more modern capacitive sensor, plays a pivotal role in accuracy. In traditional systems, the float's position on the fuel level corresponds to a specific resistance value, which the gauge interprets. Calibration ensures this resistance-to-level relationship is linear and consistent. For capacitive sensors, calibration involves setting the baseline capacitance values for empty and full tanks, allowing the system to calculate intermediate levels accurately. Both methods require meticulous attention to detail, as even minor discrepancies can lead to misleading readings.
Over time, factors like temperature fluctuations, fuel tank shape irregularities, and component wear can affect accuracy. To address this, some modern vehicles incorporate self-calibrating systems. These systems periodically adjust the gauge based on driving patterns and fuel consumption data, ensuring long-term precision. For instance, if a vehicle consistently runs low on fuel before refueling, the system may recalibrate to account for any drift in the sender unit's readings. This dynamic approach minimizes errors and enhances reliability.
For those dealing with older vehicles or aftermarket fuel tanks, manual recalibration may be necessary. This process typically involves disconnecting the sender unit, partially filling the tank, and adjusting the gauge to match the known fuel level. Repeating this at various levels—quarter, half, and three-quarters full—ensures accuracy across the entire range. While time-consuming, this method can restore precision to aging systems. Practical tips include using a clean, dry container to measure fuel and consulting the vehicle’s manual for specific sender unit resistance values.
In conclusion, calibration is the cornerstone of fuel gauge accuracy, blending initial precision with ongoing adjustments to counteract real-world variables. Whether through factory settings, self-calibrating systems, or manual tweaks, this process ensures drivers can trust their fuel readings. Understanding these mechanisms empowers vehicle owners to maintain reliability, avoid unexpected empty tanks, and make informed decisions about refueling.
Understanding Fuel Rewards: How They Work and Save You Money
You may want to see also
Frequently asked questions
A fuel gauge works by using a float connected to a variable resistor (potentiometer) inside the fuel tank. As the fuel level changes, the float moves, adjusting the resistance. This change in resistance is sent to the gauge on the dashboard, which displays the fuel level.
Fluctuations or inaccuracies in a fuel gauge can be caused by a faulty sending unit, a damaged float, loose wiring, or a malfunctioning gauge. Sediment or debris in the fuel tank can also interfere with the float's movement, leading to incorrect readings.
Minor issues like loose connections or a dirty sending unit can often be repaired. However, if the sending unit, float, or gauge itself is damaged, replacement is usually necessary. It’s best to diagnose the problem with a professional to determine the appropriate solution.
