Rajan Wilcox
Float diesel fuel gauges are a simple and cost-effective way to determine the level of fuel in a tank. They are commonly used in cars to inform drivers of the fuel level and indicate when to refuel. The gauge consists of a floating piece of plastic inside the tank that moves up or down depending on the fuel level. This float is connected to a metal rod or arm, forming the fuel sending unit, which communicates the fuel level to the gauge on the dashboard. While older gauges displayed the sensor reading directly, leading to fluctuations during car movements, modern gauges use a small computer to delay and average the signal, providing a more stable reading.
| Characteristics | Values |
|---|---|
| How it works | A floating plastic piece inside the tank goes down when the fuel goes down. This is connected to a fuel sending unit that communicates the fuel level to the gauge. |
| Function | To inform the driver of the fuel level at all times and warn when the vehicle is low on fuel. |
| Issues | The fuel gauge may fluctuate between empty and full due to a mechanical failure, such as a faulty sending unit or wiring defect. |
| Solutions | Diagnose and replace faulty components. In older cars, the fuel gauge displayed exact sensor readings, but newer cars use a tiny computer to delay and average the signal, improving stability. |
| Type | Float fuel gauges are simple, cost-effective, and easy to install. |
Explore related products
What You'll Learn
Float switches and fuel gauges
Inside the fuel tank, there is typically a floating plastic piece attached to the fuel pump. This float rests on the surface of the fuel, moving up or down as the fuel level changes. In older vehicles, the fuel gauge would directly reflect the sensor's readings, leading to rapid fluctuations during turns, acceleration, or when driving on hilly terrain.
Modern vehicles have introduced a small computer between the sensor and the fuel gauge. This computer averages and delays the signal transmitted to the gauge, resulting in a more stable reading. While false readings can still occur under certain driving conditions, the accuracy has significantly improved compared to older systems.
The fuel sending unit, located in the fuel tank, is responsible for measuring the fuel level and communicating it to the fuel gauge on the dashboard. It consists of a float, a metal rod or arm, and a variable resistor. These components work together to ensure the driver is informed about the fuel level and can refuel when necessary.
Some issues that can arise with fuel gauges include mechanical failure, defects in wiring, or a faulty fuel gauge itself. In some cases, the float arm may stick at certain levels, causing the fuel gauge to fluctuate between empty and full readings until the float arm returns to its correct position.
Diesel in Soil: How Long Does It Stay?
You may want to see also
Explore related products
How float switches work
A float switch is a critical component of a fuel gauge, providing a straightforward method for determining the level of fuel in a tank. Float switches are simple yet effective tools that are commonly used in both cars and domestic oil tanks.
In cars, the fuel sending unit, located inside the fuel tank, contains a floating plastic piece that floats on top of the fuel. As the fuel level decreases, the float descends accordingly. This movement is transmitted via a metal rod or arm to a variable resistor, which then communicates the fuel level to the fuel gauge on the vehicle's dashboard. This system allows drivers to monitor their fuel levels and refuel when necessary.
Older car models would display the sensor reading directly, resulting in rapid fluctuations during turns, acceleration, or when driving on hilly terrain. Modern vehicles have introduced a small computer between the sensor and the fuel gauge. This computer averages the readings, providing a more stable and accurate representation of the fuel level.
In domestic oil tanks, float fuel tank gauges are commonly used as a cost-effective method for measuring fuel levels. These gauges are often clock-faced and feature a large float attached to a negator spring via a perforated tape. They are easy to install, requiring no expert fitting, and provide readings such as empty, quarter full, half full, and full.
Overall, float switches play a crucial role in fuel gauges by physically measuring the fuel level and ensuring that drivers are aware of their vehicle's fuel status.
BP's Diesel Offerings: A Comprehensive Overview
You may want to see also
Explore related products

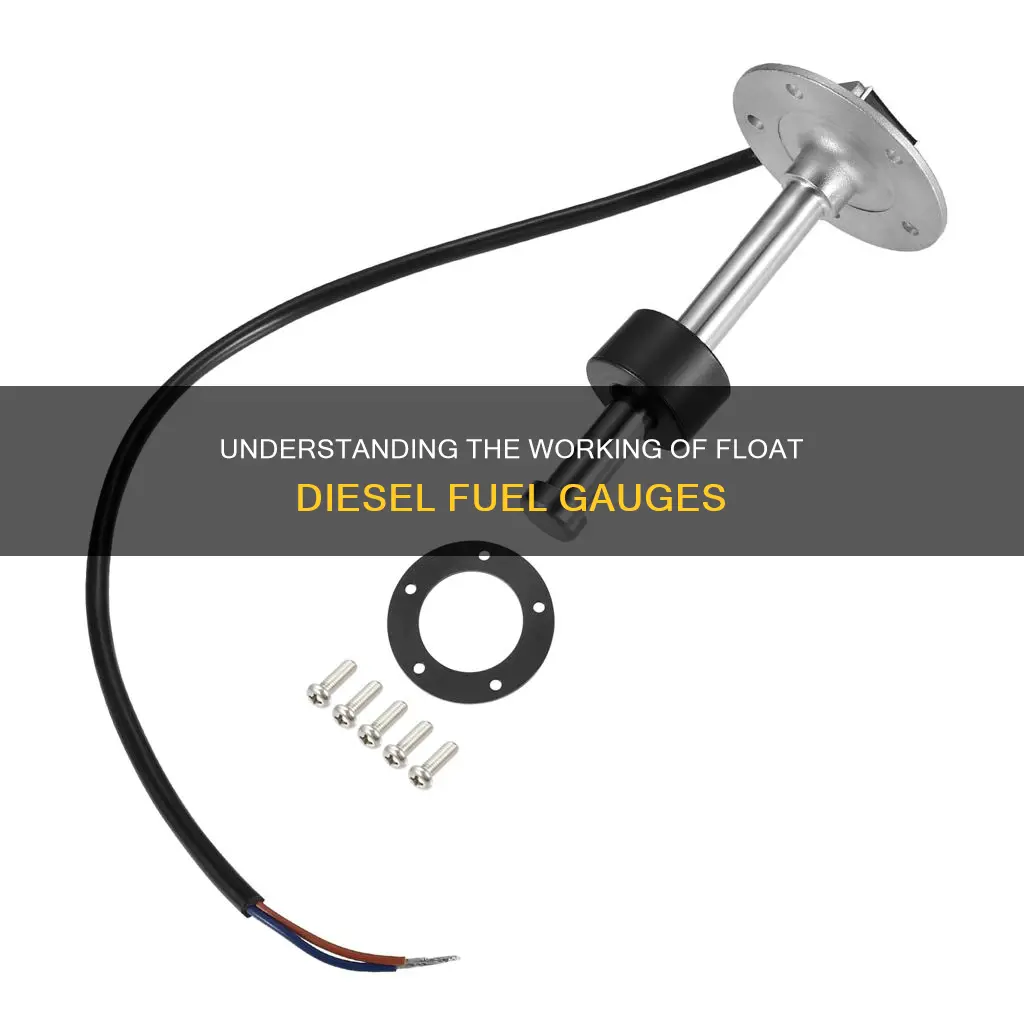

The fuel sending unit
The sending unit comprises three main parts: a float, a metal rod or arm, and a variable resistor. The float is a buoyant piece, usually made of plastic, that rests on the fuel's surface. As the fuel level decreases, the float descends accordingly. This movement is transmitted through the metal rod or arm, which connects the float to the variable resistor.
The variable resistor is a critical element in the system. It consists of a resistive material strip and a wiper attached to the metal rod. As the float moves up and down with changing fuel levels, the wiper slides along the resistive material strip, altering the resistance in the circuit. This resistance change is then translated into a voltage change, which is communicated to the fuel gauge, reflecting the current fuel level.
Over time, the resistive material strip can wear down, creating an open circuit and leading to inaccurate fuel gauge readings. Additionally, defects in the wiring between the sending unit and the fuel gauge or a faulty ground wire can cause issues. In some cases, the sending unit float arm may 'stick' at certain levels, causing the fuel gauge to fluctuate between empty and full until the arm returns to its proper position.
While it is challenging to find a replacement float in the market, innovative solutions, such as using a pill bottle or PVC pipe cut to the right size, have been suggested by automotive enthusiasts. These alternatives involve epoxy glue, drilling, and brazing to attach the makeshift float to the float arm, restoring the functionality of the fuel sending unit.
The Importance of Polishing Your Generator's Diesel Fuel
You may want to see also
Explore related products
Mechanical failure
A float diesel fuel gauge works using a floating plastic piece that floats on top of the fuel inside the tank. This floating piece is attached to the fuel pump and moves up and down depending on the fuel level. The movement of the float is transmitted to the gauge through electrical signals, which display the fuel level on the dashboard.
However, mechanical failures can occur in float diesel fuel gauges, leading to inaccurate fuel level readings. One common issue is a faulty fuel sending unit, which can cause the fuel gauge to display incorrect readings. The fuel sending unit is responsible for measuring the fuel level and communicating it to the fuel gauge. In some cases, the fuel sending unit float arm may get stuck at certain levels, causing the fuel gauge to fluctuate between empty and full. This can often be replicated to identify mechanical failure.
Another potential mechanical failure is a defect in the wiring from the fuel sending unit to the fuel gauge, resulting in a shorted signal. Additionally, wear and tear on the resistive material strip over time can create an open circuit, impacting the accuracy of the fuel gauge. In rare cases, the fuel gauge itself may be faulty, leading to similar issues.
To diagnose and repair these issues, specialized tools and equipment are available, such as the Delphi AutoIQ diagnostic scan tool and the Hartridge CRi-Pro test bench. Replacing the fuel pump float is also an option, but it may require additional labor charges if done by a professional mechanic.
Diesel Fuel in France: Is It Readily Available?
You may want to see also
Explore related products
Fuel gauge problems
The most common cause of a faulty fuel gauge is a bad fuel sending unit. The fuel sending unit measures the amount of fuel in the tank and communicates this information to the fuel gauge on the dashboard. If something happens to the fuel sending unit, the fuel gauge will be the first to show signs of a problem. For example, the fuel gauge may fluctuate between empty and full, get stuck on empty or full, or behave erratically.
Other common causes of fuel gauge problems include blown fuses, circuit issues, and instrument cluster failure. Corrosion caused by moisture, salt, or other environmental factors can lead to blown fuses and circuit issues. Instrument cluster failure is the least common cause but is often the most expensive to fix, as modern instrument clusters may not have replaceable parts.
To diagnose a fuel gauge problem, it is recommended to start by consulting the owner's manual to perform an instrument cluster self-test. If the issue is not with the fuel gauge itself, the next step is to check the fuses. Testing the wiring can be time-consuming but is important to ensure all connections are secure and intact. In most cases, issues with the fuel gauge can be traced to a problem with the wiring near the tank or the sending unit itself.
How Diesel Engines Consume Fuel While Running
You may want to see also
Frequently asked questions
Float fuel gauges work by using a floating piece of plastic inside the fuel tank, which is usually attached to the fuel pump. As the fuel level decreases, the float goes down, and this is used to sense how full the tank is.
If your fuel gauge is faulty, it may fluctuate between empty and full. This could be due to a mechanical failure, such as the float arm getting stuck at certain levels.
You may need to replace the fuel gauge sender float. You can try to find a cheap replacement at a scrapyard or from a motorcycle. You can also attempt to repair the float arm yourself using a pill bottle and epoxy glue.
Regularly inspect your fuel gauge and fuel sending unit for any signs of wear or defects. Ensure that the wiring from the fuel sending unit to the fuel gauge is intact and functioning properly.
