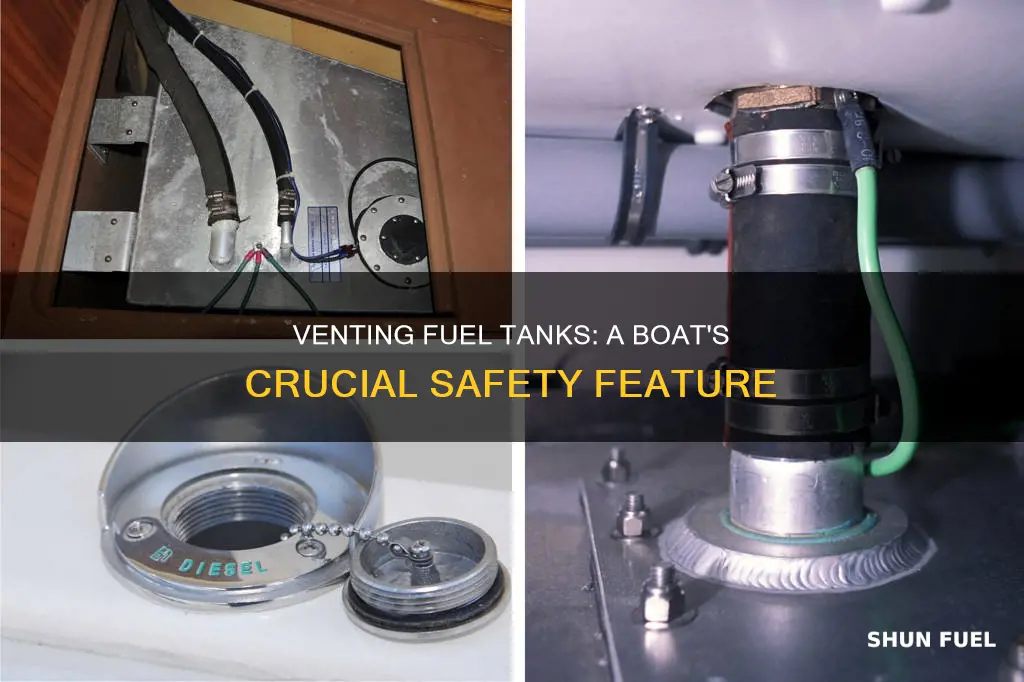

Boats have fuel tank vents to prevent vacuum blocks, which would stop fuel from being pumped from the tank to the motor. The vents allow air to enter and escape the tank as fuel is used and the tank expands and contracts. They also prevent the buildup of pressure in the tank, which could cause it to balloon and leak. Some boats have two vents: a dedicated vent line and a vent/overflow line, which allows extra fuel to exit the tank in the event of overfilling or expansion due to heat. It is important to keep the vents clear of water and debris, and to regularly inspect and maintain the vent system.
Explore related products
What You'll Learn
Avoid trapping fuel in vent lines
To avoid trapping fuel in the vent lines of your boat's fuel tank, it is important to install the vent hose properly. Avoid sags, or traps, in the vent line, as these allow fuel to puddle and prevent the marine fuel tank vent system from functioning properly. A typical vent line runs horizontally across the top of the tank and then angles upward to the vent fitting. The hose should be as straight as possible to allow any excess fuel to drain back into the tank via gravity.
It is also important to keep the fuel vent screen clean. Many fuel vents have fine-wire screens that prevent debris, insects, and spiders from entering the tank. Some screens also serve as flame arrestors, blocking sparks that could ignite fuel vapors. A clogged screen can be cleaned with a small wire brush, but if the mesh is corroded, the vent should be replaced.
Additionally, consider using a fuel surge protector, also known as a no-spill valve. This device prevents fuel from spewing out of the vent when filling the tank, which is not only environmentally friendly but also prevents stains on the hull of the boat. Several brands offer in-line, no-spill valves, such as Attwood and Racor. Green Marine offers a unique valve that whistles while fueling and then goes silent to indicate that the tank is nearly full.
Another tip to avoid trapping fuel in the vent lines is to angle the clamshell cover aft and slightly downward. This helps to deflect oncoming seas and rain, preventing water intrusion, which is one of the biggest problems with through-hull vents. By angling the vent opening in this manner, you can also protect the vent from oncoming waves while the boat is underway, further preventing water intrusion.
Flushing Boat Fuel Tanks: A Step-by-Step Guide
You may want to see also
Explore related products
Keep the through-hull vent dry
Keeping the through-hull vent dry is an important aspect of maintaining a boat's fuel tank vent system. Through-hull vents are designed for installation on a vertical or slightly angled exterior hull surface, allowing fumes to vent outboard and not inside the boat. However, this design can also lead to water intrusion, which can cause issues with the vent's functionality. Here are some ways to keep the through-hull vent dry:
Mount the Vent at a Height:
Position the vent higher on the hull to avoid direct exposure to water spray, reducing the chances of water intrusion.
Angle the Vent Opening:
By angling the vent opening aft and slightly downward, you can shield it from oncoming waves and prevent rain or dew from entering the vent. This simple adjustment can significantly reduce the amount of water that enters the vent.
Choose a Water-Resistant Design:
Opt for fuel vent designs that incorporate features to mitigate water intrusion. For example, Perko's through-hull vent includes an integral splash guard, while Attwood's 90-degree P-trap fuel tank vent has a baffle chamber that traps errant water and directs it back out. These designs can help keep the vent dry and functioning properly.
Utilize a Clamshell Cover:
Consider installing a clamshell cover over the fuel vent if your boat encounters heavy spray and water intrusion. This cover can provide an additional layer of protection, deflecting water away from the vent and reducing the chances of water ingress.
Maintain Proper Vent Hose Installation:
Ensure that the vent hose is installed correctly, running upward from the tank to the vent fitting without any sags or loops. This design allows any water that may enter the vent to drain back into the tank, preventing water accumulation in the vent line and reducing the risk of blockages.
By following these measures, you can effectively keep the through-hull vent dry, contributing to the proper functioning of your boat's fuel tank vent system.
The Weight of Fuel Tankers: How Much?
You may want to see also
Explore related products
Use a clamshell cover
The clamshell cover is a popular style of fuel vent used on boats. It is a protective cover that surrounds the fuel vent, preventing it from catching on something and getting damaged. The clamshell can be made of chrome-plated brass, stainless steel, or ABS plastic, and is typically positioned with the opening facing aft and slightly downward to deflect oncoming water and rain.
One advantage of using a clamshell cover is that it can help to prevent water intrusion. The design of the clamshell allows the vent to be installed with the hose facing upward, creating a trap for any water that may enter. This is especially useful if your boat is in a wet environment or if the vent is positioned in a location that is prone to spray or water intrusion.
Another benefit of the clamshell cover is that it can provide additional protection for the fuel vent. The clamshell's hard exterior can help to shield the vent from impact or abrasion, reducing the risk of damage. This can be particularly important if the vent is located in an area that is vulnerable to debris or other hazards.
Additionally, the clamshell cover can also enhance the aesthetics of the fuel vent. The sleek and streamlined design of the clamshell can give the vent a more polished and integrated appearance, improving the overall look of the boat.
However, it is important to consider the placement of the clamshell cover carefully. While the clamshell can provide protection, it should not be placed in an area that is frequently wet, as this can increase the risk of water intrusion. Ideally, the clamshell should be installed in a location that allows for some uphill run, facilitating the drainage of any water that may enter.
Fuel Tank Capacity of 2007 C3500 Duramax
You may want to see also
Explore related products
Utilise a fuel surge protector
Utilising a fuel surge protector is an important aspect of maintaining a boat's fuel tank vent system. A fuel surge protector, also known as a no-spill valve, is a device that prevents fuel from spewing out of the vent when filling the tank. This not only helps to protect the environment but also keeps the hull of the boat clean and free from stains caused by spilled fuel.
There are several products available on the market that can be utilised as fuel surge protectors. In-line, no-spill valves are offered by brands such as Attwood, Racor, and Green Marine. Each of these valves helps to prevent fuel from escaping through the vent during refuelling. The Green Marine valve even includes a whistling feature that alerts the user when the tank is nearly full.
It is important to note that some users have reported mixed experiences with certain fuel surge protectors. While some individuals have found success with the Racor LG100, others have expressed frustration with the Attwood version, claiming that it made it difficult to fill the fuel tank. Therefore, it is essential to carefully consider the specific needs of your boat and research different products before making a purchase.
To further enhance the effectiveness of a fuel surge protector, it is recommended to keep the boat's fuel vent screen clean and free from corrosion. Additionally, when installing a vent hose, it is crucial to avoid sags or traps that can allow fuel to puddle and hinder the proper functioning of the vent system. By following these maintenance tips and utilising a fuel surge protector, boat owners can help ensure the proper venting of their fuel tanks and prevent fuel spills.
Fuel Tank Capacity of Cascadia Trucks: How Much Can They Hold?
You may want to see also
Explore related products
Monitor fuel levels
Monitoring fuel levels is crucial for maintaining the fuel system of your boat and ensuring safety during your time on the water. Here are some detailed instructions and tips to help you effectively monitor fuel levels when operating a boat with fuel tanks:
Firstly, it is important to understand the role of vents in fuel tanks. Vents allow air to enter and escape from the tank as fuel is used, preventing a vacuum block that would hinder fuel delivery to the engine. Most boats have two vents: one dedicated vent line and one vent/overflow line. The overflow line serves as a safety mechanism, allowing excess fuel to exit the tank during overfilling or expansion due to heat.
To monitor fuel levels effectively, follow these guidelines:
- Always refer to the manufacturer's guidelines for fuel capacity. Avoid overfilling the tank beyond the recommended level. Overfilling can lead to fuel escaping from the overflow vent, creating a fire hazard.
- Regularly inspect the fuel hoses and vents for any signs of wear, brittleness, cracks, or damage. Replace the hoses and vents if necessary. Ensure they are securely attached to the tank and check for any leaks.
- When dealing with a manual vent, keep it closed during storage to prevent fuel evaporation, fuel loss, and the escape of dangerous fumes, which could lead to an explosion.
- When operating the motor, keep the vent open to prevent vacuum blocks.
- If you have a plastic tank, be aware that temperature changes can cause the tank to balloon or implode. Keeping the tank full can help mitigate this issue, but it's important to monitor fuel levels and avoid overfilling.
- Consider using a fuel surge protector or a no-spill valve. These devices prevent fuel from spewing out of the vent when filling the tank, reducing the risk of spills and stains on the hull. Some valves even provide a whistling sound to indicate the tank is nearly full.
- When refuelling, be cautious of any fuel leaks or odours. These could be signs of issues with the tank or fuel lines.
- If you encounter rough water conditions or submerge the bow during launching or loading, ensure that your vents have P-traps to prevent water or debris from entering the tank.
- To prevent water intrusion through the vents, angle the vent opening aft and slightly downward. This helps deflect oncoming water and rain.
- Keep the boat's fuel vent screen clean. Use a small wire brush to remove any gunk, and replace the vent if corrosion has damaged the mesh.
Marine Fuel Tanks: Where Should They Be Placed?
You may want to see also
Frequently asked questions
Fuel tank vents are necessary to prevent a vacuum block, which would stop fuel from being pumped from the tank to the motor. They also ensure optimum ventilation and prevent the tank from building up pressure.
If your boat's gas tank is not venting, check the fuel vent screen. If it looks clogged, clean it with a small wire brush. If the mesh is corroded, replace the vent.
Water intrusion is a common problem with through-hull vents. To prevent this, mount the vent high and angle it aft and slightly downward to shield it from oncoming waves and prevent rain or dew from entering. Consider a clamshell cover for extra protection.
A no-spill valve, or fuel-surge protector, prevents fuel from spewing out of the vent when you fill the tank. It is environmentally friendly and stops the hull from being stained by spilled fuel.
