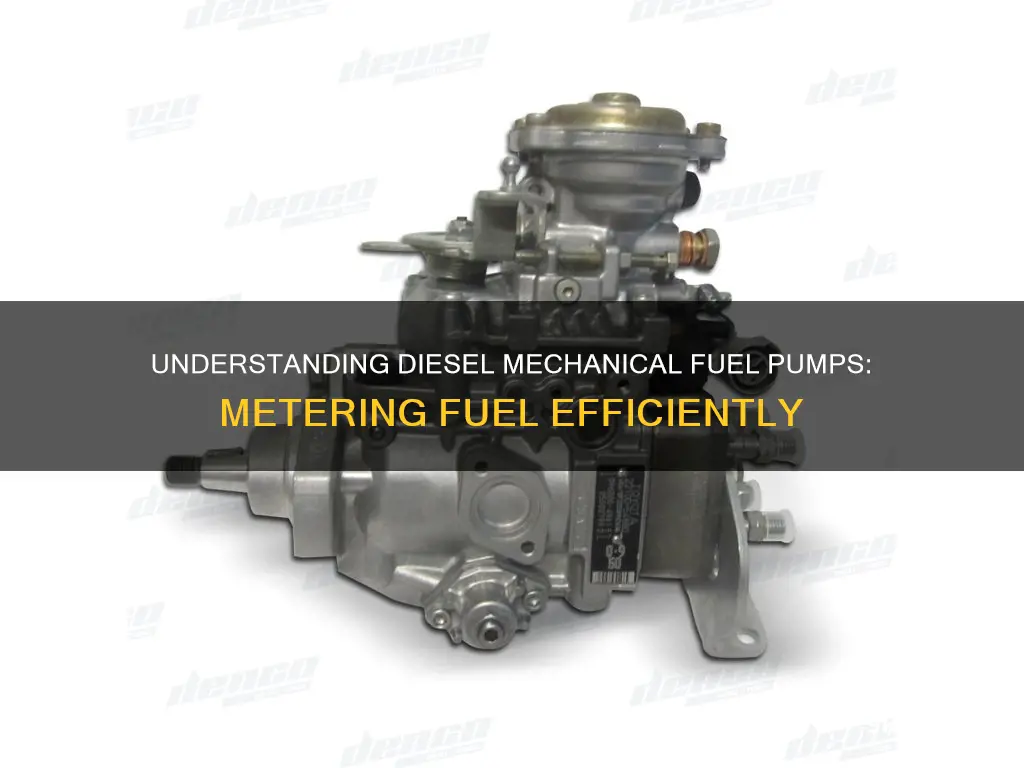

Diesel fuel pumps are critical in ensuring the performance of heavy equipment, such as front loaders, dozers, and tractors, by facilitating the continuous flow of fuel under optimal pressure for effective combustion. There are two primary types of diesel pumps: mechanical injection pumps and electronic fuel injection (EFI) pumps. Mechanical injection pumps, the focus of this discussion, rely on the engine's motion to operate and are known for their durability and simplicity. This discussion will delve into how diesel mechanical fuel pumps meter fuel to enable the efficient operation of diesel engines.
| Characteristics | Values |
|---|---|
| Basic principle | The right amount of fuel must be injected at the right time to satisfy horsepower demands. |
| Injection pump | A device that pumps fuel into the cylinders of a diesel engine. |
| Injection pump types | Rotary plunger-type unit with an individual piston for each cylinder of the engine; single chamber pump that meters fuel to each cylinder using a sleeve or scroll system. |
| Injection volume | Controlled by rotating the cylinders against a cut-off port that aligns with a helical slot in the cylinder. |
| Injection pressure | Can be as high as 620 bar (8992 psi). |
| Fuel metering | Fuel is metered and pressurised by the fuel injection pump and passed to the high-pressure injectors via pipes before being sprayed into the combustion chamber, where it ignites. |
| Fuel flow meter | Wide application, suitable for installation on pumps or service diesel stations. |
| Fuel filter | Protects diesel pumps from contaminants that can clog or damage the pump and other parts of the fuel system. |
| Fuel system types | Mechanical injection pump; electronic fuel injection (EFI) pump. |
Explore related products
What You'll Learn
Injecting the right amount of fuel at the right time
The injection pump is typically a rotary plunger-type unit with an individual piston for each cylinder of the engine. It sends a small amount of fuel through the high-pressure fuel line to each injector in the appropriate sequence. When the fuel pressure exceeds the injector nozzle’s pre-set pressure limitation, the nozzle opens, and fuel is injected into the combustion chamber.
The timing of the injection pump is critical. In a conventional four-stroke diesel engine, the pump rotates at half crankshaft speed, injecting fuel just before the top dead centre of the cylinder's compression stroke. This timing ensures that only air is compressed during the compression stroke, which causes it to become hot enough to ignite the fuel.
To regulate fuel delivery and prevent engine overspeeding, diesel engines require a governor. The governor cuts the fuel supply if the crankshaft rpm endangers the engine, as diesel engines do not tolerate overspeeding well and can be damaged if they are over-revved.
While mechanical fuel systems are straightforward and durable, they are being phased out in favour of electronic fuel injection (EFI) systems, which offer more precise control over fuel delivery. EFI systems use electronic controls to optimise the timing and amount of fuel delivered to the engine, resulting in improved fuel efficiency and emission control.
Dispose of Diesel Fuel Filters: The Right Way
You may want to see also
Explore related products
Injectors and cylinders
An injection pump is the device that pumps fuel into the cylinders of a diesel engine. It is often driven indirectly from the crankshaft by gears, chains, or a toothed belt, rotating at half the crankshaft speed in a conventional four-stroke diesel engine. The injection pump ensures that fuel is injected slightly before the top dead centre of the cylinder's compression stroke. Injection pumps can develop extremely high pressures, typically 15,000 psi or more in newer systems, which requires careful handling to prevent injury.
The injection pump may be a rotary plunger-type unit with an individual piston for each cylinder or a single-chamber pump that meters fuel to each cylinder using a sleeve or scroll system. In both cases, the pump sends fuel through a high-pressure fuel line to each injector in the correct sequence. When the fuel pressure exceeds the injector nozzle's preset limit, it opens, injecting fuel into the combustion chamber.
The injectors themselves are an integral part of the high-pressure side of the fuel system. They receive low-pressure fuel through a gallery in the cylinder head, eliminating individual fuel lines in modern engines. The injectors then spray the pressurised fuel into the combustion chamber, where it ignites. The resulting combustion gases drive the piston down to produce the power stroke.
The fuel injection system's design significantly impacts the performance of diesel engines. While the main purpose is to deliver fuel to the cylinders, the method of delivery influences engine performance, emissions, and noise characteristics. Advancements in injection systems have led to the development of common rail diesel systems and electronic unit direct injection systems, allowing for higher pressures, finer control of injection volumes, and multiple injection stages compared to mechanical systems.
How Diesel Fuel Impacts Rubber
You may want to see also
Explore related products
$65.99
Fuel pressure and the throttle pedal
The throttle pedal is a key component in the fuel injection process, regulating the amount of fuel or air entering the engine and, consequently, the engine's power. In the context of diesel engines, the throttle, or accelerator, pedal influences fuel pressure and injection timing.
In a diesel engine, the injection pump plays a critical role in delivering fuel to the cylinders. The pump pressurises the fuel and sends it through high-pressure fuel lines to the injectors. The injection pump may be a rotary plunger-type unit or a single-chamber pump, both of which meter fuel to each cylinder. The pump ensures that the right amount of fuel is injected at the right time, matching the horsepower demands.
The throttle pedal's position directly impacts the operation of the injection pump. When the pedal is pressed, the throttle plate rotates within the throttle body, allowing more air into the intake manifold. This increase in airflow is measured by a mass airflow sensor, which communicates this information to the Engine Control Unit (ECU). In response, the ECU increases the amount of fuel injected by the injectors to maintain the optimal air-fuel ratio.
The relationship between the throttle pedal and fuel pressure is crucial. The further the throttle pedal is depressed, the higher the fuel pressure required to meet the increased airflow. The injection pump adjusts the fuel pressure accordingly, ensuring that the injectors deliver the necessary amount of fuel. This coordination between the throttle pedal, airflow sensors, and injection pump is essential for maintaining the proper air-fuel mixture and engine performance.
While modern engines often feature electronic control systems that precisely regulate fuel delivery, the basic principle of matching fuel pressure to airflow remains. The throttle pedal's input is interpreted by sensors, which then adjust the injection pump's output to maintain the required air-fuel ratio for efficient combustion. This evolution in technology has improved emission control and engine performance while retaining the fundamental principles of fuel metering and injection.
Home Oil Tank: Diesel Fuel Substitute?
You may want to see also
Explore related products
Fuel filters and injectors
The low-pressure side includes the fuel tank, fuel supply pump, and fuel filter. The fuel supply pump, also known as the lift pump, draws fuel from the tank and delivers it to the high-pressure pump. The fuel filter plays a critical role in removing contaminants and ensuring the fuel's cleanliness. There are two types of fuel filters: primary and secondary. The primary filter removes larger particles, while the secondary filter is designed to withstand higher pressures and capture smaller particles that could damage sensitive engine components.
The high-pressure side of the fuel injection system includes the high-pressure pump, accumulator, fuel injector, and fuel injector nozzle. The high-pressure pump further pressurizes the fuel received from the low-pressure side before delivering it to the fuel injectors. The fuel injectors then release the pressurized fuel into the combustion chamber, where it mixes with compressed air and ignites, powering the engine.
It is important to maintain fuel filters and injectors properly. Fuel filters should be replaced regularly, typically every 10,000 to 15,000 miles, to ensure the fuel system's longevity and optimal performance. Additionally, advancements in technology have led to the development of electronic fuel injection systems, which offer improved control over injection volumes and multiple injection stages compared to purely mechanical systems.
Creating Hydro Diesel Fuel: A Step-by-Step Guide
You may want to see also
Explore related products
Mechanical vs. electronic pumps
Mechanical fuel pumps were the first to be developed and used. They are typically found on older vehicle models and carburetor engines, and they work by using a piston to push the fuel from the tank to the engine. The pump is connected to the engine with a belt, and when the engine is running, the pump turns and supplies fuel to the engine. Mechanical pumps are also quiet and do not require additional wiring or plumbing.
However, mechanical pumps are being phased out to comply with international emissions directives and to increase performance and economy. They also require more maintenance and are less reliable than electronic pumps.
Electronic pumps, on the other hand, run on electricity and are found on almost all newer vehicle models. They offer a variety of benefits, including more efficient fuel delivery, easier installation, faster start times, reduced maintenance costs, and lower emissions. The electronic components of these pumps automatically determine the rate at which the engine requires fuel and increase or decrease the pressure output for proper pump speed.
In terms of fuel injection, mechanical systems use a low-pressure circuit and a high-pressure circuit. Fuel is accurately metered and pressurised by the fuel injection pump and passed to the high-pressure injectors via pipes before being sprayed into the combustion chamber, where it ignites. Mechanical injection pumps may be rotary plunger-type units with an individual piston for each cylinder, or single chamber pumps that meter fuel to each cylinder using a sleeve or scroll system.
Electronic systems work on the same principle, but with different components. Mechanical Electronic Unit Injectors (MEUI) and Hydraulic Electronic Unit Injectors (HEUI) replace the injection pump, fuel lines, and nozzles used in mechanical engines with an electronically triggered unit injector in each cylinder. This allows for higher pressures, finer control of injection volumes, and multiple injection stages compared to mechanical systems.
Finding Air Leaks in Marine Diesel Fuel Systems
You may want to see also
Frequently asked questions
A diesel mechanical fuel pump is a device that pumps fuel into the cylinders of a diesel engine.
The pump sends a small amount of fuel through the high-pressure fuel line to each injector in the appropriate sequence. The basic principle of fuel injection is that the right amount of fuel must be injected at the right time to satisfy horsepower demands.
Diesel mechanical fuel pumps are used in heavy equipment like front loaders, dozers, and tractors. They are also used in trucks, oil drums, diesel vehicles, and steamships.
