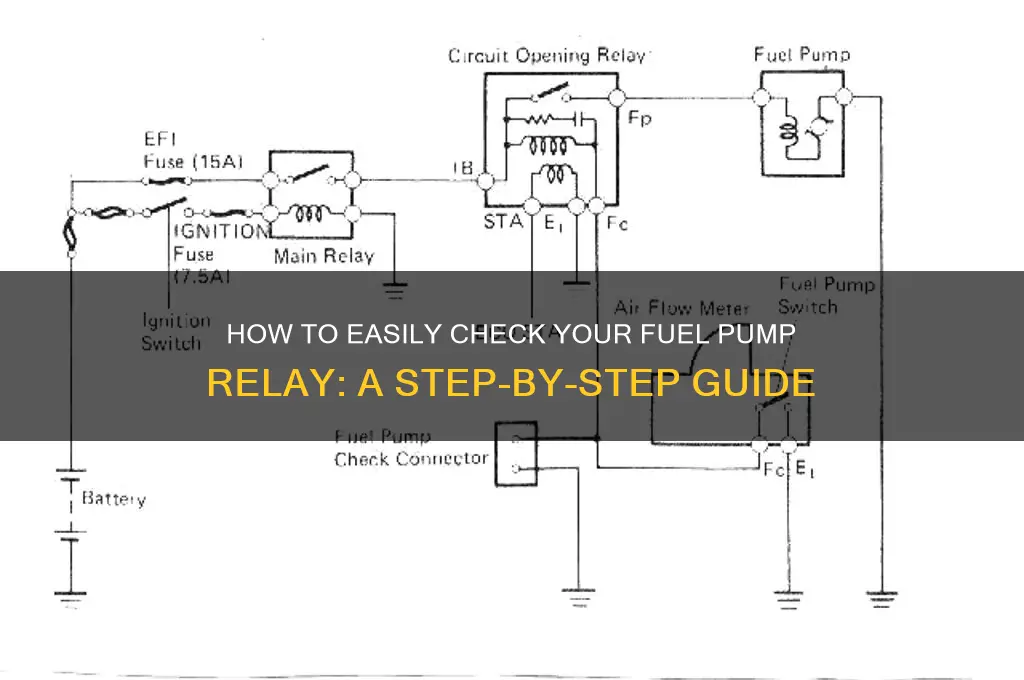

Checking your fuel pump relay is an essential troubleshooting step if you suspect issues with your vehicle's fuel system. The fuel pump relay is a critical component that controls the power supply to the fuel pump, ensuring it operates correctly. To check it, start by locating the relay, typically found in the fuse box under the hood or inside the cabin. Consult your vehicle’s manual for its exact location. Once identified, you can perform a visual inspection for signs of damage or corrosion. Next, swap the fuel pump relay with a similar relay in the fuse box to see if the issue persists, as this can help determine if the relay is faulty. Additionally, you can use a multimeter to test the relay’s continuity and ensure it’s functioning properly. If the relay is defective, replacing it is usually a straightforward and cost-effective fix. Always ensure the vehicle is turned off before working on electrical components to avoid accidents.
| Characteristics | Values |
|---|---|
| Location | Typically found in the fuse box under the hood or near the fuel pump. |
| Visual Inspection | Check for corrosion, damage, or loose connections. |
| Multimeter Test | Use a multimeter to test for continuity and proper voltage across the relay terminals. |
| Power Supply Check | Ensure the relay is receiving power from the battery when the ignition is on. |
| Ground Check | Verify the relay has a good ground connection. |
| Swapping Relays | Test by swapping the fuel pump relay with a similar relay (e.g., horn relay) to check functionality. |
| Listening for Operation | Listen for a clicking sound when the ignition is turned on, indicating the relay is working. |
| Fuel Pump Activation | Check if the fuel pump activates when the relay is engaged (e.g., using a fuel pressure gauge). |
| Fuse Check | Ensure the fuse associated with the fuel pump relay is intact and not blown. |
| Wiring Harness Inspection | Inspect the wiring harness for damage or disconnections. |
| Diagnostic Scanner | Use an OBD-II scanner to check for error codes related to the fuel pump or relay. |
| Resistance Test | Measure the resistance across the relay coil to ensure it is within specifications. |
| Load Test | Apply a load to the relay to ensure it can handle the current required by the fuel pump. |
| Temperature Consideration | Test the relay both when cold and after the engine has been running to check for heat-related issues. |
| Replacement | If the relay fails any test, replace it with a compatible unit. |
Explore related products
What You'll Learn
- Locate the Relay: Check your car manual to find the fuel pump relay's exact location
- Test for Power: Use a multimeter to verify if power is reaching the relay
- Swap Relays: Temporarily replace the fuel pump relay with a similar one to test functionality
- Listen for Clicks: Start the engine and listen for relay clicks, indicating proper operation
- Inspect Connections: Ensure all wires connected to the relay are secure and undamaged
Locate the Relay: Check your car manual to find the fuel pump relay's exact location
Locating the fuel pump relay is the first crucial step in checking its functionality. The exact location of the relay can vary significantly depending on the make and model of your vehicle. This is why consulting your car’s manual is essential. The manual typically includes a detailed diagram of the fuse box and relay locations, making it easier to identify the fuel pump relay. If you don’t have a physical copy of the manual, most manufacturers offer digital versions available for download on their official websites. Look for the section titled "Fuse and Relay Locations" or something similar to find the specific details you need.
Once you have the manual, carefully review the diagram to pinpoint the fuel pump relay’s position. It is often labeled as "Fuel Pump Relay" or "FP Relay" in the fuse box. In some vehicles, the relay may be located under the hood near the engine bay, while in others, it might be found inside the cabin, usually under the dashboard or near the steering column. Pay close attention to the manual’s instructions, as some vehicles may have multiple fuse boxes, and the relay could be in any one of them. If the manual is unclear, consider cross-referencing with online forums or videos specific to your car model for additional guidance.
If you’re unable to locate the relay using the manual, don’t hesitate to seek assistance. Many automotive websites and forums provide detailed guides with images or videos that can help you identify the relay’s location. Additionally, a quick online search using your car’s make, model, and year can yield helpful results. For example, searching "fuel pump relay location for [Your Car Model]" can provide visual aids or step-by-step instructions tailored to your vehicle.
Once you’ve identified the general area of the fuse box, take a moment to inspect it carefully. The fuel pump relay is usually a small, rectangular component with several pins on the bottom that connect to the fuse box. It may be labeled directly on the relay itself or on the fuse box cover. If the cover has a diagram, match the relay’s position on the diagram to its physical location in the box. This ensures you’re working with the correct component and avoids confusion with other relays or fuses.
After locating the fuel pump relay, take note of its position for future reference. This knowledge will save you time if you need to inspect or replace the relay again. If you’re still unsure, consider consulting a professional mechanic or someone experienced with your car model. Properly identifying the relay is critical for accurate testing and ensures you don’t mistakenly work on a different component. With the relay located, you’re now ready to proceed with further checks to determine its condition.
Cycling Gas Out of Fuel-Injected Dirtbikes: Is It Possible?
You may want to see also
Explore related products
Test for Power: Use a multimeter to verify if power is reaching the relay
To test for power at the fuel pump relay using a multimeter, start by locating the relay in your vehicle’s fuse box or under the hood. Consult your vehicle’s manual to identify the correct relay, as it may be labeled as "fuel pump relay" or similar. Once located, ensure the ignition is turned off for safety. Set your multimeter to the DC voltage setting, typically marked as "V" with a straight line, and select a range higher than your vehicle’s battery voltage (usually 20V or higher). This ensures accurate readings without damaging the multimeter.
Next, connect the multimeter’s probes to the relay’s power input terminal. The power input terminal is usually the larger of the relay’s pins and is often marked with a symbol like a battery or the number "30" on the relay’s housing. Attach the red (positive) probe to this terminal and the black (negative) probe to a solid ground, such as the vehicle’s chassis or battery negative terminal. Turn the ignition to the "on" position but do not start the engine. The multimeter should display a voltage reading close to your battery voltage (typically 12V), indicating that power is reaching the relay.
If the multimeter shows no voltage or a significantly lower reading, there may be an issue with the power supply to the relay. Check the fuse associated with the fuel pump circuit, as a blown fuse could prevent power from reaching the relay. If the fuse is intact, inspect the wiring harness for damage, corrosion, or loose connections between the battery and the relay. Repair or replace any faulty components as needed.
To further confirm the relay’s functionality, test the output terminal for power when the relay is activated. Have an assistant turn the ignition to the "start" position briefly while you observe the multimeter. The voltage reading should remain steady, indicating the relay is switching power to the fuel pump. If the voltage drops or fluctuates, the relay may be faulty and require replacement.
Finally, ensure all connections are secure and the multimeter is properly set before concluding the test. If power is confirmed at the relay but the fuel pump is still not functioning, the issue may lie with the pump itself, the relay’s ground, or the pump’s control circuit. Proceed to test these components systematically to diagnose the problem accurately. Always prioritize safety by working in a well-ventilated area and avoiding contact with moving parts or hot surfaces.
Upgrading Your Trek Fuel: Tips, Compatibility, and Performance Enhancements
You may want to see also
Explore related products
Swap Relays: Temporarily replace the fuel pump relay with a similar one to test functionality
Swapping relays is a practical and straightforward method to test the functionality of your fuel pump relay. This process involves temporarily replacing the fuel pump relay with a similar one from another circuit in your vehicle. Before starting, ensure your vehicle is turned off and the ignition is in the "Off" position to avoid any electrical mishaps. Locate the fuse and relay box, typically found under the hood or near the driver’s side dashboard. Refer to your vehicle’s manual to identify the exact location of the fuel pump relay and a compatible relay to swap with, such as the horn or A/C relay, which often have similar pin configurations.
Once you’ve identified the relays, carefully remove the fuel pump relay by pulling it straight out of its slot. Take note of its orientation and pin layout to ensure the replacement relay is inserted correctly. Next, locate the similar relay you’ve chosen for the swap and remove it from its position. Insert the replacement relay into the fuel pump relay’s slot, ensuring it is firmly seated and aligned properly. If the relays have different pin configurations, avoid swapping them, as this could cause damage. With the relays swapped, start the vehicle and listen for the fuel pump to engage, which typically sounds like a brief humming noise coming from the fuel tank.
If the fuel pump operates correctly with the swapped relay, it indicates that the original fuel pump relay is likely faulty and needs replacement. However, if the fuel pump still doesn’t function, the issue may lie elsewhere, such as with the fuel pump itself, wiring, or another component in the fuel system. After testing, turn off the vehicle and reinsert the original relays into their respective slots to restore the normal operation of both circuits. This method is a quick and effective way to isolate the relay as the potential cause of fuel pump issues.
When performing this test, exercise caution to avoid damaging the relays or the relay box. Ensure the replacement relay is truly compatible in terms of amperage and pin configuration to prevent electrical issues. If you’re unsure about compatibility, consult your vehicle’s manual or seek guidance from a professional mechanic. Swapping relays is a diagnostic step, not a permanent fix, so if the original fuel pump relay is found to be faulty, replace it with a new one to ensure reliable vehicle operation.
Finally, document the results of your test for future reference or to share with a mechanic if further diagnosis is needed. This relay-swapping technique is a valuable skill for troubleshooting fuel system issues and can save time and money by pinpointing the problem before purchasing replacement parts. Always prioritize safety and accuracy when working with your vehicle’s electrical system.
Adding Fuel Stabilizer to Your Engine Without Running It: What You Need to Know
You may want to see also
Explore related products
Listen for Clicks: Start the engine and listen for relay clicks, indicating proper operation
When checking your fuel pump relay, one of the simplest yet effective methods is to listen for clicks as the engine starts. This technique allows you to assess whether the relay is functioning properly by engaging and disengaging as it should. To begin, ensure your vehicle is in a safe, well-ventilated area and that the ignition is turned off. Position yourself near the relay, which is typically located in the fuse box under the hood or inside the cabin, depending on your vehicle’s make and model. Refer to your owner’s manual if you’re unsure of its location. Once you’ve located the relay, turn the ignition key to the "on" position (but don’t start the engine) and listen carefully. You should hear a faint clicking sound, which indicates the relay has activated the fuel pump to prime the engine with fuel.
Next, start the engine and pay close attention to the relay’s behavior. As the engine cranks, the fuel pump relay should click again, signaling that it’s maintaining power to the fuel pump during operation. This click should be distinct and consistent, occurring once the engine is running. If the click is absent or irregular, it could suggest a malfunctioning relay. Additionally, observe whether the engine starts smoothly or struggles, as this can further indicate fuel pump or relay issues. After the engine is running, turn it off and listen for a final click, which confirms the relay is disengaging the fuel pump as expected.
To ensure accuracy, repeat the process a few times to verify consistency. If the relay clicks reliably each time you start the engine, it’s likely functioning correctly. However, if the clicks are missing, delayed, or inconsistent, the relay may be faulty and require replacement. Keep in mind that environmental factors, such as a noisy engine compartment, can make it harder to hear the clicks. In such cases, use a mechanic’s stethoscope or a length of rubber hose held to your ear to amplify the sound.
Another useful tip is to compare the relay’s behavior with known good operation. If possible, test the relay in a similar vehicle or consult a mechanic to confirm what normal clicks should sound like. This can help rule out other potential issues, such as a weak battery or faulty fuel pump, which might mimic relay problems. By focusing on the clicks, you can quickly narrow down whether the relay is the source of your fuel system troubles.
Finally, if you suspect the relay is faulty based on the click test, consider further diagnostics. Swap the fuel pump relay with another relay of the same type in your fuse box (e.g., the horn relay) to see if the issue persists. If the problem moves to the new location, the relay is likely at fault. However, if the issue remains with the fuel pump circuit, the problem may lie elsewhere, such as with the fuel pump itself or the wiring. Listening for clicks is a straightforward initial step in diagnosing fuel pump relay issues, but it’s often just the beginning of a comprehensive troubleshooting process.
Can Tiki Torch Fuel Freeze? Winter Storage Tips Revealed
You may want to see also
Explore related products
Inspect Connections: Ensure all wires connected to the relay are secure and undamaged
When inspecting the connections of your fuel pump relay, start by locating the relay itself, which is typically found in the fuse box under the hood or near the firewall. Once you’ve identified the relay, carefully remove it from its socket to access the wiring connections. Visually examine each wire connected to the relay for any signs of damage, such as fraying, corrosion, or burns. Damaged wires can cause poor electrical contact, leading to relay malfunction or failure. If you notice any issues, repair or replace the affected wires before proceeding.
Next, ensure all wires are securely connected to the relay terminals. Gently tug on each wire to check if it is firmly attached. Loose connections can result in intermittent power supply to the fuel pump, causing starting issues or stalling. If a wire feels loose, reattach it properly, ensuring it clicks into place. Avoid excessive force, as this could damage the terminal or wire. Secure connections are critical for reliable relay operation.
Inspect the terminals themselves for signs of corrosion, rust, or buildup, as these can interfere with electrical conductivity. Use a small wire brush or electrical contact cleaner to remove any debris or oxidation from the terminals. Clean terminals ensure a stable connection and prevent voltage drops that could affect the fuel pump’s performance. After cleaning, reinsert the relay into its socket and ensure it is seated correctly.
While inspecting the connections, also check the wiring harness for any signs of wear or damage. Look for cracks in the insulation, exposed wires, or areas where the harness may be rubbing against sharp edges or hot components. If the harness is compromised, it could lead to short circuits or open circuits, affecting the relay’s functionality. Repair or replace the harness as needed to maintain a reliable connection.
Finally, after ensuring all connections are secure and undamaged, test the relay to confirm it is functioning correctly. You can do this by swapping the fuel pump relay with a similar relay in the fuse box (such as the horn relay) and checking if the issue persists. If the problem moves to the other component, the relay is likely faulty. However, if the connections were the issue, the fuel pump should operate normally. Regularly inspecting and maintaining these connections can prevent unexpected failures and ensure your vehicle’s fuel system operates smoothly.
Using Woolworths Gift Cards for Fuel: What You Need to Know
You may want to see also
Frequently asked questions
The fuel pump relay is typically found in the fuse box under the hood or inside the cabin. Refer to your vehicle’s manual for the exact location.
Symptoms include difficulty starting the engine, stalling, sputtering, or no fuel pressure when the ignition is turned on.
Yes, you can test it using a multimeter to check for continuity or by swapping it with a similar relay in the fuse box to see if the issue resolves.
Use a test light or multimeter to check for voltage at the relay’s power terminal when the ignition is on. If there’s no power, the issue may be upstream.
Replace the relay with a new one of the same type. Ensure the replacement matches the specifications and polarity of the original relay.
