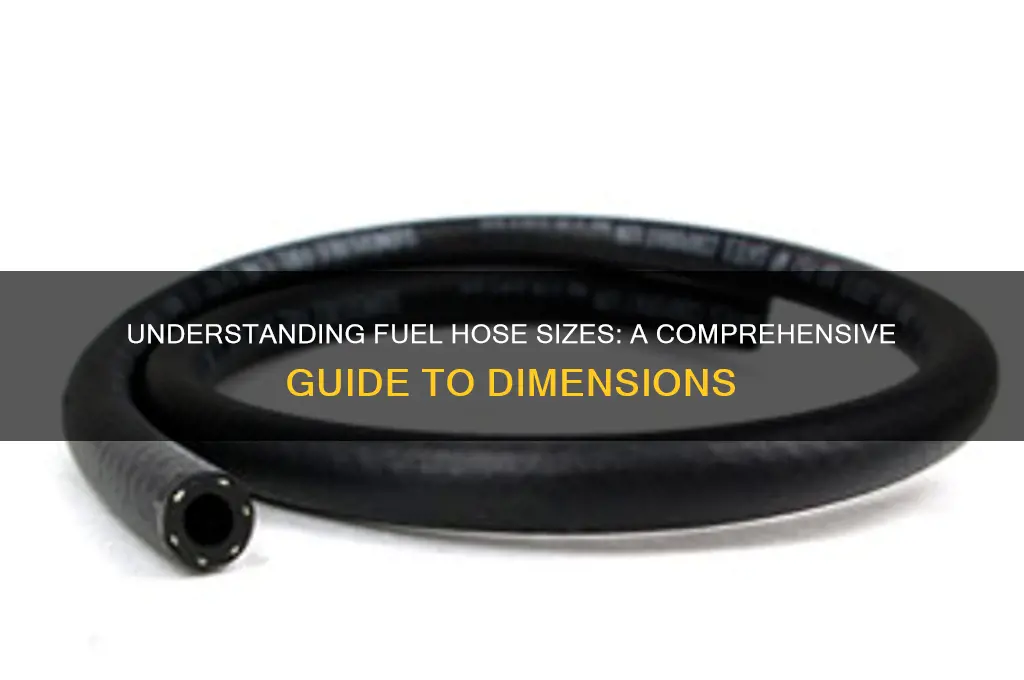

The size of a fuel hose is a critical factor in ensuring efficient and safe fuel transfer, as it directly impacts the flow rate, pressure, and compatibility with the fuel system. Fuel hoses come in various diameters, typically ranging from 1/4 inch to 1 inch or more, depending on the application, such as automotive, marine, or industrial use. The inner diameter (ID) determines the flow capacity, while the outer diameter (OD) and wall thickness influence flexibility, durability, and resistance to fuel types, including gasoline, diesel, or ethanol blends. Selecting the correct hose size involves considering factors like fuel pump capacity, engine requirements, and regulatory standards to prevent leaks, restrictions, or system damage. Understanding these dimensions is essential for optimal performance and safety in any fuel delivery system.
| Characteristics | Values |
|---|---|
| Inner Diameter (ID) | Typically ranges from 1/8 inch (3.2 mm) to 1 inch (25.4 mm) for automotive applications. Larger diameters (up to 4 inches or 100 mm) are used in industrial or marine settings. |
| Outer Diameter (OD) | Varies based on ID and hose material, usually 1.5 to 2 times the ID. |
| Wall Thickness | Generally between 1/16 inch (1.6 mm) and 1/4 inch (6.4 mm), depending on pressure rating and material. |
| Material | Common materials include rubber, PVC, nylon, and stainless steel braided hoses for high-pressure applications. |
| Pressure Rating | Ranges from 50 psi (3.4 bar) for low-pressure hoses to 1,500 psi (103 bar) for high-pressure hoses. |
| Temperature Range | Typically -40°F to 250°F (-40°C to 121°C), depending on material. High-performance hoses can withstand up to 350°F (177°C). |
| Flexibility | Varies from highly flexible (e.g., rubber hoses) to semi-rigid (e.g., reinforced hoses). |
| Compatibility | Must be compatible with fuel types (e.g., gasoline, diesel, ethanol blends) to prevent degradation. |
| Length | Available in standard lengths (e.g., 1 ft, 5 ft, 10 ft) or customizable for specific applications. |
| Fittings | Commonly uses AN (Army-Navy) or JIC (Joint Industry Council) fittings, with sizes ranging from AN-4 to AN-20. |
| Applications | Used in automotive, marine, aviation, and industrial fuel systems. |
| Standards | Complies with SAE (Society of Automotive Engineers), ISO, or DOT (Department of Transportation) standards. |
Explore related products
What You'll Learn
Standard fuel hose diameters
Fuel hose diameters are not one-size-fits-all; they vary based on application, fuel type, and regulatory standards. For passenger vehicles, the most common diameters are 5/16 inch (7.9 mm) and 3/8 inch (9.5 mm). These sizes balance flow efficiency with space constraints under the hood. Larger vehicles, such as trucks or marine engines, often use 1/2 inch (12.7 mm) hoses to handle higher fuel demands. Understanding these standards ensures compatibility and safety in fuel delivery systems.
When selecting a fuel hose, consider the fuel type and pressure requirements. Ethanol-blended fuels, for instance, necessitate hoses with materials resistant to corrosion and swelling. Diesel applications typically require thicker-walled hoses to withstand higher pressures. Always refer to the vehicle manufacturer’s specifications or industry standards like SAE J30R9 for precise diameter and material recommendations. Ignoring these details can lead to leaks, reduced performance, or even hazardous situations.
A practical tip for DIY enthusiasts: measure the inner diameter (ID) of your existing hose using calipers for accuracy. If replacing a hose, match the ID to ensure proper fuel flow. For upgrades or custom installations, consult a professional to avoid oversizing or undersizing, which can disrupt the fuel pump’s efficiency. Remember, a hose that’s too large may collapse under vacuum, while one that’s too small restricts flow, causing engine hesitation or stalling.
Comparing fuel hose diameters across applications highlights their adaptability. Motorcycles and small engines often use 1/4 inch (6.3 mm) hoses due to limited space and lower fuel demands. In contrast, industrial generators or agricultural equipment might employ 3/4 inch (19 mm) hoses to meet high-volume needs. This diversity underscores the importance of application-specific selection, ensuring optimal performance and longevity in any fuel system.
Does Enzyme Fuel Treatment Really Enhance Engine Performance and Efficiency?
You may want to see also
Explore related products
Measuring fuel hose length
Fuel hose dimensions vary widely, but length is a critical factor often overlooked. Whether replacing a damaged hose or installing a new system, accurate measurement ensures compatibility and safety. Start by identifying the hose’s purpose—fuel transfer, marine applications, or automotive use—as this dictates the required length. For instance, a marine fuel hose might need extra length to accommodate vessel movement, while a car’s fuel line is typically shorter and more precise. Always measure from the fuel tank to the engine, accounting for bends and connections, to avoid underestimating.
A common mistake is neglecting the hose’s inner diameter (ID) when focusing on length. However, the ID directly impacts fuel flow and pressure, making it inseparable from length considerations. For example, a longer hose with a smaller ID can restrict flow, reducing engine performance. Conversely, a shorter hose with a larger ID may not fit within the available space. Always pair length measurements with ID specifications, consulting manufacturer guidelines or industry standards like SAE J30R for automotive hoses or ISO 7840 for marine applications.
Practical tips can streamline the process. If measuring an installed hose, mark the endpoints with tape or chalk before removal to ensure consistency. For custom installations, simulate the hose route using a string or wire, then measure the substitute for a precise fit. Keep a log of measurements, including ID and material type, for future reference. Remember, fuel hoses degrade over time, so remeasure periodically, especially in high-temperature or corrosive environments. Accurate length measurement isn’t just about functionality—it’s about safety and efficiency.
Boost Engine Performance: Simple Steps to Add Fuel Cleaner
You may want to see also
Explore related products
$5.99 $9.98
Inner vs. outer hose size
Fuel hose sizing is not a one-dimensional affair. The critical distinction lies in understanding the inner diameter (ID) versus the outer diameter (OD). The ID dictates flow rate and compatibility with your fuel system, while the OD determines how the hose fits within clamps, connectors, and routing spaces. Mismatch either, and you risk leaks, restricted fuel delivery, or even hose failure.
For instance, a hose with a 3/8" ID might have a 1/2" OD due to its wall thickness. This seemingly small difference can render it incompatible with a fuel line designed for a 5/16" OD hose, even if the IDs match.
Selecting the Right Size:
Think of it like choosing a pipe for plumbing. You wouldn't use a garden hose to supply water to a fire hydrant. Similarly, a fuel hose with an ID too small will choke your engine, while one too large can lead to inefficient fuel delivery and potential vapor lock. Refer to your vehicle's manual or consult a mechanic to determine the correct ID for your specific application.
Remember, the OD is equally crucial. A hose with an OD too large won't fit within existing clamps or fuel line routing, potentially causing kinks or rubbing against other components.
Material Matters:
The material of the hose also influences its size considerations. Rubber hoses tend to have thicker walls, resulting in a larger OD for a given ID compared to nylon or synthetic rubber hoses. This means a nylon hose with the same ID as a rubber hose will have a smaller OD, potentially offering more flexibility and easier routing.
Pro Tip: When in doubt, err on the side of a slightly larger ID. A slightly oversized ID allows for better fuel flow and reduces the risk of restriction, especially in high-performance applications. However, ensure the OD still fits within your system's constraints.
Beyond Diameter:
While ID and OD are primary concerns, don't overlook other size-related factors. Hose length, bend radius, and wall thickness all play a role in fuel delivery efficiency and overall system integrity. Consider the distance the fuel needs to travel and the bends it must navigate. A hose too short or with a tight bend radius can restrict flow, while one too long can introduce unnecessary complexity and potential leak points.
Oxygen's Impact on Fuel Efficiency: Myth or Mileage Booster?
You may want to see also
Explore related products
Fuel hose size by application
Fuel hose sizes vary significantly depending on the application, ensuring optimal performance and safety across different systems. For small engines like lawnmowers or chainsaws, a 1/4-inch (6.35 mm) inner diameter (ID) hose is common. This size balances fuel flow efficiency with the compact nature of the equipment. Larger applications, such as marine engines or industrial generators, often require 3/8-inch (9.52 mm) or even 1/2-inch (12.7 mm) ID hoses to handle higher fuel demands and maintain consistent pressure. Selecting the correct size is critical, as undersized hoses restrict flow, while oversized ones can lead to inefficiency and potential leaks.
In automotive applications, fuel hose sizes are standardized to meet specific vehicle requirements. Passenger cars typically use 5/16-inch (7.94 mm) ID hoses for carbureted systems, while fuel-injected engines often require 3/8-inch (9.52 mm) ID hoses to accommodate higher pressure and flow rates. High-performance vehicles, such as race cars, may use larger diameters like 1/2-inch (12.7 mm) to ensure adequate fuel delivery under extreme conditions. Always consult the vehicle’s manual or manufacturer specifications to avoid compatibility issues.
For aviation fuel systems, precision is paramount. Aircraft fuel hoses are typically 1/2-inch (12.7 mm) or larger, designed to handle high-flow rates and withstand extreme temperatures and pressures. These hoses are often constructed from specialized materials like fluoropolymers to resist jet fuel and ensure longevity. In contrast, recreational vehicles (RVs) and boats usually employ 3/8-inch (9.52 mm) ID hoses, balancing fuel efficiency with the demands of mobile applications.
When replacing or installing fuel hoses, consider not only the diameter but also the hose material and pressure rating. Ethanol-blended fuels, for example, require hoses made from ethanol-resistant materials like nitrile rubber. Pressure ratings should match the system’s requirements—a hose rated for 50 psi may suffice for a carbureted engine, but fuel-injected systems often need hoses rated for 100 psi or higher. Always measure the existing hose or consult a professional to ensure accuracy.
Finally, safety should never be overlooked. Fuel hoses must comply with industry standards such as SAE J30R9 for automotive applications or MIL-DTL-8521 for aviation. Inspect hoses regularly for cracks, swelling, or leaks, especially in high-vibration environments. Replace hoses every 5–7 years, or sooner if signs of wear appear. Proper sizing and maintenance not only optimize performance but also prevent hazardous fuel leaks, making it a critical aspect of any fuel system.
Efficient Flight Planning: Mastering Minimum Fuel Calculations for Pilots
You may want to see also
Explore related products
Impact of size on flow rate
The diameter of a fuel hose directly influences the flow rate of liquid it can deliver. A larger diameter hose allows more fuel to pass through per unit of time, increasing the flow rate. This principle is rooted in the physics of fluid dynamics, where the cross-sectional area of the hose determines the volume of fluid that can flow through it. For instance, a 1-inch diameter hose typically delivers around 10 gallons per minute (GPM) at a standard pressure, while a 2-inch diameter hose can deliver up to 40 GPM under the same conditions. This relationship is crucial in applications like refueling vehicles or operating machinery, where time efficiency is critical.
Selecting the right hose size requires balancing flow rate needs with practical constraints. For example, a high-flow rate is essential for quickly refueling large vehicles like trucks or aircraft, but using an oversized hose can lead to inefficiencies, such as increased pressure drop or difficulty in handling. A 1.5-inch hose often strikes a balance, delivering around 25 GPM, suitable for most commercial refueling needs. Conversely, smaller hoses, such as 0.75-inch diameters, are ideal for portable fuel containers or small engines, where flow rate demands are lower but portability is key. Always consider the equipment’s inlet size and the fuel source’s pressure capabilities to avoid mismatches.
The impact of hose size on flow rate extends beyond diameter to include length and material. Longer hoses increase friction, reducing flow rate even if the diameter is optimal. For example, a 20-foot 1-inch hose may deliver 10 GPM, but extending it to 50 feet could drop the flow rate to 7 GPM due to increased resistance. Material also plays a role: flexible rubber hoses offer ease of use but may restrict flow more than rigid metal hoses. When designing a fuel delivery system, calculate the total pressure drop across the hose length and select a diameter that compensates for these losses to maintain the desired flow rate.
Practical tips for optimizing flow rate include using smooth-bore hoses to minimize internal friction and ensuring fittings are properly sized to avoid bottlenecks. For high-flow applications, consider hoses with reinforced walls to handle increased pressure without collapsing. Regularly inspect hoses for kinks, clogs, or wear, as these can significantly reduce flow efficiency. For DIY enthusiasts, a simple rule of thumb is to choose a hose diameter that matches the fuel tank’s inlet size and ensure the length is no longer than necessary. By understanding the interplay between hose size, length, and material, users can maximize flow rate while maintaining safety and efficiency.
Understanding Fuel Pricing: Factors, Fluctuations, and Consumer Impact Explained
You may want to see also
Frequently asked questions
The standard size of a fuel hose typically ranges from 5/16 inch (8 mm) to 3/8 inch (10 mm) in inner diameter, depending on the application and vehicle requirements.
To determine the correct fuel hose size, consult your vehicle’s manual or check the existing hose’s diameter. Ensure compatibility with your fuel system’s flow rate and pressure requirements.
Using a larger fuel hose than recommended is not advised, as it can lead to reduced fuel pressure, improper fitment, and potential leaks. Always use the size specified for your vehicle.
