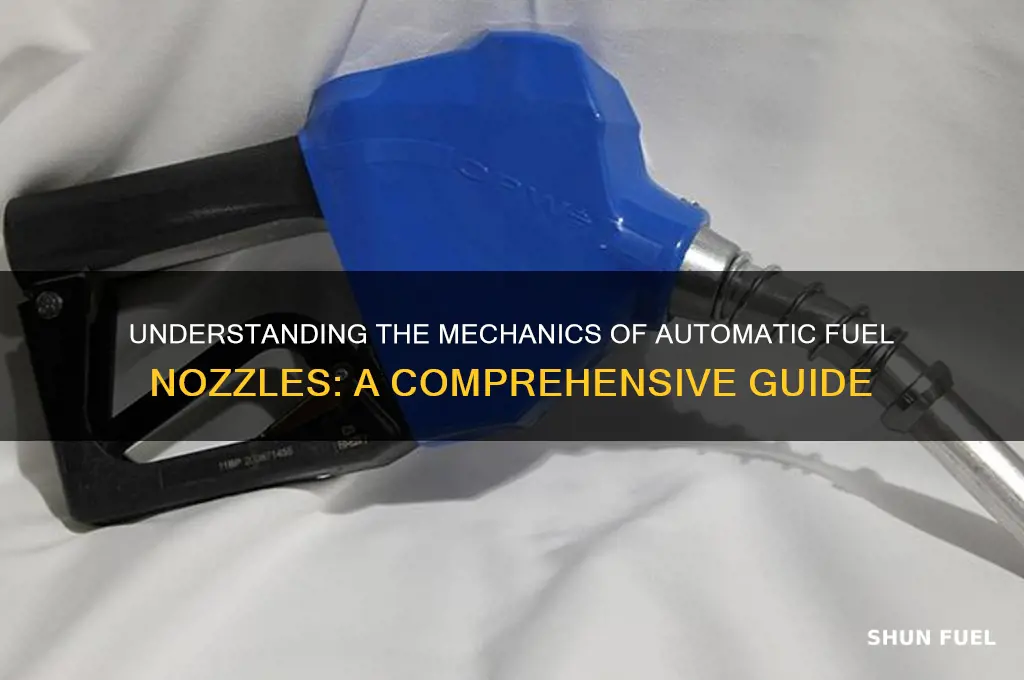

An automatic fuel nozzle is a crucial component in modern fueling systems, designed to simplify and streamline the process of refueling vehicles. It operates by utilizing a combination of mechanical and electronic mechanisms to detect when the fuel tank is full, automatically shutting off the flow of fuel to prevent overflow. The nozzle features a spring-loaded latch that engages with the fuel tank's filler neck, allowing fuel to flow when the nozzle is inserted. As the tank fills, the rising fuel level activates a sensor or a vacuum-based system within the nozzle, which triggers the automatic shut-off mechanism. This not only ensures safety by minimizing the risk of spills and fumes but also enhances convenience for users by eliminating the need for manual monitoring during refueling. Understanding how an automatic fuel nozzle works highlights its role in improving efficiency, safety, and user experience at gas stations.
| Characteristics | Values |
|---|---|
| Operation Principle | Utilizes a Venturi effect-based system to create a vacuum that opens and closes the nozzle. |
| Components | Nozzle body, spout, vacuum chamber, main valve, latch mechanism, and spring-loaded trigger. |
| Activation | Activated by inserting the nozzle into the fuel tank and pressing the lever or trigger. |
| Flow Control | Regulates fuel flow based on the vacuum created in the nozzle chamber. |
| Shut-Off Mechanism | Automatically stops fuel flow when the tank is full, triggered by rising fuel vapor pressure. |
| Safety Features | Includes a vapor recovery system to minimize fuel fumes and a latch to prevent accidental disconnection. |
| Material | Typically made of durable materials like stainless steel or high-impact plastic. |
| Compatibility | Designed for gasoline, diesel, and other liquid fuels. |
| Pressure Range | Operates within a standard fuel dispenser pressure range (e.g., 20-50 psi). |
| Flow Rate | Varies by model, typically 5-10 gallons per minute (GPM). |
| Maintenance | Requires periodic cleaning and inspection to ensure proper function and prevent clogs. |
| Environmental Impact | Reduces fuel spillage and emissions through efficient shut-off and vapor recovery. |
| Regulations | Complies with industry standards (e.g., UL, CSA) and environmental regulations (e.g., EPA). |
Explore related products
What You'll Learn
- Nozzle Activation Mechanism: Explains how the nozzle starts fuel flow when properly inserted into the vehicle's fuel tank
- Automatic Shut-Off System: Details the mechanism that stops fuel flow when the tank reaches its maximum capacity
- Fuel Flow Control Valve: Describes the valve that regulates fuel flow rate during the refueling process
- Vapor Recovery System: Covers how the nozzle captures and recycles fuel vapors to reduce emissions
- Safety Features Overview: Highlights safety measures like leak detection and emergency shut-off functions
Nozzle Activation Mechanism: Explains how the nozzle starts fuel flow when properly inserted into the vehicle's fuel tank
The automatic fuel nozzle's activation mechanism is a marvel of simplicity and precision, ensuring fuel flow begins only when the nozzle is correctly inserted into the vehicle's fuel tank. This mechanism relies on a combination of mechanical and hydraulic principles to detect proper insertion and initiate fuel delivery. Here’s how it works: when the nozzle is inserted, a small, spring-loaded latch inside the nozzle tip engages with the fuel tank’s filler neck. This engagement triggers a series of events, starting with the opening of a valve within the nozzle, allowing fuel to flow. Simultaneously, a vacuum-assist system ensures the nozzle remains securely in place, preventing spills and enabling hands-free operation.
Consider the mechanical components at play. The nozzle’s tip houses a plunger that is pushed inward upon insertion, disengaging a safety interlock. This interlock, when released, allows a secondary valve to open, connecting the fuel delivery line to the tank. The plunger’s movement is calibrated to ensure it only activates when fully inserted, minimizing the risk of accidental spills or premature activation. For example, most nozzles require a minimum insertion depth of 1.5 inches to trigger the mechanism, a standard designed to accommodate various fuel tank openings while maintaining safety.
From a practical standpoint, understanding this mechanism can help users troubleshoot common issues. If the nozzle fails to activate, check for debris obstructing the plunger or a misaligned insertion. Gently wiggling the nozzle or ensuring it is fully seated can often resolve the problem. Additionally, modern nozzles often include a flow-stop mechanism that halts fuel delivery when the tank is nearly full, relying on backpressure to trigger a shutoff valve. This dual-safety system underscores the nozzle’s role in preventing overflows and ensuring efficient fueling.
Comparatively, manual nozzles lack this automated activation, requiring users to hold the lever down throughout fueling. The automatic nozzle’s mechanism not only enhances convenience but also reduces human error, such as overfilling or spillage. Its design reflects a balance between mechanical reliability and user-friendly operation, making it a staple in fueling stations worldwide. By understanding this activation process, users can appreciate the engineering behind a tool they interact with regularly, often without a second thought.
In conclusion, the nozzle activation mechanism is a testament to thoughtful design, blending mechanical precision with practical functionality. Its ability to detect proper insertion, initiate fuel flow, and maintain safety showcases the ingenuity behind everyday technology. Whether you’re a driver or an enthusiast, knowing how this mechanism works can deepen your appreciation for the systems that power modern life.
