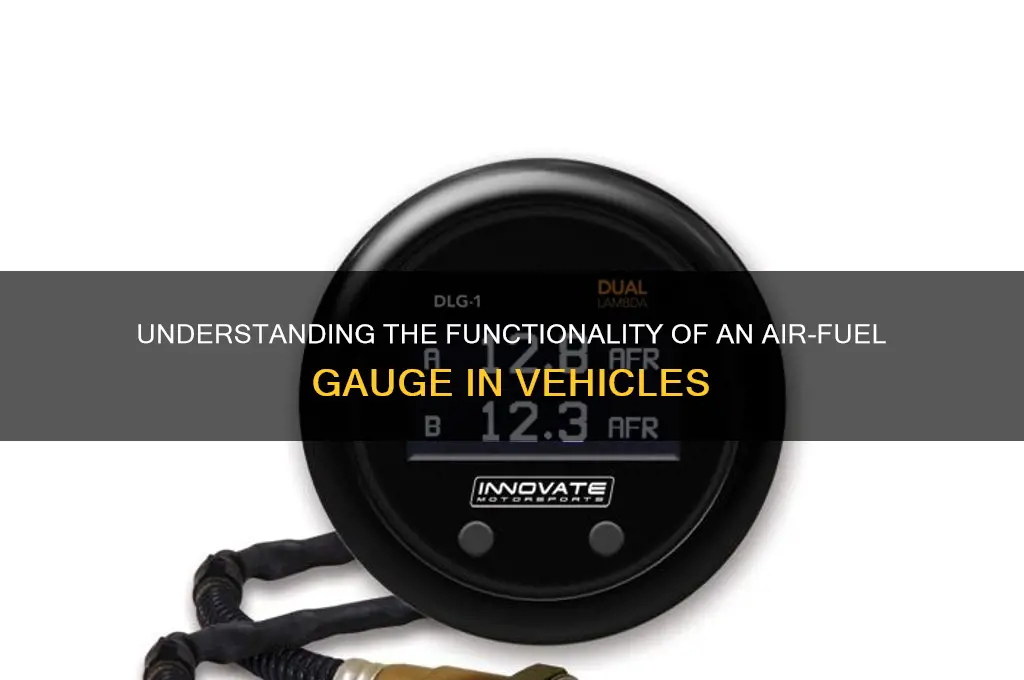

An air-fuel gauge, also known as an air-fuel ratio (AFR) gauge, is a critical instrument in automotive diagnostics that measures the ratio of air to fuel in an engine's combustion process. It operates by analyzing the exhaust gases using an oxygen sensor, typically located in the exhaust system, which detects the amount of unburned oxygen present. This data is then processed by the gauge to display the AFR, often in real-time, allowing drivers or mechanics to ensure optimal engine performance. The ideal air-fuel ratio for most gasoline engines is 14.7:1, and deviations from this ratio can indicate issues such as a rich or lean mixture, which can affect fuel efficiency, emissions, and engine longevity. By monitoring this ratio, users can make adjustments to the fuel system or engine tuning to maintain efficiency and reduce environmental impact.
| Characteristics | Values |
|---|---|
| Operating Principle | Measures air-fuel ratio (AFR) in the exhaust stream to optimize combustion |
| Sensor Type | Oxygen (O2) sensor or Wideband Air-Fuel (AFR) sensor |
| Measurement Range | Narrowband: ~14.7:1 (stoichiometric); Wideband: 9:1 to 20:1 |
| Output Signal | Voltage (narrowband: 0.1-0.9V; wideband: variable) or digital data |
| Response Time | Narrowband: ~100-200 ms; Wideband: ~20-50 ms |
| Accuracy | Narrowband: ±10%; Wideband: ±1-2% |
| Power Source | Vehicle's electrical system (12V) |
| Location | Mounted in the exhaust system before or after the catalytic converter |
| Compatibility | Works with carbureted, fuel-injected, and turbocharged engines |
| Calibration | Self-calibrating or requires periodic manual calibration |
| Lifespan | 50,000 to 100,000 miles (varies by sensor type and usage) |
| Failure Symptoms | Poor fuel efficiency, rough idle, check engine light (CEL) activation |
| Environmental Impact | Helps reduce emissions by optimizing fuel combustion |
| Cost | Narrowband: $20-$50; Wideband: $100-$300 |
| Maintenance | Regular inspection; replacement if contaminated or damaged |
| Integration | Connected to the Engine Control Unit (ECU) for real-time adjustments |
Explore related products
What You'll Learn
- Sensor Types: Explains the different sensors used to measure air and fuel levels
- Float Mechanism: Details how the float system operates in fuel gauges
- Electrical Circuitry: Describes the role of electrical circuits in gauge functionality
- Digital vs. Analog: Compares digital and analog air-fuel gauge technologies
- Calibration Process: Outlines steps to calibrate air-fuel gauges for accuracy
Sensor Types: Explains the different sensors used to measure air and fuel levels
Air-fuel ratio sensors are the backbone of efficient combustion in modern engines, and their diversity is as critical as their function. The wideband oxygen sensor, for instance, is a powerhouse in precision, measuring the air-fuel mixture across a broad range (typically 8:1 to 22:1) to ensure optimal performance. Unlike its narrowband counterpart, which only indicates rich or lean conditions near the stoichiometric ratio (14.7:1 for gasoline), the wideband sensor provides real-time data crucial for fuel injection adjustments. This sensor is indispensable in high-performance engines where even minor deviations can impact power and emissions.
In contrast, mass airflow (MAF) sensors take a different approach by measuring the volume and density of air entering the engine. Using a heated wire or film, the MAF sensor calculates airflow based on cooling rates, directly influencing fuel injection rates. A clogged or malfunctioning MAF sensor can lead to poor fuel economy, rough idling, or even engine stalling. Regular cleaning with specialized MAF sensor cleaner (not carburetor cleaner, which can damage the sensor) is a practical tip to maintain accuracy.
For fuel level measurement, float-based sensors remain a reliable staple in most vehicles. A float connected to a variable resistor moves with the fuel level, altering the resistance and sending a corresponding signal to the gauge. While simple, this system is prone to wear and tear, especially in older vehicles. A sudden drop in fuel gauge accuracy often indicates a failing float sensor, requiring replacement to avoid running out of fuel unexpectedly.
Emerging technologies like ultrasonic fuel level sensors offer a modern alternative, using sound waves to measure fuel height in the tank. These sensors are more durable and precise, unaffected by fuel sloshing or debris. However, their higher cost limits widespread adoption, making them more common in luxury or commercial vehicles. Pairing ultrasonic sensors with advanced diagnostics can predict fuel consumption patterns, a feature increasingly valuable in fleet management.
Lastly, manifold absolute pressure (MAP) sensors indirectly contribute to air-fuel measurement by gauging engine load. By detecting intake manifold pressure, the MAP sensor helps the engine control unit (ECU) adjust fuel delivery based on driving conditions. For example, during hard acceleration, the MAP sensor signals the ECU to increase fuel to match the higher air intake. Calibrating the MAP sensor is essential after modifications like turbocharging, ensuring the ECU receives accurate data for optimal performance.
Understanding these sensor types highlights their interconnected roles in maintaining engine efficiency. While each operates differently, their collective accuracy ensures a balanced air-fuel mixture, reducing emissions and maximizing power. Regular maintenance and timely replacements are key to preserving their functionality, making them unsung heroes of modern automotive engineering.
Fuel Oil vs. Gasoline: Understanding the Key Differences and Uses
You may want to see also
Explore related products
Float Mechanism: Details how the float system operates in fuel gauges
The float mechanism in a fuel gauge is a marvel of simplicity, relying on buoyancy principles to measure fuel levels accurately. At its core, the system consists of a hollow, sealed float connected to a variable resistor via a lever or pivot arm. As the fuel level rises or falls, the float moves accordingly, altering the resistance in the circuit. This change in resistance is then translated into a readable fuel level on the dashboard gauge. The beauty of this design lies in its mechanical reliability, which has made it a staple in automotive engineering for decades.
To understand the operation, imagine a fuel tank partially filled with gasoline. The float, being less dense than the fuel, rests on the surface. As the fuel level decreases, the float drops, pulling the lever and increasing the resistance in the circuit. Conversely, when the tank is full, the float rises, pushing the lever and decreasing resistance. This mechanical movement is proportional to the fuel level, ensuring precise measurements. For instance, in a typical setup, a full tank might correspond to a resistance of 10 ohms, while an empty tank could be around 90 ohms.
One critical aspect of the float mechanism is its calibration. The float’s size, shape, and material are carefully chosen to ensure it floats at the correct fuel density. For gasoline, floats are often made of materials like foam or hollow plastic, which provide the right balance of buoyancy and durability. Diesel fuel, being denser, requires a differently calibrated float to maintain accuracy. Misalignment or wear in the lever mechanism can lead to inaccurate readings, so periodic inspection is essential, especially in older vehicles.
Despite its simplicity, the float system is not without limitations. Over time, debris or sediment in the fuel tank can interfere with the float’s movement, causing erratic gauge behavior. Additionally, extreme temperatures can affect fuel density, potentially skewing readings. Modern vehicles often pair the float mechanism with electronic sensors to enhance accuracy and reliability. For DIY enthusiasts, troubleshooting a faulty float system involves checking for obstructions, testing the resistor’s continuity, and ensuring the float moves freely within the tank.
In conclusion, the float mechanism remains a cornerstone of fuel gauge technology, blending mechanical ingenuity with practical functionality. Its operation hinges on the interplay between buoyancy, resistance, and calibration, delivering real-time fuel level data to drivers. While newer digital systems are gaining traction, the float mechanism’s durability and simplicity ensure its continued relevance in automotive design. Understanding its workings not only demystifies the fuel gauge but also empowers vehicle owners to diagnose and address common issues effectively.
Mastering Fuel Scoop Deployment: A Step-by-Step Guide for Pilots
You may want to see also
Explore related products
Electrical Circuitry: Describes the role of electrical circuits in gauge functionality
Electrical circuits are the backbone of an air-fuel gauge's operation, translating chemical reactions into readable data. At the heart of this process lies the oxygen sensor, typically located in the exhaust system. This sensor generates a voltage signal proportional to the oxygen content in the exhaust gases, which fluctuates based on the air-fuel mixture's richness or leanness. This voltage signal is the raw data that the gauge's circuitry must interpret.
A dedicated circuit amplifies and conditions this signal, ensuring it's compatible with the gauge's display mechanism. This involves filtering out noise and adjusting the signal's range to match the gauge's scale, typically from a rich 0.8:1 to a lean 1.2:1 air-fuel ratio for gasoline engines. The circuit then feeds this processed signal to the gauge's needle or digital display, providing real-time feedback to the driver.
Consider the analogy of a dimmer switch controlling a light bulb. The oxygen sensor's voltage signal is like the position of the dimmer switch, dictating the bulb's brightness. The electrical circuit acts as the wiring and transformer, ensuring the bulb responds accurately to the switch's position. In this case, the bulb's brightness corresponds to the gauge's needle position or digital readout, indicating the air-fuel mixture's composition.
When designing or troubleshooting air-fuel gauge circuits, it's crucial to account for voltage drops and signal degradation. Use high-quality wiring and connectors to minimize resistance, and ensure the circuit is properly grounded to prevent interference. Regularly inspect the oxygen sensor's wiring harness for damage or corrosion, as this can lead to inaccurate readings. For DIY enthusiasts, a multimeter is an invaluable tool for verifying signal integrity and identifying potential issues within the circuit.
In advanced applications, such as high-performance engines or emissions testing, the electrical circuitry may incorporate additional components like wideband oxygen sensors or data loggers. Wideband sensors provide a more precise measurement range, often from 0.65:1 to 2.2:1, allowing for finer tuning of the air-fuel mixture. Data loggers record the gauge's readings over time, enabling analysis of engine performance and identification of trends or anomalies. When working with these systems, consult the manufacturer's specifications and recommended practices to ensure accurate and reliable operation.
Nitrogen's Role in Enhancing Fuel Efficiency: Fact or Fiction?
You may want to see also
Explore related products
Digital vs. Analog: Compares digital and analog air-fuel gauge technologies
Air-fuel gauges are essential tools for monitoring the critical balance of air and fuel in an engine, ensuring optimal performance and efficiency. When comparing digital and analog technologies, the core difference lies in how they display and process data. Analog gauges use a mechanical needle moving across a physical scale to represent the air-fuel ratio, offering a continuous, real-time visual. In contrast, digital gauges convert the ratio into numerical values displayed on an LCD or LED screen, often with additional features like alerts or logging capabilities. This fundamental distinction influences accuracy, readability, and functionality, making the choice between the two dependent on specific needs and preferences.
From an analytical perspective, digital air-fuel gauges excel in precision and versatility. They typically provide readings with an accuracy of ±0.1 AFR (Air-Fuel Ratio), compared to analog gauges, which may have a tolerance of ±0.2 AFR or higher. Digital gauges often integrate with engine management systems, allowing for real-time adjustments and data logging for performance tuning. For example, a digital gauge might alert a user when the AFR approaches a lean condition (e.g., 15:1), preventing potential engine damage. However, this sophistication comes at a higher cost and requires familiarity with digital interfaces, which may be intimidating for less tech-savvy users.
Analog gauges, on the other hand, offer simplicity and immediacy. Their mechanical design makes them less prone to electrical interference and easier to read at a glance, particularly in bright or vibrating environments. For instance, a driver on a racetrack can quickly interpret the needle’s position without diverting attention from the road. Analog gauges are also generally more affordable and durable, with fewer components to fail. However, they lack the advanced features of digital gauges, such as data storage or integration with other sensors, limiting their utility in complex tuning scenarios.
When deciding between digital and analog, consider the application. For professional racing or high-performance tuning, a digital gauge’s precision and data capabilities are invaluable. For casual enthusiasts or older vehicles, an analog gauge’s simplicity and reliability may suffice. Practical tip: If using an analog gauge, pair it with a wideband oxygen sensor for improved accuracy, as narrowband sensors can skew readings. Conversely, if opting for digital, ensure compatibility with your vehicle’s OBD-II system for seamless integration.
In conclusion, the choice between digital and analog air-fuel gauges hinges on balancing precision, cost, and ease of use. Digital gauges offer advanced features and accuracy but require a steeper learning curve, while analog gauges provide straightforward, reliable readings at a lower price point. By evaluating your specific needs—whether for professional tuning or basic monitoring—you can select the technology that best aligns with your goals and ensures your engine operates at its peak efficiency.
How Tourism Drives Global Trade and Economic Growth
You may want to see also
Explore related products
Calibration Process: Outlines steps to calibrate air-fuel gauges for accuracy
Air-fuel gauges are critical for maintaining optimal engine performance, but their accuracy can drift over time due to wear, environmental factors, or improper installation. Calibration ensures these gauges provide reliable readings, preventing issues like poor fuel efficiency or engine damage. The process involves adjusting the gauge to match a known standard, typically using a wideband oxygen sensor as a reference point. This ensures the gauge accurately reflects the air-fuel ratio, which is essential for tuning and diagnostics.
Step 1: Prepare the Equipment
Begin by gathering the necessary tools: a wideband oxygen sensor, a calibration gas (such as a 14.7:1 air-fuel ratio gas for stoichiometric calibration), and a calibration tool compatible with your gauge. Ensure the engine is off and cooled to avoid interference from heat or vibrations. Connect the wideband sensor to the exhaust system and verify it’s functioning correctly. This setup provides a baseline for comparison during calibration.
Step 2: Establish Baseline Readings
Start the engine and allow it to reach operating temperature. Monitor both the air-fuel gauge and the wideband sensor readings simultaneously. Note any discrepancies between the two. For example, if the gauge reads 14.0:1 while the wideband sensor shows 14.7:1, a +0.7 correction factor is needed. Document these differences for adjustment in the next step.
Step 3: Adjust the Gauge
Access the gauge’s calibration menu, typically via a button sequence or software interface. Input the correction factor derived from the baseline readings. For instance, if the gauge reads leaner than the wideband sensor, increase the displayed value to match. Some gauges allow for fine-tuning in increments of 0.1, so adjust carefully. Repeat the process until both devices show identical readings under stable engine conditions.
Step 4: Verify and Test
After calibration, retest the gauge under varying engine loads (idle, cruise, and acceleration) to ensure consistency. Compare readings with the wideband sensor at each stage. If discrepancies reappear, revisit the calibration process. Once accurate, save the settings and disconnect the calibration equipment. Regularly repeat this process every 6–12 months or after modifications to maintain precision.
Cautions and Practical Tips
Avoid calibrating in extreme temperatures or humid environments, as these can skew readings. Always use high-quality calibration gas and ensure the wideband sensor is properly maintained. If the gauge lacks a calibration feature, consider upgrading to a model with this capability. Finally, consult the manufacturer’s guidelines for model-specific instructions, as steps may vary. Accurate calibration not only extends the gauge’s lifespan but also ensures your engine operates at peak efficiency.
Exploring Audi's Fuel Efficiency: Performance Meets Economy in Modern Models
You may want to see also
Frequently asked questions
An air fuel gauge measures the air-fuel ratio by using an oxygen sensor (O2 sensor) in the exhaust system. The sensor detects the amount of unburned oxygen in the exhaust, which is used to calculate the ratio of air to fuel in the combustion chamber. This data is then displayed on the gauge.
The ideal air-fuel ratio is approximately 14.7:1 (14.7 parts air to 1 part fuel) for gasoline engines, known as the stoichiometric ratio. This ratio ensures complete combustion, maximizing power and fuel efficiency while minimizing emissions. Deviations from this ratio can lead to poor performance, increased fuel consumption, or engine damage.
Air fuel gauges are primarily designed for gasoline engines because diesel engines operate on a different combustion principle and do not use a fixed air-fuel ratio. Diesel engines rely on compression ignition and adjust fuel injection based on load, making air-fuel ratio measurement less relevant for them.
A wideband air fuel gauge provides a more precise and broader range of air-fuel ratio measurements, typically from 8:1 to 18:1. It uses a more advanced sensor and is ideal for performance tuning. A narrowband gauge, on the other hand, only measures around the stoichiometric ratio (14.7:1) and is less accurate for extreme ratios, making it suitable for basic monitoring.
