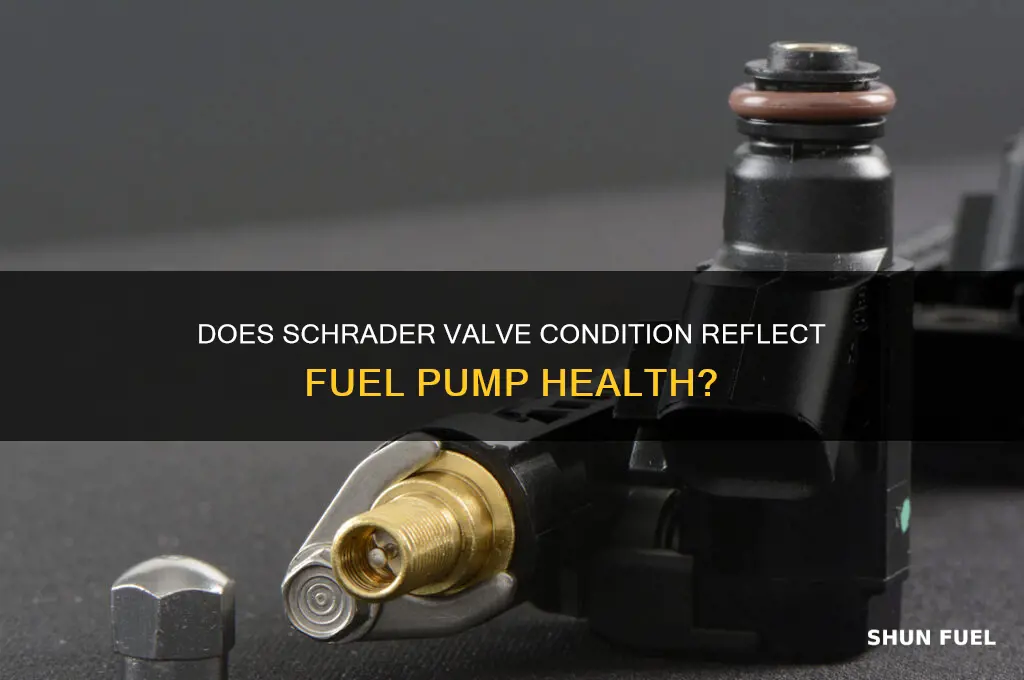

The Schrader valve, commonly found in vehicle fuel systems, is often mistaken for an indicator of fuel pump condition, but its primary function is to allow pressure testing of the fuel system rather than diagnosing the pump's health. This valve, similar to those used in tires, enables technicians to connect gauges for measuring fuel pressure, which can indirectly suggest issues with the fuel pump if readings are abnormal. However, low pressure could also result from clogged fuel filters, faulty pressure regulators, or other system problems, making the Schrader valve a useful but not definitive tool for assessing fuel pump functionality. To accurately diagnose the fuel pump’s condition, additional tests, such as checking for voltage, amperage draw, or mechanical operation, are typically required.
| Characteristics | Values |
|---|---|
| Schrader Valve Function | Primarily used to check fuel pressure, not the condition of the fuel pump. |
| Indication of Fuel Pump Health | Does not directly indicate fuel pump condition; only measures pressure. |
| Pressure Reading | Provides fuel system pressure, which can indirectly suggest pump issues. |
| Diagnostic Capability | Limited to pressure; additional tools/tests needed for pump diagnosis. |
| Common Misconception | Often mistaken as a direct indicator of fuel pump health. |
| Compatibility | Found in most modern fuel-injected vehicles with pressurized systems. |
| Maintenance Requirement | No specific maintenance needed; inspect for leaks or damage. |
| Alternative Diagnostics | Use fuel pump pressure gauge, listen for whine, or check fuel delivery. |
| Location | Typically on the fuel rail or fuel line, accessible for pressure testing. |
| Cost of Replacement | Schrader valve replacement is inexpensive; pump replacement is costly. |
Explore related products
What You'll Learn
Schrader Valve Functionality in Fuel Systems
The Schrader valve, a small yet critical component in fuel systems, serves as a pressure relief and access point for fuel pressure testing. Unlike its more common application in tires, where it retains air, the Schrader valve in fuel systems is designed to handle volatile liquids and gases under high pressure. Its primary function is to provide a secure, leak-proof seal while allowing technicians to connect gauges for diagnostic testing. This valve is typically located on the fuel rail or fuel pump assembly, offering a direct interface to monitor fuel system pressure, a key indicator of pump performance.
To assess the condition of a fuel pump using the Schrader valve, follow these steps: first, relieve the fuel system pressure by locating the valve and attaching a compatible fuel pressure gauge. Start the engine and observe the pressure reading; a healthy fuel pump should maintain pressure within the manufacturer’s specified range, typically between 30 and 60 psi for most vehicles. If the pressure drops significantly or fails to stabilize, it may indicate a failing pump, clogged filter, or leak in the system. Always refer to the vehicle’s service manual for exact pressure values and testing procedures.
While the Schrader valve is a valuable diagnostic tool, it is not a direct indicator of fuel pump condition on its own. Its role is to facilitate pressure testing, which, when combined with other symptoms like engine sputtering or poor acceleration, can help pinpoint issues. For instance, if the valve shows normal pressure but the engine still performs poorly, the problem may lie elsewhere, such as with fuel injectors or sensors. Conversely, a malfunctioning Schrader valve (e.g., leaking or stuck) can falsely suggest pump issues, emphasizing the need for regular inspection and maintenance of this component.
In practical terms, the Schrader valve’s functionality is a gateway to understanding fuel system health. Technicians and DIY enthusiasts alike can use it to perform quick pressure checks, saving time and diagnostic costs. However, caution is advised: working with fuel systems requires proper safety measures, including wearing protective gear and ensuring the engine is cool to prevent fires. Additionally, always depressurize the system before removing the valve cap or gauge to avoid fuel spray. By leveraging the Schrader valve effectively, one can gain insights into fuel pump performance and address potential issues before they escalate.
