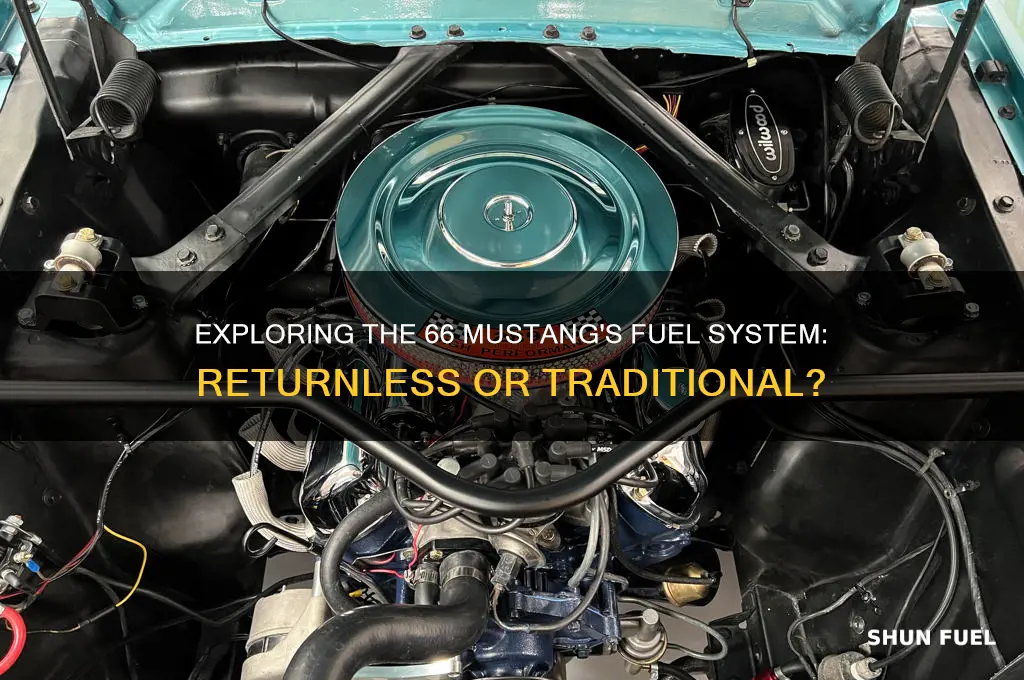

The 1966 Ford Mustang, a classic icon of American muscle cars, is often a subject of curiosity among automotive enthusiasts, particularly regarding its fuel system. One common question is whether the '66 Mustang utilizes a returnless fuel system, a design that became more prevalent in later decades. Understanding the fuel system of this vintage vehicle is essential for both restoration projects and appreciating its engineering. The 1966 Mustang, being part of the first-generation lineup, typically featured a conventional return-style fuel system, where excess fuel is returned to the tank after passing through the carburetor. This contrasts with modern returnless systems, which regulate fuel pressure without returning unused fuel. Exploring this aspect not only sheds light on the Mustang's design but also highlights the evolution of automotive technology over the years.
| Characteristics | Values |
|---|---|
| Fuel System Type | Return-style fuel system (not returnless) |
| Fuel Pump Location | Mechanical fuel pump mounted on the engine |
| Fuel Pressure Regulation | Regulated by a mechanical fuel pressure regulator |
| Fuel Line Configuration | Single fuel line from the tank to the carburetor, with a return line |
| Carburetor Type | Typically a 4-barrel carburetor (e.g., Holley or Autolite) |
| Fuel Tank Design | Standard steel fuel tank with a vented cap |
| Year of Model | 1966 |
| Engine Compatibility | Compatible with V8 engines (e.g., 289ci, 390ci) and inline-6 engines |
| Modern Retrofit Possibility | Can be upgraded to a returnless fuel system with aftermarket kits |
| Original Manufacturer Design | Designed with a return-style fuel system as standard |
Explore related products
What You'll Learn
- Fuel System Basics: Overview of returnless vs. return-style fuel systems in classic cars
- Mustang Configuration: Specific fuel system design used in the 1966 Ford Mustang
- Returnless Fuel System: Explanation of how returnless fuel systems function and their benefits
- Mustang Fuel Pump: Details on the fuel pump type and operation in the 1966 model
- Upgrading Fuel Systems: Considerations for upgrading the 1966 Mustang’s fuel system to modern standards
Fuel System Basics: Overview of returnless vs. return-style fuel systems in classic cars
The 1966 Ford Mustang, a quintessential classic car, predates the widespread adoption of returnless fuel systems, which became more common in the late 1980s and 1990s. Instead, it employs a return-style fuel system, a design characteristic of most vehicles from its era. Understanding the differences between these systems is crucial for enthusiasts restoring or modifying classic cars like the ’66 Mustang.
Analytical Perspective:
Return-style fuel systems, like the one in the ’66 Mustang, operate by continuously circulating fuel from the tank to the carburetor or fuel injection system and back to the tank. This design ensures consistent fuel temperature and pressure, reducing vapor lock issues common in early vehicles. In contrast, returnless systems, found in modern cars, eliminate the return line by precisely regulating fuel pressure at the pump, reducing complexity and potential leak points. For classic car owners, recognizing this distinction is key to diagnosing fuel delivery problems or planning upgrades.
Instructive Approach:
If you’re working on a ’66 Mustang or similar classic car, start by inspecting the fuel lines for signs of corrosion or leaks, a common issue in return-style systems. Ensure the fuel pump is functioning correctly, as it must maintain a steady flow to both the engine and the return line. When replacing components, use period-correct parts to preserve authenticity, but consider modern upgrades like electric fuel pumps for improved reliability. Always consult a manual or expert to avoid misdiagnosing issues related to the system’s design.
Comparative Insight:
While returnless systems offer advantages like reduced fuel evaporation and simpler plumbing, return-style systems have their merits in classic cars. The ’66 Mustang’s design allows for easier troubleshooting and modification, as the return line provides a clear path for excess fuel. However, returnless systems are more efficient and environmentally friendly, making them a tempting upgrade for restomods. The choice depends on whether you prioritize originality or modern performance.
Practical Tips:
For ’66 Mustang owners, maintaining the return-style system involves regular checks of the fuel tank vent and lines for clogs or damage. If you’re experiencing hard starts or stalling, inspect the fuel pressure regulator and return line for restrictions. Upgrading to an in-tank fuel pump with a built-in regulator can mimic returnless system benefits while retaining the original setup. Always use ethanol-free gasoline to prevent corrosion in older fuel lines and components.
Takeaway:
The ’66 Mustang’s return-style fuel system is a hallmark of its era, offering simplicity and reliability when properly maintained. While returnless systems represent a technological leap, they aren’t native to classic cars like the Mustang. Understanding these differences empowers owners to make informed decisions, whether preserving originality or embracing modern enhancements.
Twin Turbo Fuel Efficiency: Does It Consume More Gas?
You may want to see also
Explore related products
1966 Mustang Configuration: Specific fuel system design used in the 1966 Ford Mustang
The 1966 Ford Mustang, a quintessential American muscle car, employed a conventional return-style fuel system, a stark contrast to the returnless systems found in modern vehicles. This design choice reflects the era's engineering priorities, emphasizing simplicity and reliability over fuel efficiency and emissions control. At the heart of this system was a mechanical fuel pump, typically mounted on the engine block, which drew gasoline from the tank and delivered it to the carburetor under pressure. A critical component was the fuel return line, which allowed excess fuel to flow back to the tank, maintaining optimal pressure and preventing vapor lock, a common issue in high-performance engines.
Understanding the 1966 Mustang's fuel system requires a look at its components. The fuel tank, usually located at the rear of the vehicle, was connected to the engine via a single fuel line that supplied the carburetor. The return line, often smaller in diameter, ensured that any fuel not used by the engine was safely returned to the tank. This dual-line setup was standard for carbureted engines of the time and was designed to handle the demands of the Mustang's V8 options, such as the 289 cubic inch engine. For enthusiasts restoring or modifying a '66 Mustang, ensuring the integrity of both the supply and return lines is crucial, as leaks or clogs can lead to poor performance or safety hazards.
One of the key takeaways from the 1966 Mustang's fuel system design is its dependence on gravity and mechanical simplicity. Unlike modern returnless systems, which rely on sophisticated electronic controls and high-pressure fuel pumps, the '66 Mustang's setup was entirely mechanical. This meant that the fuel tank's position and the pump's efficiency were critical to maintaining consistent fuel delivery. For example, driving on low fuel levels could expose the pickup tube to air, causing the engine to sputter or stall. Restorers should pay particular attention to the fuel tank's condition, ensuring it is free of rust and debris that could clog the lines or pump.
Comparing the 1966 Mustang's fuel system to modern returnless designs highlights the evolution of automotive engineering. While returnless systems eliminate the need for a return line by precisely metering fuel delivery, the '66 Mustang's design was more forgiving and easier to diagnose. For instance, a clogged return line in the '66 model would manifest as hard starting or rough idling, issues that could be resolved by cleaning or replacing the line. In contrast, returnless systems require specialized tools and knowledge to troubleshoot. This makes the '66 Mustang's fuel system a favorite among DIY enthusiasts who appreciate its straightforward design.
Finally, for those working on a 1966 Mustang, practical tips can ensure the fuel system operates reliably. Always use ethanol-free gasoline or add a stabilizer to prevent corrosion in the tank and lines, as ethanol can degrade older rubber components. When replacing fuel lines, opt for high-quality materials that meet OEM specifications to avoid leaks. Additionally, consider upgrading to an electric fuel pump if the original mechanical unit is worn, but ensure it is compatible with the carburetor and return-style system. By respecting the original design while addressing its limitations, owners can preserve the authenticity and performance of their '66 Mustang's fuel system.
Nissan's Yellow Gas Cap: Flex Fuel Indicator or Myth?
You may want to see also
Explore related products
Returnless Fuel System: Explanation of how returnless fuel systems function and their benefits
The 1966 Ford Mustang, a classic icon of American muscle cars, does not utilize a returnless fuel system. This is because returnless fuel systems were not introduced in vehicles until the late 1980s and early 1990s, primarily as a response to stricter emissions regulations and the need for improved fuel efficiency. Instead, the '66 Mustang employs a traditional return-style fuel system, where excess fuel is sent back to the fuel tank after passing through the carburetor. Understanding the evolution and functionality of returnless fuel systems, however, provides valuable context for appreciating the advancements in automotive technology since the Mustang's heyday.
A returnless fuel system operates by delivering fuel from the tank to the engine without returning any unused fuel. This is achieved through a high-pressure fuel pump and a fuel pressure regulator located near the engine. The regulator ensures that the fuel pressure remains consistent, while any excess fuel is simply vaporized and sent to the intake manifold rather than being returned to the tank. This design eliminates the need for a return line, reducing complexity and potential points of failure. The system is particularly effective in modern fuel-injected engines, where precise fuel delivery is critical for performance and emissions control.
One of the primary benefits of a returnless fuel system is its contribution to fuel efficiency. By maintaining a constant fuel pressure and eliminating the energy losses associated with returning fuel, the system ensures that the engine receives the exact amount of fuel it needs, no more and no less. This precision reduces fuel wastage and improves overall efficiency, which is especially important in today’s environmentally conscious automotive landscape. Additionally, the simplified design reduces the risk of leaks, enhancing safety and reliability.
Another advantage of returnless fuel systems is their ability to support advanced engine technologies, such as direct fuel injection. Direct injection requires higher fuel pressures than traditional systems, and returnless designs are well-suited to meet these demands. By delivering fuel at pressures up to 2,000 psi or more, these systems enable more efficient combustion, resulting in increased power and reduced emissions. This makes them a key component in modern high-performance and eco-friendly vehicles alike.
While the 1966 Mustang may not benefit from a returnless fuel system, understanding this technology highlights the significant strides made in automotive engineering over the decades. For enthusiasts looking to upgrade their classic Mustangs, retrofitting a returnless fuel system is technically possible but requires careful consideration of compatibility and safety. Modern fuel injection kits, for example, often include returnless components, offering a bridge between vintage charm and contemporary performance. Whether you’re restoring a classic or driving a modern vehicle, the principles behind returnless fuel systems underscore the ongoing quest for efficiency, reliability, and innovation in the automotive world.
EFI Systems and Fuel Rails: Are They a Necessary Combination?
You may want to see also
Explore related products
Mustang Fuel Pump: Details on the fuel pump type and operation in the 1966 model
The 1966 Ford Mustang, a classic icon of American muscle cars, utilized a mechanical fuel pump as part of its carbureted fuel system. Unlike modern vehicles that often employ electric fuel pumps, the '66 Mustang's pump was driven directly by the engine's camshaft, typically located on the side of the engine block. This design ensured that fuel delivery was proportional to engine speed, which was adequate for the carbureted setup of the era. However, this system lacked the precision and efficiency of later returnless fuel systems, as it relied on a constant flow of fuel to the carburetor, with excess fuel simply recirculating back to the tank via a return line.
Understanding the operation of the '66 Mustang's fuel pump is crucial for maintenance and troubleshooting. The mechanical pump consists of a diaphragm that moves up and down, creating suction to draw fuel from the tank and push it through the fuel lines to the carburetor. Over time, the diaphragm can wear out, leading to reduced fuel pressure and potential engine performance issues. To diagnose a failing pump, listen for unusual noises from the pump area or check for fuel delivery problems, such as difficulty starting or stalling. Replacement typically involves removing the pump from the engine block, ensuring the new pump is compatible with the Mustang's 6-cylinder or V8 engine configurations.
One key distinction of the '66 Mustang's fuel system is its return-style design, which contrasts with modern returnless systems. In a return-style system, excess fuel not used by the carburetor is sent back to the fuel tank via a return line, preventing fuel vaporization and maintaining a consistent fuel temperature. While this design was standard for its time, it is less efficient than returnless systems, which eliminate the need for a return line by precisely delivering only the required amount of fuel. For enthusiasts restoring a '66 Mustang, retaining the original return-style system is often preferred for authenticity, though upgrading to an electric pump can improve reliability and performance.
When working on the fuel pump of a 1966 Mustang, it’s essential to consider safety and compatibility. Always disconnect the battery and relieve fuel system pressure before servicing the pump. If upgrading to an electric pump, ensure it matches the Mustang's fuel pressure requirements (typically 2-6 PSI for carbureted engines) and that the wiring is properly integrated with the vehicle's electrical system. For those aiming to preserve originality, sourcing a high-quality mechanical pump from reputable suppliers like Scott Drake or NPD is recommended. Regular inspection of fuel lines and filters is also critical, as aged components can compromise the system's integrity.
In conclusion, the 1966 Mustang's mechanical fuel pump and return-style fuel system reflect the technology of its era, offering a glimpse into the evolution of automotive engineering. While not as advanced as modern returnless systems, this setup remains a functional and authentic part of the car's charm. Whether maintaining originality or pursuing upgrades, understanding the specifics of the '66 Mustang's fuel pump ensures both performance and preservation of this classic vehicle.
Lower Load, Less Fuel? Exploring Generator Efficiency and Consumption
You may want to see also
Explore related products
Upgrading Fuel Systems: Considerations for upgrading the 1966 Mustang’s fuel system to modern standards
The 1966 Ford Mustang, a classic icon of American muscle cars, originally came equipped with a carbureted fuel system, a design that was standard for its era. This system, while reliable for its time, lacks the efficiency and precision of modern fuel injection systems. Upgrading to a returnless fuel system, which is now commonplace in contemporary vehicles, offers significant advantages in performance, fuel economy, and emissions control. However, such an upgrade requires careful planning and consideration of compatibility, components, and installation challenges.
Analyzing the Need for Upgrade:
The 1966 Mustang’s carbureted system operates on a return-style fuel delivery, where excess fuel is returned to the tank. In contrast, a returnless system uses a high-pressure pump to deliver fuel directly to the engine without returning unused fuel. This modern approach reduces fuel vaporization, improves cold starts, and enhances overall efficiency. For Mustang owners, upgrading to a returnless system can address common issues like vapor lock, inconsistent fuel pressure, and poor fuel atomization, especially in high-performance applications.
Key Components and Compatibility:
To execute this upgrade, you’ll need a high-pressure fuel pump, an in-tank fuel sender assembly, and a fuel pressure regulator designed for returnless systems. Compatibility is critical—ensure the pump’s flow rate matches your engine’s demands, typically 30-40 psi for EFI systems. For example, a Walbro 255 LPH pump is a popular choice for moderate to high-performance builds. Additionally, the fuel tank must be modified to accommodate the new sender unit, which may require professional fabrication or an aftermarket tank designed for EFI conversions.
Installation Steps and Cautions:
Begin by removing the old fuel tank and installing the new sender assembly, ensuring all connections are sealed to prevent leaks. Route the fuel lines carefully, avoiding sharp bends or areas prone to heat. Install the fuel pump and regulator, following the manufacturer’s guidelines for electrical connections and grounding. Caution: improper grounding can lead to pump failure or erratic fuel delivery. Test the system thoroughly before driving, checking for leaks and verifying fuel pressure at idle and under load.
Performance and Maintenance Benefits:
Upgrading to a returnless fuel system not only improves drivability but also extends the life of your engine by ensuring consistent fuel delivery. For instance, a properly calibrated system can reduce the risk of lean conditions that cause overheating or detonation. Maintenance is simplified, as modern fuel pumps are designed for longevity and operate quieter than older mechanical pumps. Regularly inspect fuel lines and filters to maintain optimal performance, especially if using ethanol-blended fuels, which can degrade rubber components over time.
While the 1966 Mustang’s carbureted system holds nostalgic appeal, upgrading to a returnless fuel system bridges the gap between classic style and modern functionality. This transformation not only enhances performance but also ensures your Mustang remains reliable and efficient for years to come. With careful planning and attention to detail, you can preserve the spirit of the original design while embracing the advancements of today’s automotive technology.
Does Tesla Use Hydrogen Fuel Cells? Exploring the Truth Behind the Myth
You may want to see also
Frequently asked questions
No, the 1966 Mustang does not use a returnless fuel system. It utilizes a traditional return-style fuel system, where excess fuel is returned to the tank after passing through the carburetor.
The 1966 Mustang has a conventional return-style fuel system, which includes a mechanical fuel pump, carburetor, and a fuel line that returns unused fuel to the gas tank.
The 1966 Mustang’s fuel system differs from a returnless system by using a fuel return line to send excess fuel back to the tank, whereas a returnless system does not return fuel and relies on precise fuel delivery to the engine.
Yes, it is possible to convert a 1966 Mustang to a returnless fuel system, but it requires significant modifications, including upgrading to electronic fuel injection (EFI) and ensuring compatibility with the vehicle’s existing components.
