Sylvie Willis

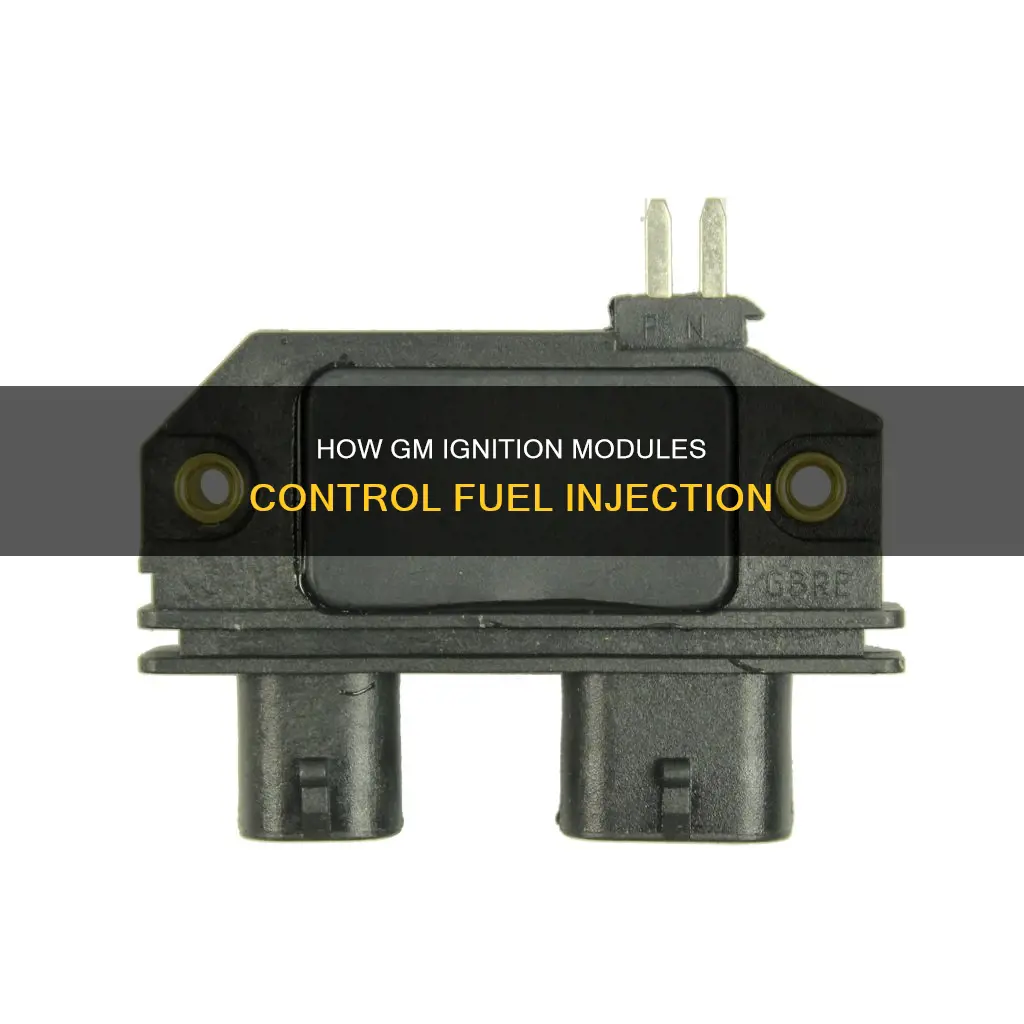

The ignition control module (ICM) is an integral part of the ignition system in vehicles. While it does not directly control the fuel injectors, it plays a crucial role in their functioning. The ICM regulates and controls the spark pulse and energy in the ignition system, and if it breaks, the injectors will not pulse. The ignition module sends a reference signal to the Engine Control Module (ECM), which in turn controls the injector pulse. This means that if the ECM does not receive the signal from the ignition module, it may not fire the injectors.
| Characteristics | Values |
|---|---|
| Does the GM ignition module control fuel injectors? | No, the ignition module does not control the injectors directly. |
| What does the ignition module do? | It sends a reference signal to the ECM, which controls the injector pulse. |
| What happens if the ECM doesn't receive the signal from the ignition module? | The ECM may not fire the injectors and may not turn on the fuel pump relay. |
| What are some common symptoms of a faulty ICM? | Engine misfires, rough running, stalling, or the vehicle not starting. |
| How can you test if the ICM is faulty? | You can use a Digital Volt Ohm Meter (DVOM) to test for voltage and spark. |
Explore related products
What You'll Learn
The ignition module doesn't control the injectors directly
The ignition module is an integral part of the ignition system, which creates and distributes the voltage power required by the spark plugs. The ignition coil is at the heart of this system, usually containing two separate windings of copper wire. In a traditional ignition system with a single coil, the ignition switch is attached to the positive terminal, where it receives current from the positive battery terminal. The negative terminal is attached to the ICM, which opens and closes the primary ignition circuit to fire the spark plugs via the distributor.
The ignition control module (ICM) switches the ignition coils on and off to fire the spark plugs in older vehicles. It determines the vehicle's base ignition timing and controls the primary ignition circuit to aid in ignition. A faulty ICM can lead to engine problems such as misfires, rough running, or stalling, and the check engine light may illuminate.
To test if the ICM is faulty, you can perform a scratch test using a conventional bulb-type test light connected to B+. Disconnect the 4-terminal connector at the distributor, turn the key on, and touch the test light to the Purple/White wire to check for an injector pulse. If there is no pulse, repeat this test at the Powertrain Control Module (PCM) and verify that the PCM is powered and grounded correctly.
Signs Your Fuel Injector is Functioning
You may want to see also
Explore related products
$11.92
The ignition module sends a reference signal to the ECM
The ignition module, also known as the ignition control module (ICM), plays a crucial role in the ignition system of a vehicle. While the ICM does not directly control the fuel injectors, it is closely linked to their operation. The ICM's primary function is to regulate and control the spark pulse and energy in the ignition system.
In terms of its connection to the fuel injectors, the ICM sends a reference signal, or a "reference pulse", to the Engine Control Module (ECM). This reference pulse serves as an indicator to the ECM that the engine is running. The ECM relies on this signal to determine the engine's RPM (revolutions per minute) speed, which is essential for managing the fuel injectors' operation.
When the ECM detects that the engine RPM exceeds a preset threshold, typically around 400 RPM, it recognises the engine as running. Consequently, the ECM supplies a 5-volt signal to the bypass circuit in the ignition module, transferring the ignition timing advance function from the ignition module to the ECM. This triggers the ECM to send a pulse signal along the Electronic Spark Timing (EST) circuit, instructing the ICM to activate the ignition coil(s).
The ECM's ability to determine the engine RPM is crucial for deciding when to activate the fuel injectors. This information, along with cam position data from the ICM, forms the basis for various calculations required to determine fuel and spark delivery to the engine. Therefore, while the ICM does not directly control the fuel injectors, its reference signal to the ECM is vital for ensuring the proper functioning of the fuel injectors and the overall engine performance.
Fuel Injector Clicking: What Does It Mean?
You may want to see also
Explore related products
The ECM controls the injector pulse
The ECM, or Engine Control Module, is responsible for pulsing the injectors in most GM port and throttle body fuel injection engines. It controls the injector pulse by sending a signal to the ECM, indicating that the engine is running. This signal is typically sent through the ICM (Ignition Control Module), which helps regulate and control the spark pulse and energy in the ignition system.
The ECM uses ignition system and cam position data from the ICM to control the injectors. If the ICM has an open circuit, the ECM will not receive a signal, resulting in the injectors not pulsing. This can cause issues with fuel delivery, as observed in some GM vehicles where a faulty ICM prevented fuel from reaching the injectors despite normal fuel pressure.
To diagnose a potential issue with the ICM or ECM, several tests can be performed. One method involves using a Digital Volt Ohm Meter (DVOM) to check for injector pulse and spark. If there is no spark, further verification of the ignition coil's power supply is necessary. Additionally, performing scratch tests with a test light connected to specific wires, such as the Purple/White wire, can help determine if an injector pulse is present.
It is important to note that some vehicles may have a "cam sensor" built into the distributor, providing the ECM with camshaft position information for sequential fuel control. This information helps the ECM control the timing and duration of the injector pulse, ensuring precise fuel delivery to the engine.
Fuel Injector Cleaner Fluid: Effective or Expensive Placebo?
You may want to see also
Explore related products
If the ECM doesn't get the signal, it may not fire the injectors
If the ECM (engine control module) doesn't receive a signal, the fuel injectors may not fire. This is because the ECM is responsible for controlling the injectors, and if it doesn't detect a signal, it won't send the necessary pulse to the injectors.
The ICM (ignition control module) sends a "reference pulse" to the ECM to indicate that the engine is running. This signal passes through the ICM to the ECM. If there is an open circuit in the ICM, the ECM won't receive this signal, and the injectors won't pulse. This issue is common in GM port and throttle body fuel injection engines.
To troubleshoot this problem, you can perform a series of tests. First, check for injector pulse and spark. If there is no spark, verify that the ignition coil has a good power supply. You can do this by connecting a test light across the white wire (coil trigger) and the pink wire (coil power). If the test light blinks, the coil needs to be replaced.
Additionally, you can perform scratch tests using a conventional bulb-type test light connected to B+. After disconnecting the 4-terminal connector at the distributor, turn the key on and touch the test light to the Purple/White wire to check for an injector pulse. If there is no pulse, repeat this test at the Powertrain Control Module (PCM) and verify that it is functioning correctly.
It is important to note that other factors, such as wiring issues or problems with other components, could also contribute to the fuel injectors not firing. Therefore, a comprehensive diagnosis, including checking relevant fuses and sensors, is necessary to identify the root cause of the issue.
Fuel Injector Cleaners: Restoring Engine Performance with STP
You may want to see also
Explore related products
A bad ICM can cause engine problems like misfires and stalling
A bad ICM can cause a host of engine problems, including misfires, rough running, and stalling. A faulty ignition module can affect ignition timing, resulting in an engine that misfires and runs roughly. This can cause the engine to run well at low speeds but have difficulty accelerating. A failing ICM can also cause the engine to stall as it prevents the engine from getting the spark it needs.
Misfiring occurs when fuel ignition is mistimed, causing choppy operation, hesitation, and stalling. This issue stresses other components, such as the catalytic converter. At highway speeds, fluctuating RPMs signal problems with the ICM. The powertrain control module (PCM) detects these misfires and triggers error codes that indicate which cylinders are failing. For example, P0300 indicates general misfires, while P0301 through P0304 denote specific cylinders.
A failing ICM can also cause difficulty starting the engine or a complete failure to start. This is because the ICM plays a critical role in processing signals from sensors like the crankshaft position sensor to determine the correct timing for igniting the air-fuel mixture via the spark plugs. By controlling spark plug firing, the ICM enables precision-timed explosions in each cylinder for optimal engine performance.
In some vehicles, the engine control module (ECM) may control ignition timing above a certain engine RPM, while the ICM has control below a certain RPM. In these cases, the signal from the sensor is sent to the ICM first. Engines with turbochargers, superchargers, or variable valve timing have more complex ignition timing systems.
It is important to note that while a bad ICM can cause engine problems, other components may also be at fault. Proper diagnosis by an auto repair shop or a certified professional is recommended to identify the root cause of the issue.
How Transmission Fluid Cleans Fuel Injectors
You may want to see also
Frequently asked questions
No, the ignition module does not directly control the fuel injectors. However, it does send a reference signal to the ECM, which controls the injector pulse. If the ECM does not receive this signal, it may not fire the injectors.
A faulty ignition control module (ICM) can cause engine problems like misfires, rough running, stalling, or even the engine not starting. If your ICM is faulty, your check engine light will also likely illuminate.
You can test your injectors at a non-starting condition to see if they are getting a pulse. You can also check if you are getting power at the fuel pump relay. You should have power on the black/white wire and power from the PCM on the green/white wire at the relay.
