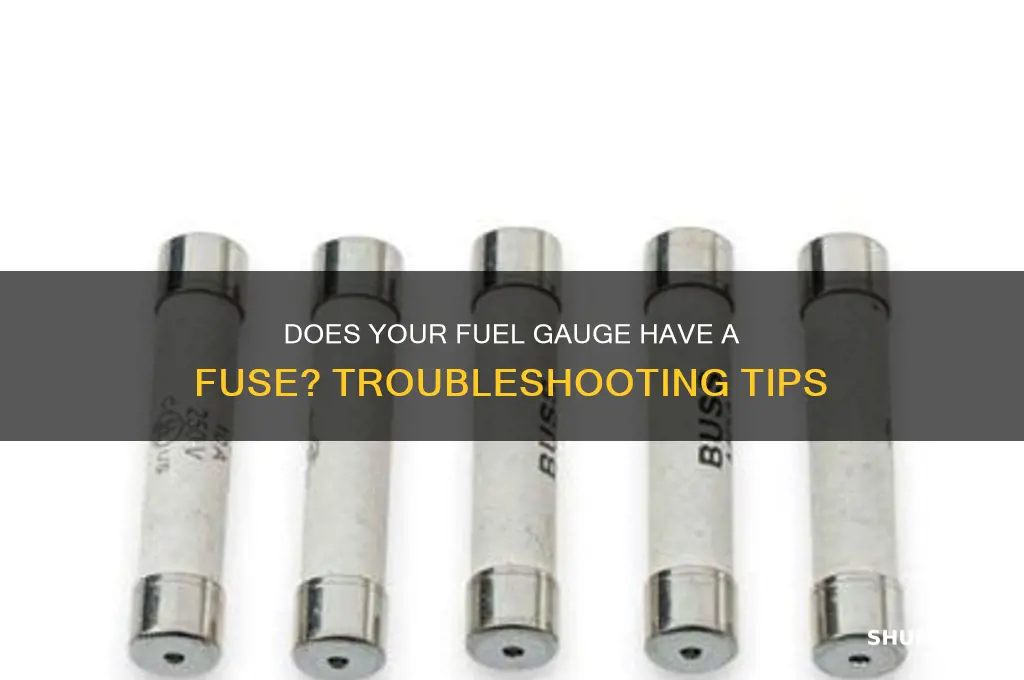

When troubleshooting issues with a vehicle's fuel gauge, one common question that arises is whether the fuel gauge has a fuse. The fuel gauge is an essential component of a car's instrument cluster, providing real-time information about the fuel level in the tank. While not all vehicles are designed the same, many modern cars do indeed have a fuse associated with the fuel gauge. This fuse is typically located in the vehicle's fuse box and is responsible for protecting the gauge's electrical circuit from overcurrent or short circuits. If the fuel gauge stops working, checking the fuse is often one of the first steps in diagnosing the problem, as a blown fuse can cause the gauge to malfunction or fail completely. However, it's important to consult the vehicle's manual or a professional mechanic to accurately identify the correct fuse and ensure proper handling.
| Characteristics | Values |
|---|---|
| Does a fuel gauge have a fuse? | Yes, most vehicles have a fuse dedicated to the fuel gauge or the instrument cluster that includes the fuel gauge. |
| Fuse Location | Typically found in the fuse box under the dashboard or in the engine compartment. Refer to the vehicle's manual for exact location. |
| Fuse Type | Blade-type fuse, usually rated between 5-15 amps, depending on the vehicle. |
| Purpose of the Fuse | Protects the fuel gauge circuit from electrical overloads or short circuits. |
| Symptoms of a Blown Fuse | Fuel gauge not working, stuck on empty or full, or erratic readings. |
| Diagnosis | Use a multimeter to test the fuse for continuity or visually inspect for a broken filament. |
| Replacement | Replace with a fuse of the same rating. Ensure the underlying issue (e.g., short circuit) is resolved before replacing. |
| Related Components | Fuel level sender, instrument cluster, wiring harness, and the vehicle's ECU. |
| Common Issues | Blown fuse due to wiring faults, corrosion, or a faulty fuel level sender. |
| Prevention | Regularly inspect wiring and connections, address electrical issues promptly. |
Explore related products
What You'll Learn
- Fuel Gauge Fuse Location: Identifying where the fuse for the fuel gauge is located in a vehicle
- Fuse Blow Causes: Common reasons why the fuel gauge fuse might blow or fail
- Symptoms of Fuse Failure: Signs indicating the fuel gauge fuse is blown or malfunctioning
- Replacing the Fuse: Steps to replace a faulty fuel gauge fuse safely and correctly
- Fuse vs. Gauge Issues: Differentiating between a blown fuse and a faulty fuel gauge itself
Fuel Gauge Fuse Location: Identifying where the fuse for the fuel gauge is located in a vehicle
The fuel gauge in your vehicle is a critical component for monitoring your fuel levels, and like many electrical systems, it is protected by a fuse. Identifying the location of this fuse is essential for troubleshooting issues such as a malfunctioning gauge. Most vehicles have a fuse box under the dashboard or in the engine compartment, often labeled as the "instrument panel fuse box" or "engine bay fuse box." The fuse for the fuel gauge is typically labeled in the fuse box diagram, which can be found in your vehicle’s owner’s manual. This diagram is your first and most reliable resource for locating the correct fuse.
Once you’ve consulted the manual, physically locating the fuse box is the next step. For dashboard fuse boxes, you’ll often need to remove a panel near the driver’s side footwell. Engine bay fuse boxes are usually located near the battery or along the firewall. The fuel gauge fuse is commonly labeled with a designation like "FUEL," "GAUGE," or "CLUSTER," depending on the manufacturer. If the fuse box diagram is unclear, cross-referencing with online forums or vehicle-specific guides can provide additional clarity. Always ensure the vehicle is turned off before accessing the fuse box to avoid electrical hazards.
Replacing a blown fuel gauge fuse is straightforward but requires attention to detail. Use a fuse puller tool (often included in the fuse box kit) to remove the fuse safely. Inspect it for visible damage, such as a broken filament. Replace it with a fuse of the same amperage rating, typically 5 to 15 amps, depending on your vehicle. If the new fuse blows immediately, this indicates a deeper electrical issue, such as a short circuit, which may require professional diagnosis. Testing the gauge after replacement confirms whether the fuse was the root cause of the problem.
While the fuse is a common culprit for fuel gauge malfunctions, it’s not the only one. If the fuse is intact, other components like the sending unit in the fuel tank, wiring issues, or the gauge itself could be faulty. In such cases, a multimeter can help diagnose continuity in the wiring or voltage at the gauge. However, these repairs often require more advanced tools and knowledge, making them better suited for a mechanic. Understanding the fuse’s role and location is a practical first step in addressing fuel gauge issues efficiently.
For those who prefer visual guidance, many online resources, including YouTube tutorials and manufacturer-specific videos, demonstrate how to locate and replace the fuel gauge fuse. These can be particularly helpful for newer vehicles with less intuitive fuse box designs. Additionally, some modern vehicles integrate the fuel gauge into a larger instrument cluster, meaning a single fuse may protect multiple functions. In such cases, replacing the fuse may resolve issues beyond the fuel gauge, such as the speedometer or warning lights. Always approach fuse replacement methodically, ensuring you address the correct fuse and understand its broader implications.
