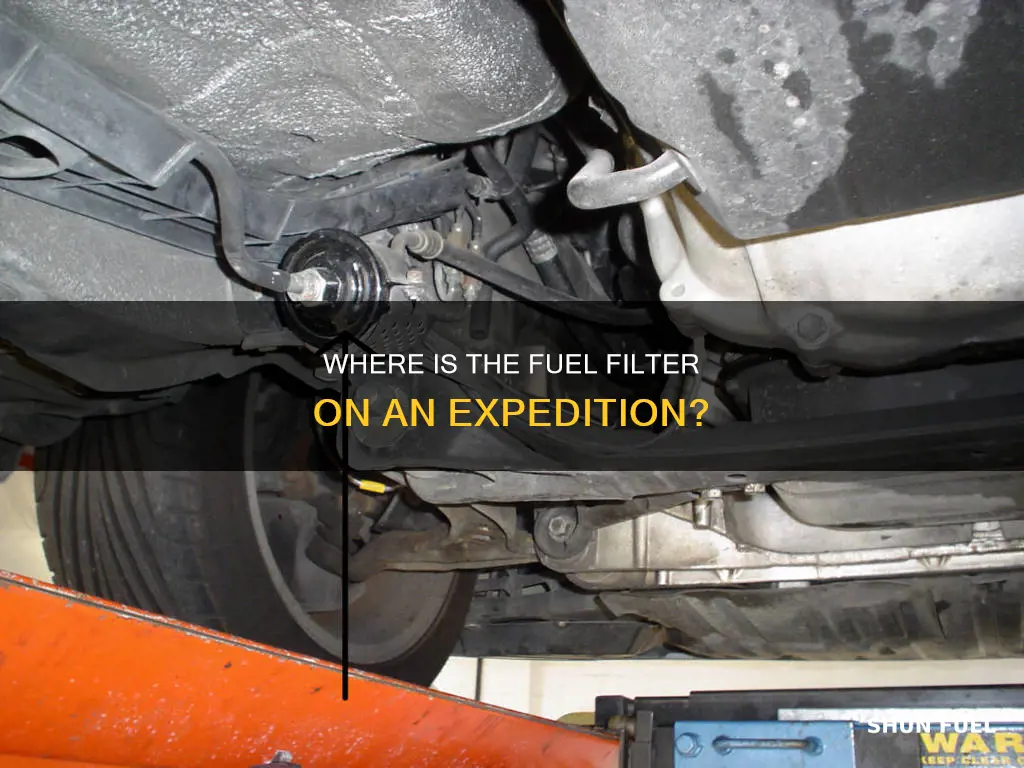

The 2005 Ford Expedition fuel filter is located in front of and at the top of the gas tank on the driver's side. It is an in-line fuel filter. The fuel filter can be accessed by removing the two metric nuts holding a metal guard that hides the filter. However, some users have reported difficulties with the blue plastic clips that hold the filter in place, which are prone to breaking and are not sold separately by Ford.
Explore related products
What You'll Learn
The fuel filter is located in front of the gas tank on the driver's side
The 2005 Ford Expedition has an inline fuel filter. The fuel filter is located in front of the gas tank on the driver's side.
To access the fuel filter, you will need to remove the negative battery cable from the battery. There is a metal guard held in place by two metric nuts that need to be removed. Once the nuts are removed, the guard can be taken off, revealing the fuel filter. It is important to note the arrow on the filter and replace the new one in the same direction. The fuel line from the engine end of the filter, which is towards the transmission, should be removed using a line removal tool.
It is advised not to attempt to pry the small blue clip out of the other end of the filter. This is a new style of clip that is designed to be pressed to release the fuel line and remains in the fitting. Some people have tried to pry the blue clip and ended up destroying it. Unfortunately, auto parts stores and Ford do not sell replacements for this clip individually. To get a new one, you would have to buy a new gas line with the clip included, which can be costly.
There are alternative methods suggested online to temporarily fix the blue clip until a new gas line can be purchased. One method involves removing the broken clip and using one of the clips that came with the filter. The clip needs to be filed down to match the thickness of the original blue clip, allowing it to be inserted into the slot on the fuel fitting and clipped onto the fuel line. It is recommended to wrap tape around the clip as a precaution.
It is worth noting that some people have found the fuel filter in a different location, such as underneath the vehicle or under the engine. However, the majority of sources indicate that it is located in front of the gas tank on the driver's side.
Fitting a Fuel Filter: Corsa Edition
You may want to see also
Explore related products
It's hidden under a metal cover with two bolts
The fuel filter on a 2005 Ford Expedition is located in front of and at the top of the gas tank on the driver's side. It is hidden under a metal cover with two bolts or nuts. To access the fuel filter, you need to remove the negative battery cable from the battery. Once the cable is disconnected, you can remove the two bolts or nuts holding the metal cover in place. With the cover removed, you will see the fuel lines running under it, and the filter is located underneath.
It is recommended to use a fuel filter removal tool to detach the filter from the fuel lines. Additionally, some people suggest taking off the filler cap and disconnecting the negative cable from the battery as a safety precaution.
Some owners of the 2005 Ford Expedition have mentioned issues with the blue clip that holds the fuel filter in place. This clip can be difficult to remove without breaking, and replacement clips may not be readily available from auto parts stores or Ford. In such cases, you may need to purchase a new gas line with the clip included.
It is worth noting that the fuel filter location and replacement process may vary slightly depending on the specific model and configuration of your 2005 Ford Expedition. Always refer to the owner's manual or seek advice from a qualified mechanic if you are unsure about any steps in the process.
Clean Paraffin Buildup: Fuel Filter Bowl Maintenance
You may want to see also
Explore related products
Disconnecting the negative battery cable is recommended
The fuel filter on a 2005 Ford Expedition is located in front of and at the top of the gas tank on the driver's side. The fuel filter is situated under the vehicle, hidden by a metal cover.
To begin, locate the negative battery terminal, which is usually marked with a "-" symbol or a black cover. Using an appropriate-sized wrench or socket, loosen the nut or bolt securing the cable to the battery post. Once it is loose, carefully detach the cable from the battery post, ensuring that it does not come into contact with any metal parts of the vehicle.
After the negative battery cable is disconnected, proceed with the fuel filter replacement process. This typically involves removing the metal cover over the fuel filter, taking note of the arrow on the filter for proper orientation during reinstallation, and using a fuel line removal tool to detach the fuel lines from the filter.
It is important to exercise caution when working with vehicle fuel systems. Always refer to the vehicle's service manual or seek professional assistance if you are unsure about any steps in the process.
The Right Tightness for Fuel Filter Efficiency
You may want to see also
Explore related products
The fuel line clip is difficult to remove without breaking it
The fuel filter on a 2005 Ford Expedition is located in front of and at the top of the gas tank on the driver's side. There are two metric nuts holding a metal guard that hides the filter. To access the filter, you need to remove these two nuts.
The fuel line clip on this model is known to be difficult to remove without breaking. This is a new style clip that is supposed to be a press-to-remove type. However, many people have experienced issues with removing it by simply pushing or prying it.
- Before attempting to remove the clip, make sure to depress the "magic" button, indicated by a yellow arrow. This is crucial as it locks the connection, and you are likely to break something if you don't depress it first. It can be challenging to access this button due to limited space around the fuel filter. Use a flat-blade screwdriver to press and depress the button.
- While depressing the button with one screwdriver, use a second flat-blade screwdriver (preferably a wider one) to gently push the clip to the side past its engagement point.
- Once you've moved it far enough, you should be able to put down the screwdrivers and slide the clip off the filter with your hands.
- Instead of pulling on the clip, try pushing it. It is much less likely to break when pushed rather than pulled.
- If you have green clips, you can push them in with your fingers to release them. However, be careful, as they are known to break easily.
- If you are unable to remove the clip without breaking it, you can use baling wire to reattach the fuel filter and secure the connection. Bend the baling wire into a U-shape, put the fuel line onto the fuel filter, work the wire up through the clip, and then twist the wire together to create a secure connection.
It is important to exercise caution and patience when removing the fuel line clip to avoid breakage. If you break the clip, you may have difficulty finding a replacement, as auto parts stores may not carry them, and Ford does not sell them separately.
Draining Water from Your Boat Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Replacing the fuel filter may improve vehicle performance
The fuel filter on a 2005 Ford Expedition is located in front of and at the top of the gas tank on the driver's side. It is covered by a metal guard held in place by two metric nuts.
To replace the fuel filter on a 2005 Ford Expedition, you will need to remove the negative battery cable from the battery. Then, remove the two nuts holding the metal guard in place and take off the guard to access the filter. Next, use a line removal tool to remove the fuel line from the engine end of the filter. It is important to note that you should not attempt to pry the small blue clip out of the other end of the filter. Instead, it is recommended to use a fuel line connector remover, which can be purchased at auto parts stores. Finally, install the new fuel filter, ensuring that it is facing the same direction as the old one, and secure it in place.
Replacing the Fuel Filter in a 2002 Ford Taurus
You may want to see also
Frequently asked questions
Yes, the 2005 Ford Expedition has an inline fuel filter.
The fuel filter is located in front of and at the top of the gas tank on the driver's side.
There are two metric nuts holding a metal guard that hides the filter. Remove these nuts to access the filter.
Yes, you will likely need a fuel filter removal tool to remove the filter.
Yes, it is recommended to remove the negative battery cable from the battery before starting. You may also want to take the filler cap off and disconnect the negative cable from the battery.
