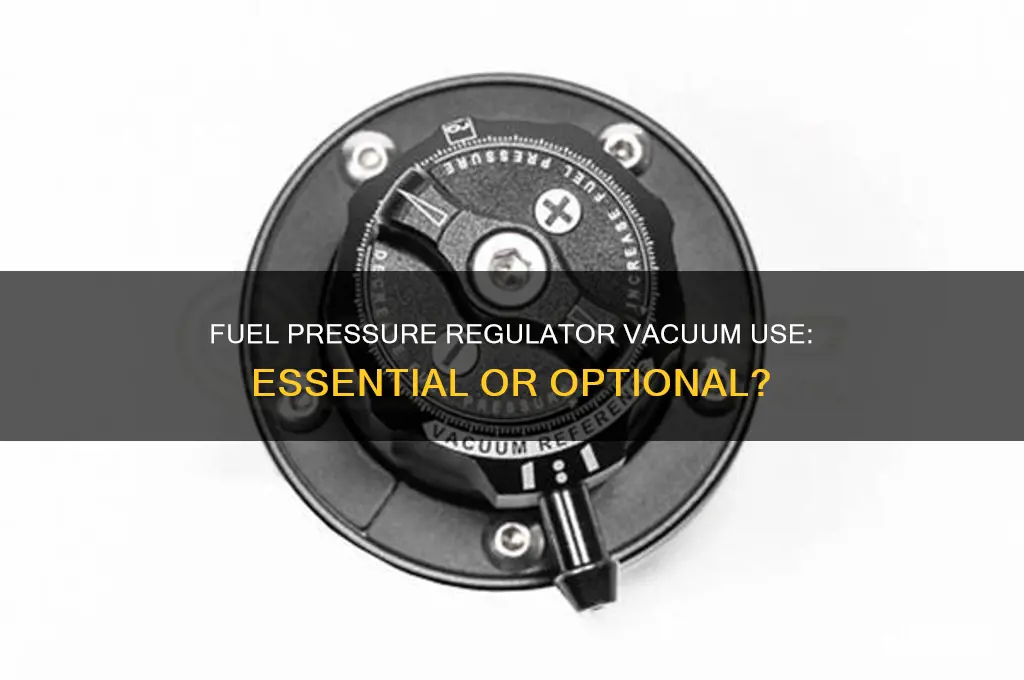

The fuel pressure regulator is a critical component in a vehicle's fuel system, responsible for maintaining the correct fuel pressure for optimal engine performance. One common question that arises is whether a fuel pressure regulator needs to utilize vacuum to function effectively. The answer lies in the design and operation of the regulator itself. Many fuel pressure regulators, particularly those in modern fuel-injected engines, are indeed vacuum-operated. These regulators use engine vacuum to adjust fuel pressure in response to changes in engine load and throttle position, ensuring a consistent air-fuel mixture for efficient combustion. By leveraging vacuum, the regulator can dynamically regulate fuel pressure, improving engine performance, fuel efficiency, and emissions. However, not all fuel pressure regulators rely on vacuum; some mechanical or electronic regulators may use alternative methods to control fuel pressure. Understanding the role of vacuum in fuel pressure regulation is essential for diagnosing and maintaining a vehicle's fuel system, as issues with vacuum supply or regulator function can lead to poor engine performance, reduced fuel efficiency, or even engine damage.
| Characteristics | Values |
|---|---|
| Purpose of Vacuum in Fuel Pressure Regulators | Regulates fuel pressure relative to intake manifold vacuum, ensuring optimal air-fuel mixture under varying engine loads. |
| Type of Regulators Using Vacuum | Most mechanical fuel pressure regulators (common in carbureted and early fuel-injected engines). |
| Type of Regulators Not Using Vacuum | Electronic fuel pressure regulators (common in modern fuel-injected engines), return-style regulators. |
| Effect of Vacuum on Fuel Pressure | Decreases fuel pressure as manifold vacuum increases (during low load/idle), and increases fuel pressure as vacuum decreases (during high load/acceleration). |
| Vacuum Source | Intake manifold or a dedicated vacuum port on the engine. |
| Vacuum Hose Connection | Typically connected to the regulator via a vacuum hose. |
| Failure Symptoms (Vacuum-Related) | Rough idle, stalling, poor acceleration, rich or lean fuel mixture, and increased fuel consumption if the vacuum connection is faulty or leaking. |
| Maintenance | Regularly inspect vacuum hoses for cracks, leaks, or disconnections. Replace if necessary. |
| Alternative Systems | Modern engines often use electronic sensors and engine control units (ECUs) to regulate fuel pressure without relying on vacuum. |
| Compatibility | Vacuum-operated regulators are not compatible with turbocharged or supercharged engines unless specifically designed for boosted applications. |
Explore related products
What You'll Learn
- Vacuum Operation Principle: How vacuum modulates fuel pressure based on engine load and conditions
- Non-Vacuum Regulators: Alternatives like electronic or mechanical regulators that don’t rely on vacuum
- Vacuum Hose Connection: Importance of the vacuum hose for accurate pressure regulation in engines
- Boost vs. Vacuum: How turbocharged engines use boost pressure instead of vacuum for regulation
- Symptoms of Failure: Signs like poor performance or fuel leaks when vacuum connection is faulty
Vacuum Operation Principle: How vacuum modulates fuel pressure based on engine load and conditions
The vacuum-operated fuel pressure regulator is a critical component in many internal combustion engines, particularly those with carbureted or port fuel injection systems. Its primary function is to adjust fuel pressure in response to changes in engine load and operating conditions, ensuring optimal air-fuel mixture for efficient combustion. This mechanism relies on the principle that engine vacuum varies with load: high vacuum at idle or low load, and low vacuum (or even positive pressure) under high load or acceleration. By connecting the regulator to the engine’s intake manifold, the vacuum signal directly modulates a diaphragm inside the regulator, which in turn adjusts the fuel pressure accordingly. For instance, at idle, high manifold vacuum pulls the diaphragm, reducing fuel pressure to prevent a rich mixture, while under load, reduced vacuum allows fuel pressure to increase, supplying more fuel to meet demand.
To understand the vacuum operation principle, consider the regulator’s internal design. A typical vacuum-operated regulator consists of a spring-loaded diaphragm, a vacuum port connected to the intake manifold, and a fuel pressure relief valve. When manifold vacuum is high (e.g., during idle), the diaphragm is pulled downward, compressing the spring and opening the relief valve, which bleeds excess fuel back to the tank, lowering fuel pressure. Conversely, under acceleration or high load, reduced vacuum allows the spring to push the diaphragm upward, closing the relief valve and maintaining higher fuel pressure. This dynamic adjustment ensures the engine receives the correct amount of fuel across varying conditions, optimizing performance and fuel efficiency.
One practical example of this principle in action is in a carbureted engine. At idle, the engine’s manifold vacuum can reach 18–22 inches of mercury (inHg), causing the regulator to reduce fuel pressure to around 5–7 psi. During full throttle, manifold vacuum drops to near zero or even becomes positive, prompting the regulator to increase fuel pressure to 8–10 psi or higher. This modulation is essential for preventing engine stalling at idle and ensuring sufficient fuel delivery during high-demand situations. For enthusiasts tuning carbureted engines, adjusting the regulator’s spring tension or vacuum port size can fine-tune fuel pressure for specific performance goals, though caution must be taken to avoid over-rich or over-lean mixtures.
While vacuum-operated regulators are effective, they are not without limitations. In turbocharged or supercharged engines, where intake manifold pressure exceeds atmospheric pressure, a vacuum-operated regulator becomes ineffective. In such cases, a return-style fuel system with a fixed-pressure regulator is often used. Additionally, vacuum leaks in the intake manifold or regulator hose can disrupt the vacuum signal, leading to inconsistent fuel pressure and poor engine performance. Regular inspection of vacuum lines and hoses is therefore critical for maintaining system integrity. For DIY mechanics, using a handheld vacuum pump to test the regulator’s response can diagnose issues before they escalate.
In conclusion, the vacuum operation principle of fuel pressure regulators is a clever engineering solution that leverages engine vacuum to dynamically adjust fuel pressure based on load and conditions. By understanding this mechanism, enthusiasts and mechanics can better diagnose, tune, and maintain fuel systems for optimal performance. Whether working on a classic carbureted engine or troubleshooting a modern fuel-injected system, recognizing the role of vacuum in fuel pressure modulation is key to mastering engine dynamics.
