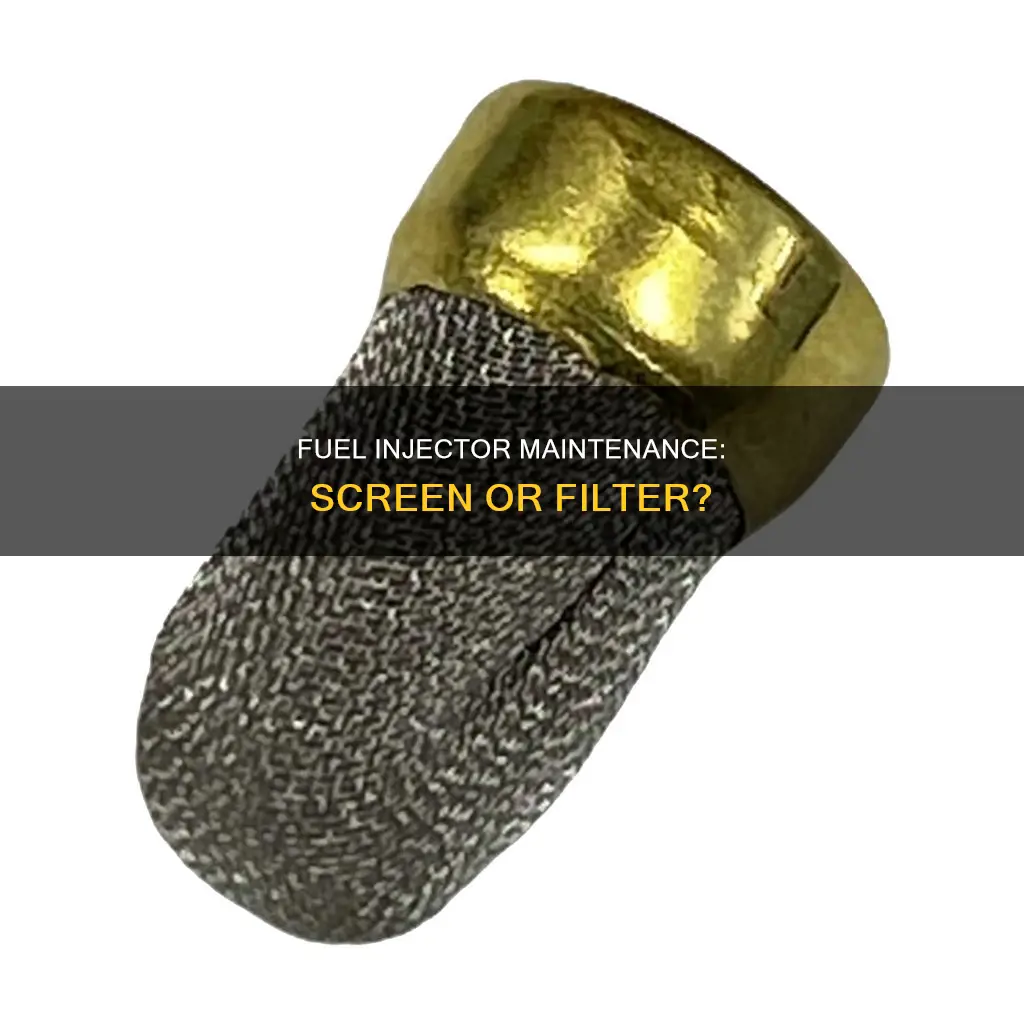

The fuel injection system is divided into low-pressure and high-pressure sides. The low-pressure components include the fuel tank, fuel supply pump, and fuel filter. The high-pressure side components include a high-pressure pump, accumulator, fuel injector, and fuel injector nozzle. Fuel filters are critical as they protect the engine from harmful debris and contaminants, which can cause damage and reduced performance. Fuel filters can be constructed from various materials, including paper, metal, plastic, synthetic fibres, and cellulose. They are rated in microns, with a smaller micron rating able to catch smaller particles. Fuel injectors can become clogged with baked-on carbon, gum, and varnish deposits, which can be removed through ultrasonic cleaning. Additionally, filter screens or baskets are used within fuel injectors to catch fine particles and protect the injectors.
| Characteristics | Values |
|---|---|
| Purpose | To protect the engine from harmful debris, including dirt and rust particles, and prevent unnecessary wear and tear on the engine components |
| Filter Quality | Nominal rating 5µ, minimum 82% capture efficiency according to ISO/TR 19438; dirt particles >35µ are not permissible |
| Filter Types | Box-type or replacement element design; filters can be made of metal or plastic, synthetic fibres, cellulose, microglass fibres, pleated paper, packed cotton thread, wood chips, or a mixture of these materials |
| Filter Maintenance | Regular cleaning and replacement are necessary to ensure optimal performance and prevent injector damage; ultrasonic cleaning tanks and injector cleaning services are recommended for effective cleaning |
| Fuel Injection System Components | Divided into low-pressure (fuel tank, fuel supply pump, fuel filter) and high-pressure sides (high-pressure pump, accumulator, fuel injector, fuel injector nozzle) |
Explore related products
![HiSport Fuel Injector 101 Micron Baskets Filter [6mm x 3mm x12mm] Universal Repair Seal Kits [20 Pcs]](https://m.media-amazon.com/images/I/61cmuoRfZuS._AC_UY218_.jpg)
![50PCS Fuel Injector Baskets Filter Kits 101 Micron Universal Repair Seal [6mm x 3mm x12mm]](https://m.media-amazon.com/images/I/81hKMfqsnfL._AC_UY218_.jpg)
![HiSport Fuel Injector 101 Micron Baskets Filter [6mm x 3mm x12mm] Universal Repair Seal Kits [50 Pcs]](https://m.media-amazon.com/images/I/61h9YdXmkxL._AC_UY218_.jpg)
What You'll Learn
- Fuel injector filters are essential to protect the engine from harmful debris
- Filters are rated in microns, with a smaller micron number blocking larger contaminants
- Filters can be box-type or replacement element design
- Ultrasonic cleaning tanks are an effective way to clean injectors
- Filters are made from a variety of materials, including nylon, metal, plastic, and micro glass fibres
Fuel injector filters are essential to protect the engine from harmful debris
Fuel injectors are an essential component of modern engines, delivering fuel through high-pressure nozzles to the cylinder chamber. However, they are susceptible to clogging and damage from contaminants in the fuel, which can lead to poor engine performance and even failure. This is where fuel injector filters come in, acting as a critical line of defence to protect the engine from harmful debris.
Unfiltered fuel can contain a range of contaminants, including paint chips, dirt, rust, varnish, gum, and waxy olefins. These contaminants can build up and clog fuel injectors, leading to restricted fuel flow and disrupted spray patterns. The result is a lean condition, where the engine receives too much air and not enough fuel, causing a decrease in power and fuel efficiency.
Fuel injector filters are designed to screen out these harmful particles, ensuring that only clean fuel enters the engine. They are rated in microns, with a lower micron rating indicating a finer level of filtration. For example, a 10-micron filter will block contaminants larger than 10 microns while allowing smaller particles to pass through. It is important to select a filter with an appropriate micron rating to effectively protect the fuel injectors.
The material of the filter is also important. Common materials for modern fuel filter elements include synthetic fibres, cellulose, and microglass fibres. Each material has its own advantages and disadvantages in terms of filtration efficiency, durability, and compatibility with different fuel types. For example, microglass fibres may not be suitable for all applications due to the risk of small glass pieces breaking off and migrating into critical fuel system components.
In addition to the primary fuel filter, some fuel systems also employ a secondary filter, such as a basket filter, to catch any residual particles that may have passed through the primary filter. Regular maintenance and replacement of fuel filters are crucial to ensure optimal engine performance and longevity. Failure to do so can lead to costly repairs and decreased fuel efficiency over time.
Fuel Injector Flush: Clearing Clogged Injectors?
You may want to see also
Explore related products
![HiSport Fuel Injector Seal Kits Filter Baskets [6mm x 3mm x 13.8mm] Universal Repair Set CF104B [50 Pcs]](https://m.media-amazon.com/images/I/71JD3MhcY1L._AC_UY218_.jpg)
![HiSport Fuel Injector Seal Kits Compatible with Ford Mercury Lincoln Jeep V8 5.4L 4.6L Include O-Rings, Pintle Caps, Seal Spacers and Filter Baskets Universal Repair Set Replaces 0280150962 [8 Set]](https://m.media-amazon.com/images/I/71r8hDT8hoS._AC_UY218_.jpg)
![HiSport Fuel Injector Seal Kits Filter Baskets Repair Set CF109Y Compatible with Yamaha marine[50 Set]](https://m.media-amazon.com/images/I/71-iz3z6EmL._AC_UY218_.jpg)
![HiSport Fuel Injector Seal Kits Rebuild Set Include O-rings, Pintle Caps, Seal Spacers, Filter Baskets with 1pcs Filter Removal Tool [8 Set]](https://m.media-amazon.com/images/I/71D2r04zhLL._AC_UY218_.jpg)
Filters are rated in microns, with a smaller micron number blocking larger contaminants
Fuel injectors are a component of the fuel injection system, which can be divided into low-pressure and high-pressure sides. The low-pressure side includes the fuel tank, fuel supply pump, and fuel filter, while the high-pressure side includes the high-pressure pump, accumulator, fuel injector, and fuel injector nozzle. The fuel filter plays a crucial role in protecting the injectors by minimizing dirt content in the fuel system.
Filters are rated in microns, which is a unit of measurement describing the pore size of a filter. A micron (µ) is equivalent to 0.000039 inches or 39 millionths of an inch. To put this into perspective, a human hair is about 100 microns in diameter, and anything less than 30-40 microns cannot be seen with the naked eye.
Now, let's delve into the statement, "Filters are rated in microns, with a smaller micron number blocking larger contaminants." This statement is indeed accurate. A smaller micron rating indicates a finer pore size, which allows the filter to capture and block larger contaminants. For instance, a 5-micron filter will capture particles as small as 5 microns, while a 10-micron filter will block contaminants larger than 10 microns. The lower the micron rating, the greater the amount of contamination that will be eliminated, but this also leads to faster clogging of the filter.
When choosing a micron rating for your filter, it's important to consider the specific contaminants you need to remove. For example, a 5-micron filter is suitable for removing a large amount of debris, while a 10-micron filter can be used in industries like oil and chemicals. If you need to remove bacteria, viruses, or cysts, a smaller micron rating of 1 or 2 microns might be necessary. However, it's crucial to balance this with the potential for increased clogging at lower micron ratings.
In the context of fuel injectors, it's recommended to use a filter with a suitable micron rating to protect the injectors. For instance, Bosch suggests a 5µ filter, while Injector Dynamics recommends a 12µ filter for their fuel injectors. It's important to follow the manufacturer's guidelines and consider the specific application to select the most appropriate micron rating for your filter.
Calibrating Fuel Injectors: '04 F150 Step-by-Step Guide
You may want to see also
Explore related products
![HiSport Fuel Injector Seal Kits Filter Baskets Universal Repair Set CF107 [50 Set]](https://m.media-amazon.com/images/I/71nBbGavwQL._AC_UY218_.jpg)
![HiSport Fuel Injector Seal Kits Filter Baskets Repair Set CF-106A [10.5mm x 6mm x 13mm] Compatible with Honda[50 Set]](https://m.media-amazon.com/images/I/71R1wfW6r3L._AC_UL320_.jpg)
Filters can be box-type or replacement element design
The filter media should remove as much dirt as possible while allowing the liquid to flow through the filter efficiently with minimal resistance. The filter media is made up of an intricate maze of tiny fibers. The two main components of filter elements are the design of the filter element itself and the type of media used in such elements.
Filter elements can be classified into two types: surface and depth. Surface filters are made of closely woven fabric or treated paper with a uniform pore size. The fluid flows through the pores of the filter material, and contaminants are stopped on the filter's surface. Depth filters, on the other hand, are composed of layers of fabric or fibres, providing tortuous paths for the fluid to flow through. The pores or passages must be larger than the rated size of the filter if particles are to be retained in the depth of the medium rather than on the surface.
