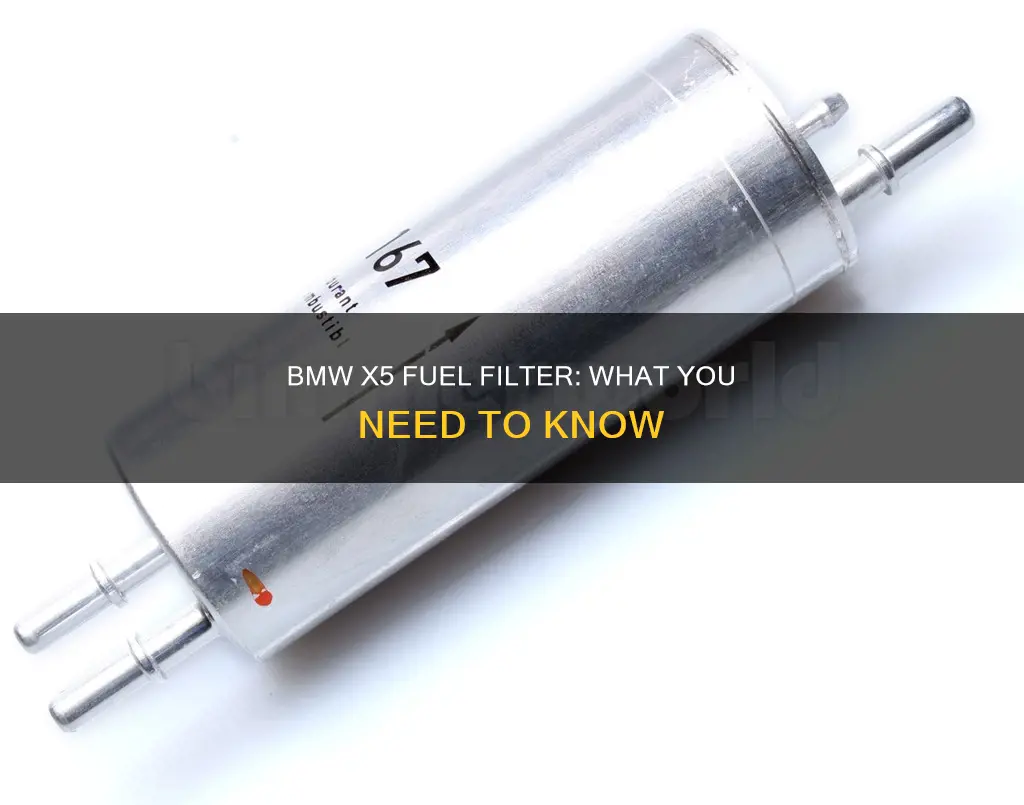

The BMW X5 does have a fuel filter. It is a crucial component of the fuel delivery system, preventing contaminants from entering the fuel system and causing damage. Fuel filters are typically replaced every 40,000 to 80,000 miles, and the process involves relieving fuel pressure and working in a well-ventilated area to avoid the risk of fire. The fuel filter is usually located beneath the car, plumbed into the high-pressure fuel supply line, and its replacement cost can vary from $236 to $317.
Explore related products
What You'll Learn
BMW X5 fuel filter replacement
Yes, the BMW X5 does have a fuel filter. Here is a detailed guide on how to replace it.
The fuel pump creates positive pressure in the fuel lines, pushing gasoline to the fuel rail, where the DME controls the flow to the engine via a programmed fuel injection map. In-tank fuel pumps are beneficial as they are submerged in fuel, keeping them cool and preventing vapor lock and electrical issues. They deliver a constant flow of gasoline at a regulated pressure and volume.
The fuel pump draws fuel from the fuel tank and pushes it through the fuel filter, which is mounted in front of the fuel tank. A dirty or restricted fuel filter can cause poor engine performance and hard-starting issues. If you suspect this is the case, you should replace your fuel filter.
Preparation
Remember that your car may have been serviced before, and different-sized fasteners may have been used in previous replacements. The sizes of the nuts and bolts may differ from those specified in this guide, so be prepared with different-sized sockets and wrenches.
It is best to replace your fuel filter with the fuel pressure relieved to reduce the risk of fuel spills and vapors. Always work in a well-ventilated area, preferably outdoors, as fuel and fuel vapors are highly combustible. Do not use incandescent work lights or power tools.
Accessing the Fuel Filter
The fuel filter is located behind the fuel tank splash shield. To access it, you will need to remove the splash shield. Start by removing the three 13mm fasteners at the front of the fuel tank splash shield. Then, move to the center of the splash shield and remove the four 13mm fasteners near the drive shaft. Next, work at the rear of the splash shield and remove the two 8mm heat shield fasteners and the two splash shield fasteners.
Removing the Fuel Filter
- Remove the vacuum line by pulling it straight off. Ensure that the nipple on the old fuel filter is intact.
- Remove the fuel line by pressing the blue tab and holding it while pulling the line off the filter.
- Remove the two remaining fuel lines in the same manner.
- Loosen the two 10mm fuel filter bracket fasteners.
- Remove the fuel filter by sliding it out of the bracket.
Installing the New Fuel Filter
Follow the above steps in reverse to install the new fuel filter. Ensure that all fasteners are tightened securely and that all lines are properly connected before starting the engine.
Please note that this guide is based on the BMW X5 (E53) model from 2000 to 2006. The process may vary slightly for different model years or versions. Always refer to your owner's manual or seek professional assistance if you are unsure about any steps in the fuel filter replacement process.
Signs of a Faulty Fuel Filter in Your Equinox
You may want to see also
Explore related products
Fuel filter location
The BMW X5 does have a fuel filter, and it is located in front of the fuel tank. Specifically, it is tucked away behind the fuel tank's splash shield.
If you need to replace the fuel filter, you will first need to remove the splash shield to access it. To do this, you can start by removing the three 13mm fasteners at the front of the fuel tank splash shield. Then, move to the centre of the splash shield, near the drive shaft, and remove the four 13mm fasteners. Next, work at the rear of the splash shield and remove the two 8mm heat shield fasteners. Then, remove the two splash shield fasteners, and you will need to remove a 13mm fastener behind the plastic cover. Finally, move to the rear of the splash shield again and remove the 13mm fastener just above the rear subframe.
Now you should have access to the fuel filter. Before replacing the filter, remember to relieve the fuel pressure. Start by removing the engine covers and the fuel test port cap on the fuel rail. Use a flathead screwdriver for this, and be prepared for fuel to be expelled.
Now you can start working at the fuel filter. Remove the vacuum line by pulling it straight off. Be sure the nipple on the old fuel filter is intact. Then, remove the fuel line. Press the blue tab in and hold it while you pull the line off the filter. Next, remove the two remaining fuel lines in the same way. Loosen the two 10mm fuel filter bracket fasteners and then remove the fuel filter by sliding it out of the bracket.
It is best to replace your fuel filter with the fuel pressure relieved, as this reduces the amount of possible spilled fuel and fuel vapors. Remember to work in a well-ventilated area as fuel and fuel vapors are highly combustible.
Fuel Filter Installation: An Easy Guide for Car Enthusiasts
You may want to see also
Explore related products
Fuel filter replacement cost
Yes, the BMW X5 does have a fuel filter. Fuel filters are an important part of the fuel delivery system, preventing contaminants from entering the rest of the fuel system and causing damage.
The cost of replacing a fuel filter on a BMW X5 varies depending on location and the specific car. The labor costs are estimated to be between $88 and $111, while parts are priced between $148 and $206. This brings the total estimated cost to between $236 and $317.
It is important to note that this range does not include taxes and fees and may not be accurate for your specific location. Related repairs may also be needed, which would increase the overall cost.
When to Replace the Fuel Filter
Fuel filters should be replaced according to the service schedule recommended by the manufacturer, which is typically every 40,000 to 80,000 miles. However, there are other instances when the fuel filter may need to be replaced:
- Fuel contamination: If any foreign fluids, bad fuel, or water enters the fuel system, the fuel filter should be replaced.
- Fuel system repairs: If the fuel pump, gas tank, or fuel injectors have been worked on, a new fuel filter should be installed.
- Leaks: If there are any leaks at the fuel filter connections, a new fuel filter and new O-rings may be required.
- Warning light indication: For diesel-powered vehicles with a water-sensor warning light, excessive water accumulation in the fuel filter will require draining and possibly servicing or replacing the filter.
- Poor engine performance: A dirty or restricted fuel filter can cause issues with engine performance and hard starting.
Easy Guide: Installing a Fram Fuel Filter
You may want to see also
Explore related products
Fuel filter maintenance
Fuel filters are an important part of the fuel delivery system in your BMW X5. They prevent contaminants from entering the rest of the fuel system and causing damage. Fuel filters are typically mounted to the undercarriage, on the main fuel line after the fuel pump. The filter traps particulates as the fuel flows through it, keeping contaminants away from sensitive fuel injectors, rails, and fuel pressure regulators.
Over time, the fuel filter can become clogged, leading to fuel starvation in the engine. This will result in a significant reduction in power and may cause the engine to misfire. As the issue progresses, the engine may stall immediately after starting, fail to start, hesitate under throttle, or stall at particular angles on hills. Therefore, it is important to regularly maintain and replace your fuel filter.
The owner's manual of your BMW X5 will provide the manufacturer's recommended schedule for fuel filter replacement. Typically, fuel filters are replaced every 40,000 to 80,000 miles. It is important to replace the fuel filter according to this schedule, rather than waiting for a problem to occur. However, if you are experiencing the issues mentioned above, you may need to replace your fuel filter.
When replacing the fuel filter, it is best to do so with the fuel pressure relieved. This reduces the amount of fuel and fuel vapors released during the process. Always work in a well-ventilated area, preferably outdoors, as fuel and fuel vapors are highly combustible. Do not use incandescent work lights or power tools for safety reasons.
To access the fuel filter, you will need to lift and safely support the vehicle. In some cases, you may need to remove under-body paneling. Fuel filters can be more easily replaced with a set of fuel line release tools, which are available at auto parts stores or online. When removing the fuel lines, be careful not to break any plastic clips. Always use rags to catch any fuel that falls from the filter or line during the service.
Changing Your Ford F150 Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Fuel filter replacement safety
The BMW X5 is equipped with a fuel filter, which is a critical component of the vehicle's fuel supply system. Over time, the fuel filter can become clogged with dirt, rust, and other impurities, leading to reduced engine performance and potential damage. Therefore, it is essential to replace the fuel filter periodically to maintain optimal engine health and performance. Here are some safety guidelines for fuel filter replacement in a BMW X5:
Prepare the Work Area:
Work in a well-ventilated area, preferably outdoors, as fuel and fuel vapors are highly combustible. Ensure you have adequate lighting without using incandescent work lights due to the risk of combustion. Have a fire extinguisher nearby as a safety precaution.
Relief Fuel Pressure:
Before beginning the replacement, relieve the fuel pressure in the system. This can be done by pulling the fuel pump fuse and running the engine until it shuts off. Releasing the fuel pressure is crucial to prevent fuel from spraying onto the engine or the ground during the replacement process.
Access the Fuel Filter:
The fuel filter in the BMW X5 is located in front of the fuel tank and behind the charcoal canister. To access it, you will need to remove the fuel tank splash shield. Unbolt the shield and let it hang so you can reach the filter. Be aware that the sizes of nuts and bolts may vary, so be prepared with different-sized sockets and wrenches.
Replace the Fuel Filter:
When installing the new fuel filter, ensure that all O-rings, gaskets, seals, and mounting brackets are replaced. Check that all retaining clips are correctly reinstalled. Refer to the owner's manual for specific instructions and torque specifications for your BMW X5 model.
Post-Replacement Checks:
After replacing the fuel filter, start the engine and check for any fuel leaks. Ensure that all fasteners are tight and secure. Take the vehicle for a test drive and monitor for any unusual noises or performance issues.
Maintenance Interval:
The replacement interval for the fuel filter depends on the vehicle's age, usage, and other factors. For the BMW X5, the recommended interval is typically between 20,000 and 150,000 miles. However, always refer to the manufacturer's maintenance schedule and your owner's manual for specific recommendations for your vehicle.
Cleaning a 2-Cycle Fuel Filter: Step-by-Step Guide
You may want to see also
Frequently asked questions
Yes, the BMW X5 does have a fuel filter. It is typically mounted to the undercarriage, on the main fuel line after the fuel pump.
Fuel filters are typically replaced every 40,000-80,000 miles. However, it is best to refer to your owner's manual for the manufacturer's recommended schedule for replacement.
The cost of replacing the fuel filter in a BMW X5 ranges from $236 to $317, but it can vary depending on the car.
