The Mercury 225 HP (3.0L Carburetor) engine is an outboard engine with over 115 HP and therefore requires a 3/8 fuel line. It is important to use the correct fuel line to ensure the engine gets the proper amount of fuel. If you are unsure whether your fuel tank is vented, consult your dealer. If you have an older boat with a vented fuel tank, it is a good idea to fill the tank with fresh fuel to reduce the chances of condensation forming in the tank.
Explore related products
What You'll Learn
The 225 Mercury outboard engine requires a 3/8 fuel line

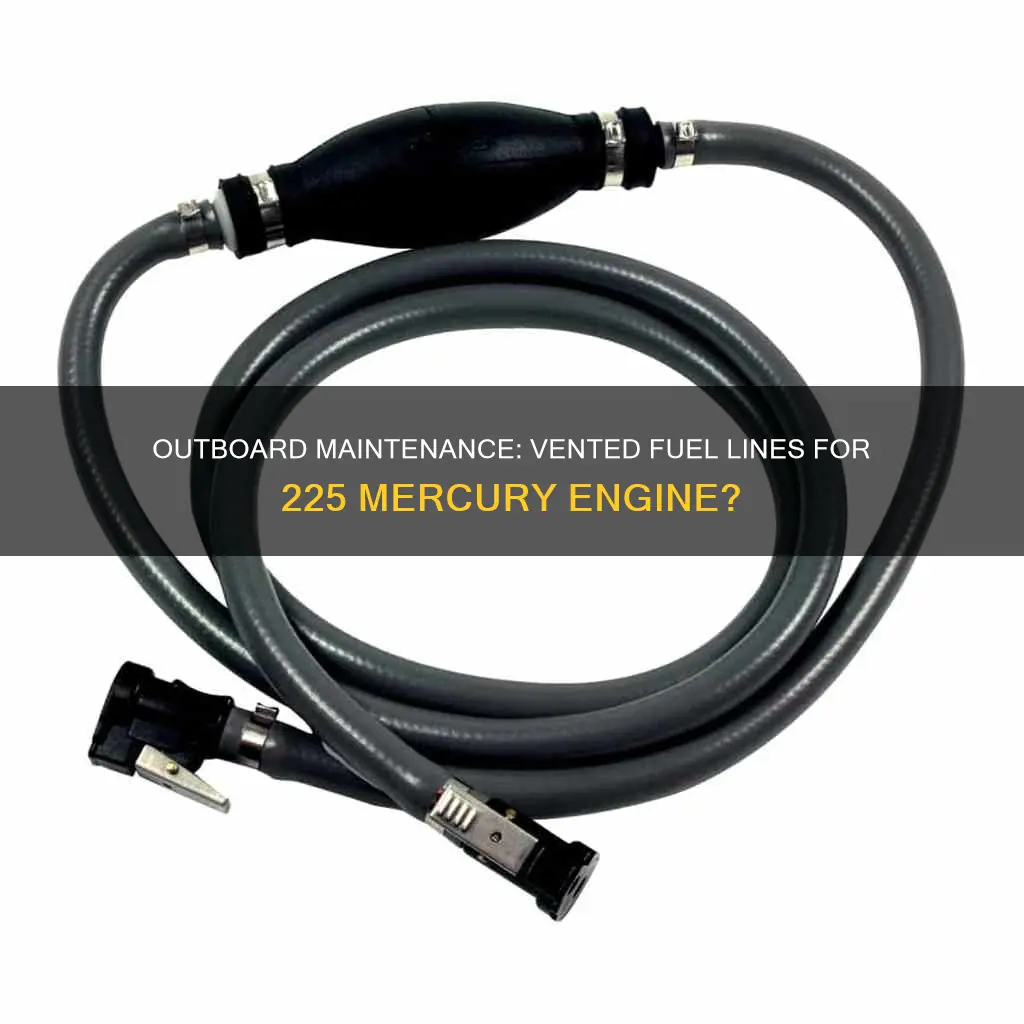

A 3/8" outboard motor fuel line with a primer bulb is compatible with all Yamaha/Mercury Outboards and the Mercury Fuel Tank Side. It is also compatible with Force 40 hp & larger (1993 & newer), 9.9/15/25 hp (1998), and all Mercury/Mariner outboards using a clip-on type disconnect at the engine end & 3/8" I.D. fuel line. The fuel line is 6 feet long and includes a premium primer bulb, 2 Mercury female quick connectors, and 2 stainless steel hose clamps.
The 3/8" outboard motor fuel line is also compatible with gasoline up to 85% ethanol-blended fuels, diesel, and all bio-diesel blends. It is made with marine-grade material and is weather and UV resistant. It also meets USCG type B1-15 SAE J1527 and ABYC Accepted Standards and is approved by the Environmental Protection Agency and CARB regulations.
When installing a fuel line, it is important to ensure that the connections are tight and not loose. Loose connections will cause air leaks, which can lead to problems with the engine.
Removing Seized Fuel Lines: Tips and Tricks
You may want to see also
Explore related products
Mercury outboards above 115 HP need a 3/8 fuel line
The size of the fuel line for an outboard engine depends on the engine's horsepower. A 5/16" fuel line is suitable for outboard engines up to 115 HP. For engines above 115 HP, including the 225 Mercury outboard engine, a 3/8" fuel line is required. This is because larger outboards, such as those with 150 HP and above, require more fuel to run at higher RPMs. If a 5/16" fuel hose is used on these larger outboards, it can cause the engine to run lean, straining the fuel pumps and potentially damaging the engine's powerhead.
It is important to ensure that the fuel line is tight and not loose when connected to the engine. A loose connection can cause an air leak, leading to problems with the engine's performance. By looking at the hook-up on the engine, you can determine the correct size of the fuel line. The hose barb, where the fuel line connects to the engine, should be either 5/16" or 3/8" in size, matching the corresponding fuel line size.
The 5/16" fuel line is better suited for smaller outboards, as it can easily fit into a smaller rigging tube while still providing the necessary amount of fuel to the engine. On the other hand, the 3/8" fuel line is designed for larger outboards, ensuring an adequate fuel supply to meet the higher fuel demands of these engines.
Safety and longevity are crucial considerations for any boater. Therefore, it is essential to choose the correct fuel line size to prevent potential issues such as fuel leaks, which can have severe consequences. By following the guidelines provided, you can ensure that your outboard engine, whether it be a Mercury 225 or another model, has the proper fuel line size to maintain optimal performance and avoid unnecessary strain on the engine.
Trimmer Fuel Line Size: Choosing the Right Fit for 128LDs
You may want to see also
Explore related products
5/16 fuel lines are standard for smaller engines
The 5/16" fuel line is the standard hose for smaller engines. It is typically used for engines with less than 115 HP. This size is also known as an 8mm fuel line. It is important to note that the 3/8" fuel line is required for engines larger than 115 HP.
The 5/16" fuel line is commonly used for outboard engines, where it feeds fuel from the boat's fuel tank to the engine or the fuel filter bracket. It can also be used for the fuel tank vent hose, which is typically below the deck. The smaller size of the 5/16" fuel line allows it to fit easily into a smaller rigging tube, depending on the application.
It is important to understand that there are different types of fuel hoses and different specifications for different applications, which are put in place for safety purposes. For example, hoses used below the deck of a boat have a fire-resistant covering, while those used above the deck do not always have this covering.
When determining the size of a fuel line, it is important to measure the outer diameter (OD) of the tubing. This can be done using an open-end wrench or a combination wrench. By sliding the wrench over the tube, you can determine the size that fits snugly.
In summary, the 5/16" fuel line is the standard size for smaller engines, particularly those with less than 115 HP. It is commonly used for outboard engines and can be identified by its outer diameter.
Fuel Line Leaks: A Dangerous and Costly Problem
You may want to see also
Explore related products
A1 hoses are used for feeding fuel from the boat fuel tank
Marine-grade fuel hoses are designed specifically for boats, taking into account their permeability and fire resistivity. A1 hoses are used for feeding fuel from the boat's fuel tank to the engine or fuel filter bracket. They have a fire-resistant covering and are designed to have fuel in them at all times.
The marine-grade fuel hose is an essential component of a boat's engine and fuel system. It ensures a consistent and secure fuel supply by linking the fuel tank to the engine. Given the harsh conditions of the marine environment, these hoses need to be durable and resistant. A1 hoses offer excellent resistance to fire, heat, ozone, and permeation by gasoline, diesel, and alcohol-blended gasoline. They are compounded to meet or exceed SAE-J1527 Type A, ISO/DIS 7840, and NMMA standards for fuel feed, fill, and vent hoses.
The size of the fuel hose is an important consideration when selecting the appropriate hose for your boat. If your outboard engine is 115 HP or less, a 3/8" or 5/16" fuel line can be used. The 5/16" fuel hose is perfect for smaller outboard motors, ensuring that the proper amount of fuel reaches the engine. However, for engines larger than 115 HP, a 3/8" fuel line must be used. Using the wrong fuel hose can cause premature failure of the fuel pumps and major damage to the engine's powerhead.
It is crucial to note that replacing a fuel line with a cheaper alternative is not advisable, especially considering the hazards associated with gasoline. The decision to incorporate alcohol into the fuel mix has led to a considerable increase in fuel-related issues, such as the rapid deterioration of fuel line components, including fuel hoses. Even a new boat equipped with a high-quality marine fuel hose is not immune to the issues caused by E10 gasoline, such as the separation of inner layers and the detachment of particles that clog filters and jets.
Locating the Fuel Filter in a 2004 Pontiac Montana
You may want to see also
Explore related products
B2 hoses are used for the fuel tank vent hose above the deck
Fuel hose ratings are often classified as A1, A2, B1, and B2. Each type of hose is designed for a specific purpose and environment. A1 hoses, for instance, are used to feed fuel from the fuel tank to the engine or fuel filter bracket, and they have a fire-resistant covering.
The B2 hose is suitable for use with diesel or gasoline engines. However, insurance companies may have specific requirements regarding the type of hose used, so it is important to check with them. While some people may prefer to use a single hose specification that meets all requirements, there are currently no standard specifications for fuel hoses.
B2 hoses are a good choice for the fuel tank vent hose above the deck as they are designed for that specific purpose and environment. Using the correct type of hose is essential to ensure the proper functioning and safety of the boat.
Removing Gas Lines from Your Bronco's Fuel Pump
You may want to see also
Frequently asked questions
Your 225 Mercury outboard will need a 3/8" fuel line. Whether or not the fuel line needs to be vented depends on the fuel tank. If you are unsure whether or not your fuel tank is vented, consult your dealer.
A 5/16" fuel line can be used for up to a 115 HP outboard engine. A 3/8" fuel line is required for anything larger.
All current Mercury petrol engines are designed to operate safely on fuel with a maximum of 10% ethanol (known as E10). Avoid using fuel with more than 10% ethanol as the metal, rubber, and plastic components in the engine and fuel system are not designed to tolerate the corrosive effects of a higher ethanol blend.
Keep the fuel tank filled to reduce the formation of condensation in the tank. When preparing your boat for offseason or long-term storage, store it with fresh, preferably ethanol-free, fuel that has been treated with a marine-rated fuel stabilizer.
A vented fuel tank reduces the amount of moisture-laden air in the tank.
