Testing an external electric fuel pump is a critical process to ensure the proper functioning of a vehicle's fuel system. This procedure involves checking the pump's ability to deliver fuel at the correct pressure and volume, which is essential for optimal engine performance. By using specialized tools and following a systematic approach, mechanics can diagnose issues such as weak fuel delivery, pump failure, or electrical malfunctions. Regular testing not only helps in identifying potential problems early but also ensures safety and reliability, making it a vital maintenance task for any vehicle equipped with an external electric fuel pump.
| Characteristics | Values |
|---|---|
| Test Method | Apply 12V power directly to the pump terminals to check for operation. |
| Voltage Requirement | Typically 12V DC (check pump specifications for exact voltage). |
| Current Draw | Varies by pump; usually 2-5 amps (check pump specifications). |
| Pressure Output | Test with a fuel pressure gauge to ensure it meets OEM specifications. |
| Flow Rate | Measure using a graduated container and stopwatch (compare to specs). |
| Noise Level | Should operate quietly; unusual noise indicates potential issues. |
| Resistance Check | Measure pump resistance with a multimeter (typical range: 0.5–3 ohms). |
| Fuel Line Connection | Ensure connections are secure and leak-free during testing. |
| Ground Connection | Verify proper grounding to avoid intermittent operation. |
| Safety Precautions | Work in a well-ventilated area, avoid sparks, and disconnect battery. |
| Diagnostic Tools | Multimeter, fuel pressure gauge, 12V power source, and fuel container. |
| Common Issues | No power, low pressure, excessive noise, or fuel leaks. |
| Replacement Recommendation | Replace if pump fails to operate, deliver correct pressure, or flows. |
Explore related products
What You'll Learn
- Testing Procedures: Steps to safely and accurately test an external electric fuel pump
- Tools Required: Essential tools needed for testing the fuel pump effectively
- Symptoms of Failure: Common signs indicating a faulty external electric fuel pump
- Voltage and Pressure Checks: How to measure voltage and fuel pressure during testing
- Safety Precautions: Important safety measures to follow while testing the fuel pump
Testing Procedures: Steps to safely and accurately test an external electric fuel pump
Testing an external electric fuel pump is a critical procedure that ensures your vehicle’s fuel system is functioning correctly. Before beginning, ensure you are working in a well-ventilated area, away from open flames or sparks, as fuel is highly flammable. Start by disconnecting the battery to prevent accidental ignition. Locate the fuel pump, typically found near the fuel tank or along the fuel lines, and identify its wiring harness and fuel lines. If the pump is accessible without removing the fuel tank, proceed with caution; otherwise, consult a professional or vehicle manual for specific instructions.
The first step in testing the fuel pump is to check for power and ground at the pump’s electrical connector. Use a multimeter to verify that voltage is present at the pump’s power wire when the ignition is turned on. Typically, this is 12 volts. Also, confirm that the ground wire has continuity to the vehicle’s chassis. If voltage and ground are confirmed but the pump is not operating, the pump itself may be faulty. However, if no voltage or ground is detected, the issue could be in the wiring or the fuel pump relay, which should be inspected next.
To test the fuel pump’s operation, you can perform a simple pressure test using a fuel pressure gauge. Disconnect the fuel line from the engine (ensure the fuel system is depressurized first) and attach the gauge. Have an assistant crank the engine while you observe the gauge. The pressure should rise to the manufacturer’s specified range, typically between 30 to 60 PSI, depending on the vehicle. If the pressure is insufficient or non-existent, the pump may be clogged, weak, or failed.
Another method to test the fuel pump is by listening for its operation. With the ignition on, place your ear near the fuel tank or use a mechanic’s stethoscope to listen for the pump’s humming sound. If the pump is functioning, you should hear it run for a few seconds as the system pressurizes. If no sound is heard, check the fuse and relay again, as these are common points of failure. If the fuse is blown or the relay is faulty, replace them and retest the pump.
Finally, if all other tests indicate the pump is functioning but the vehicle still has fuel delivery issues, consider testing the pump’s flow rate. Disconnect the fuel line and place the end into a suitable container, then have an assistant crank the engine briefly. Measure the amount of fuel delivered in a specific time frame and compare it to the manufacturer’s specifications. If the flow rate is below the recommended level, the pump may be worn or clogged and should be replaced. Always reconnect the battery and fuel lines securely after testing, and ensure there are no leaks before starting the vehicle.
Running Leaded Fuel in Fuel-Injected Motorcycles: Compatibility and Risks
You may want to see also
Explore related products
Tools Required: Essential tools needed for testing the fuel pump effectively
When testing an external electric fuel pump, having the right tools is crucial for accuracy and safety. One of the most essential tools is a multimeter, which allows you to check the electrical circuit for voltage, resistance, and continuity. This tool helps determine if the fuel pump is receiving power and if the wiring is intact. Ensure the multimeter is set to the appropriate range for voltage or resistance measurements to avoid damaging the device or obtaining inaccurate readings.

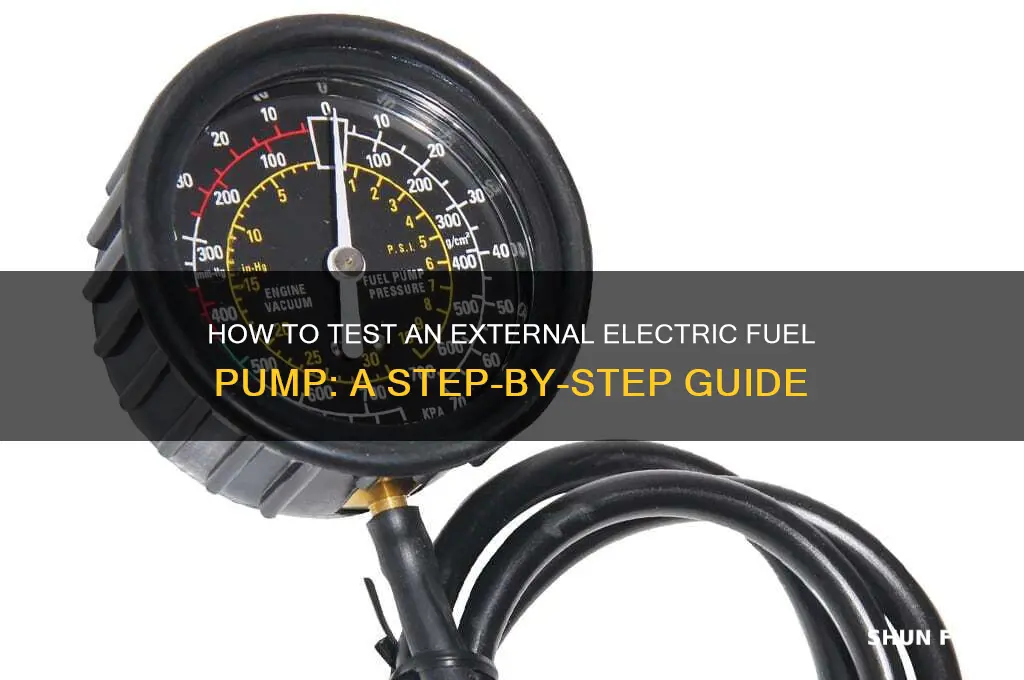

Another critical tool is a fuel pressure gauge, specifically designed to test the pressure output of the fuel pump. This gauge is connected directly to the fuel system, typically at the fuel rail or a test port, to measure the pressure the pump is generating. Accurate pressure readings are vital to diagnose whether the pump is operating within the manufacturer’s specified range. Always use a gauge compatible with your vehicle’s fuel system to prevent leaks or damage.
