Testing a fuel pump relay is a crucial diagnostic step when troubleshooting issues related to a vehicle's fuel system. The fuel pump relay plays a vital role in controlling the power supply to the fuel pump, ensuring it operates only when the engine is running or being started. If the relay fails, it can lead to symptoms such as a no-start condition, engine stalling, or inconsistent fuel delivery. To test the relay, one typically checks for proper electrical continuity, voltage, and resistance using a multimeter, and may also perform a swap test with a known good relay to confirm if the component is faulty. Understanding how to test a fuel pump relay can save time and money by pinpointing the exact cause of fuel system problems.
| Characteristics | Values |
|---|---|
| Testing Method | Multimeter (Ohmmeter & Voltmeter), Jumper Wire, Pressure Gauge |
| Relay Terminals | Typically 5 terminals: 30 (Power In), 87 (Power Out), 85 (Ground), 86 (Control), 87a (Optional) |
| Resistance Check | Measure resistance between terminals 85 and 86 (Control Circuit). Compare with manufacturer's specs (usually 50-120 ohms) |
| Continuity Check | Check continuity between terminals 30 and 87 (Power Circuit) when relay is activated |
| Voltage Check | Apply 12V to terminal 86 (Control) and measure voltage at terminal 87 (Power Out). Should match battery voltage |
| Activation Method | Apply power to terminal 85 (Ground) and 86 (Control) to activate relay |
| Common Failure Modes | Open circuit (no continuity), short circuit, high resistance, stuck contacts |
| Symptoms of Failure | No fuel pressure, engine cranks but won't start, intermittent starting issues |
| Tools Required | Multimeter, jumper wire, pressure gauge (optional), manufacturer's specs |
| Safety Precautions | Disconnect battery, work in well-ventilated area, avoid sparks near fuel system |
| Manufacturer's Specs | Consult vehicle-specific repair manual or manufacturer's website for accurate values |
| Alternative Testing | Use a fuel pressure gauge to test fuel pump operation directly (bypass relay) |
| Replacement Cost | Typically $10-$50 (depending on vehicle and brand) |
| Difficulty Level | Moderate (requires basic electrical knowledge and tools) |
| Time Required | 30 minutes to 1 hour (depending on experience and vehicle accessibility) |
Explore related products
What You'll Learn
- Relay Location and Identification: Find the fuel pump relay in your vehicle's fuse box
- Visual Inspection: Check for corrosion, damage, or loose connections on the relay
- Multimeter Testing: Use a multimeter to test the relay’s continuity and resistance
- Swap with Another Relay: Temporarily replace the fuel pump relay with a similar one
- Listen for Fuel Pump Activation: Turn the key to ON and listen for the pump humming
Relay Location and Identification: Find the fuel pump relay in your vehicle's fuse box

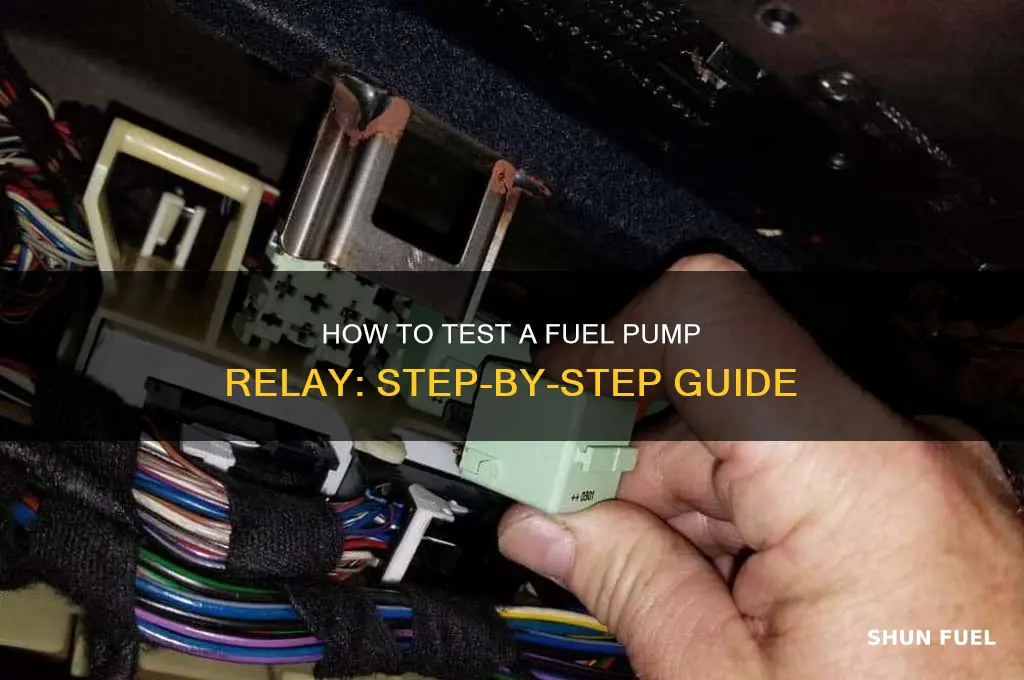

Locating and identifying the fuel pump relay in your vehicle’s fuse box is the first step in testing or replacing it. The fuel pump relay is a critical component that controls the power supply to the fuel pump, ensuring it operates only when the engine is running or being started. To begin, consult your vehicle’s owner’s manual or a repair manual specific to your make and model. These resources typically provide a diagram of the fuse box layout, highlighting the location of the fuel pump relay. If you don’t have access to these manuals, online forums or vehicle-specific databases can also offer valuable information.
Once you have the necessary information, open the hood of your vehicle and locate the fuse box, which is usually positioned near the battery or along the firewall. Most fuse boxes have a cover that can be easily removed to reveal the fuses and relays inside. The fuel pump relay is often labeled clearly, but if not, it will typically be a larger relay compared to others in the box. It may also be color-coded or have a distinct shape to differentiate it from other relays. If you’re still unsure, compare the relays to the diagram from your manual to identify the correct one.
In some vehicles, the fuel pump relay may be located in a separate relay box or even inside the cabin, often under the dashboard. If you cannot find it in the primary fuse box, check these alternative locations. Additionally, some vehicles may have multiple fuse boxes, so ensure you inspect all of them if necessary. Once you’ve identified the relay, take note of its position for future reference, as this will save time if you need to access it again.
To confirm you’ve found the correct relay, cross-reference its part number with the information in your manual or online resources. Many relays have their part numbers printed on them, making this step straightforward. If the part number matches, you can proceed with testing or replacing the relay. Proper identification ensures you’re working on the right component, avoiding unnecessary troubleshooting or damage to other parts of the electrical system.
Finally, before removing the fuel pump relay, ensure the vehicle is turned off and the ignition is in the “off” position. This precaution prevents electrical shorts or accidental activation of other systems. With the relay identified and located, you’re now ready to proceed with testing or replacement, ensuring your vehicle’s fuel system operates reliably.
E15 Fuel Compatibility: Which Cars Can Safely Use It?
You may want to see also
Explore related products
Visual Inspection: Check for corrosion, damage, or loose connections on the relay
When performing a Visual Inspection to check for corrosion, damage, or loose connections on a fuel pump relay, start by locating the relay in your vehicle’s fuse box or under the hood. Consult your vehicle’s manual to identify the correct relay, as it may be labeled as "fuel pump" or have a specific number. Once located, carefully remove the relay by pulling it straight out of its socket. Inspect the relay’s exterior for any visible signs of physical damage, such as cracks, burns, or melted plastic, which could indicate overheating or electrical issues. Even minor damage can compromise the relay’s functionality, so note any abnormalities.
Next, examine the relay’s terminals and pins for corrosion, which often appears as a greenish or whitish residue. Corrosion can disrupt the electrical connection, leading to intermittent or complete failure of the fuel pump. Use a bright light and a magnifying glass if necessary to ensure you don't miss any signs of corrosion. If corrosion is present, gently clean the terminals using a wire brush or fine-grit sandpaper, and apply a small amount of dielectric grease to prevent future corrosion.
Inspect the relay’s connections to ensure they are secure and properly seated. Loose or misaligned connections can cause poor electrical contact, leading to erratic fuel pump operation. Check the socket where the relay sits for any bent pins or debris, as these can interfere with the relay’s ability to function correctly. If the socket appears damaged, it may need to be replaced to ensure a reliable connection.
Additionally, look for any loose wires or frayed insulation around the relay. Damaged wiring can cause voltage drops or shorts, affecting the relay’s performance. If you notice any issues, repair or replace the wiring as needed. Ensure all wires are securely connected to the relay terminals and that there are no signs of overheating or melting around the wiring harness.
Finally, reinsert the relay into its socket and ensure it clicks into place securely. A properly seated relay should not wiggle or feel loose. If the relay does not fit snugly, double-check the socket and relay pins for any obstructions or damage. Completing this Visual Inspection thoroughly will help identify potential issues before proceeding with further testing, ensuring a more accurate diagnosis of the fuel pump relay’s condition.
Can Your Cart Run on E85 Fuel? Key Insights
You may want to see also
Explore related products
Multimeter Testing: Use a multimeter to test the relay’s continuity and resistance
Multimeter testing is a reliable and straightforward method to assess the functionality of a fuel pump relay by measuring its continuity and resistance. To begin, ensure the vehicle is turned off and the ignition key is removed to prevent any electrical mishaps. Start by locating the fuel pump relay, typically found in the fuse box under the hood or inside the cabin. Consult your vehicle’s manual if you’re unsure of its location. Once identified, carefully remove the relay by pulling it straight out of its socket. Inspect the relay for any visible damage, such as burnt pins or cracks, but remember that internal faults may not be apparent visually.
Next, set your multimeter to the continuity or resistance (ohms) setting. Continuity testing checks if there is a complete electrical path between two points, while resistance testing measures the opposition to current flow. Identify the relay’s control circuit pins, usually labeled as 85 and 86, which are responsible for activating the relay. Place the multimeter probes on these pins and check for continuity or resistance. A functional relay should show near-zero resistance or a beep indicating continuity, as these pins are typically connected internally when the relay is at rest.
Proceed to test the power circuit pins, often labeled as 30 and 87. With the multimeter still on the continuity or resistance setting, touch the probes to these pins. When the relay is inactive, there should be no continuity or infinite resistance between these pins. If the relay is activated (e.g., by applying power to the control circuit), continuity should be established, and the resistance should drop to near zero. This indicates that the relay is switching the circuit correctly.
Additionally, test the ground circuit pin, usually labeled as 86, to ensure it is properly connected. Place one probe on pin 86 and the other on a known ground, such as the battery negative terminal. A functional relay should show continuity or low resistance, confirming a solid ground connection. If any of these tests fail, the relay may be faulty and require replacement.
Finally, retest the relay in its socket to ensure the issue isn’t with the wiring harness. Reinsert the relay and use the multimeter to verify continuity and resistance across the same pins. If the readings differ from the bench test, inspect the socket and wiring for corrosion, loose connections, or damage. Multimeter testing is a precise way to diagnose fuel pump relay issues, ensuring you accurately identify whether the relay itself or another component is the root of the problem.
Ammonia as a Fuel Source: Powering SOFCs Sustainably and Efficiently
You may want to see also
Explore related products
Swap with Another Relay: Temporarily replace the fuel pump relay with a similar one
Swapping the fuel pump relay with another similar relay is a practical and straightforward method to test whether the relay itself is faulty. This approach leverages the fact that many relays in a vehicle are interchangeable, especially those with the same part number or pin configuration. Begin by locating the fuel pump relay, typically found in the fuse box under the hood or inside the cabin. Consult your vehicle’s manual to identify the correct relay and its position. Once located, carefully remove the relay by pulling it straight out of its slot. Take note of its orientation to ensure the replacement relay is inserted correctly.
Next, identify a compatible relay to use as a substitute. Common candidates include the horn relay, cooling fan relay, or any other relay with the same pin layout and specifications. Ensure the replacement relay is not critical to immediate vehicle operation, as it will temporarily be out of commission. Swap the relays by inserting the replacement relay into the fuel pump relay’s slot, ensuring it clicks securely into place. Be gentle to avoid damaging the relay or its socket.
With the relays swapped, start the vehicle and observe its behavior. If the fuel pump begins operating normally and the engine starts without issues, it strongly indicates that the original fuel pump relay was faulty. However, if the problem persists, the issue may lie elsewhere, such as with the fuel pump itself, wiring, or another component in the fuel system. In this case, further diagnosis will be necessary.
After testing, return the relays to their original positions. If the test confirms a faulty fuel pump relay, replace it with a new one of the correct specifications. This method is cost-effective and quick, allowing you to isolate the relay as the source of the problem without specialized tools or extensive disassembly. Always exercise caution when working with electrical components, and ensure the vehicle is turned off during the relay swap to prevent accidental shorts or damage.
Finally, keep in mind that while this method is effective for diagnosing relay issues, it is not a permanent fix. A faulty relay should be replaced promptly to ensure reliable vehicle operation. Additionally, if you’re unsure about the compatibility of relays or the process, consult a professional mechanic to avoid potential complications. This temporary swap is a valuable troubleshooting step that can save time and money by pinpointing the relay as the culprit in fuel pump-related issues.
Can a Faulty Fuel Pump Trigger Your Check Engine Light?
You may want to see also
Explore related products
Listen for Fuel Pump Activation: Turn the key to ON and listen for the pump humming
When testing a fuel pump relay, one of the simplest and most effective methods is to Listen for Fuel Pump Activation. This technique involves turning the ignition key to the ON position and carefully listening for the characteristic humming sound of the fuel pump. The fuel pump is designed to activate briefly when the ignition is turned on, priming the fuel system for engine start. This brief activation is a crucial diagnostic step, as it can indicate whether the fuel pump relay and associated circuitry are functioning correctly. To perform this test, ensure the vehicle is in a quiet environment to minimize external noise interference.
Begin by locating the ignition key and inserting it into the ignition switch. Turn the key to the ON position, but do not start the engine. As soon as the key is turned, focus your attention on the fuel tank area, typically located at the rear of the vehicle. The fuel pump is usually mounted inside the fuel tank, and its activation produces a distinct humming or whirring sound. This sound should last for approximately 2 to 3 seconds, indicating that the fuel pump relay has successfully energized the pump. If the sound is audible, it suggests that the relay and the fuel pump are functioning as intended.
If you do not hear the fuel pump humming, it could indicate a problem with the fuel pump relay, the wiring, or the pump itself. In such cases, further diagnostic steps are necessary. However, the absence of the humming sound alone does not definitively pinpoint the issue. It is important to note that some vehicles may have a quieter fuel pump or additional sound insulation, making the humming less audible. If unsure, you can also place your ear near the fuel tank or use a mechanic's stethoscope to amplify the sound.
To ensure accuracy, repeat the test a few times, as occasional electrical glitches can cause the pump to fail to activate momentarily. If the fuel pump consistently fails to hum during the test, proceed to check the fuel pump relay for continuity or swap it with a known good relay to isolate the issue. Additionally, verify that the fuel pump fuse is intact and that there is power reaching the relay. These steps will help narrow down whether the problem lies with the relay, the pump, or another component in the fuel delivery system.
In summary, Listening for Fuel Pump Activation by turning the key to the ON position and focusing on the pump's humming is a straightforward yet powerful diagnostic technique. It provides immediate feedback on the functionality of the fuel pump relay and the pump itself. While this method is not exhaustive, it serves as a critical first step in troubleshooting fuel system issues. If the humming sound is absent, further investigation is required to identify and resolve the underlying problem.
Importing and Selling Russian Jet Fuel: Legalities, Risks, and Opportunities
You may want to see also
Frequently asked questions
Yes, you can test a fuel pump relay in-situ using a multimeter to check for continuity, voltage, and proper switching operation.
Common symptoms include engine stalling, difficulty starting, no fuel pump operation, or a check engine light related to fuel system issues.
You’ll need a multimeter, a test light, and possibly a relay puller or jumper wires to perform the test effectively.
If the fuel pump is not receiving power, check the relay first. If the relay is functioning, the issue may lie with the fuel pump or wiring.
