Fuel injectors are designed to spray fuel into the cylinders of a vehicle's engine, where the fuel is combined with air and compressed before being ignited to produce power. An issue with a fuel injector can cause the engine to run poorly or even fail to run at all. Testing fuel injectors involves checking for errors in the vehicle's computer and testing the wires coming out of the injectors for voltage. With the engine running, a screwdriver can be put to the body of the injector, and a regular ticking sound should be audible, indicating the needle valve opening and closing.
| Characteristics | Values |
|---|---|
| Fuel Injector Function | Spray fuel into the cylinders of the engine |
| Fuel Injector Fault Impact | Engine runs poorly or fails to run |
| Testing Method | Listen for a ticking sound with a screwdriver or stethoscope, check spray pattern, test wires for voltage |
| Testing Tools | Screwdriver, mechanic's stethoscope, test light, OBDII scanner, code scanner |
| Observation | Regular ticking sound, good spray pattern, normal voltage |
| Possible Issues | Clogging, wiring harness problems, low flow rate, leaking injector |
Explore related products
What You'll Learn
Testing the wires for voltage
Firstly, it is crucial to ensure that the fuel injectors are not leaking before conducting any electrical tests, as leaking injectors can pose fire hazards. Next, turn off the ignition and remove the injector wiring harness. Typically, you will need to press down on tabs to remove the wiring harness, and sometimes you may need to move a slide lock beforehand.
Now, you can begin testing the wires for voltage. Each fuel injector will have two wires, one of which is a 12-volt constant that should be continuously powered. These wires are often grey and black but can vary in colour. You will need a test light or a multimeter for this step. If using a test light, connect it to the positive terminal of your battery, and then firmly press the sharp end into the rubber coating around each wire, penetrating the metal wiring. If using a multimeter, set it to "volts" and connect the red lead to one of the injector plugs and the black lead to the vehicle battery's positive terminal.
Once the test equipment is connected, turn the key to the "on" position without starting the engine, activating the electrical system. The voltage on the multimeter should alternate between 12 volts and 0 volts. Repeat this process for all injector wiring harnesses, and ensure that all readings are around 12 volts. If a wire displays a lower voltage, it indicates excess resistance in the wire.
If you encounter any difficulties or are unsure about any aspects of the testing process, it is recommended to consult a certified technician or mechanic for assistance.
Cleaning Fuel Injectors: Intake Manifold Off or On?
You may want to see also
Explore related products
Using a screwdriver to listen for a ticking sound
One way to test a fuel injector is to use a screwdriver to listen for a ticking sound. This method is also known as the listening test. It is a simple and effective way to check if your fuel injectors are working properly. Here's a step-by-step guide on how to perform the test:
Step 1: Prepare the Engine
Start by popping the hood of your car and allowing the engine to idle. It is important to ensure that the engine is running during the test.
Step 2: Locate the Fuel Injectors
Fuel injectors are usually located on the engine manifold, positioned on top of the engine. They are responsible for spraying fuel into the cylinders of the engine, where it is ignited by the spark plugs to power the engine. Over time, fuel injectors can wear out, get clogged, or develop issues due to residue buildup.
Step 3: Use a Screwdriver to Listen for a Ticking Sound
Take a long metal screwdriver and place the tip of the screwdriver against one of the fuel injectors. It is important to use a metal screwdriver as it will help transmit the sound effectively. Hold the screwdriver at an angle that allows you to bring your ear close to the handle without leaning too close to the running engine.
Step 4: Listen for the Ticking Sound
As the engine runs, listen carefully for an audible ticking or clicking sound coming from the fuel injector. This sound indicates that the injector is functioning properly and is being activated. Repeat this process for each fuel injector in your vehicle.
Step 5: Identify Non-Functioning Injectors
If you don't hear a ticking sound from a particular injector, it may be faulty or dirty. Make a note of any injectors that are quiet, as they may need to be cleaned or replaced. Additionally, check for any leaks, drips, or the smell of gasoline around the injectors, as these could indicate bad O-ring seals.
It is important to note that while this method is a quick and easy way to check for potential issues with your fuel injectors, it may not always provide a definitive diagnosis. For more comprehensive testing, you may consider using an automotive stethoscope or seeking professional assistance from a mechanic.
Testing Fuel Injectors: A Screwdriver's Diagnostic Guide
You may want to see also
Explore related products
Checking the spray pattern

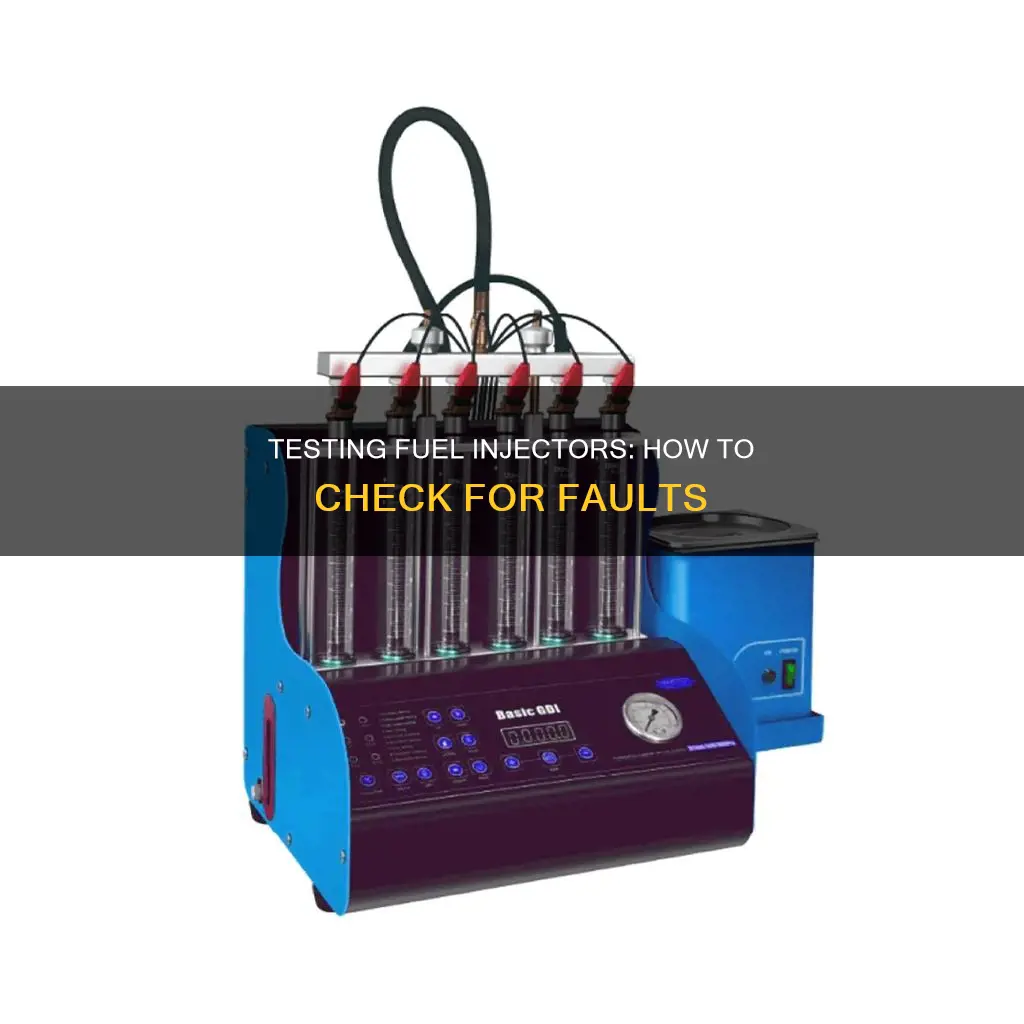

There are several ways to check the spray pattern of a fuel injector. One way is to use a testing machine that pumps out a clear-coloured, fine spray, which should resemble a light misting. This will allow you to see the spray pattern and determine if it is correct. Another method is to use a remote starter switch to crank the engine for testing purposes without the key in the ignition. This will allow you to observe the spray pattern without actually starting the engine.
It's important to note that unless the injectors are very dirty, differences in the spray pattern may not be obvious. If the spray pattern is significantly distorted, it is likely that the engine will be noticeably affected. A dirty or clogged injector is a common cause of spray pattern distortion. In this case, sending the injectors for a cleaning service is recommended.
There are several types of spray patterns, each designed for a specific type of system. The most common type is the tapered pintle design, which was used in most injectors from the 1970s to the 1980s. This type of injector has a narrow, single-hole spray pattern. More modern injectors may have multiple holes to help atomize the fuel, resulting in a "V"-shaped spray pattern.
Fuel Injector Cleaner: Capless Gas Tank Maintenance
You may want to see also
Explore related products
Using an OBDII scanner
To use an OBDII scanner, start by locating your vehicle's DLC or OBDII port, usually found beneath the dashboard on the driver's side. Ensure the ignition is off, and then plug the scanner into the port. Once connected, turn on the vehicle but do not start the engine. Power on the scanner and access the "Live Data" or "Data Stream" menu to retrieve data streams from the ECU (Electronic Control Unit).
When examining fuel injectors, look for error codes, especially those starting with the letter "P," which indicate powertrain issues related to fuel. Common fuel injector issues include clogged pipes or cylinders, dirty or malfunctioning injectors, and improper opening or closing of injectors. These issues can lead to problems such as rough idling, knocking, poor gas mileage, and increased emissions.
It is important to note that different car models have varying compatibility with OBDII scanners. Older vehicles, for example, may not have on-board computers capable of monitoring fuel injectors, and manual check-ups may be necessary. Additionally, ensure you are adequately prepared before testing fuel injectors. This includes gathering the necessary tools, understanding your vehicle's layout, and prioritizing safety measures such as wearing protective gear and ensuring proper ventilation.
Fuel Injector Upgrade for 1996 Harley: Is It Possible?
You may want to see also
Explore related products
Calculating the flow rate
Fuel injectors are designed to spray fuel into the cylinders of an engine, where it is combined with air and compressed before being ignited by a spark plug to produce power. A faulty fuel injector can cause an engine to run poorly or even fail to start.
To test a fuel injector, you can use a test light and an OBDII scanner. Firstly, locate the two wires going into each injector. One of these wires should be a 12-volt constant that is continuously powered. Test each wire for voltage by penetrating the rubber coating with the sharp end of the test light. If you identify an injector with a power issue, make a note of it and continue testing the rest.
Now, to calculate the flow rate, you can use the following formula:
Injector Flow Rate = Horsepower x BSFC / # Cylinders x Safe Duty Cycle
Here, BSFC (Brake-Specific Fuel Consumption) refers to the amount of fuel consumed (in pounds) for each horsepower produced per hour. The safe duty cycle is the percentage of time that the fuel injector valve is open during each combustion cycle, which includes intake, compression, power, and exhaust.
For example, let's say you have a turbocharged V8 motor with a desired output of 450 horsepower, running on normal gasoline. The BSFC for this setup is 0.6. Plugging these values into the formula, we can calculate the ideal fuel injector flow rate.
It's important to note that the flow rate is critical for fuel injectors. The ECU (Engine Control Unit) is programmed to operate with known values, and if the flow rate deviates significantly from the expected range, it can lead to engine performance issues.
Additionally, when replacing fuel injectors, it is recommended to use stock OE parts as they are sized properly, and deviations from the stock flow rate can cause issues with the ECU's ability to adjust fuel injection.
Clean Fuel Injectors: Gas Treatment Solution for Your Car
You may want to see also
Frequently asked questions
You can test a fuel injector by locating the two wires going into each injector. Each metal clip will have two wires that are continuously powered by your vehicle's electrical system. Test each wire for voltage by pressing the sharp end of a test light into the rubber coating. You can also test an injector by putting a screwdriver to its body and your ear to the handle. You should hear a regular ticking, which is the needle valve opening and closing.
Fuel injectors spray fuel into the cylinders of an engine, where it is combined with air and compressed before being ignited by a spark plug to produce power.
A damaged fuel injector can cause your engine to run poorly or even fail to run at all. A low flow rate can cause the engine to run hotter and leaner, damaging the engine.
