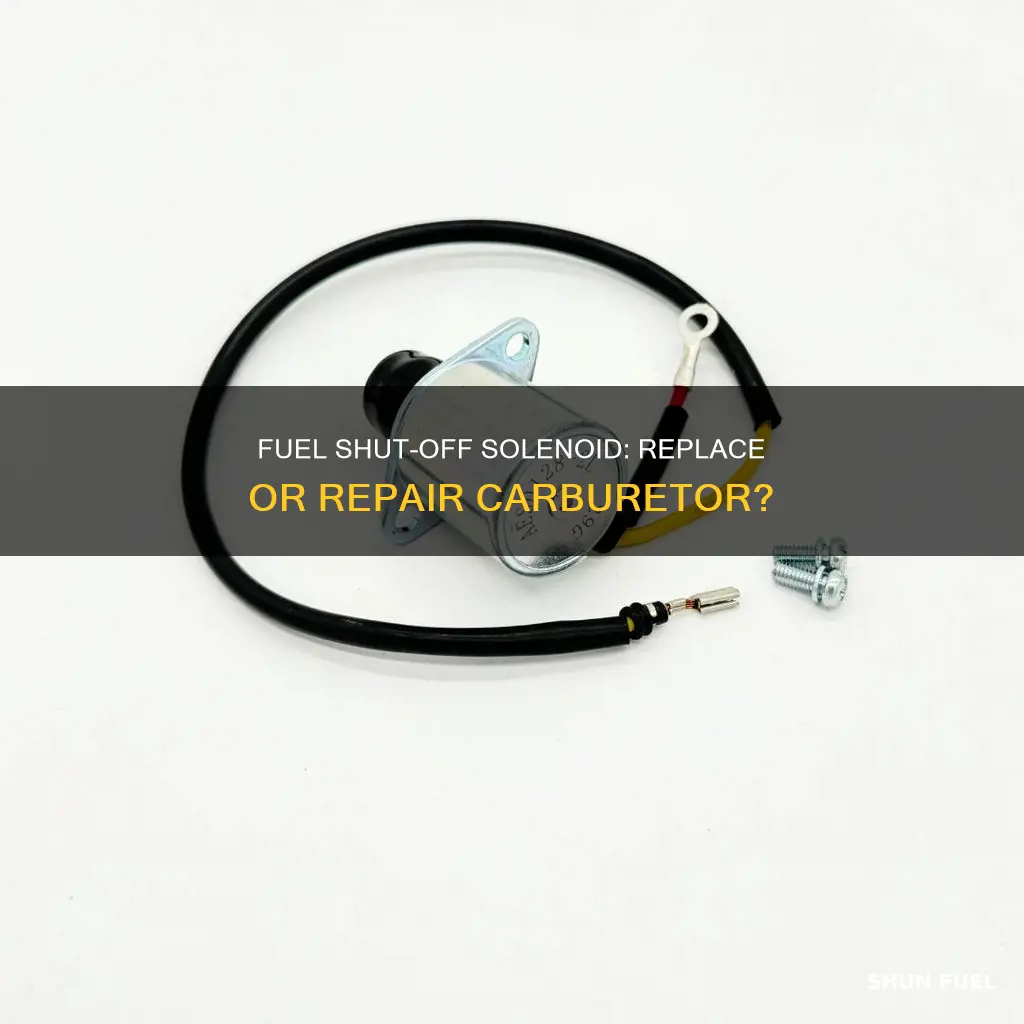

Fuel Shut Off Solenoid Replacement: Carburetor-Free Solution

The fuel shut-off solenoid is a crucial component in many older vehicles, responsible for controlling the flow of fuel to the engine. Over time, this solenoid can wear out or malfunction, leading to engine performance issues. One common question among car owners is whether it's possible to replace just the solenoid without also replacing the entire carburetor. This is a relevant concern, especially for those who prefer to keep their vehicles in a classic or original state. Understanding the process and considerations for replacing the solenoid without a full carburetor overhaul can help car enthusiasts and mechanics make informed decisions about vehicle maintenance.

Tools and Materials: Gather necessary tools like a solenoid puller and replacement solenoid

When it comes to replacing a fuel shut-off solenoid without replacing the entire carburetor, it's important to have the right tools and materials ready. Here's a breakdown of what you'll need:

Tools:

• Solenoid Puller: This specialized tool is crucial for safely removing the old solenoid from the carburetor. It provides a mechanical advantage to break the seal between the solenoid and the carburetor body, allowing for easy extraction.
• Wrenches and Socket Sets: You'll need various sizes of wrenches and sockets to loosen and tighten the nuts and bolts that secure the carburetor and related components.
• Pliers: Pliers can be helpful for gripping small parts or wires during the removal and installation process.
• Screwdrivers: Flathead and Phillips screwdrivers may be necessary for accessing certain fasteners or adjusting carburetor components.
• Needle-nose Pliers: These are useful for handling small fuel lines and wires.
• Safety Gloves and Eye Protection: Always prioritize safety by wearing gloves to protect your hands and eye protection to shield your eyes from potential debris.

Materials:

• Replacement Solenoid: Ensure you have the correct part number for your specific carburetor model. Obtain a replacement solenoid from a reputable source to guarantee compatibility.
• Fuel Line Connector Kit: This kit will include the necessary O-rings and gaskets to securely connect the fuel lines to the new solenoid and carburetor.
• New Gaskets (if applicable): If your carburetor requires new gaskets, have them on hand to ensure a proper seal.
• Fuel: Have some fuel readily available to refill the carburetor after the replacement process.

Having these tools and materials assembled beforehand will make the replacement process smoother and more efficient. Remember to consult your vehicle's manual or seek guidance from a mechanic if you're unsure about any specific steps.

Diagnosis: Check for solenoid issues using a multimeter to ensure it's faulty

To diagnose and confirm if the fuel shut-off solenoid is faulty, you can use a multimeter, a tool that allows you to measure electrical properties such as voltage, current, and resistance. This method is a reliable way to check the solenoid's functionality without resorting to replacing the entire carburetor, which can be a costly and time-consuming process. Here's a step-by-step guide on how to use a multimeter to test the solenoid:

Step 1: Prepare the Multimeter

Ensure your multimeter is set to the ohms (Ω) or resistance setting. This setting will allow you to measure the resistance of the solenoid, which is a key indicator of its health. If the solenoid is functioning properly, it should have a specific resistance value.

Step 2: Locate the Solenoid

Locate the fuel shut-off solenoid in your vehicle. It is typically located near the fuel tank or the carburetor. The solenoid is a small, coil-shaped component that controls the flow of fuel.

Step 3: Disconnect the Solenoid

Carefully disconnect the electrical connections from the solenoid. This will allow you to test the solenoid independently. Make sure to label or remember the positions of the wires to reconnect them later.

Step 4: Measure Resistance

Place the multimeter probes on the disconnected wires of the solenoid. Set the multimeter to the ohms (Ω) setting and touch the probes to the wires. The multimeter will display the resistance value. A healthy solenoid should have a resistance within a specific range, typically a few hundred ohms to a few thousand ohms, depending on the make and model of your vehicle. If the resistance is significantly higher or lower than the expected range, it may indicate a faulty solenoid.

Step 5: Test for Continuity

If the resistance measurement is within the expected range, you can further test the solenoid's functionality by checking for continuity. Set the multimeter to the continuity setting and touch the probes together. If the solenoid is functioning properly, it should allow a small amount of current to flow, indicating continuity. If there is no continuity, it suggests a short circuit or an open circuit within the solenoid, indicating a potential fault.

Step 6: Compare with Known Good Parts

If you have access to a known good solenoid from a similar vehicle or a spare part, you can compare the resistance and continuity values. This will help you confirm if the solenoid you are testing is indeed faulty.

By following these steps, you can accurately diagnose whether the fuel shut-off solenoid requires replacement or if it can be repaired without replacing the entire carburetor. This method is a practical and cost-effective approach to troubleshooting fuel system issues.

Removal Process: Carefully remove the old solenoid, following a step-by-step guide

The process of replacing a fuel shut-off solenoid without replacing the entire carburetor requires a methodical approach to ensure a successful repair. Here's a step-by-step guide to removing the old solenoid:

• Preparation and Safety: Begin by ensuring you have the necessary tools, including a socket or wrench set, and a new solenoid if you plan to replace it. It's crucial to work in a well-ventilated area and wear protective gear, such as gloves and safety goggles, to prevent any potential hazards from fuel or engine components.
• Locate the Solenoid: Identify the fuel shut-off solenoid on your engine. This component is typically located near the carburetor or fuel injection system. Refer to your vehicle's manual or online resources for a visual guide to locate the solenoid's exact position.
• Disconnect Fuel Lines: Carefully disconnect the fuel lines connected to the solenoid. This step may require loosening clamps or screws to release the lines. Ensure you label or mark the positions of these connections for easy reattachment during the installation of the new solenoid.
• Remove Carburetor (if applicable): If your engine has a carburetor, you might need to remove it to access the solenoid. This process can vary depending on your vehicle's make and model. Generally, it involves loosening the carburetor's mounting bolts and carefully lifting it away from the engine. Set the carburetor aside, taking note of its orientation and any wiring or hoses connected to it.
• Access the Solenoid: With the fuel lines disconnected and the carburetor removed (if necessary), you should now have access to the solenoid. Carefully inspect the solenoid and the surrounding area for any signs of damage or corrosion. Use a clean cloth to wipe away any debris or dirt.
• Remove the Old Solenoid: Follow these steps to remove the old solenoid:

• Locate the mounting bolts or screws securing the solenoid in place.
• Loosen and remove these fasteners.
• Gently pull the solenoid out of its housing, ensuring you don't force it to avoid damaging surrounding components.
• If the solenoid is difficult to remove, you may need to carefully pry it out with a flathead screwdriver or a specialized tool, being cautious not to damage the engine block or other nearby parts.

• Install the New Solenoid: Once the old solenoid is removed, you can now install the new one. Ensure it is aligned correctly and secure it in place using the mounting fasteners. Tighten these fasteners by hand first, then use a wrench to ensure a secure fit without over-tightening.
• Reassembly: Reattach the fuel lines to the new solenoid, ensuring they are properly connected and secured. If you removed the carburetor, carefully reinstall it, aligning it with the engine and securing it with the mounting bolts. Double-check all connections and ensure everything is tightened securely.

By following these steps, you can carefully remove and replace the fuel shut-off solenoid without the need for a full carburetor replacement, saving time and resources. Remember to consult your vehicle's manual or seek professional advice if you encounter any specific challenges during the process.

Installation: Insert the new solenoid, ensuring proper alignment and torque specifications

When replacing the fuel shut-off solenoid, it is important to follow a systematic approach to ensure a successful installation. Here's a step-by-step guide to help you through the process:

Preparation: Before you begin, make sure you have the necessary tools and components ready. You'll need a new fuel shut-off solenoid that is compatible with your vehicle's make and model. Additionally, gather the appropriate torque wrench and a manual for your specific vehicle to ensure you follow the correct torque specifications.

Locate the Old Solenoid: Start by carefully removing the old solenoid. This process may vary depending on your vehicle, but generally, you'll need to access the carburetor or fuel injection system. Locate the solenoid's mounting position, which is typically near the engine or under the dashboard. Carefully detach the electrical connections and any hoses or lines connected to the solenoid.

Insert the New Solenoid: Now, it's time to install the new solenoid. Ensure that you have a clear understanding of the correct orientation and alignment. Insert the new solenoid into the designated mounting position, making sure it fits securely. Use the provided mounting hardware to fasten the solenoid in place. Double-check that all connections are properly aligned and accessible.

Torque and Alignment: Proper torque and alignment are critical to a successful installation. Refer to your vehicle's manual for the recommended torque specifications for the solenoid's mounting bolts. Use the torque wrench to apply the specified torque to ensure a secure and tight fit. Check for any gaps or misalignments that may affect the solenoid's performance. Adjust as necessary to achieve the correct specifications.

Final Connections: Once the solenoid is securely installed and torqued, reconnect the electrical connections and any hoses or lines. Ensure that all components are properly seated and tightened. Double-check your work to guarantee that there are no leaks or loose connections. With the new solenoid in place, your vehicle should now have a reliable fuel shut-off mechanism.

Testing: Verify functionality by starting the engine and checking for solenoid operation

When replacing a fuel shut-off solenoid, it's crucial to test its functionality to ensure the engine starts smoothly and the solenoid operates as intended. Here's a detailed guide on how to verify the solenoid's operation:

Starting the Engine: Begin by ensuring the engine is in a condition that allows for testing. This means the fuel system should be accessible, and there should be no obvious issues with the fuel pump or lines. Turn the ignition key to the "on" position, but do not start the engine. This initial step helps you identify any potential starting issues related to the solenoid.

Checking Solenoid Operation: With the engine not running, locate the fuel shut-off solenoid, which is typically positioned near the fuel pump or in the fuel line. This solenoid is responsible for controlling fuel flow to the engine. Use a multimeter or a test light to check for continuity or power at the solenoid's terminals. When the ignition is "on," the solenoid should activate, allowing current to flow. If there's no power or continuity, it indicates a potential issue with the solenoid or the wiring connected to it.

Engine Start and Response: Now, attempt to start the engine. A properly functioning solenoid should allow fuel to flow to the engine, enabling it to start. Pay close attention to the engine's response. If the engine starts readily and runs smoothly, the solenoid is likely operating correctly. However, if the engine struggles to start or doesn't start at all, it could be due to a faulty solenoid or other related issues.

Further Diagnostics: If the engine doesn't start as expected, further investigation is required. Check the fuel pressure to ensure it's within the correct range. Inspect the fuel pump for proper operation, as a faulty pump can prevent fuel from reaching the engine. Additionally, verify the integrity of the fuel lines and connections to ensure there are no leaks or disconnections.

By following these steps, you can effectively test the fuel shut-off solenoid's functionality and ensure that the replacement process was successful without the need for additional carburetor modifications. This testing procedure is essential to guarantee the engine's performance and reliability after the solenoid replacement.
