Regan Brown

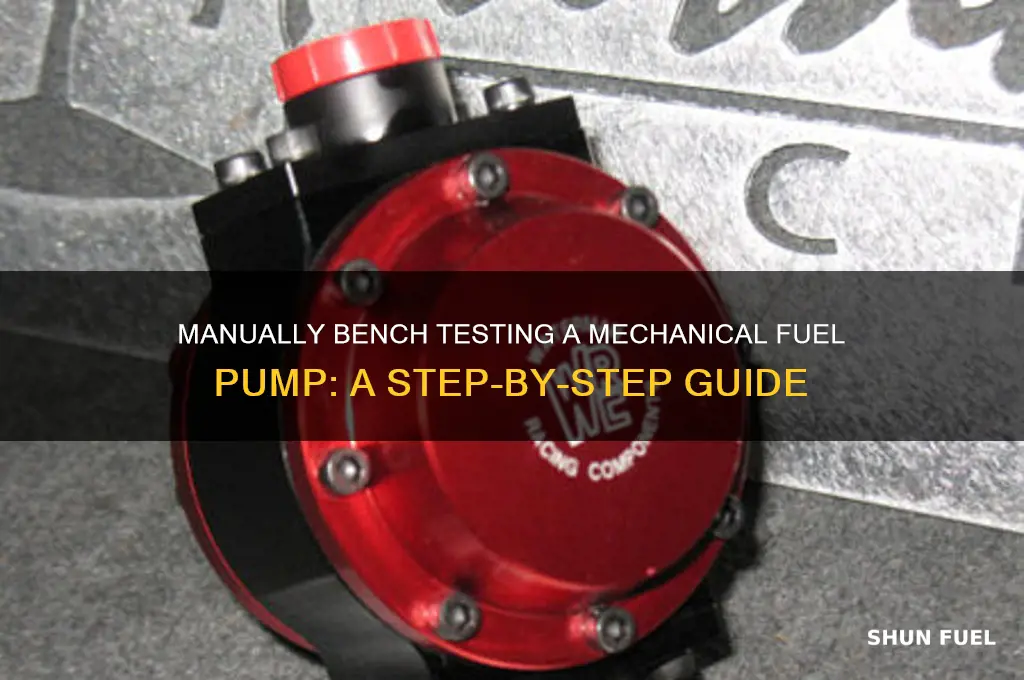

Manually bench testing a mechanical fuel pump operation is a practical and effective method to diagnose its functionality outside of the vehicle. This process involves disconnecting the pump from the engine and testing it in a controlled environment to assess its ability to generate the necessary pressure and flow rate. By using basic tools and a fuel pressure gauge, you can simulate the pump's operation, check for leaks, and ensure it delivers fuel efficiently. This hands-on approach not only helps identify potential issues like worn diaphragms or weak springs but also saves time and resources compared to troubleshooting the pump while it’s still installed. Whether you’re a DIY enthusiast or a professional mechanic, understanding how to manually bench test a mechanical fuel pump is a valuable skill for maintaining reliable fuel system performance.
| Characteristics | Values |
|---|---|
| Test Purpose | To verify the functionality and performance of a mechanical fuel pump outside of the vehicle. |
| Required Tools | Fuel pressure gauge, fuel line, container of fuel, wrenches/sockets, safety equipment (gloves, goggles). |
| Test Procedure | 1. Disconnect the pump from the vehicle. 2. Securely mount the pump on a bench. 3. Connect the fuel line to the pump inlet and outlet. 4. Prime the pump with fuel. 5. Manually operate the pump (e.g., by turning the camshaft or using a drill). 6. Monitor fuel pressure and flow using the gauge. |
| Key Parameters to Check | Fuel pressure, flow rate, leaks, noise, and smooth operation. |
| Expected Results | Consistent fuel pressure and flow within specifications, no leaks, and quiet operation. |
| Common Issues Detected | Weak or inconsistent pressure, leaks, excessive noise, or failure to pump fuel. |
| Safety Precautions | Work in a well-ventilated area, avoid sparks or open flames, and handle fuel with care. |
| Applicability | Suitable for most mechanical fuel pumps (e.g., diaphragm or plunger type). |
| Limitations | Does not test pump performance under actual engine load conditions. |
| Alternative Methods | In-vehicle testing or using specialized bench test equipment for more accurate results. |
Explore related products
What You'll Learn
- Pre-test Preparation: Gather tools, safety gear, fuel container, and ensure workspace is well-ventilated and clear
- Pump Disconnection: Safely disconnect fuel lines and electrical connections to isolate the pump for testing
- Hand Cranking Method: Manually rotate the pump using a wrench to check for smooth operation and fuel flow
- Pressure and Flow Check: Use a gauge to measure fuel pressure and observe flow rate for proper functionality
- Post-test Inspection: Reinstall the pump, check for leaks, and verify connections are secure before reassembly
Pre-test Preparation: Gather tools, safety gear, fuel container, and ensure workspace is well-ventilated and clear
Before attempting to manually bench test a mechanical fuel pump, it is crucial to prioritize safety and organization. Begin by gathering all the necessary tools, which typically include a wrench or socket set to remove the pump, a screwdriver for any additional components, and a pair of pliers for handling fuel lines. Ensure you have a clean, lint-free cloth to wipe down parts and a container specifically designated for fuel to avoid contamination. Having a multimeter or a fuel pressure gauge can also be beneficial for diagnostic purposes during the test. Organize these tools within easy reach to streamline the process and minimize interruptions.
Safety gear is non-negotiable when working with fuel systems. Equip yourself with nitrile gloves to protect your skin from fuel exposure, safety goggles to shield your eyes from potential splashes, and a fire extinguisher rated for fuel fires placed nearby. Wear long sleeves and pants made of natural fibers to reduce the risk of ignition, and avoid any open flames or sparks in the area. Ensure your workspace is free of any potential ignition sources, such as lit cigarettes or electrical devices that could create static electricity.
A suitable fuel container is essential for the bench test. Use a clean, approved fuel container made of materials compatible with gasoline or diesel, depending on your vehicle’s fuel type. The container should have a secure lid to prevent spills and fumes from escaping. Label the container clearly to avoid confusion and ensure it is only used for this purpose. Before transferring fuel, inspect the container for cracks or leaks, and clean it thoroughly if it has been used previously to prevent contamination of the fuel pump.
The workspace must be well-ventilated to disperse fuel vapors, which are both flammable and harmful if inhaled. Conduct the test in an open area or a garage with the doors wide open. If working indoors, use a fan or ventilation system to maintain airflow. Clear the workspace of any clutter, flammable materials, and unnecessary items to create a safe and efficient testing environment. Ensure the surface you’re working on is stable and clean to prevent accidents or damage to the fuel pump during the test.
Finally, double-check that all preparations are complete before proceeding. Confirm that all tools are laid out, safety gear is worn, the fuel container is ready, and the workspace is ventilated and clear. Take a moment to review the steps of the bench test to ensure you understand the process. Proper pre-test preparation not only ensures a successful test but also safeguards you and your surroundings from potential hazards associated with handling fuel and mechanical components.
Can-Am Renegade 1000 Fuel Pump: Troubleshooting and Replacement Guide
You may want to see also
Explore related products
$49.35 $54.83
Pump Disconnection: Safely disconnect fuel lines and electrical connections to isolate the pump for testing
Before initiating the bench testing of a mechanical fuel pump, it is crucial to safely disconnect the pump from the vehicle's fuel system to ensure a controlled and secure testing environment. The process begins with locating the fuel pump, typically found along the fuel line between the fuel tank and the engine. Start by relieving the fuel system pressure to prevent accidental fuel spray or leaks. This can be done by locating the fuel pressure relief valve or by carefully loosening the fuel line connection at the engine side while the engine is off and the system has depressurized. Always wear safety goggles and gloves, and work in a well-ventilated area to minimize risks associated with fuel exposure.
Next, disconnect the fuel lines attached to the mechanical fuel pump. Use appropriate wrenches or fuel line disconnect tools to avoid damaging the fittings. Label or mark the fuel lines (inlet and outlet) to ensure correct reassembly later. Place a drain pan or container under the connections to catch any residual fuel that may spill during disconnection. Once the lines are removed, plug or cap the open ends of the fuel lines to prevent debris from entering the system and to contain any remaining fuel. Ensure all connections are securely sealed to avoid leaks during the testing process.
After addressing the fuel lines, disconnect the electrical connections to the fuel pump, if applicable. Mechanical fuel pumps are often driven by the engine (e.g., via an eccentric cam or pushrod), but some may have electrical components for additional control or monitoring. If present, carefully unplug the electrical connector, taking note of its orientation for reassembly. Use dielectric grease to protect the connector from corrosion if it will be exposed for an extended period. If the pump is purely mechanical and lacks electrical connections, proceed to the next step.
With the fuel lines and electrical connections safely disconnected, isolate the pump by securing it in a stable position for bench testing. Mount the pump on a workbench or clamp it securely to prevent movement during operation. Ensure the pump’s inlet and outlet ports are accessible for testing. If necessary, attach temporary hoses to the pump’s fuel lines to simulate the flow of fuel during testing. Double-check that all disconnected components are properly sealed or capped to maintain a safe testing environment.
Finally, verify the disconnection process to ensure the pump is fully isolated from the vehicle’s fuel system. Inspect all fuel lines and electrical connections to confirm they are disconnected and sealed. Check for any signs of fuel leaks or residual pressure in the system. Once confirmed, proceed with the bench testing procedure, following the manufacturer’s guidelines or a reliable testing protocol to assess the pump’s performance accurately. Proper disconnection and isolation are essential for a safe and effective bench test of a mechanical fuel pump.
Can a Faulty Fuel Pump Drain Your Car Battery?
You may want to see also
Explore related products
$21.22 $23.58
Hand Cranking Method: Manually rotate the pump using a wrench to check for smooth operation and fuel flow
The Hand Cranking Method is a straightforward and effective way to manually bench test a mechanical fuel pump's operation. This method involves using a wrench to rotate the pump by hand, allowing you to assess its mechanical condition and fuel flow capabilities. To begin, ensure the fuel pump is securely mounted on a workbench or a stable surface. Disconnect all fuel lines and electrical connections to isolate the pump for testing. Position a wrench on the pump's drive mechanism, typically the arm or shaft, ensuring a firm grip to prevent slippage during rotation.
With the wrench in place, slowly and steadily rotate the pump in the direction of its normal operation. Pay close attention to the resistance and smoothness of the rotation. A properly functioning mechanical fuel pump should rotate smoothly without binding or excessive friction. Any unusual resistance, grinding noises, or stiffness may indicate internal wear, damage, or debris obstructing the pump's mechanism. If the rotation feels uneven or jerky, it could suggest issues with the pump's diaphragm, valves, or internal components, warranting further inspection or replacement.
As you manually crank the pump, observe the fuel flow by attaching a clear hose or tube to the pump's outlet. Place the other end of the hose into a transparent container to monitor the fuel delivery. A healthy fuel pump should produce a consistent and steady flow of fuel as you rotate it. If the flow is intermittent, weak, or non-existent, this could indicate problems such as a faulty diaphragm, clogged valves, or improper seating of internal components. Ensure the pump's inlet is also connected to a fuel source or primed with fuel to rule out issues related to fuel supply during the test.
To further evaluate the pump's performance, maintain a steady cranking speed and note any changes in fuel flow or rotational smoothness. A mechanical fuel pump in good condition should maintain consistent operation throughout the test. If the flow diminishes or the rotation becomes harder over time, it may suggest fatigue or failure of internal parts. Additionally, inspect the pump for leaks at the seals or gaskets during the test, as any leakage could compromise the pump's efficiency and reliability in a vehicle.
In conclusion, the Hand Cranking Method is a practical and insightful technique for manually bench testing a mechanical fuel pump. By carefully rotating the pump with a wrench and monitoring its smoothness and fuel flow, you can identify potential issues before reinstalling the pump in a vehicle. This method not only helps diagnose mechanical problems but also ensures the pump is in optimal condition to deliver fuel effectively. Always exercise caution when handling fuel and ensure proper ventilation during testing to maintain safety.
Can Faulty Fuel Injectors Lead to High Engine Idle?
You may want to see also
Explore related products
Pressure and Flow Check: Use a gauge to measure fuel pressure and observe flow rate for proper functionality
To perform a Pressure and Flow Check on a mechanical fuel pump during a manual bench test, you’ll need a fuel pressure gauge and a container to collect the fuel. Start by connecting the pressure gauge to the pump’s outlet port using appropriate fittings to ensure a secure, leak-free connection. This setup allows you to measure the fuel pressure accurately while the pump is operating. Once the gauge is installed, prime the pump by filling it with fuel to eliminate air from the system, as air can skew pressure readings and affect flow rate observations. With the pump primed, activate it manually, either by spinning the drive shaft with a drill or by hand, depending on the pump design. Observe the pressure gauge immediately to ensure it registers within the manufacturer’s specified range, typically between 3 to 6 psi for most mechanical fuel pumps.
While monitoring the pressure, simultaneously observe the fuel flow rate by directing the pump’s output into a graduated container. A proper flow rate should be steady and consistent, with no pulsations or interruptions. Measure the volume of fuel delivered over a set time period, such as 30 seconds, and compare it to the pump’s rated flow capacity. For example, a typical mechanical fuel pump should deliver around 1 to 1.5 gallons per minute (gpm) at operating pressure. If the flow rate is significantly lower or higher than expected, or if the flow is erratic, this may indicate internal wear, a faulty valve, or a clogged outlet.
During the test, pay close attention to the pressure gauge for stability. Fluctuations in pressure could suggest issues like a weak diaphragm, worn plunger, or improper valve seating. If the pressure fails to reach the specified range, the pump may not be capable of delivering sufficient fuel to the engine under load. Conversely, excessively high pressure could indicate a stuck valve or blockage in the fuel line. Ensure the pump maintains consistent pressure throughout the test, as drops or spikes can signal mechanical failure.
After completing the pressure and flow check, inspect the fuel for contaminants such as debris or metal shavings, which could indicate internal damage to the pump. Additionally, check for fuel leaks at the gauge connection, pump body, or inlet/outlet ports, as leaks can compromise performance and safety. If the pump passes both the pressure and flow tests without issues, it is likely functioning correctly. However, if any abnormalities are detected, disassemble the pump for further inspection or consider replacing it to ensure reliable operation in the vehicle.
Finally, document the test results, including pressure readings, flow rates, and any observed issues, for future reference or diagnostic purposes. This Pressure and Flow Check is a critical step in manually bench testing a mechanical fuel pump, as it directly assesses the pump’s ability to deliver fuel at the required pressure and volume. By carefully measuring these parameters, you can accurately determine the pump’s functionality and identify potential problems before reinstalling it in the vehicle.
Low Fuel Levels: A Hidden Cause of Fuel Pump Failure?
You may want to see also
Explore related products
Post-test Inspection: Reinstall the pump, check for leaks, and verify connections are secure before reassembly
After completing the manual bench test of the mechanical fuel pump, it's crucial to proceed with a thorough post-test inspection to ensure the pump is ready for reinstallation. Begin by carefully reinstalling the fuel pump in its original position, ensuring that all mounting points align correctly. Use the appropriate tools to secure the pump with the correct torque specifications to avoid damage or misalignment. Double-check that all fasteners, such as bolts or clamps, are tightened uniformly to maintain a stable and secure fit. This step is essential to prevent vibrations or movements that could compromise the pump's performance once the vehicle is operational.
Once the pump is securely mounted, the next critical step is to check for any leaks. Before starting the engine, inspect all fuel lines, fittings, and connections for signs of leakage. Pay close attention to areas where the pump connects to the fuel system, as these are common points for leaks. If the pump was removed and reinstalled, ensure that all gaskets or seals are in good condition and properly seated. Apply a small amount of pressure to the fuel system, either by priming the pump or using a low-pressure source, to simulate operating conditions and check for leaks. Address any leaks immediately by tightening connections or replacing damaged components.
Verifying that all connections are secure is another vital part of the post-test inspection. Inspect electrical connections, such as the pump's power wire and ground, ensuring they are clean, corrosion-free, and tightly connected. Loose electrical connections can lead to intermittent pump operation or failure. Additionally, check any vacuum or mechanical linkages associated with the pump to ensure they are intact and functioning correctly. Secure any hoses or lines with clamps or fasteners to prevent disconnection during vehicle operation.
Before finalizing the reassembly, perform a final visual inspection of the entire fuel pump and its surroundings. Look for any abnormalities, such as cracks, damage, or foreign objects that may have been introduced during the testing or reinstallation process. Ensure that all components are properly aligned and that there are no obstructions that could interfere with the pump's operation. This comprehensive inspection helps identify potential issues before they escalate into larger problems once the vehicle is back in service.
Lastly, after confirming that the pump is leak-free and all connections are secure, proceed with reassembling any components that were removed to access the fuel pump. This may include fuel tank covers, engine bay panels, or other protective shields. Ensure that all parts are reinstalled correctly and securely, maintaining the integrity of the vehicle's fuel system. By meticulously following these post-test inspection steps, you can confidently reinstall the mechanical fuel pump, knowing it has been thoroughly checked and is ready to perform reliably.
Signs of a Failing Fuel Injector: How to Diagnose Bad Injectors
You may want to see also
Frequently asked questions
Yes, you can manually bench test a mechanical fuel pump by disconnecting it from the engine, securing it in a vise, and manually operating the rocker arm or lever while observing fuel flow and pressure.
You will need a vise to secure the pump, a container to catch fuel, a pressure gauge (if testing pressure), and a wrench or pliers to operate the pump’s lever or rocker arm.
Connect a fuel line from the pump’s outlet to a container and manually operate the pump. Proper flow is indicated by a steady stream of fuel without air bubbles or interruptions.
Signs include weak or no fuel flow, air bubbles in the fuel, inconsistent pressure (if testing), or unusual noises, indicating internal wear or damage.
