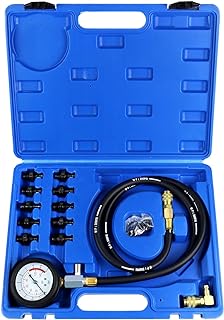

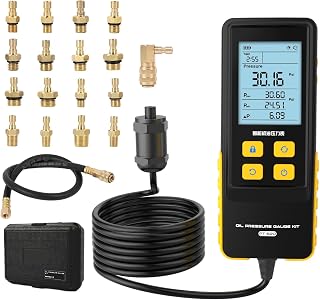

Oil Pressure Check: Fuel Pump Kit Diagnostics

Fuel pump diagnostics can be performed using a scan tool, which is a more modern method compared to analog and hands-on procedures that were previously used. While a pressure gauge and voltmeter were sufficient for diagnosing fuel pump issues in the past, a scan tool is now considered the most important tool for diagnosing fuel supply problems. This tool allows technicians to verify if the modules controlling the fuel pump are receiving the correct data, such as oil pressure, crank position, and security information. Late-model vehicles with returnless fuel systems use engine data to vary the speed of the pump, which means that voltmeter readings will fluctuate rather than show a constant voltage.

To check oil pressure, a multimeter with an amp clamp can be used. By placing the amp clamp over the positive wire going to the fuel pump and recording the amperage reading, one can determine if the pump is functioning correctly. Additionally, voltage readings can be obtained by placing the meter leads on the appropriate terminals, with the presence of battery voltage indicating pump failure.

Fuel pump diagnostic kits can be used to test fuel pressure

A fuel pressure tester is relatively easy to operate. It consists of a gauge attached to a fuel hose and multiple fittings. The fittings can be connected to the fuel system of nearly any vehicle. Once the tester is connected and the fuel system is pressurised, the tester will display the pressure in psi on a large gauge. This gauge should be visible from inside the vehicle, allowing you to verify fuel pressure without leaving the driver's seat.

However, it is important to note that there is no one-size-fits-all solution when it comes to "good fuel pressure". The required fuel pressure depends on the engine. Older throttle-body injected systems may need as little as 10 psi, while multi-port injection can see as high as 60 psi. Even the same vehicle model can vary from year to year. For example, the LT1 V8 in the 1996 Corvette requires 40-42 psi, while the 1997 LS1 V8 should have 58 psi. If you are unsure about the required fuel pressure for your engine, you should consult a repair manual or check the specifications for your vehicle.

Zero fuel pressure will prevent your engine from running. However, low fuel pressure may allow your engine to operate, albeit with issues such as slow start-up, low performance, misfires, and stalling. On the other hand, high fuel pressure can cause excessive fuel consumption, black smoke from unburned gas, an overheating catalytic converter, and rough idle.

If you suspect that you may have an issue with fuel pressure, there are a few preliminary checks you can perform before purchasing or renting a fuel pressure tester. Firstly, ensure that your fuel tank actually has gas in it. Fuel gauges can be faulty, so it is worth adding at least two gallons of fuel to the tank and trying to start the engine again. If the engine starts, you should check the fuel gauge for internal failure and replace it if necessary.

If you have confirmed that there is fuel in the tank, the next step is to verify that the fuel pump is working. To do this, ask an assistant to turn the ignition switch to "On" and listen for a two-second whir, hum, or series of rapid clicks. This sound indicates that the fuel pump is pressurising the fuel line to the engine. If you don't hear this sound, it could mean that the pump is not getting power or that it has failed. In this case, you should check the fuel pump fuse and relay, as well as the wiring to the pump.

Once you have confirmed that the pump has power and is delivering fuel, you can proceed to connect a fuel pressure tester. It is important to exercise caution during this step as fuel vapours are highly flammable. Ensure that you are working in a well-ventilated area and have a fire extinguisher nearby.

With the engine entirely cold, pop the hood and locate the Schrader valve fitting on the fuel rail. Remove the Schrader valve cap and attach the appropriate fuel pressure tester fitting, making sure it is securely connected to prevent leaks. Turn the ignition to "On", not Start, and check the psi reading. If the fuel pressure drops over 10 minutes, it indicates a leak in the fuel system.

After performing these initial tests and checks, you can refer to the specific instructions provided with your fuel pump diagnostic kit to continue diagnosing any issues with your fuel pressure or fuel pump.

They can also be used to test electrical systems

A fuel pump diagnostic kit can be used to test electrical systems. The kit includes a digital multimeter for diagnosing electrical components and can be used to test both AC and DC electric systems in a car or on a workbench. The multimeter can be attached to the electrical system to track down electrical issues.

To test the electrical system, you will need to locate the pump's connector, which may be near the tank, access panel, or under the hood. Then, disconnect the connector carefully without damaging the clips. Set your multimeter to DC volts—modern vehicles typically have a voltage of 12-14 volts. If you are unsure, check your car's specifications or a wiring diagram. Next, identify the positive and ground connections. Finally, test at the connector by touching the meter probes to the pins with the key on and the engine off. Compare the reading to your car's specifications.

Additionally, you can test the fuel pump amperage by setting the multimeter to Amps (DC) and selecting a range that exceeds the pump's expected draw. You may need to bypass the fuse, and you will need to connect the multimeter in series so that it becomes part of the circuit, and the pump draws current through it. With the key on and the engine off, note the reading and compare it to your car's specifications.

Interpreting the results of your electrical tests can provide valuable insights into potential issues with your fuel system. For example, low voltage could indicate bad wiring, a faulty relay, a weak fuse, or a poor ground connection. On the other hand, high amperage may suggest a struggling pump, a possible short circuit, or a clogged fuel filter. If you find no voltage or amperage, a blown fuse, bad relay, or broken wire is likely the issue.

They can be used on most vehicles with fuel rails with a Schrader valve test port

A fuel pressure tester is a simple tool that can be used to check if there is an issue with the fuel pump. It consists of a gauge attached to a fuel hose with multiple fittings that can be connected to the fuel system of nearly any vehicle.

The Powerbuilt Fuel System Diagnostic Kit is one such kit that can be used on all vehicles equipped with fuel rails with a Schrader valve test port. The kit comes with multiple adapters for testing Ford/Lincoln/Mercury or GM/Chrysler vehicles.

The Schrader valve is located on the fuel rail of the engine. On some vehicles, it may be hidden under a fuel rail cover or other plastic engine cover. To use the kit, the Schrader valve cap needs to be removed, and the appropriate fuel pressure tester fitting needs to be attached. Once the ignition is turned on, the tester will display the pressure in psi, allowing the user to verify the fuel pressure.

While the exact location of the Schrader valve may vary depending on the vehicle, it is usually found on the fuel rail itself. For example, on some small Chevrolet cars, it is located on the front of the motor, at the end of the fuel rail, just above the #4 injector. On other Chevrolet cars with a 3500 V6 engine, it is located on the back fuel rail, at the end (passenger side), next to the alternator, and can be accessed by removing the engine beauty cover.

It is important to note that fuel vapors are highly flammable, so it is crucial to perform these steps in a well-ventilated area with a fire extinguisher nearby.

They can be used to diagnose fuel pump and electrical issues

Fuel pump diagnostic kits can be used to diagnose fuel pump and electrical issues. They can help you identify the source of the problem and fix it.

For example, the Powerbuilt Fuel System Diagnostic Kit can be used to test multiple systems. You can attach the pressure test gauge to the fuel system to check for issues with the fuel pump. You can also attach the multimeter to the electrical system to identify electrical issues. This kit includes adapters for testing Ford, Lincoln, Mercury, GM, and Chrysler vehicles.

Fuel pump issues can be caused by a variety of factors, such as a faulty fuel pressure regulator, blocked fuel lines, or electrical faults in the fuel pump wiring. Some common signs of a failing fuel pump include:

• Engine jerking or sputtering at high speeds
• Losing power when accelerating or driving uphill
• Engine surging
• Engine not starting

To diagnose fuel pump issues, you can perform various tests, such as:

• Disconnecting the fuel pressure sensor and observing the car's performance
• Testing fuel pressure using a fuel pressure gauge
• Checking for errors in the engine control unit's error memory
• Inspecting fuel lines for kinks or blockages

It is important to note that diagnosing and repairing fuel pump issues can be complex, and it may be necessary to consult a professional or refer to vehicle-specific repair instructions.

They can be used to test Ford/Lincoln/Mercury or GM/Chrysler vehicles

The Powerbuilt Fuel System Diagnostic Kit can be used to test Ford/Lincoln/Mercury or GM/Chrysler vehicles. The kit comes with multiple adapters for testing these vehicles. It can be used to test fuel pump and electrical issues in these vehicles.

The Lichamp Fuel Pressure Gauge, Fuel Pump Pressure Test Kit is also compatible with Ford and Chrysler vehicles. It is suitable for limited gasoline engines with 1/4", 3/8" and 5/16" fuel line connectors. It provides dual-scale accurate readings from 0-100 psi (0-7 bar).

The Actron Fuel Pressure Tester Kit works on most domestic fuel-injected vehicles with a Schrader valve test port on the fuel rail, including Ford high-pressure central fuel injection and GM, Ford, and Chrysler multi-port fuel injection. It has a large, easy-to-read 0-100 psi scale, solid brass fittings, and a pressure relief valve for safe and clean testing.

AutoZone also offers a fuel pressure test kit that works on most domestic fuel-injected vehicles and many imported cars. If your car doesn't have the right valve, an adapter can help.
