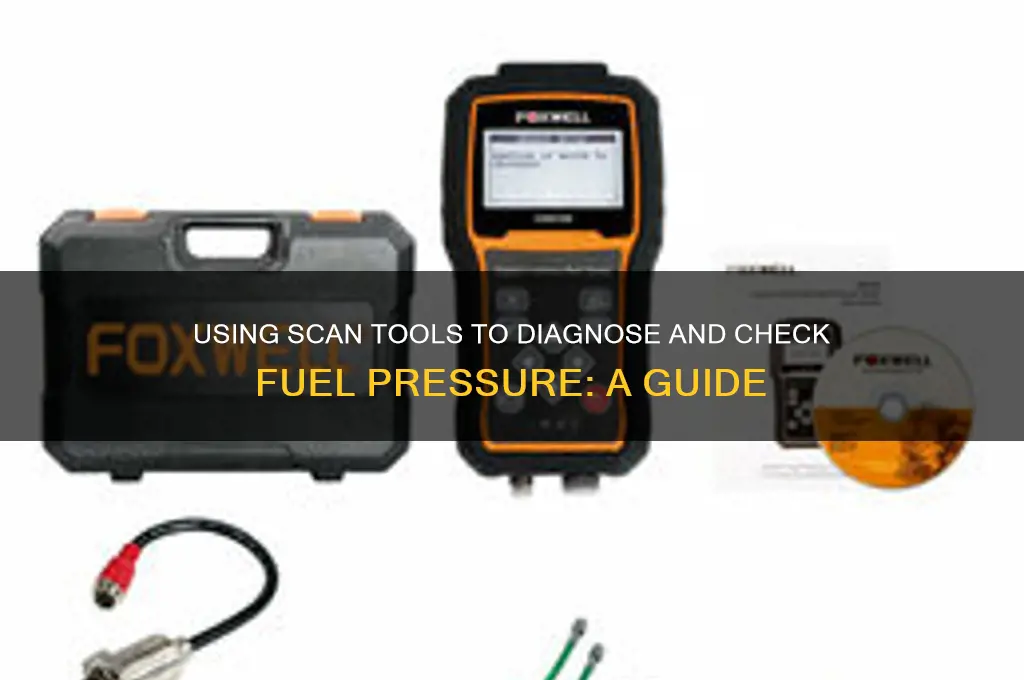

Checking fuel pressure with a scan tool is a common diagnostic technique used by mechanics and automotive enthusiasts to assess the health of a vehicle's fuel system. While scan tools are primarily known for reading and clearing trouble codes, many advanced models are equipped with the capability to monitor live data, including fuel pressure. This feature allows users to observe real-time fuel pressure values, which can help identify issues such as a weak fuel pump, clogged fuel filter, or faulty fuel pressure regulator. However, it’s important to note that not all scan tools support this function, and some vehicles may require additional adapters or sensors to measure fuel pressure accurately. For precise diagnostics, combining scan tool data with a dedicated fuel pressure gauge is often recommended.
| Characteristics | Values |
|---|---|
| Can you check fuel pressure with a scan tool? | It depends on the vehicle and scan tool capabilities. |
| Vehicles with Direct Fuel Injection (GDI) | Often require specialized tools or adapters to measure fuel pressure directly. Some advanced scan tools may display fuel pressure data if the vehicle's ECU provides it. |
| Vehicles with Port Fuel Injection (PFI) | Fuel pressure is less critical and may not be directly measurable with a scan tool. |
| Scan Tool Capabilities | Basic scan tools typically do not measure fuel pressure. Professional-grade scan tools, especially those with bidirectional control, may display fuel pressure data if supported by the vehicle. |
| Alternative Methods | Mechanical fuel pressure gauges are commonly used for accurate fuel pressure measurements. |
| Data Parameter Availability | Fuel pressure data may be available as a PID (Parameter ID) in OBD-II systems, but not all vehicles transmit this information. |
| Accuracy | Scan tool readings, if available, may not be as precise as dedicated fuel pressure gauges. |
| Cost | Professional scan tools capable of displaying fuel pressure data are generally expensive. |
| Common PIDs for Fuel Pressure | Examples include PID 0F (Fuel System Status) or manufacturer-specific PIDs, but these do not always provide direct pressure values. |
| Conclusion | While some scan tools can display fuel pressure, it is not a universal feature. Mechanical gauges remain the standard for accurate measurements. |
Explore related products
What You'll Learn
Understanding Scan Tool Capabilities
Modern scan tools, also known as diagnostic tools or code readers, have evolved significantly, offering a wide range of capabilities beyond simply reading and clearing trouble codes. One common question among vehicle owners and mechanics is whether these tools can check fuel pressure. The answer is yes, but with certain conditions and limitations. Understanding the capabilities of scan tools is essential to effectively diagnose and maintain vehicle systems, including the fuel system.
Scan tools can interface with a vehicle’s onboard diagnostic (OBD) system, which includes sensors and modules that monitor various parameters, such as engine performance, emissions, and fuel delivery. Many advanced scan tools, particularly those designed for professional use, have the ability to access live data streams from the vehicle’s engine control module (ECM). This live data often includes fuel pressure readings, provided the vehicle is equipped with a fuel pressure sensor that communicates with the ECM. For example, in newer vehicles, the ECM may receive fuel pressure data from a sensor located in the fuel rail, allowing the scan tool to display this information in real-time.
However, not all vehicles or scan tools support this feature. Older vehicles or those without a dedicated fuel pressure sensor may not provide this data through the OBD system. Additionally, basic scan tools, often referred to as OBD-II code readers, are typically limited to reading and clearing codes and may not have the capability to access live data streams, including fuel pressure. Therefore, it’s crucial to verify both the vehicle’s compatibility and the scan tool’s specifications before attempting to check fuel pressure in this manner.
For vehicles that do support fuel pressure monitoring via a scan tool, the process is straightforward. The user connects the scan tool to the vehicle’s OBD port, usually located under the dashboard, and navigates to the live data menu. From there, they can select the fuel pressure parameter to view real-time readings. This method is non-invasive and provides quick insights into the fuel system’s performance, helping diagnose issues such as low fuel pressure, which can cause poor engine performance or starting difficulties.
In cases where the scan tool cannot access fuel pressure data, alternative methods, such as using a mechanical fuel pressure gauge, may be necessary. This involves connecting the gauge directly to the fuel rail, which requires more hands-on work and caution due to the risks associated with handling fuel. Thus, while scan tools offer a convenient and efficient way to check fuel pressure in compatible vehicles, understanding their limitations and the vehicle’s diagnostic capabilities is key to effective troubleshooting.
How to Safely Connect an Electric Fuel Pump to a Relay
You may want to see also
Explore related products
Fuel Pressure Sensor Diagnostics
To begin Fuel Pressure Sensor Diagnostics using a scan tool, start by connecting the tool to the vehicle's OBD-II port and accessing the live data stream. Look for the fuel pressure parameter, which is typically displayed in PSI or BAR. Compare the scan tool reading to the vehicle's specified fuel pressure range, found in the service manual. If the reading is within range, the sensor is likely functioning correctly. However, if the reading is out of range or fluctuating erratically, further testing is necessary. Keep in mind that some scan tools may not display fuel pressure directly but instead show related parameters like fuel pressure control solenoid duty cycle or fuel pump command. Understanding these related parameters can provide additional insights into the fuel system's operation.
One common diagnostic technique is to perform a fuel pressure test while monitoring the scan tool data. Use a mechanical fuel pressure gauge to measure the actual fuel pressure at the rail, and compare it to the scan tool reading. If the mechanical gauge shows correct pressure but the scan tool reading is off, the fuel pressure sensor is likely faulty. Conversely, if both readings are incorrect, the issue may lie elsewhere, such as a clogged fuel filter or weak fuel pump. This comparative approach helps pinpoint whether the problem is with the sensor, the fuel system, or the scan tool's interpretation of the data. Always ensure the fuel pressure gauge is compatible with the vehicle's fuel system to avoid damage.
Another important step in Fuel Pressure Sensor Diagnostics is checking for related trouble codes. A scan tool can retrieve Diagnostic Trouble Codes (DTCs) that indicate issues with the fuel pressure sensor or related components. Common codes include P0087 (Fuel Rail/System Pressure - Too Low) or P0190 (Fuel Rail Pressure Sensor Circuit). These codes provide valuable clues about the nature of the problem. For instance, a circuit-related code may suggest wiring issues or a faulty sensor, while a pressure-related code could indicate a mechanical problem in the fuel system. Clearing the codes and performing a road test while monitoring live data can help confirm if the issue has been resolved or if further diagnostics are needed.
In addition to using a scan tool, visual inspection and electrical testing are crucial components of Fuel Pressure Sensor Diagnostics. Inspect the sensor's wiring harness for damage, corrosion, or loose connections, as these issues can cause inaccurate readings. Use a multimeter to test the sensor's resistance and voltage output, comparing the results to the manufacturer's specifications. If the sensor fails these tests, replacement is typically necessary. Remember that some fuel pressure sensors are integrated into the fuel pump assembly or fuel rail, requiring additional disassembly for replacement. Always follow safety precautions when working with fuel systems, such as relieving fuel pressure and disconnecting the battery.
In conclusion, while a scan tool is a valuable tool for Fuel Pressure Sensor Diagnostics, it should be used in conjunction with other methods for accurate results. By combining scan tool data with mechanical testing, code retrieval, and visual inspection, technicians can effectively diagnose and resolve fuel pressure sensor issues. Understanding the limitations of scan tool readings and the importance of comparative testing ensures a comprehensive diagnostic approach. Proper diagnosis not only restores engine performance but also prevents unnecessary part replacements, saving time and resources in the repair process.
Lower Grade Fuel and Engine Knock: Causes, Risks, and Prevention
You may want to see also
Explore related products
Interpreting Live Data Readings
When interpreting live data readings to check fuel pressure with a scan tool, it’s essential to understand that not all scan tools directly measure fuel pressure. However, many advanced scan tools can display fuel system parameters that indirectly indicate fuel pressure issues. Start by connecting the scan tool to the vehicle’s OBD-II port and accessing the live data stream. Look for parameters such as "Fuel System Status," "Fuel Pump Control," or "Fuel Pressure Sensor Data," depending on the vehicle’s make and model. These readings provide insights into how the fuel system is operating in real time. If the scan tool does not display direct fuel pressure values, focus on related data like fuel rail pressure (FRP) or fuel pump duty cycle, which can help diagnose pressure-related problems.
Next, compare the live data readings to the vehicle’s specifications. Most vehicles have a defined range for fuel pressure, typically found in the service manual or manufacturer’s documentation. For example, if the scan tool shows a fuel rail pressure reading significantly below or above the specified range, it may indicate a fuel pressure regulator issue, a clogged fuel filter, or a failing fuel pump. Pay attention to how the readings change under different conditions, such as idle, acceleration, or deceleration. Fluctuations outside the expected range can signal a dynamic problem, like a leaking injector or a faulty pressure sensor.
Another critical aspect of interpreting live data is analyzing the fuel pump duty cycle. This parameter represents the percentage of time the fuel pump is active to maintain the desired pressure. A higher-than-normal duty cycle may suggest the fuel pump is working harder to compensate for low pressure, possibly due to a clogged fuel filter or weak pump. Conversely, a consistently low duty cycle could indicate a fuel pressure regulator issue or a leak in the fuel system. Correlate the duty cycle with other parameters like engine RPM and load to identify patterns that point to specific faults.
Additionally, monitor sensor data related to the fuel system, such as the fuel temperature sensor or the fuel tank pressure sensor. Abnormal readings from these sensors can indirectly affect fuel pressure. For instance, a malfunctioning fuel temperature sensor might cause the engine control module (ECM) to miscalculate the required fuel pressure, leading to performance issues. Cross-referencing these sensor readings with fuel system parameters can help pinpoint the root cause of pressure-related problems.
Finally, use the scan tool’s freeze frame data and trouble codes (DTCs) to complement live data interpretation. If the vehicle has logged a fuel pressure-related DTC, such as P0087 (Fuel Rail/System Pressure - Too Low), it provides a starting point for diagnosis. Freeze frame data captures the conditions present when the code was set, offering additional context for live data analysis. By combining live data readings with diagnostic trouble codes and freeze frame information, you can accurately diagnose fuel pressure issues and determine the necessary repairs. Always verify findings with physical tests, such as using a mechanical fuel pressure gauge, to ensure accuracy.
Diesel in Heating Oil Tank: Safe, Efficient, or Risky Choice?
You may want to see also
Explore related products
Common Fuel Pressure Issues
While scan tools are invaluable for diagnosing a wide range of vehicle issues, checking fuel pressure directly with a scan tool is generally not possible. Most scan tools read data from the vehicle's Engine Control Module (ECM), which monitors various sensors but typically does not include a direct fuel pressure sensor. However, scan tools can provide indirect clues about fuel pressure issues by analyzing related parameters such as fuel trim, injector pulse width, and fuel rail pressure sensor data (if equipped). To accurately diagnose fuel pressure problems, a dedicated fuel pressure gauge is often required. That said, understanding common fuel pressure issues is crucial for effective troubleshooting.
Low fuel pressure is one of the most frequent issues encountered, often caused by a failing fuel pump, clogged fuel filter, or a malfunctioning fuel pressure regulator. Symptoms include rough idling, reduced engine power, and difficulty starting the vehicle. When using a scan tool, you might notice high fuel trim values as the ECM attempts to compensate for insufficient fuel delivery. If the scan tool indicates abnormal injector pulse width or erratic fuel rail pressure sensor readings, these could also point to low fuel pressure. A manual fuel pressure test with a gauge is essential to confirm the diagnosis.
Conversely, high fuel pressure can result from a faulty fuel pressure regulator, a restricted return line, or a malfunctioning fuel pump. This issue can lead to excessive fuel consumption, rough idling, and even engine damage over time. While a scan tool may not directly measure fuel pressure, it can reveal symptoms like a rich fuel mixture indicated by low fuel trim values or misfire codes. If the vehicle is equipped with a fuel rail pressure sensor, the scan tool might show readings above the specified range, suggesting high fuel pressure. Again, a physical pressure test is necessary for confirmation.
Fluctuating fuel pressure is another common problem, often caused by a weak fuel pump, a failing pressure regulator, or issues with the fuel pump relay. This can manifest as inconsistent engine performance, stalling, or hesitation during acceleration. A scan tool may display erratic fuel trim values or misfire codes, but these are indirect indicators. To pinpoint the issue, a fuel pressure gauge should be used to monitor pressure under various operating conditions, such as idle, acceleration, and deceleration.
Lastly, no fuel pressure is a critical issue that prevents the engine from starting. This is typically caused by a completely failed fuel pump, a blown fuse, or an open circuit in the fuel pump wiring. While a scan tool may show no communication with the fuel pump or related sensors, it cannot confirm the absence of fuel pressure. A manual test with a gauge is required to verify if the fuel pump is delivering pressure to the fuel rail. In such cases, checking the fuel pump relay, fuse, and wiring should be the next steps in the diagnostic process.
In summary, while scan tools are powerful diagnostic instruments, they are not a substitute for direct fuel pressure testing. Understanding common fuel pressure issues and their symptoms allows technicians to use scan tool data more effectively, guiding them toward the appropriate tests and repairs. Always pair scan tool analysis with physical measurements for accurate diagnosis.
Can Bad Fuel Trigger a PO112 Code? Understanding the Link
You may want to see also
Explore related products
Scan Tool vs. Manual Testing
When it comes to checking fuel pressure, two primary methods are commonly used: employing a scan tool or performing manual testing. Scan tools have become increasingly popular due to their convenience and ability to provide real-time data. These devices connect to a vehicle's OBD-II (On-Board Diagnostics) port and can read various sensor outputs, including fuel pressure, as long as the vehicle's ECU (Engine Control Unit) is equipped to monitor it. Many modern vehicles have fuel pressure sensors integrated into their systems, allowing scan tools to display this data directly. This method is particularly useful for quick diagnostics, as it eliminates the need for additional equipment and can provide a snapshot of fuel pressure under different operating conditions, such as idle, acceleration, or cruising.
On the other hand, manual testing involves using a mechanical fuel pressure gauge to measure pressure directly from the fuel rail. This method is more hands-on and requires disconnecting the fuel line or attaching the gauge to a test port. Manual testing is often preferred by technicians who want precise, independent measurements, especially in cases where the vehicle's fuel pressure sensor may be faulty or unreliable. It also allows for static and dynamic pressure checks, ensuring the fuel system operates correctly under all conditions. However, manual testing is more time-consuming and requires specific tools and knowledge of the vehicle's fuel system layout.
One key advantage of using a scan tool is its ability to diagnose related issues simultaneously. For example, if fuel pressure is abnormal, the scan tool can also check for trouble codes, sensor malfunctions, or other system errors that might be contributing to the problem. This holistic approach can save time and provide a clearer picture of the vehicle's overall health. Additionally, scan tools are non-invasive and do not require altering the fuel system, reducing the risk of accidental damage or leaks.
In contrast, manual testing offers the benefit of direct, independent verification of fuel pressure. It is particularly valuable when the vehicle's onboard sensors are suspected of malfunctioning or when the scan tool does not provide fuel pressure data. Manual testing also allows technicians to perform specific tests, such as checking for pressure drops under load or verifying the fuel pump's performance. However, this method requires careful handling of fuel lines and adherence to safety protocols to avoid spills or injuries.
Ultimately, the choice between a scan tool and manual testing depends on the situation and the technician's preferences. For quick diagnostics and vehicles with reliable fuel pressure sensors, a scan tool is often the more efficient option. However, for in-depth troubleshooting or when sensor reliability is in question, manual testing remains the gold standard. Combining both methods can provide comprehensive insights, ensuring accurate diagnosis and effective resolution of fuel system issues.
Can a Fuel Pump Fail While Driving? Causes and Symptoms
You may want to see also
Frequently asked questions
Yes, many modern scan tools can read fuel pressure data if the vehicle's ECU is equipped with a fuel pressure sensor and the information is transmitted via the OBD-II system.
No, not all scan tools can check fuel pressure. Basic OBD-II readers may lack this feature, while advanced diagnostic tools often include it.
Yes, if the scan tool and vehicle system support it, the fuel pressure reading is typically accurate and reliable, as it comes directly from the vehicle's sensors.
It depends on the vehicle. Older vehicles without fuel pressure sensors or OBD-II compatibility may not allow fuel pressure checks via a scan tool.
If your scan tool doesn’t show fuel pressure, verify that the vehicle has a fuel pressure sensor and that the tool supports this parameter. If not, use a mechanical fuel pressure gauge for testing.
