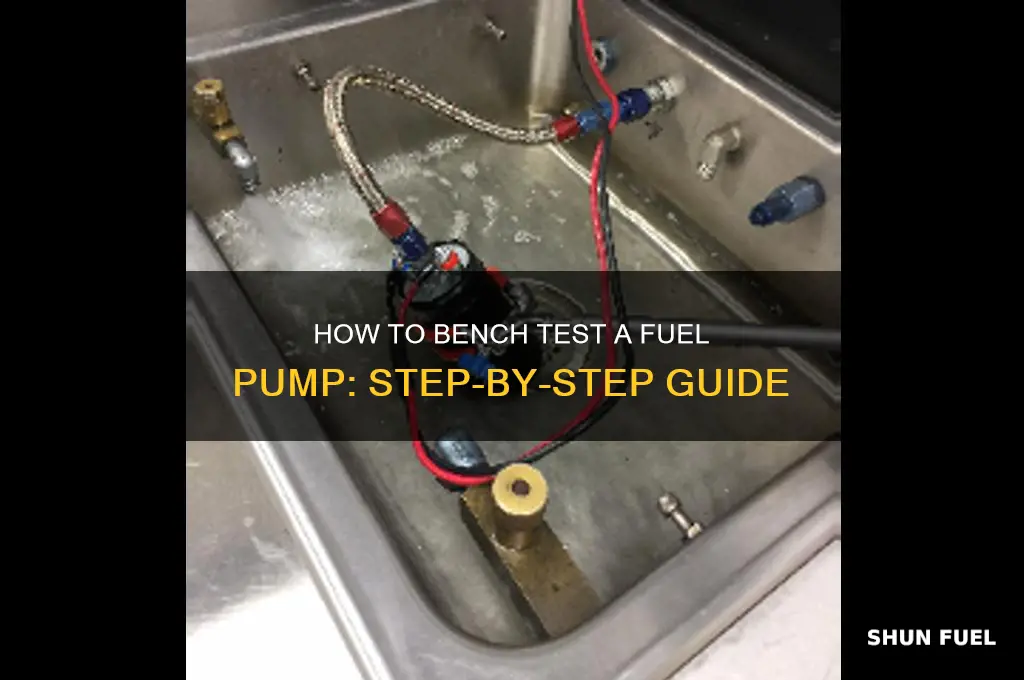

Bench testing a fuel pump is a critical diagnostic procedure used to assess its functionality and performance outside of the vehicle. By removing the pump from the fuel tank and connecting it to a specialized testing setup, technicians can evaluate its pressure, flow rate, and overall efficiency under controlled conditions. This method helps identify issues such as weak performance, leaks, or electrical faults without the complexities of the vehicle’s fuel system interfering. Bench testing is particularly useful for confirming whether the fuel pump itself is the source of a problem or if the issue lies elsewhere, ensuring accurate diagnosis and cost-effective repairs.
| Characteristics | Values |
|---|---|
| Test Feasibility | Yes, bench testing a fuel pump is possible. |
| Purpose | To diagnose fuel pump issues without installing it in the vehicle. |
| Required Tools | Multimeter, power source (battery or bench power supply), fuel pressure gauge, fuel line, container for fuel. |
| Key Measurements | Voltage, current draw, fuel pressure, flow rate. |
| Voltage Range | Typically 12V for most vehicles, but confirm with vehicle specifications. |
| Current Draw | Varies by pump; consult manufacturer specs (e.g., 5-10 amps for common pumps). |
| Fuel Pressure | Depends on pump type and vehicle; common range is 30-60 PSI for EFI systems. |
| Flow Rate | Varies; check manufacturer specs (e.g., 30-100 liters per hour). |
| Test Procedure | Connect power, measure voltage and current, check pressure and flow rate under load. |
| Safety Precautions | Work in a well-ventilated area, avoid sparks, use proper fuel handling practices. |
| Common Issues Detected | Weak pressure, low flow rate, excessive current draw, mechanical failure. |
| Limitations | Does not test pump performance under real-world engine conditions. |
| Alternative Tests | In-tank testing, fuel pressure regulator testing, fuel filter inspection. |
Explore related products
What You'll Learn
Fuel Pump Bench Testing Tools
When bench testing a fuel pump, having the right tools is essential to ensure accurate and safe results. Fuel pump bench testing tools are specifically designed to simulate the operating conditions of a fuel pump outside of the vehicle, allowing you to diagnose issues such as low pressure, insufficient flow, or complete failure. The primary tool required is a fuel pump test bench, which is a standalone unit that connects to the fuel pump and provides a controlled environment for testing. These benches typically include a fuel reservoir, pressure gauge, flow meter, and power supply to mimic the electrical system of a vehicle. Some advanced models also feature digital displays for precise readings and adjustable settings to test the pump under various load conditions.
In addition to the test bench, a pressure gauge is a critical component for measuring the fuel pump's output pressure. It should be compatible with the fuel pump's specifications and capable of reading the expected pressure range, typically between 30 and 100 PSI for most automotive fuel systems. A flow meter is another indispensable tool, as it measures the volume of fuel delivered by the pump over time, ensuring it meets the manufacturer's requirements. Both analog and digital flow meters are available, with digital versions offering greater accuracy and ease of use.
A power supply is necessary to operate the fuel pump during testing. This can be a simple 12-volt battery or a dedicated power supply unit with adjustable voltage and current settings. For safety, a fuel-resistant tubing and clamps are used to connect the pump to the test bench, preventing leaks and ensuring a secure setup. Additionally, a fuel filter may be included in the testing circuit to protect the pump and tools from contaminants.
For more comprehensive testing, a multimeter is useful for checking the electrical integrity of the fuel pump, including voltage, current, and resistance. This helps identify issues such as short circuits or open circuits within the pump's motor. A tachometer can also be employed to monitor the pump's speed (RPM), ensuring it operates within the correct range under load. These tools collectively provide a thorough assessment of the fuel pump's performance.
Lastly, safety equipment should not be overlooked. Safety goggles and gloves are essential to protect against fuel spills and splashes. A fire extinguisher should be nearby when working with flammable materials. Proper ventilation is also critical to avoid inhaling fuel vapors. By using these fuel pump bench testing tools correctly, you can accurately diagnose fuel pump issues and determine whether it needs repair or replacement.
Exploring Water as Fuel: Feasibility, Challenges, and Future Potential
You may want to see also
Explore related products
Steps for Bench Testing a Fuel Pump
Bench testing a fuel pump is a practical way to diagnose its functionality outside of the vehicle. This process allows you to determine if the pump is working correctly before reinstalling it or replacing it. Below are the detailed steps to bench test a fuel pump effectively.
Step 1: Prepare the Necessary Tools and Materials
Before starting, gather all the required tools and materials. You will need a 12-volt battery or a power supply capable of delivering 12 volts, a fuel line or hose, a container for fuel, a multimeter, and safety equipment such as gloves and safety goggles. Ensure the workspace is well-ventilated and free from open flames or sparks, as fuel is highly flammable. Additionally, prepare a clean workbench or surface to place the fuel pump during testing.
Step 2: Disconnect and Prepare the Fuel Pump
Carefully remove the fuel pump from the vehicle, following the manufacturer’s instructions. Disconnect the electrical connector and fuel lines, ensuring no debris enters the pump. If the pump is part of a module, remove it from the tank or assembly. Clean the pump and its connections to avoid contamination during testing. Attach a fuel line to the pump’s outlet and place the other end into a container to catch the fuel during operation.
Step 3: Connect the Power Supply
Using the 12-volt power supply, connect the positive and negative terminals to the fuel pump’s electrical connector. Ensure the connections are secure and correct to avoid damage. If you’re using a battery, connect the positive terminal to the pump’s power wire and the negative terminal to the ground wire. Double-check the polarity to prevent reversing the connections, which could harm the pump.
Step 4: Test the Fuel Pump’s Operation
With the power supply connected, turn it on to activate the fuel pump. Listen for the pump’s operation—it should produce a humming or whirring sound, indicating it is running. Observe the fuel line for flow; fuel should be pumped out into the container. If there is no sound or fuel flow, use a multimeter to check for voltage at the pump’s connector. If voltage is present but the pump doesn’t operate, it may be faulty and require replacement.
Step 5: Verify Pressure and Flow (Optional)
For a more comprehensive test, use a fuel pressure gauge to measure the pump’s output pressure. Connect the gauge to the fuel line and check if the pressure matches the manufacturer’s specifications. Additionally, ensure the flow rate is consistent and adequate. If the pressure or flow is insufficient, the pump may be worn out or clogged, necessitating replacement.
Step 6: Clean Up and Reassemble
Once testing is complete, disconnect the power supply and carefully remove the fuel line. Clean any spilled fuel and ensure the pump and workspace are free from residue. If the pump passes the test, you can reinstall it in the vehicle. If it fails, replace it with a new or properly functioning unit. Always dispose of fuel and materials safely, following local regulations.
By following these steps, you can accurately bench test a fuel pump to determine its condition and ensure it operates reliably before reinstallation.
Embalming Fluid as Race Fuel: Myth, Reality, or Dangerous Idea?
You may want to see also
Explore related products
Common Fuel Pump Bench Test Issues
When conducting a fuel pump bench test, several common issues can arise that may affect the accuracy of your results or indicate underlying problems with the pump. One frequent issue is inadequate fuel pressure, which can occur even if the pump appears to be functioning. This could be due to a faulty pressure regulator, a clogged fuel filter, or internal wear within the pump itself. To diagnose this, ensure the test setup includes a pressure gauge and compare the readings to the manufacturer’s specifications. If the pressure is consistently below the recommended range, further inspection of the pump’s components is necessary.
Another common problem is irregular or noisy operation, which may suggest mechanical wear or damage inside the fuel pump. During a bench test, listen carefully for unusual sounds such as grinding, whining, or rattling. These noises often indicate issues like worn bearings, a damaged impeller, or debris trapped within the pump. If such sounds are detected, disassemble the pump (if possible) to inspect for physical damage or contamination. Replacing the pump may be the best course of action if significant wear is found.
Electrical issues are also a frequent culprit during bench testing. A fuel pump relies on a steady electrical supply to operate correctly, and problems like a weak or intermittent power source can lead to inconsistent performance. Ensure the test setup includes a reliable power supply and use a multimeter to verify voltage and current levels. If the pump fails to start or operates erratically, check the wiring harness, connectors, and fuses for damage or corrosion. Faulty ground connections are another common electrical issue that can cause poor pump performance.
Fuel flow inconsistencies are another issue to watch for during a bench test. Even if the pump produces adequate pressure, insufficient fuel flow can indicate a partially clogged inlet or outlet, a failing check valve, or a malfunctioning internal diaphragm. Measure the flow rate using a graduated container and stopwatch, comparing it to the expected flow specifications. If the flow is significantly reduced, inspect the pump’s internal passages and valves for obstructions or damage.
Lastly, overheating during a bench test can signal a problem with the pump’s efficiency or cooling mechanism. Fuel pumps are designed to operate within specific temperature ranges, and excessive heat can cause premature failure. Monitor the pump’s temperature using a thermometer or infrared sensor, and ensure the test duration does not exceed the manufacturer’s recommendations. If overheating occurs, check for restricted fuel flow, improper voltage, or internal friction that may be causing the issue. Addressing these common bench test issues will help accurately diagnose fuel pump problems and ensure reliable performance in a vehicle.
Can a Fuel Pump Boost Horsepower? Unlocking Engine Performance Potential
You may want to see also
Explore related products
Interpreting Fuel Pump Bench Test Results
Fuel pressure is one of the most important metrics to assess during a bench test. A healthy fuel pump should maintain consistent pressure within the specified range. If the pressure is too low, it may indicate a worn-out pump, clogged internal components, or a failing check valve. Conversely, excessively high pressure could suggest a restricted fuel line or a malfunctioning pressure regulator. Always ensure the test setup accurately simulates the vehicle’s operating conditions, including voltage supply and fuel system resistance, to obtain reliable pressure readings.
Flow rate is another critical parameter, as it determines how much fuel the pump can deliver per unit of time. A reduced flow rate often points to internal blockages, worn impellers, or a failing motor. To interpret flow rate results, measure the volume of fuel delivered over a specific time period and compare it to the manufacturer’s ratings. Inconsistent or fluctuating flow rates may indicate electrical issues or mechanical wear. Ensure the fuel pump is tested at various speeds (simulating different engine RPMs) to assess its performance across the operating range.
Current draw is a key electrical parameter that provides insight into the fuel pump’s efficiency and condition. A higher-than-specified current draw suggests increased resistance, often due to internal wear or a failing motor. Conversely, a lower current draw might indicate a short circuit or improper electrical connections. Monitor the current draw at different voltage levels and compare it to the manufacturer’s data. Abnormal readings can help pinpoint whether the issue lies within the pump itself or the vehicle’s electrical system.
Finally, pay attention to any unusual noises or vibrations during the bench test, as these can indicate mechanical issues. A noisy pump may have loose internal components or damaged bearings, while excessive vibration could signal an imbalance or misalignment. Combine these observations with the quantitative data from pressure, flow rate, and current draw tests to form a comprehensive diagnosis. Proper interpretation of bench test results not only confirms the fuel pump’s condition but also guides the next steps in repair or replacement, ensuring the vehicle’s fuel system operates reliably.
Can Commercial Planes Dump Fuel? Understanding the Emergency Procedure
You may want to see also
Explore related products
Safety Tips for Fuel Pump Bench Testing
When bench testing a fuel pump, safety should be your top priority due to the flammable nature of fuel and the electrical components involved. Always work in a well-ventilated area to minimize the risk of inhaling fuel vapors, which can be harmful and increase the risk of fire. Ensure there are no open flames, sparks, or potential ignition sources nearby, including smoking materials or electrical tools that could generate heat. If possible, conduct the test outdoors or in a garage with the door open to maintain proper airflow.
Before starting the test, disconnect the battery to prevent accidental electrical shorts or sparks. Fuel pumps operate on electrical systems, and a live current could lead to fires or damage to the pump. Additionally, wear safety gear such as nitrile gloves and safety goggles to protect your skin and eyes from fuel spills or splashes. Avoid wearing synthetic clothing, as it can generate static electricity, and opt for natural fibers like cotton instead.
Use a dedicated fuel pump test bench or a secure setup to hold the fuel pump during testing. Ensure the pump is mounted firmly to prevent it from tipping over or spilling fuel. If you’re using a container to hold fuel for the test, choose one made of non-reactive material like metal or high-density polyethylene, and ensure it is clean and free of contaminants. Never use containers that previously held chemicals or substances that could react with fuel.
During the test, monitor the fuel pump closely for any signs of leaks, overheating, or unusual noises. If you detect a problem, immediately shut off the power and address the issue before continuing. Avoid overfilling the fuel container, as excess fuel can spill and create a hazardous situation. Keep a fire extinguisher rated for fuel fires (Class B) nearby and ensure you know how to use it in case of an emergency.
Finally, dispose of any used fuel or testing materials properly in accordance with local regulations. Do not pour fuel down drains or into the environment, as it can cause pollution and harm wildlife. Store any leftover fuel in approved containers in a cool, dry place away from living areas. By following these safety tips, you can bench test a fuel pump effectively while minimizing risks to yourself and your surroundings.
Hydrogen Fuel Cells: Efficient Energy Storage Solution for a Sustainable Future
You may want to see also
Frequently asked questions
No, bench testing a fuel pump requires removing it from the vehicle to test it in a controlled environment outside of the fuel tank.
You’ll need a power source (battery or jumper pack), a fuel pressure gauge, a container for fuel, and appropriate hoses or fittings to connect the pump.
A fuel pump passes if it produces the correct pressure and flow rate as specified by the manufacturer, without unusual noises or leaks.
No, electric fuel pumps require an external power source for testing, while mechanical fuel pumps are driven by the engine or camshaft and tested differently.
Yes, bench testing is a reliable way to diagnose whether the fuel pump itself is faulty, as in-vehicle symptoms can be caused by other issues like clogged filters or wiring problems.
