Fuel injectors are an essential component of a vehicle's engine, delivering fuel to the combustion chamber with precise timing and dosage. Over time, fuel injectors can become clogged or damaged, requiring repair or replacement. While it is generally recommended to consult a professional mechanic for such repairs, some car enthusiasts and experienced individuals choose to attempt the task themselves. One common question that arises is whether it is possible to splice a fuel injector, and if so, what is the best method to ensure a safe and effective repair? Various online forums are filled with discussions and debates on this very topic, with different schools of thought emerging. Some advocate for soldering, while others suggest using butt connectors or crimping methods. This paragraph introduces the topic of splicing fuel injectors and sets the context for further exploration, highlighting the importance of fuel injectors, the challenges of repairing or replacing them, and the diverse range of opinions on the best approach.
Fuel Injector Splice Characteristics and Recommendations
| Characteristics | Values |
|---|---|
| Connector type | Insulated butt splice connector |
| Connector protection | Heat shrink |
| Soldering | Recommended for stable connection |
| Soldering skills | Time-intensive to develop |
| Solder type | Liquid electrical tape |
| Alternative to soldering | Crimping |
| Crimping tool | Ratchet-type crimper |
| Crimping issues | Poor crimping can cause misfiring, injector duty, noise, and poor performance |
| Crimping recommendation | Use non-insulated butt connectors with shrink tube |
| Wire protection | Honda's hot pepper-infused harness tape |
| Wire issues | Rodents eating wires |
| Wire replacement | Run new wires instead of splicing/soldering |
| Fuel line repair | Compression fitting, fuel injection-rated rubber hose, and solid strap-style clamps |
Explore related products
What You'll Learn
Splicing injector wires
Western Union Splice and Solder:
This method involves using a Western Union splice, which is a type of splice that creates a secure connection between the wires. After splicing the wires, you would then solder the connection. It is important to have good soldering skills to ensure a strong and reliable joint. Additionally, make sure to use heat-shrink tubing with hot glue lining to insulate and protect the spliced area.
Crimping with Non-Insulated Butt Connectors:
If you don't have soldering skills or prefer not to solder, crimping with non-insulated butt connectors is an effective alternative. This method is affordable and relatively easy, even for those without extensive experience. However, it's important to use good-quality connectors and shrink tubing to protect the connection.
Crimping and Soldering:
Some people prefer to use a combination of crimping and soldering for added strength and reliability. First, the wires are crimped together, and then the connection is soldered for a more permanent joint. Heat-shrink tubing is then applied to insulate and protect the spliced area.
Using a Connector Housing and New Pins:
Another approach is to avoid splicing altogether. You can purchase a connector housing and new pins, and then run the wires from the car's harness into the new housing, crimping the pins in place. This method avoids the need for mid-wire splices and ensures a clean connection.
Best Practices and Considerations:
Regardless of the method chosen, there are a few important considerations to keep in mind. Firstly, make sure to use high-quality materials, including connectors, solder, and heat-shrink tubing. Secondly, pay attention to polarity. While injector wires are typically not polar, if they are marked with + and -, be sure to connect them correctly. Additionally, stagger the joints to avoid creating a bulky splice area. Finally, always ensure that your connections are secure and well-insulated to prevent any issues with performance or electrical faults.
Cleaning BMW Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Soldering vs crimping
When it comes to splicing a fuel injector, there are two main methods to join wires: soldering and crimping. Both methods have their advantages and dedicated supporters, but it is essential to understand the differences and considerations for each to make an informed decision.
Soldering
Soldering involves melting a metal alloy, called solder, to join two pieces of metal together. In the context of fuel injector splicing, soldering can create a strong and stable connection between wires. It is important to note that good soldering skills take time to develop, and improper soldering can lead to issues. Soldering is generally discouraged for automotive use due to concerns about stranded wire becoming stiff and brittle under vibration and high temperatures. However, some people have successfully used soldering for fuel injector splicing and advocated for its longevity if done correctly.
Crimping
Crimping is a mechanical method of joining wires by deforming one or both to create a secure connection. It requires the use of a crimping tool and quality crimps to ensure a reliable joint. Crimping is considered technically superior to soldering when executed with the right equipment. However, achieving a factory-quality crimp can be challenging and may require expensive tools. Additionally, there are mixed opinions on the reliability of homemade crimps.
When deciding between soldering and crimping for fuel injector splicing, it is essential to consider the specific application, available tools, and skill level. Soldering may be preferred for its stability and longevity if done correctly, but it requires soldering skills and understanding the potential issues with vibration and temperature. On the other hand, crimping offers a stronger joint when performed with the proper tools and techniques, but subpar crimps can lead to performance issues.
Ultimately, both methods can be effective for fuel injector splicing, and personal preference, skill level, and tool availability may influence the chosen technique. Some people opt for soldering and heat shrinking, while others prefer crimping with butt connectors and heat shrinking. It is recommended to prioritize a solid and sealed connection to ensure the longevity and reliability of the fuel injector splicing.
Bleeding Air from Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Butt connectors
When using butt connectors for fuel injector splicing, it is important to ensure that the connector is the appropriate size and gauge for the wires being joined. The wires should be stripped, crimped together, and then sealed with heat shrink tubing to protect the connection from moisture and corrosion.
Some people prefer to use solder joints when splicing fuel injectors, as they can provide a more secure and stable connection. However, this requires good soldering skills and can be more time-consuming. Additionally, solder joints can be susceptible to vibration in the engine bay, which can cause the joint to fracture.
To avoid the potential issues associated with solder joints, some people recommend using crimp connections instead. Crimp connections are preferred by some car manufacturers, such as Toyota, due to their resistance to heat and vibration. When using crimp connections, it is important to use a quality crimping tool and connectors to ensure a solid connection.
STP Fuel Injector Cleaner: An Effective Solution?
You may want to see also
Explore related products
Heat shrink tubing
When splicing a fuel injector, it is essential to ensure that the connections are secure and stable to prevent any leaks or failures. Some people prefer to use crimp connections for this reason, as they are less likely to be affected by heat and vibration than soldered connections. However, others argue that a properly soldered and heat-shrunk connection is stable enough for applications like motorsport wiring and even NASA projects.
If you are considering using heat shrink tubing for fuel injector splicing, it is important to choose a suitable material that can withstand the operating temperatures, fuels, and chemicals it will be exposed to. For example, modified polyvinylidene fluoride (PVL200) has excellent resistance to fuels, hydraulics fluids, and chemicals, while TFE250 is a fluoroplastic material with total chemical and solvent resistance.
In addition to choosing the right material, it is also important to follow proper installation procedures. This may include soldering the wires together at different places to prevent physical contact, using a heat source like a soldering iron or hair dryer to shrink the tubing, and ensuring that the connections are secure and not loose.
Fuel Injector Facts: CC Volume in 03 350Z Models
You may want to see also
Explore related products
Pigtails

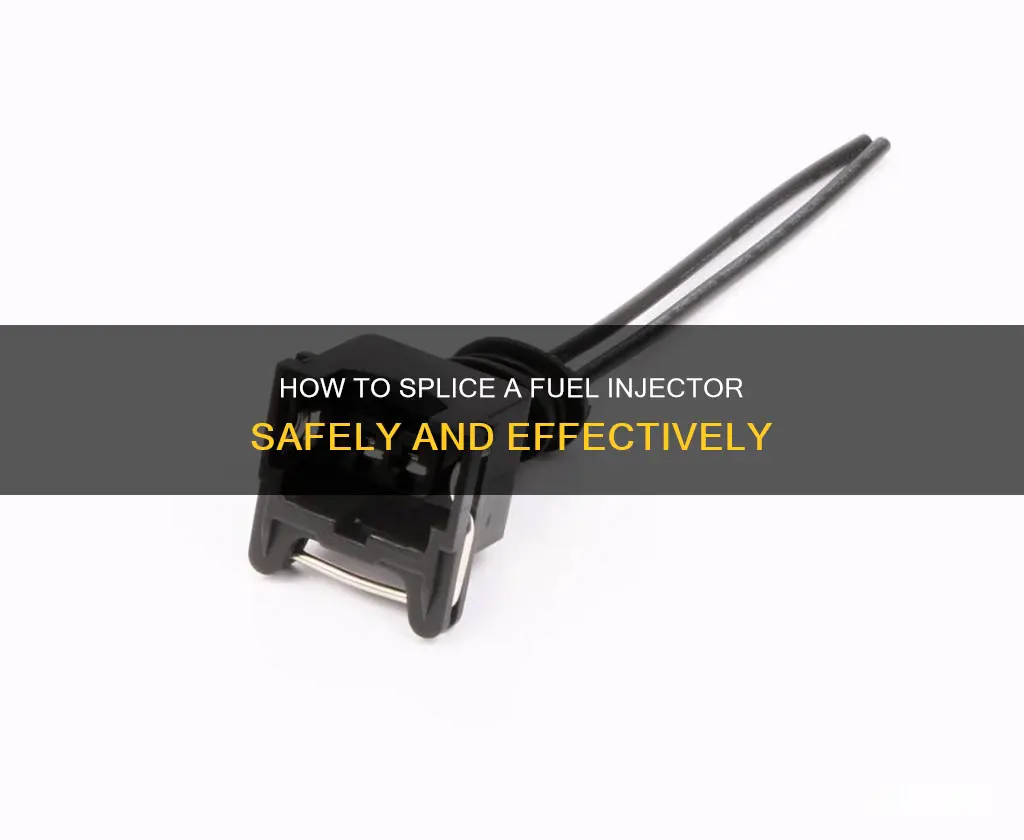

There are different types of pigtails available for fuel injectors, such as the Bosch EV6 pigtail, which comes with a 6-inch wire pigtail. This type of pigtail is compatible with various applications, including GM boost control solenoids and some distributorless ignitions, vehicle speed sensors, and chassis wiring locations.
Another type of pigtail is the Fuel Injector Connector EV1 Type Plug Clip Pigtail, which is used to attach to a fuel injector tester lead. This allows for easy pulsing of the injectors and is colour-coded for convenience.
When installing pigtails, it is important to consider the stability of the connection. Some people recommend using an insulated butt splice connector with built-in heat shrink to protect against the dangers of vibration on soldered connections. However, others argue that a properly soldered and heat-shrunk lineman splice is stable enough, even for applications like NASA.
In addition to the pigtails themselves, there are also adapter kits available, such as the Fuel Injector Clinic's (FIC) Plug & Play / Pigtails options, which include a set of 8 US Car/EV6 (female) to GM/Delphi (male) injector plug adaptors. These adapters can be useful when working with different types of fuel injectors and connectors.
Fuel Injector O-Rings: Silverado 1500 Maintenance Guide
You may want to see also
Frequently asked questions
There are a few methods for splicing fuel injector wires. Some recommend using butt connectors, while others suggest soldering and heat shrinking. Some sources suggest doing both. It is important to note that a poorly executed splice can cause significant issues, so it is best to be confident in your abilities or consult a professional.
Butt connectors can look messy, come disconnected, corrode, and cause higher resistance in the circuit. However, some users have had no issues with them.
Soldering can create a stable connection that, when paired with heat-shrinking, can be very secure. This method is even used in some NASA applications.
Soldering can be difficult to execute properly, and it takes time to develop good soldering skills. Additionally, some sources claim that soldered joints are more brittle and susceptible to breaking from constant vibration.
It is important to use the correct tools and materials. For example, using a ratchet-type crimper and non-insulated butt connectors can improve the quality of the splice. Additionally, consider the structure of the splice to prevent the wire from flexing at the joint.
