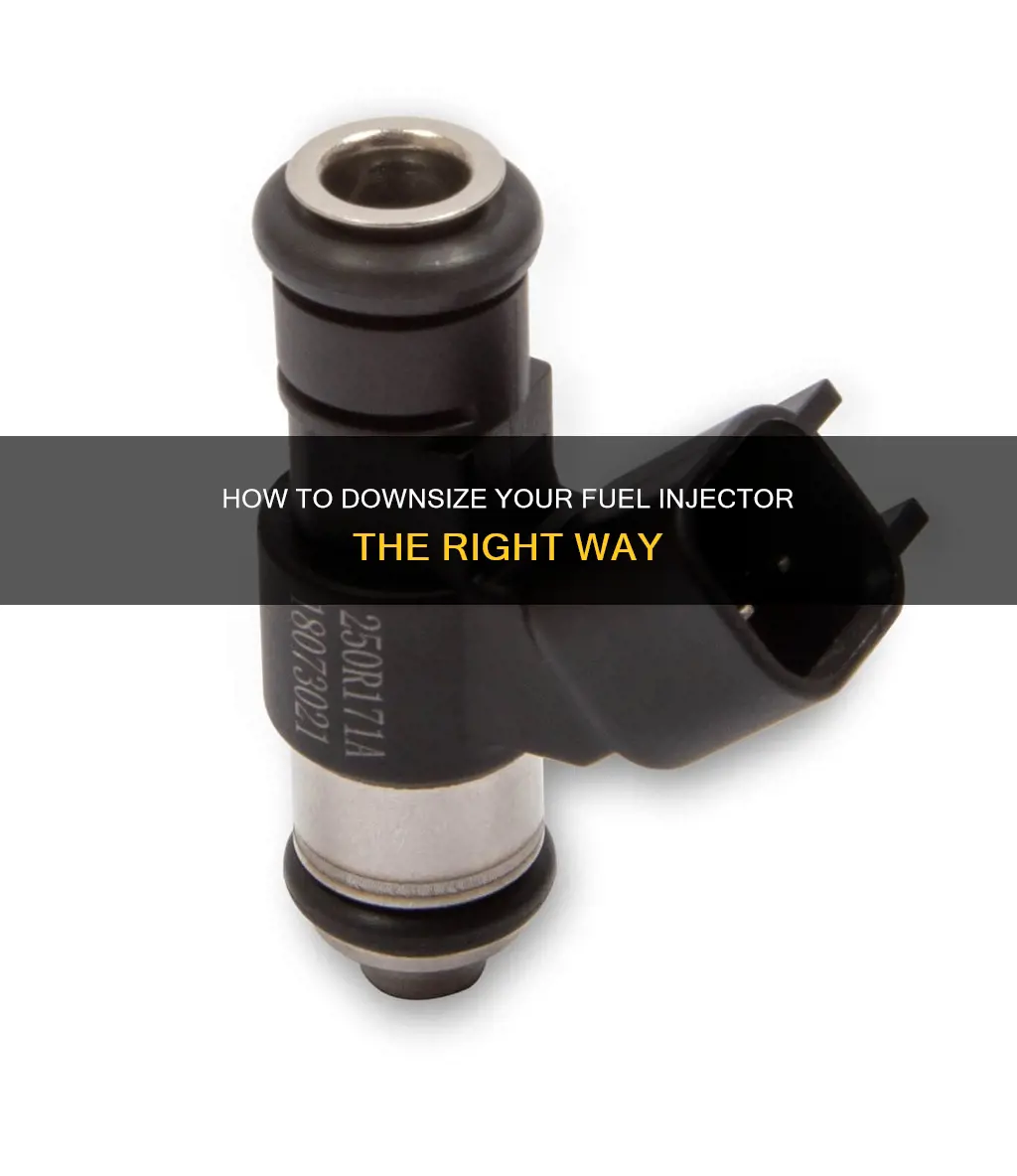

Fuel injectors are a crucial component of modern engines, delivering fuel with precision to power vehicles. Scaling down a fuel injector refers to adjusting its settings to deliver less fuel to the engine. This process involves fine-tuning several parameters, including the injector flow rate, latency, pulse width, and fuel trims. It is a complex task that requires specialized tools and knowledge to avoid causing damage to the vehicle. Properly scaling fuel injectors ensures optimal engine performance and fuel efficiency, and it is a task often undertaken by automotive enthusiasts and professionals alike.
| Characteristics | Values |
|---|---|
| Fuel injector scaling | Calculation |
| Fuel injector | Sizing |
| Fuel injector | Scaling down |
| Fuel injector | Scaling up |
| Fuel injector | MAF scaling |
| Fuel injector | Scaling data |
| Fuel injector | Scaling calculation |
| Fuel injector | Scaling values |
Explore related products
What You'll Learn
Fuel injector scaling calculations
Firstly, it is crucial to understand that fuel injectors play a significant role in supplying fuel to the engine. The calculations involved in scaling fuel injectors aim to ensure the precise delivery of fuel, optimising performance and efficiency.
The scaling calculations take into account various factors, including injector size, rated flow, fuel pressure, and scaling values. For example, let's consider the calculations mentioned in one of the sources:
> "Yellow injectors (The square root of (58/72.5))*476=425.75 CC/Min
> Red Injectors (The square root of (58/72.5))*369=330.04 CC/Min"
These calculations appear to relate the injector size (in CC/Min) to the fuel pressure, with values such as 58 fuel PSI and 14.5 Absolute PSI. The results of these calculations may help determine the appropriate scaling for the fuel injectors.
Additionally, companies like Fuel Injector Clinic provide valuable resources for injector scaling. They offer Data Match Technology sheets and ECU-specific scaling data, aiding automotive enthusiasts in tuning their vehicles. This data includes injector-specific flow and latency information, as well as injector voltage offset values, which are crucial for accurate injector scaling.
It is worth noting that while calculations are essential, the process of injector scaling also involves practical considerations. For instance, ensuring that all injectors have the same latency before precise scaling, as mentioned in one of the sources:
> All 4 will be upgraded to keep the latency the same. Then they can be precisely scaled.
Furthermore, tools like the FuelTech Fuel Injector Calculator assist in selecting the appropriate fuel injector size, which is critical for performance and tuning control. This calculator takes into account factors such as horsepower and the type of induction, making it easier for enthusiasts to choose the right fuel injector setup.
In conclusion, fuel injector scaling calculations involve a range of variables, including injector size, flow rates, fuel pressure, and scaling values. While specific equations or formulas are not readily available, the process of injector scaling is a combination of mathematical calculations and practical considerations to optimise engine performance and fuel efficiency.
Diagnosing Faulty Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Injector flow rate
Various factors can influence the injector flow rate, including the injector's design, size, and voltage. For example, larger injectors with higher flow ratings can deliver more fuel, while smaller injectors may have lower flow rates. Additionally, the injector's voltage can impact its performance, as higher voltage can lead to increased flow rates.
It is important to note that the flow rate of an injector can also be affected by external factors such as elevation, atmospheric conditions, fuel temperature, and ethanol content. These variables can impact the overall performance and accuracy of the injector flow rate, making it challenging to maintain consistent fuel delivery.
To address these challenges, companies like Fuel Injector Clinic provide comprehensive data sheets that include injector-specific flow information. This data helps verify equivalent fueling and ensures that the injectors match the engine's requirements. By providing accurate flow rate data, companies can assist automotive enthusiasts and professionals in fine-tuning their vehicles for optimal performance and efficiency.
In some cases, it may be necessary to scale down a fuel injector to match the engine's specifications. While it is possible to physically reduce the size of the injector, it is more common to adjust the injector's settings, such as the fuel pressure or voltage, to achieve the desired flow rate. This process requires careful calculations and testing to ensure that the injector still delivers the appropriate amount of fuel without compromising engine performance.
Cleaning Fuel Injector Screens: A Step-by-Step Guide
You may want to see also
Explore related products
Injector latency
The injector latency value varies depending on the specific injector and its flow rate. A larger injector flow rate will result in a more significant difference in response time. This latency value is crucial for tuning software, as it directly impacts the amount of fuel delivered. By increasing the dead time values, the software adds time to the pulse width of each injection event, resulting in a larger volume of fuel being injected.
It is important to note that injector latency is distinct from injector lag time, which refers to the time delay between the moment the injector is energised and when the fuel spray actually begins. This lag time includes both the injector latency and the time required for the fuel to travel through the injector and reach the combustion chamber.
To ensure optimal performance, it is crucial to obtain accurate injector latency values from the injector manufacturer. However, finding the correct values can sometimes be challenging, as different sources may provide varying figures for the same injector model. Reputable injector manufacturers, such as Injector Dynamics, FIC, and ASNU, typically provide reliable dead time data with their products. Additionally, companies like Motec offer calibration data for their own ECUs, aiding in accurate injector latency calculations.
Bleeding Air from Fuel Injectors on a 4700 International: Step-by-Step Guide
You may want to see also
Explore related products
Fuel trim
Short-term fuel trims occur due to changes in the oxygen content of the exhaust stream, which is monitored by an oxygen sensor upstream of the catalytic converter. The sensor generates a signal voltage that is directly proportional to the oxygen content. Based on this voltage, the ECU will adjust the pulse width of the injectors, either adding or subtracting fuel from the air/fuel mixture. These adjustments are known as fuel trims and ensure that the mixture remains as close to the stoichiometric point as possible. During normal vehicle operation, the ECU reacts to changes in the exhaust stream almost instantly, making adjustments several times per second.
Long-term fuel trims, on the other hand, are measured over longer time intervals using oxygen or air fuel ratio sensors downstream of the catalytic converter. While the signal voltages from these sensors do not directly impact fuel delivery strategies, they play a crucial role in monitoring the efficiency of the catalytic converter. The ECU compares the signal voltage patterns from the upstream and downstream oxygen sensors to calculate an efficiency value for the catalytic converter.
It is important to note that accurate fuel trim values depend on precise feedback from the oxygen sensor. Without this information, the engine computer cannot determine whether the fuel mixture is running rich or lean. Additionally, fuel trim values are retained in the computer's memory, allowing the vehicle to resume these settings when it is driven again. However, clearing codes or erasing the computer's memory will result in the computer having to relearn the fuel adjustments.
Cleaning Fuel Injector Connectors: DIY Guide for Your Car
You may want to see also
Explore related products
Fuel injector sizing
Understanding the Basics:
Fuel injectors play a crucial role in delivering fuel to the engine. The size of the injector determines the flow rate, which is typically measured in cc/min (cubic centimetres per minute). A 1000cc injector, for example, has a flow rate of approximately 1000cc/min. This flow rate is not fixed and can vary based on fuel pressure and other factors.
Factors Affecting Fuel Injector Sizing:
When considering fuel injector sizing, it is important to take into account the following factors:
- Engine Specifications: The size and specifications of the engine play a significant role in determining the appropriate fuel injector size. Different engines have varying fuel requirements, and the injector size should be matched accordingly.
- Desired Performance: Whether the goal is to increase horsepower, improve fuel efficiency, or enhance overall engine performance, the desired outcome will influence the choice of fuel injector size.
- Fuel Type: The type of fuel used, such as gasoline, alcohol, or ethanol, can impact the injector sizing. Different fuels have distinct properties, and the injectors must be sized to deliver the correct amount of fuel for optimal combustion.
Calculating Fuel Injector Size:
To determine the appropriate fuel injector size, several calculations come into play:
- Flow Rate Calculation: As mentioned earlier, the flow rate is influenced by injector size and fuel pressure. It is calculated by considering the desired fuel flow rate, injector size, and fuel pressure.
- Injector Latency: This refers to the time it takes for the injector to open and is dependent on voltage and fuel pressure. It affects the amount of fuel delivered to the engine.
- Injector Pulse Width: The injector pulse width is the duration for which voltage is applied to the injector, causing it to open. It is calculated by multiplying the desired fuel flow by the flow rate and then adding the injector latency.
- Fuel Trims: Fuel trims refer to the adjustments made by the vehicle's ECU (Engine Control Unit) to the air-fuel ratio. It involves adding or removing fuel from the mixture to achieve the desired ratio, which is typically around 14.7:1 for efficient combustion.
Tools for Sizing Fuel Injectors:
To accurately size fuel injectors, it is recommended to use specialised tools and software:
- Fuel Injector Calculators: Companies like FuelTech offer fuel injector calculators that assist in selecting the proper fuel injector size. These calculators take into account various parameters, such as the number of injectors, estimated horsepower, and the type of induction system.
- Data Match Technology: Some manufacturers, like the Fuel Injector Clinic, provide data sheets and ECU-specific scaling data. This information helps tuners and enthusiasts interpret scaling data and make more informed decisions about injector sizing.
In conclusion, fuel injector sizing is a complex but essential aspect of automotive performance tuning. It requires a good understanding of engine dynamics, fuel systems, and the ability to work with specialised tools and calculations. Properly sized fuel injectors ensure optimal engine performance, fuel efficiency, and power output.
Fuel Flow Rates of Stock Cummins Injectors Explained
You may want to see also
Frequently asked questions
Fuel injector scaling is the process of adjusting the injector scaling value, which is used by the ECU to determine the amount of fuel needed when the vehicle is at WOT (wide-open throttle) versus at idle.
Fuel injector scaling ensures that the engine receives the correct amount of fuel, which is critical for performance and tuning control.
You may need to scale your fuel injectors whenever you modify anything related to the fuel system, such as upgrading your fuel injectors or fuel pump, or installing an aftermarket fuel pressure regulator.
To scale your fuel injectors properly, you will need to have EvoScan configured for logging, a way to measure fuel pressure, and a Wideband O2 sensor installed on your car.
When scaling fuel injectors, it is important to adjust the injector scaling value, injector latency, injector pulse width, and fuel trims to ensure the engine receives the correct amount of fuel for optimal performance.
