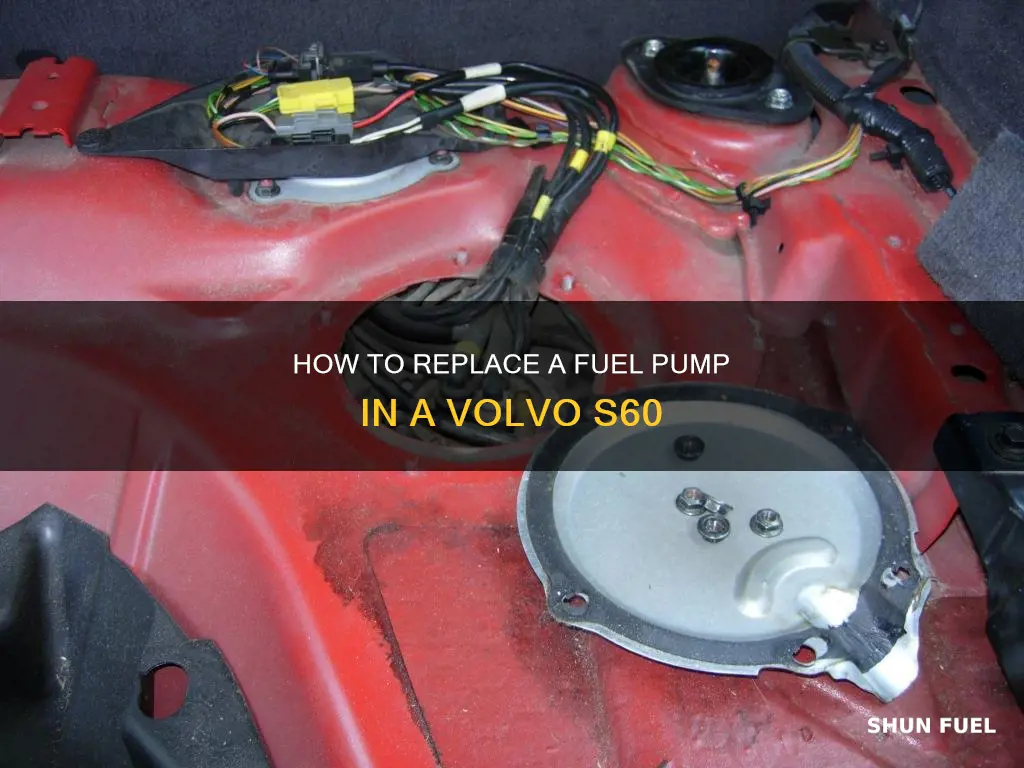

Volvo S60 Fuel Pump Replacement: A Diy Guide

Replacing the fuel pump in a Volvo S60 03 model is a task that requires careful consideration and technical expertise. This procedure involves understanding the intricate fuel system and ensuring the correct replacement parts are used to maintain the vehicle's performance and safety. With the right tools and knowledge, it is possible to replace the fuel pump, but it is essential to follow manufacturer guidelines and seek professional assistance if needed to avoid any potential issues.

Fuel Pump Replacement Process: Step-by-step guide to replacing the fuel pump in a 2003 Volvo S60

The fuel pump in a 2003 Volvo S60 is an essential component that ensures a steady supply of fuel to the engine. Over time, this pump can wear out or fail, leading to potential starting issues and reduced engine performance. Replacing the fuel pump is a task that can be tackled by experienced car enthusiasts or mechanics, and it involves several steps to ensure a successful outcome. Here is a step-by-step guide to help you through the process:

Step 1: Preparation and Safety Measures

Before you begin, ensure you have the necessary tools and equipment, including a new fuel pump, a jack, and a jack stand. Park your car on a level surface and engage the parking brake. It is crucial to drain the fuel tank to prevent spills and ensure your safety. Locate the drain valve, usually found under the car near the fuel tank, and open it to release the fuel. Allow sufficient time for the tank to drain completely.

Step 2: Accessing the Fuel Pump

Locate the fuel pump, which is typically mounted inside the fuel tank. In the 2003 Volvo S60, it is usually positioned at the rear of the tank. Carefully remove any debris or old fuel lines that might obstruct access. You might need to remove the rear seat or a panel to gain better access to the fuel tank. Take note of the fuel pump's position and any connections to the fuel lines.

Step 3: Removing the Old Fuel Pump

Carefully disconnect the electrical connections and fuel lines from the old pump. You may need to use specific tools to loosen the connections. Once disconnected, lift the fuel tank using the jack and place the jack stand beneath the specified lift points to support the weight. Carefully remove the old fuel pump, ensuring you do not damage any surrounding components.

Step 4: Installing the New Fuel Pump

Position the new fuel pump into the fuel tank, ensuring it aligns with the previous pump's location. Secure it in place using the appropriate fasteners. Reconnect the fuel lines and electrical connections, tightening them securely.

Step 5: Refilling and Testing

After replacing the pump, refill the fuel tank and close the drain valve. Start the engine and allow it to run for a few minutes to ensure the fuel pump is functioning correctly. Check for any leaks and verify that the engine starts and operates smoothly.

Remember, this process requires a certain level of mechanical skill and knowledge. If you are unsure about any step, it is recommended to consult a professional mechanic to ensure the job is done safely and correctly.

Tools and Materials: Essential tools and materials needed for the replacement

Before you begin the replacement process, it's crucial to gather the necessary tools and materials to ensure a smooth and efficient repair. Here's a comprehensive list of what you'll need:

Tools:

• Jack and Jack Stands: Raising your vehicle is essential for accessing the fuel pump. You'll need a sturdy jack designed for your specific car model and jack stands to support the vehicle safely.
• Wrenches and Pliers: Various sizes of wrenches and pliers are indispensable for tightening and loosening nuts, bolts, and other fasteners. Ensure you have adjustable wrenches, socket wrenches, and pliers to handle different bolt sizes.
• Screwdrivers: Both flat-head and Phillips screwdrivers are required for removing screws and fasteners throughout the process.
• Fuel Pump Removal Tool (Optional): Depending on your familiarity with car mechanics, you might consider investing in a fuel pump removal tool. This specialized tool simplifies the process of disconnecting the fuel lines and accessing the pump.
• Safety Gear: Safety should always be a priority. Wear gloves to protect your hands and eye protection to shield your eyes from any potential debris or sparks.

Materials:

• New Fuel Pump: The primary component you'll replace is the fuel pump itself. Ensure you purchase a compatible replacement part specifically designed for your 2003 Volvo S60. Check the vehicle's VIN (Vehicle Identification Number) to confirm the correct part number.
• Fuel Filter: While not always necessary, replacing the fuel filter during this process is recommended. It's a good practice to ensure optimal fuel flow and engine performance.
• Fuel Lines: You might need to replace or repair fuel lines, especially if they show signs of damage or corrosion. Ensure you have the correct size and type of fuel lines for your vehicle.
• Gaskets and Seals: Check for any worn-out gaskets or seals that might need replacement. These small components play a vital role in maintaining a tight seal.
• Antifreeze/Coolant: After the replacement, you'll need to refill the engine with the appropriate coolant to prevent overheating.

Having all these tools and materials ready will make the fuel pump replacement process more accessible and less stressful. It's always a good idea to familiarize yourself with the specific requirements of your vehicle model to ensure you have the correct parts and tools for the job.

Diagnosis and Testing: Methods to diagnose fuel pump issues and confirm the need for replacement

Diagnosing fuel pump issues in a Volvo S60 (model year 2003) requires a systematic approach to ensure an accurate assessment. Here are some methods to identify and confirm the need for fuel pump replacement:

• Visual Inspection: Start by visually inspecting the fuel pump and its associated components. Check for any signs of damage, corrosion, or leaks around the fuel tank and lines. Look for puddles of fuel or any unusual stains, which could indicate a failing pump. Inspect the pump for any visible wear and tear, especially if it's been in use for a prolonged period.
• Engine Performance Testing: Engine performance can provide valuable insights. When the engine is running, pay attention to its behavior. A failing fuel pump may result in reduced engine power, rough idling, or difficulty starting. Listen for any unusual noises, such as a whining or roaring sound, which could be indicative of a failing pump. Additionally, monitor the engine's response to acceleration and deceleration.
• Fuel Pressure Measurement: Measuring fuel pressure is a critical step in diagnosing fuel pump issues. You can use a fuel pressure gauge to check the pressure at the fuel rail or injectors. A healthy fuel pump should deliver the required pressure to the engine. Compare the measured pressure with the manufacturer's specifications. If the pressure is significantly lower than the recommended range, it may indicate a failing pump.
• Electrical Testing: Fuel pump operation is controlled by the engine control unit (ECU) through electrical signals. Use a digital multimeter to test the electrical connections and wiring related to the fuel pump. Check for continuity and ensure that the pump receives the correct voltage and signal. A faulty electrical connection or a malfunctioning ECU could be the cause of the issue.
• Fuel Flow Measurement: Measuring the fuel flow rate can help determine if the pump is delivering the required amount of fuel. You can use a fuel flow meter or calculate it by measuring the time it takes to fill a known volume of fuel. Compare the measured flow rate with the expected value for the Volvo S60. A significantly lower flow rate may suggest a failing pump.
• Professional Diagnostic Tools: Modern vehicles often require specialized diagnostic tools to access and interpret engine data. These tools can provide real-time data on various engine parameters, including fuel pressure, flow rate, and pump operation. A professional mechanic can use these tools to identify any anomalies and confirm the need for fuel pump replacement.

By following these diagnostic methods, you can effectively identify and confirm fuel pump issues in a Volvo S60. It is essential to address these problems promptly to ensure optimal engine performance and prevent further complications.

Safety Precautions: Important safety measures to follow during the replacement process

Before you begin the replacement process, it is crucial to prioritize safety to ensure a successful and accident-free procedure. Here are some essential safety precautions to follow:

• Prepare the Vehicle: Park the car on a level surface and engage the parking brake. Ensure the engine is cool to prevent any potential burns. It is recommended to drain the fuel tank and disconnect the battery to eliminate any electrical hazards. This step is critical as it prevents fuel leaks and short circuits, which could lead to dangerous situations.
• Work in a Well-Ventilated Area: Fuel pump replacement often involves working with fuel-related components, and it is essential to do so in a well-ventilated area. Open the garage door or work outside to allow fresh air circulation. Proper ventilation helps minimize the risk of inhaling harmful fumes, especially when dealing with fuel-related tasks.
• Wear Protective Gear: Safety gear is a must. Wear gloves to protect your hands from sharp edges or potential fuel spills. Safety goggles are essential to shield your eyes from any debris or fuel that might spray during the process. Consider wearing a respirator mask to filter out any harmful fumes, especially if you are working in a confined space.
• Be Mindful of Hot Surfaces: The engine and related components can retain heat even after the engine is turned off. Be cautious when handling any hot surfaces to avoid burns. Allow sufficient time for the engine to cool down before disassembling or replacing parts. This precaution is vital to prevent accidents and ensure your safety during the replacement.
• Follow the Manual: Refer to the vehicle's manual for specific instructions and safety guidelines. Each car model may have unique requirements, and adhering to the manufacturer's recommendations is essential. The manual will provide detailed steps, ensuring you perform the replacement correctly and safely.

By implementing these safety measures, you can significantly reduce the risks associated with fuel pump replacement, ensuring a smooth and secure process. Remember, taking the necessary precautions is vital to avoid any potential hazards during DIY car repairs.

Cost and Availability: Estimated costs and sources for purchasing a replacement fuel pump

When considering replacing the fuel pump in your 2003 Volvo S60, it's important to understand the potential costs and sources for obtaining the necessary parts. The fuel pump is a critical component that ensures the proper flow of fuel to the engine, and its failure can lead to engine performance issues. Here's an overview of the estimated costs and sources for purchasing a replacement fuel pump:

Estimated Costs:

• The cost of a replacement fuel pump for your Volvo S60 can vary depending on several factors. Firstly, the price can differ based on the make and model of the pump. Genuine Volvo parts are typically more expensive than aftermarket or generic alternatives. On average, you can expect to pay anywhere between $200 to $500 for a high-quality replacement fuel pump.
• Labor costs should also be considered. Replacing the fuel pump is a complex task that requires specialized knowledge and tools. It's recommended to have this work performed by a professional mechanic, which can add an additional $100 to $200 to the overall cost.
• If you decide to replace the pump yourself, it's essential to have the necessary tools and knowledge. Some mechanics may charge a diagnostic fee to identify the issue and provide guidance on the repair process.

Sources for Purchasing:

• Volvo Dealerships: The most reliable source for genuine Volvo parts is your local Volvo dealership. They can provide the exact replacement fuel pump required for your specific model year. While it may be more expensive, genuine parts ensure compatibility and come with the manufacturer's warranty.
• Online Automotive Parts Retailers: Numerous online retailers specialize in automotive parts, offering a wide range of options for fuel pumps. Websites like RockAuto, CarParts.com, or AutoZone provide a vast selection of brands and models. Compare prices and reviews to find a reputable seller.
• Aftermarket Specialists: Some companies specialize in aftermarket automotive parts, offering cost-effective alternatives to genuine OEM (Original Equipment Manufacturer) parts. These companies often have competitive pricing and can provide a good balance between quality and affordability.
• Local Auto Parts Stores: Visit local auto parts stores in your area, as they may have a selection of fuel pumps in stock or be able to order the specific part you need.

When purchasing a replacement fuel pump, ensure you have the correct part number for your 2003 Volvo S60 to guarantee a proper fit. Additionally, consider the reputation and reviews of the seller to ensure you receive a high-quality product.
