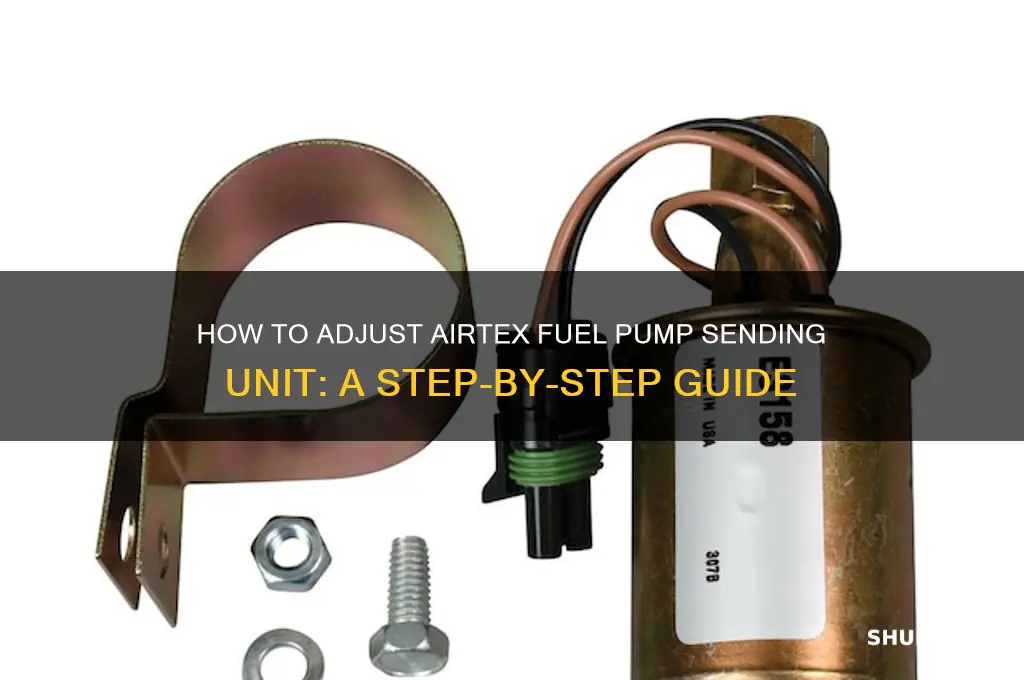

Adjusting the sending unit on an Airtex fuel pump can be a crucial task for maintaining accurate fuel level readings in your vehicle. The sending unit is responsible for communicating the fuel level to the gauge, and over time, it may require calibration or adjustment due to wear, electrical issues, or installation discrepancies. While Airtex fuel pumps are known for their reliability, the sending unit’s accuracy can be affected by factors such as float arm positioning, electrical resistance, or mechanical alignment. Fortunately, many Airtex models allow for adjustments, often involving the careful manipulation of the float arm or resistor card to ensure the gauge reflects the correct fuel level. However, it’s essential to consult the specific model’s manual or seek professional guidance to avoid damaging the unit or compromising its functionality during the adjustment process.
| Characteristics | Values |
|---|---|
| Adjustability | No, Airtex fuel pump sending units are typically not adjustable. |
| Function | Measures fuel level in the tank and sends data to the fuel gauge. |
| Compatibility | Specific to vehicle make, model, and year. |
| Replacement | Requires replacement if faulty; not designed for adjustment. |
| Design | Integrated into the fuel pump module or as a separate component. |
| Material | Typically made of durable materials like plastic and metal. |
| Lifespan | Varies based on usage and conditions; replacement recommended if faulty. |
| Diagnosis | Faulty units may cause inaccurate fuel gauge readings or errors. |
| Installation | Requires professional installation or advanced DIY skills. |
| Availability | Available as OEM or aftermarket parts from auto parts suppliers. |
| Cost | Varies based on vehicle and supplier; typically $50-$200. |
| Warranty | Covered under manufacturer warranty for a specified period. |
Explore related products
What You'll Learn
- Compatibility Check: Ensure the sending unit matches your Airtex fuel pump model and vehicle specifications
- Adjustment Tools: Identify required tools for calibrating the sending unit accurately
- Symptoms of Failure: Recognize signs like inaccurate fuel gauge readings or pump issues
- Step-by-Step Adjustment: Follow a detailed guide to adjust the sending unit properly
- Testing After Adjustment: Verify the sending unit’s functionality post-adjustment for reliability
Compatibility Check: Ensure the sending unit matches your Airtex fuel pump model and vehicle specifications
When considering adjusting an Airtex fuel pump sending unit, the first and most critical step is to ensure compatibility between the sending unit, the fuel pump model, and your vehicle specifications. The sending unit is a crucial component that communicates fuel levels to the vehicle’s gauge, and mismatched parts can lead to inaccurate readings or even system failure. Start by identifying the exact model of your Airtex fuel pump, as different models may require specific sending units. This information is typically found on the pump itself or in the vehicle’s service manual. Cross-referencing this with the sending unit’s specifications ensures they are designed to work together seamlessly.
Next, verify that the sending unit is compatible with your vehicle’s make, model, and year. Vehicle manufacturers often use proprietary designs or specific electrical systems, which means a sending unit for one vehicle may not function correctly in another, even if the fuel pump appears similar. Consult your vehicle’s manual or use online compatibility tools provided by Airtex or auto parts retailers to confirm the correct part number for your sending unit. Ignoring this step could result in incompatibility issues, such as incorrect fuel gauge readings or damage to the fuel pump system.
Another important aspect of the compatibility check is ensuring the sending unit’s electrical specifications match your vehicle’s system. Sending units operate within specific voltage ranges and resistance levels, which must align with your vehicle’s fuel gauge and wiring harness. Mismatched electrical specifications can cause erratic gauge behavior or prevent the sending unit from functioning altogether. If you’re unsure about the electrical compatibility, consult a professional mechanic or refer to detailed technical guides for your specific Airtex fuel pump and vehicle model.
Additionally, consider the physical dimensions and mounting requirements of the sending unit. Even if the electrical and model specifications align, a sending unit that doesn’t fit properly into the fuel tank or pump assembly will not work correctly. Measure the sending unit’s size and compare it to the space available in your fuel tank. Some vehicles may require adapters or specific mounting kits to ensure a proper fit. Always double-check these details to avoid installation issues or potential damage to the fuel system.
Finally, if you’re replacing or adjusting a sending unit, ensure it meets the latest manufacturer standards and certifications. Over time, Airtex and vehicle manufacturers may update designs or specifications to improve performance and reliability. Using an outdated or non-compliant sending unit can compromise the efficiency and safety of your fuel system. When in doubt, purchase parts directly from authorized dealers or reputable suppliers who can guarantee compatibility with your Airtex fuel pump and vehicle. Taking these precautions ensures a successful adjustment or replacement and maintains the integrity of your vehicle’s fuel system.
