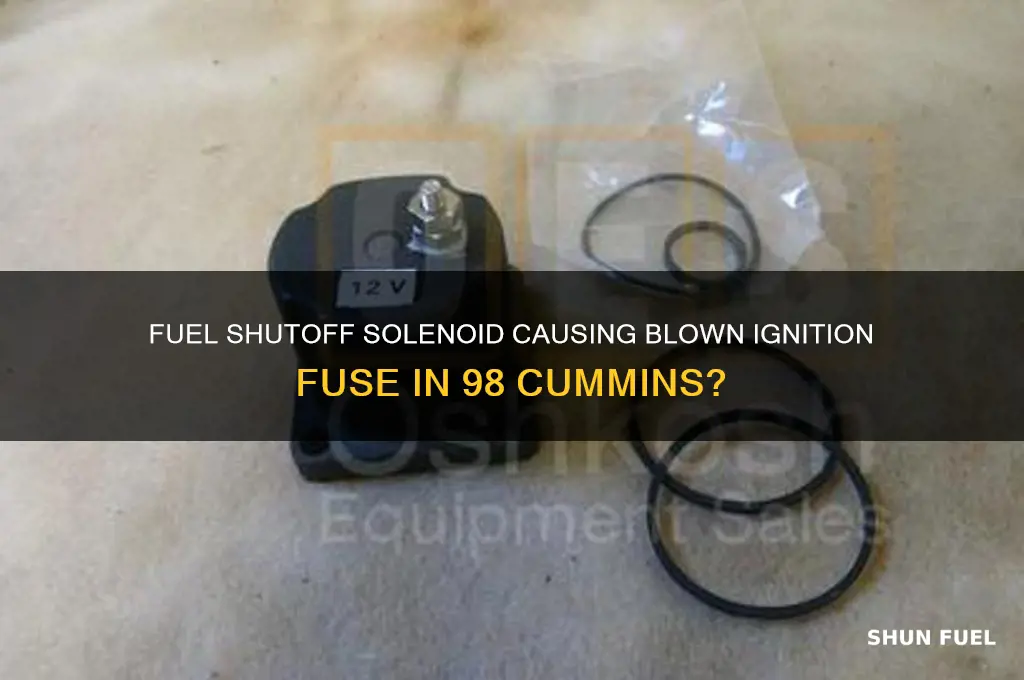

The fuel shutoff solenoid in a 1998 Cummins diesel engine plays a critical role in controlling fuel flow, but its malfunction can lead to unexpected electrical issues. One common concern among owners is whether a faulty fuel shutoff solenoid can blow the ignition fuse. This issue often arises when the solenoid draws excessive current due to internal shorts, corrosion, or wiring problems, potentially overloading the circuit and causing the fuse to fail. Diagnosing this problem requires checking the solenoid’s resistance, inspecting wiring for damage, and ensuring proper grounding. Addressing the root cause promptly is essential to prevent further electrical damage and restore the engine’s functionality.
| Characteristics | Values |
|---|---|
| Issue Description | Fuel shutoff solenoid potentially causing ignition fuse to blow in 1998 Cummins engines. |
| Common Causes | - Short circuit in solenoid wiring - Faulty solenoid - Overloaded ignition circuit |
| Symptoms | - Blown ignition fuse - Engine stalls or fails to start - Intermittent power loss |
| Affected Cummins Models | 1998 Cummins diesel engines (e.g., 5.9L 12V, 24V) |
| Fuse Rating | Typically 10-20 amps (check vehicle manual for exact rating) |
| Diagnostic Steps | 1. Inspect solenoid wiring for damage 2. Test solenoid for continuity 3. Check for shorts in the circuit |
| Potential Fixes | - Replace faulty solenoid - Repair or replace damaged wiring - Install higher-rated fuse (if appropriate) |
| Prevention Tips | Regularly inspect wiring and solenoid for wear or corrosion |
| Related Components | Ignition switch, fuel pump relay, PCM (Powertrain Control Module) |
| DIY Difficulty | Moderate (requires basic electrical diagnostic skills) |
| Professional Diagnosis Recommended | Yes, if issue persists after basic checks |
Explore related products
$38.5
$37.99
What You'll Learn
Solenoid malfunction causes
The fuel shutoff solenoid in a 1998 Cummins diesel engine plays a critical role in controlling the fuel supply to the engine. When this solenoid malfunctions, it can lead to a cascade of issues, including the potential to blow the ignition fuse. One primary cause of solenoid malfunction is electrical overload. If the solenoid draws excessive current due to a short circuit or internal failure, it can overload the circuit, causing the ignition fuse to blow as a protective measure. This often occurs when the solenoid’s internal windings degrade or when there is a fault in the wiring harness connected to it.
Another common cause of solenoid malfunction is corrosion or contamination. Over time, exposure to moisture, dirt, or fuel residue can corrode the solenoid’s terminals or internal components, leading to poor electrical conductivity. This resistance increases the current draw, potentially causing the fuse to blow. Regular inspection and cleaning of the solenoid and its connections can mitigate this issue, but neglect often leads to failure, especially in older vehicles like the 98 Cummins.
Mechanical failure is also a significant contributor to solenoid malfunctions. The solenoid operates by using an electromagnetic coil to open or close a valve, controlling fuel flow. If the plunger or internal mechanism becomes stuck due to debris, wear, or manufacturing defects, the solenoid may remain engaged, drawing continuous power. This prolonged operation can overheat the solenoid and blow the ignition fuse. Ensuring the fuel system is free of contaminants and replacing worn components can prevent such failures.
Lastly, voltage irregularities can cause the fuel shutoff solenoid to malfunction. If the vehicle’s electrical system delivers inconsistent voltage—either too high or too low—the solenoid may not operate correctly. High voltage can cause the solenoid to overheat and fail, while low voltage may prevent it from functioning altogether, leading to prolonged engagement and excessive current draw. Checking the vehicle’s charging system and voltage regulator can help identify and resolve these issues before they lead to fuse failure.
In summary, solenoid malfunction in a 98 Cummins can indeed cause the ignition fuse to blow, primarily due to electrical overload, corrosion, mechanical failure, or voltage irregularities. Addressing these issues through regular maintenance, inspections, and timely replacements can prevent such failures and ensure the reliability of the fuel shutoff system.
Fuel Injection Cleaners: Potential Problems and Performance Pitfalls Explored
You may want to see also
Explore related products
Fuse blowing symptoms
When diagnosing whether a fuel shutoff solenoid can blow the ignition fuse in a 1998 Cummins engine, understanding the fuse blowing symptoms is crucial. One of the primary indicators is the sudden loss of power to the ignition system, causing the engine to stall or fail to start. This occurs because the blown fuse disrupts the electrical circuit, preventing the solenoid from functioning properly. If the fuel shutoff solenoid is shorted or drawing excessive current, it can overload the circuit, leading to a blown fuse. Drivers may notice the engine shutting down abruptly while driving or the inability to turn the key in the ignition without any response from the starter motor.
Another symptom of a blown ignition fuse related to the fuel shutoff solenoid is the absence of dashboard lights or gauges. Since the ignition fuse often powers critical components like the instrument cluster, a blown fuse will result in a completely dark dashboard when the key is turned to the "on" position. This is a clear sign that the electrical circuit has been interrupted, potentially due to a faulty solenoid. Checking the fuse box for a blown ignition fuse should be the first step if these symptoms are observed.
Intermittent starting issues can also point to fuse blowing symptoms caused by the fuel shutoff solenoid. If the solenoid is intermittently shorting or drawing excessive current, it may blow the fuse sporadically, leading to unpredictable starting behavior. The engine might start normally one day and refuse to start the next, with no apparent pattern. This inconsistency is often accompanied by the need to replace the fuse repeatedly, which is a strong indicator that the solenoid is the root cause.
A burning smell or visible damage near the fuse box or solenoid wiring is another symptom to watch for. If the fuel shutoff solenoid is causing the fuse to blow, excessive heat may be generated in the wiring harness or fuse holder. This can result in melted plastic, discolored wires, or a distinct electrical burning odor. These signs suggest a severe electrical issue that requires immediate attention to prevent further damage to the vehicle's electrical system.
Lastly, unusual noises or behavior from the fuel system can accompany fuse blowing symptoms. If the solenoid is malfunctioning and causing the fuse to blow, the fuel pump may not engage properly, leading to a whining noise or no sound at all when the key is turned. This indicates that the fuel system is not receiving power due to the blown fuse. Diagnosing these symptoms in conjunction with fuse issues will help pinpoint whether the fuel shutoff solenoid is the culprit in a 1998 Cummins engine.
Fuel Oil Additives and Kerosene: Compatibility and Performance Insights
You may want to see also
Explore related products
Diagnosing electrical issues
When diagnosing electrical issues related to a potential fuel shutoff solenoid causing a blown ignition fuse on a 1998 Cummins engine, start by understanding the role of the solenoid and the fuse. The fuel shutoff solenoid is responsible for controlling the flow of fuel to the engine, and it operates using an electrical signal. If the solenoid malfunctions or draws excessive current, it can cause the ignition fuse to blow. Begin by inspecting the fuse itself; if it’s blown, replace it with one of the correct amperage rating and observe if the issue recurs. A recurring blown fuse indicates an underlying electrical problem that requires further investigation.
Next, test the fuel shutoff solenoid for proper operation. Disconnect the solenoid’s electrical connector and use a multimeter to check for continuity. If the solenoid is shorted or has an internal fault, it will show low resistance or a direct short, which can cause excessive current draw and blow the fuse. Additionally, apply power directly to the solenoid (bypassing the vehicle’s wiring) to see if it functions correctly. If the solenoid works when powered directly but fails in the vehicle, the issue may lie in the wiring or the control circuit.
Inspect the wiring harness connected to the fuel shutoff solenoid for damage, corrosion, or loose connections. Frayed wires, exposed conductors, or poor grounding can lead to electrical faults that overload the fuse. Use a wiring diagram specific to the 1998 Cummins to trace the circuit and ensure all connections are secure and free of corrosion. Pay special attention to areas where the wiring may rub against sharp edges or be exposed to heat, as these are common points of failure.
If the solenoid and wiring appear intact, investigate the control circuit that activates the solenoid. This includes the ignition switch, relay, and any associated modules. A faulty relay or a malfunctioning ignition switch can send incorrect signals or excessive voltage to the solenoid, causing it to draw too much current. Test the relay by swapping it with a known-good one or using a multimeter to check for proper operation. Similarly, verify that the ignition switch is functioning correctly by testing for voltage at the solenoid’s control wire when the key is turned on.
Finally, consider the possibility of intermittent issues, which can be harder to diagnose. If the fuse blows sporadically, monitor the system under various conditions (e.g., starting the engine, driving, or idling) to identify patterns. Use a test light or ammeter in series with the fuse to detect sudden current spikes that could indicate a short circuit. Intermittent problems often require patience and methodical testing to isolate the root cause. By systematically checking the solenoid, wiring, control circuit, and monitoring for anomalies, you can accurately diagnose and resolve electrical issues related to a blown ignition fuse on a 1998 Cummins engine.
Can Fuel Injectors Be Reused? A Comprehensive Guide for Car Owners
You may want to see also
Explore related products
Preventive maintenance tips
Preventive maintenance is crucial for avoiding issues like a blown ignition fuse caused by a faulty fuel shutoff solenoid in a 98 Cummins engine. One of the most effective preventive measures is regularly inspecting the fuel shutoff solenoid for signs of wear, corrosion, or damage. Over time, the solenoid’s internal components can degrade, leading to excessive current draw that may blow the ignition fuse. Inspect the wiring harness connected to the solenoid for frayed wires, loose connections, or signs of overheating. Ensure the solenoid is securely mounted and free from debris or contaminants that could interfere with its operation.
Another critical preventive step is monitoring the electrical system’s health. The ignition fuse is part of a larger electrical circuit, and overloading it can occur if the solenoid malfunctions. Use a multimeter to check the solenoid’s resistance and ensure it falls within the manufacturer’s specifications. Additionally, test the fuse’s amperage rating to confirm it matches the engine’s requirements. If the fuse has blown previously, investigate the root cause rather than simply replacing it, as repeated failures indicate an underlying issue.
Maintaining proper voltage regulation is essential to prevent excessive current draw from the fuel shutoff solenoid. Fluctuations in voltage can stress the solenoid and lead to failure. Install a voltage regulator or stabilizer if your Cummins engine is prone to voltage spikes. Regularly test the battery and alternator to ensure they are functioning correctly, as poor charging system performance can contribute to electrical issues. Keeping the electrical system in optimal condition reduces the risk of overloading the ignition fuse.
Routine cleaning and lubrication of the fuel system components can also prevent solenoid-related problems. Dirt, grime, or fuel residue can accumulate on the solenoid’s contacts, causing it to stick or malfunction. Use a suitable solvent to clean the solenoid and its surrounding area, ensuring no debris interferes with its operation. If the solenoid has moving parts, apply a manufacturer-recommended lubricant to ensure smooth operation. This reduces unnecessary strain on the electrical system and prolongs the solenoid’s lifespan.
Finally, replacing aging or suspect components proactively is a key preventive measure. If the fuel shutoff solenoid is old or has a history of issues, consider replacing it before it fails completely. Similarly, inspect and replace the ignition fuse and related wiring if they show signs of wear or damage. Keeping a log of maintenance activities and noting any abnormalities can help identify patterns and address potential problems before they escalate. By staying proactive, you can minimize the risk of a blown ignition fuse and ensure the reliability of your 98 Cummins engine.
Rebuilding Fuel Pumps: Cost-Effective Repair or Replacement Alternative?
You may want to see also
Explore related products
Common Cummins ignition problems
The Cummins engine, particularly in older models like the 1998 variant, is known for its reliability, but it’s not immune to ignition-related issues. One common problem that owners encounter is a blown ignition fuse, which can sometimes be linked to the fuel shutoff solenoid. The fuel shutoff solenoid is responsible for cutting off fuel supply to the engine when necessary, such as during a shutdown or in case of an emergency. If this solenoid malfunctions, it can draw excessive current, potentially blowing the ignition fuse. This issue is often exacerbated by age-related wear, corrosion, or wiring faults. To diagnose this, start by inspecting the solenoid for signs of damage or overheating and check the wiring harness for loose or frayed connections.
Another frequent ignition problem in Cummins engines is a faulty crankshaft position sensor (CKP). This sensor is critical for proper engine timing, and if it fails, the engine may not start or may run poorly. Symptoms of a failing CKP include difficulty starting the engine, stalling, or a complete loss of power. Testing the sensor with a multimeter or replacing it is often the solution. Additionally, ensure the sensor’s wiring is intact and free from debris, as poor connections can mimic sensor failure.
Hard starting or no-start conditions are also common Cummins ignition problems, often caused by issues with the glow plug system. In diesel engines, glow plugs are essential for cold starts, and if they fail or the relay malfunctions, the engine may struggle to ignite. Testing each glow plug individually and checking the relay for proper operation can help pinpoint the issue. Regular maintenance, such as cleaning or replacing glow plugs, can prevent this problem.
Lastly, the ignition switch itself can be a source of trouble. Over time, the switch may wear out, leading to intermittent starting issues or a complete failure to engage the starter motor. If the engine cranks slowly or not at all, inspect the ignition switch for signs of wear or corrosion. Replacing the switch is typically straightforward and can resolve the problem. Always ensure the battery and starter are in good condition before assuming the switch is at fault.
Addressing these common Cummins ignition problems requires a systematic approach to diagnosis and repair. By understanding the potential causes and symptoms, owners can save time and avoid unnecessary expenses. Regular inspections and maintenance are key to keeping the ignition system in optimal condition, ensuring reliable performance from the Cummins engine.
Can Fuel Injectors Cause Overheating? Understanding Engine Temperature Issues
You may want to see also
Frequently asked questions
Yes, a faulty fuel shutoff solenoid can cause a short circuit, leading to a blown ignition fuse on a 98 Cummins.
Symptoms include the engine not starting, the ignition fuse repeatedly blowing, or the solenoid clicking excessively when the key is turned.
Disconnect the solenoid and replace the fuse. If the fuse no longer blows, the solenoid is likely the culprit. Use a multimeter to check for continuity or shorts in the solenoid.
Yes, a poor ground connection can cause excessive current draw, leading the solenoid to overheat and blow the ignition fuse.
Locate the solenoid near the fuel filter, disconnect the wiring harness, remove the old solenoid, install the new one, and ensure all connections are secure and grounded properly.
