Fuel injectors are components in a vehicle's engine that use an electrical signal to deliver a precise amount of fuel. They can start to malfunction due to dirt, gunk, or carbon buildup, which can cause the engine to run poorly or even fail to start. To test fuel injectors, one can use an OBDII scanner to check for errors, identify the wires going into each injector, and test each wire for voltage. Another method is to activate the pulser for a set time and calculate the flow rate, observing the pattern and atomization to determine if the injector is functioning correctly.
| Characteristics | Values |
|---|---|
| Fuel Injector Function | Spray fuel into the cylinders of the engine |
| Fuel Injector Issues | Can cause the engine to run poorly or fail to run |
| Fuel Injector Malfunction Causes | Old age, dirt, gunk or carbon buildup |
| Fuel Injector Testing | Can be done by a mechanic, or at home with a test light and OBDII scanner |
| Fuel Injector Testing Process | Identify wires, test for voltage, check for errors in the vehicle's computer, check flow rate, pattern and atomization |
Explore related products
What You'll Learn
Testing fuel injectors with a test light
Locate the Fuel Injectors and Wires
Begin by identifying the location of your fuel injectors. Typically, there is one injector per cylinder, and it is usually a black plastic housing installed directly above the cylinder. Once you have located the injectors, you will see two wires going into each injector. These wires are often grey and black, but they can also be other colours. Make sure that these wires are the only ones coming out of the injector.
Prepare the Test Light
Ensure that the test light is working correctly by confirming a good metal-to-metal connection. Identify the negative terminal on the battery, which is usually marked with a negative symbol (-) or the letters "NEG." This will be important for the next step.
Test Each Wire for Voltage
Take the sharp end of the test light and firmly press it into the rubber coating around one of the wires connected to the injector. Penetrate the rubber coating until you make contact with the metal wire inside. Be careful not to push the probe all the way through the wire. Repeat this process for the second wire.
Observe the Test Light
If the test light turns on when it comes into contact with one of the wires, it indicates that the injector is receiving the necessary constant voltage. Make sure to cover any holes in the wiring's protective coating with electric tape. If neither wire causes the light to turn on, there may be an issue with the power reaching the fuel injector, resulting in a failure to fire.
Compare with Other Injectors
Repeat the testing process for each injector in your vehicle. Even if you locate one injector with a power issue, continue testing the others, as multiple injectors can be affected by a single faulty injector.
Observe the Flickering Light
With the engine running at idle, observe the test light. It should flicker dimly. As you or your helper applies throttle by pressing the gas pedal, the light should flicker more brightly. This flickering light represents the signal transmitted by the ECU to the injector to spray fuel.
By following these steps and observing the behaviour of the test light, you can gain valuable insights into the performance of your fuel injectors and identify any potential issues. Remember to exercise caution and ensure that your vehicle is properly maintained before attempting any repairs or replacements.
Testing Multi-Port Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Using an OBDII scanner to check for errors
Using an OBDII scanner is a great way to check for errors in your vehicle's fuel injectors. This tool can be used to read error codes, check data memory, and examine the status of your fuel injectors. It is also useful for basic automobile diagnostics and can be used to check other systems in your vehicle.
To use an OBDII scanner to check for errors in your fuel injectors, follow these steps:
- Ensure that you have an OBDII scanner that is compatible with your vehicle model. Different car models have different compatibility requirements, so it is important to check this first.
- Locate your vehicle's OBDII port, usually found under the dashboard on the driver's side.
- Plug the OBDII scanner into the OBDII port.
- Turn on the vehicle but do not start the engine. The electrical system must be active, but the engine should not be running during the test.
- Access the "Live Data" or "Data Stream" menu on the scanner to view data streams from the ECU (Engine Control Unit).
- Look for specific injector-related trouble codes, such as P0200, P0201, or P0202, which indicate common injector issues.
- Monitor injector performance by checking fuel trim, injector pulse width, and cylinder misfire data. Significant deviations from normal values can indicate injector issues.
- Once injector issues have been identified, clear the injector codes and reset the system.
By following these steps, you can effectively use an OBDII scanner to check for errors in your fuel injectors and take appropriate action to address any issues.
Fuel Injector Failure: Common Rail Issues and Solutions
You may want to see also
Explore related products

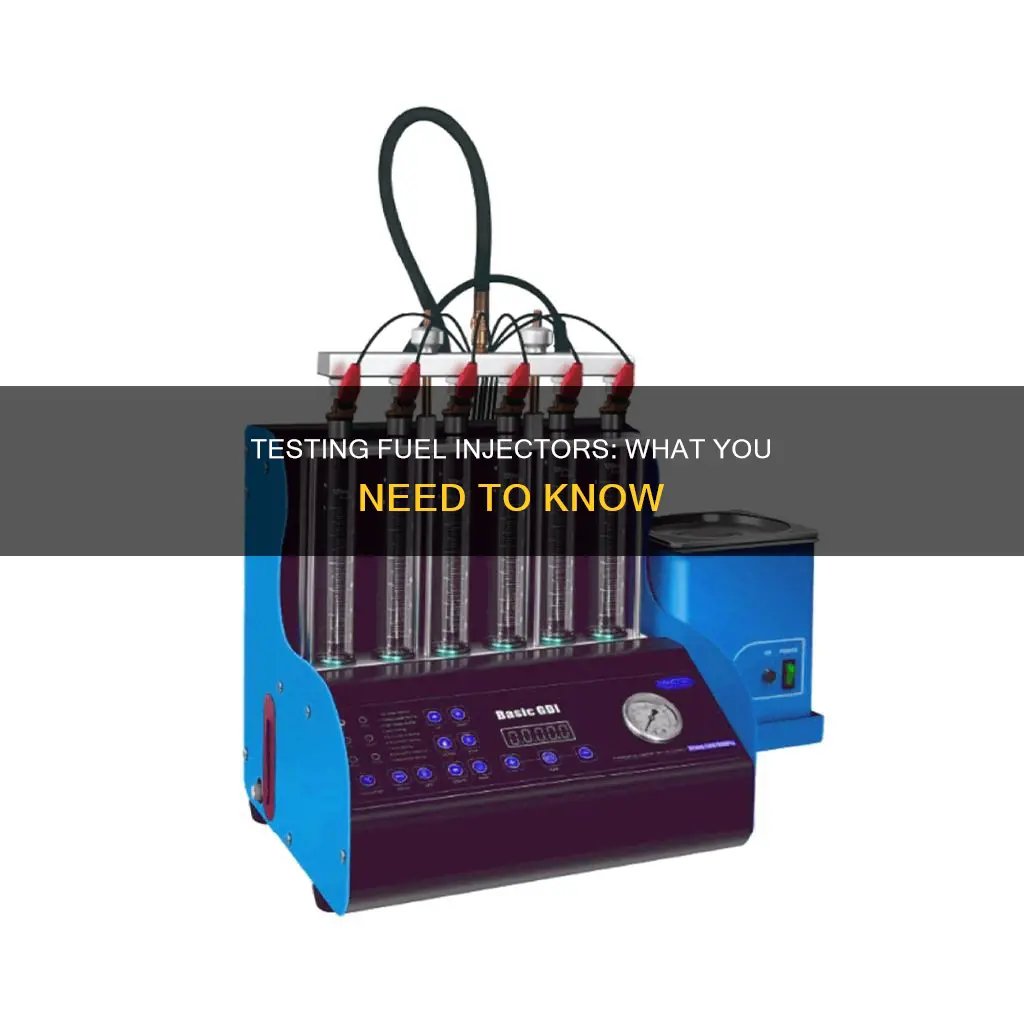

Checking the flow rate and atomization
Firstly, it is important to understand the role of fuel injectors. Fuel injectors are responsible for spraying fuel into the engine's cylinders, where it mixes with air and is ignited by the spark plug to generate power. Over time, they can become dirty or malfunction, leading to engine performance issues.
To check the flow rate and atomization, follow these steps:
- Clean and Inspect: Begin by cleaning the exterior of the injectors with a specialized detergent and carefully inspecting them for any signs of damage. This step ensures that any issues are not attributed to external factors.
- Set Up a Controlled Environment: The test requires a controlled environment with specific conditions. Set up a pump with a known fuel pressure, typically between 60 to 80 psi. The standard pressure for flow rate testing is often set at 43.5 psi or 3 bars.
- Measure Flow Rate: To measure the flow rate, use a calibrated pulse tool to pulse the injector at a known rate, such as 100 Hz. Place a measuring device, such as a flask with graduated markings, below the injector to collect the fuel. Activate the pulser for a set time, such as 5 or 10 seconds, and then calculate the flow rate based on the amount of fuel collected.
- Evaluate Spray Pattern and Atomization: While the injector is pulsing, observe the spray pattern and atomization of the fuel. A good injector will have a consistent and fine spray pattern, ensuring better mixing with air for even ignition. The more atomized the fuel, the better it will ignite.
- Compare with Specifications: Compare the measured flow rate and spray pattern with the manufacturer's specifications. The flow rate should be within a certain percentage of other injectors in the set, typically within 2-5%. Deviations from the specifications may indicate a faulty injector.
- Record and Re-test: Record the results of the flow rate and atomization test. If the injectors do not meet the specifications, they may need to be cleaned and re-tested. Ultrasonic cleaning and high-pressure back-flushing are common methods to remove any buildup or residue.
- Final Evaluation: After cleaning and re-testing, evaluate the injectors again for leaks, spray pattern, and flow rate. Replace any defective parts, such as filter baskets, O-rings, and pintle caps, with new ones. Lubricate the injectors to prolong their lifespan and ensure smooth operation.
By following these steps, you can effectively check the flow rate and atomization of fuel injectors, ensuring optimal engine performance and fuel efficiency. Remember to adhere to safety guidelines and consult a professional mechanic if you have any doubts or concerns.
Fuel Injector Ticking: What's the Deal?
You may want to see also
Explore related products
Identifying a leaking injector
Fuel injectors are designed to spray fuel into the cylinders of your engine, where it is combined with air and compressed before being ignited by the spark plug to produce power. As a result, a faulty fuel injector can cause your engine to run poorly or even fail to start.
- One way to identify a leaking injector is to examine the spark plugs. If a fuel injector is leaking, the corresponding cylinder spark plug will be wet with fuel. However, this method may not be safe, as it involves removing the spark plugs and starting the car to observe the fuel injectors, which could be dangerous due to pressure. A safer alternative is to take out the spark plugs after the car has been parked for a while and check for the presence of raw fuel.
- Another method is to use a fuel injector tester. This involves pulsing the fuel injectors off the car using a can of carburetor cleaner as the spray, which will trigger a check engine light. Then, you can unplug the wiring harness injectors one at a time with the engine off and use a scan tool to check the fuel trim percentages, which indicate the air-fuel ratio. If the fuel trim shows that the engine is running rich, you can narrow down which fuel injector is the culprit.
- You can also test the voltage of the wires connected to the fuel injectors. Each fuel injector will have two wires, one of which is a 12-volt constant that should continuously receive power. You can use a test light to check the voltage by pressing the sharp end firmly into the rubber coating around the wire until it contacts the metal wiring.
- If your vehicle has an OBDII scanner and the check engine light is on, you can use it to check for errors in the vehicle's computer related to the cylinder or injector. A professional mechanic can also perform a diagnostic test on your vehicle's electronic control unit and fuel system.
- Visible fuel leaks from any of the fuel injection components indicate a serious problem, and the vehicle should not be driven. In such cases, it is essential to seek immediate repair services.
It is important to note that fuel injector leak testing should be done under operating pressure. Most automotive repair shops do not have the proper diagnostic equipment to test and clean leaking injectors properly. Therefore, it is recommended to send your leaking fuel injector to a specialized service center for testing and cleaning.
Ford Fuel Injectors: Cost and Efficiency Explored
You may want to see also
Explore related products
Cleaning dirty injectors
Fuel injectors are designed to spray fuel into the cylinders of your engine, where the fuel is combined with air and compressed before being ignited by the spark plug to produce power. As they get older or dirty, they can start to malfunction, causing your engine to run poorly or even fail to run.
If you suspect your fuel injectors are causing problems due to dirt, gunk, or carbon buildup, the issue won't improve on its own and will only worsen over time. Before cleaning your fuel injectors, you should first identify their location. There is typically one fuel injector per cylinder, often identifiable by a black plastic housing installed directly above the cylinder.
To clean dirty fuel injectors, the best method is to remove them from your vehicle's engine. This allows for a thorough cleaning and the removal of gunk. The process may vary depending on your vehicle's engine, and you can refer to your vehicle's service manual for detailed instructions. Generally, you will need to disconnect the fuel supply and remove the fuel rails. Once the injectors are removed, take off the rubber o-ring from the fuel rail side of the injector.
After cleaning the injectors, you can perform a simple test to ensure they are functioning properly. With your vehicle's electrical system active but the engine not running, locate the two wires going into each injector. One of these wires is a 12-volt constant that should continuously receive power. Use a test light to check for voltage by firmly pressing the sharp end into the rubber coating around the wire until it penetrates the metal wiring. Repeat this process for the opposite wire. With the engine running at idle, the test light should flicker dimly, and as the throttle is applied, the light should flicker more brightly, indicating the signal transmitted by the ECU to the injector to spray fuel.
Cleaning Honda CR-V Fuel Injectors: DIY Guide
You may want to see also
Frequently asked questions
If your engine won't start or is running poorly, your fuel injectors may be faulty. Fuel injectors can malfunction due to dirt, gunk, or carbon buildup over time.
Mechanics can perform a test to determine if your fuel injectors are working properly, but this can be costly. They may also perform a diagnostic of your vehicle's electronic control unit and fuel system.
Yes, but it requires some technical knowledge and tools such as a test light and an OBDII scanner. You can refer to online guides for step-by-step instructions on how to test fuel injectors.
