Regan Brown

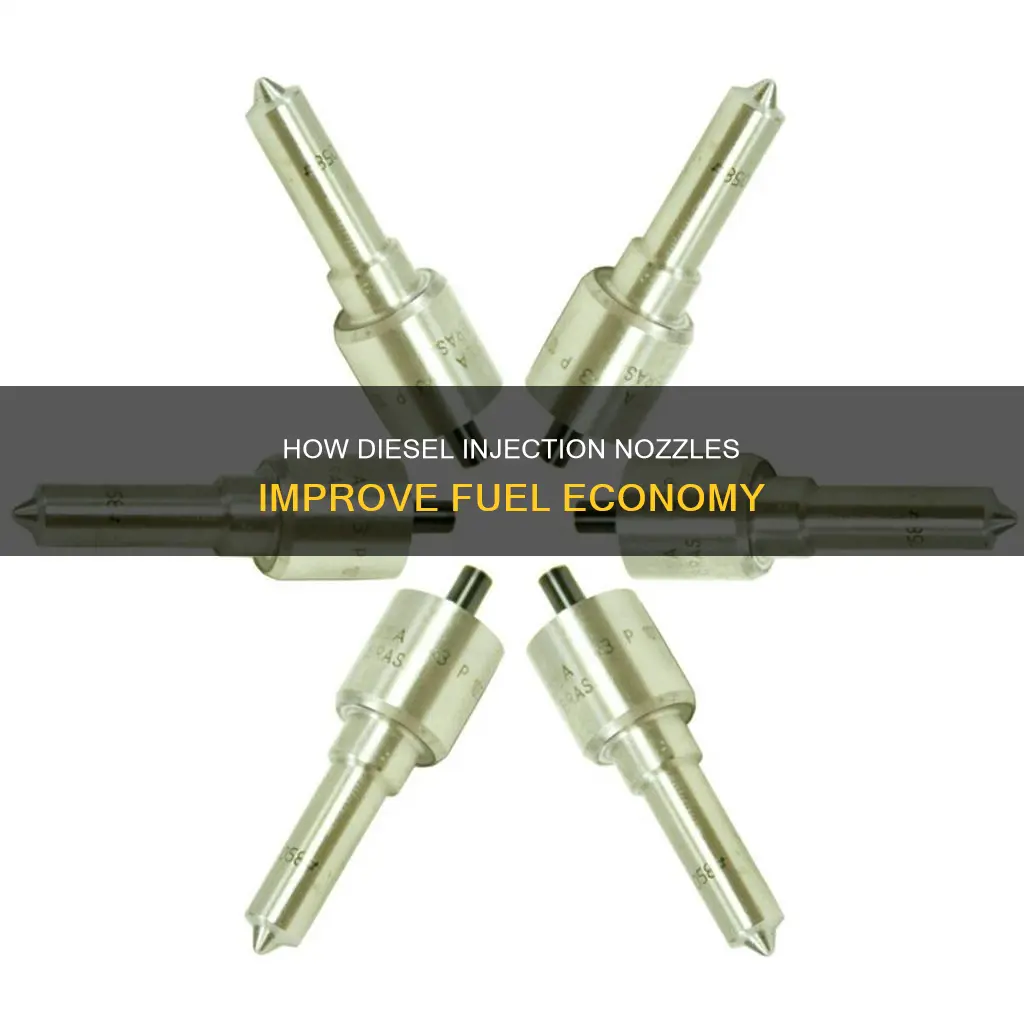

The design of diesel injection nozzles is critical to the performance and emissions of diesel engines. The nozzle's main function is to spray atomized fuel into the cylinder, where it is ignited to run the engine. The size of the nozzle and its holes, as well as the injection pressure, can impact the atomization of the fuel, the power of the engine, and the emissions produced. Increasing the number of holes and injection pressure can lead to improved atomization and combustion, resulting in better fuel economy and reduced emissions. However, there is no one-size-fits-all solution, and the optimal nozzle design depends on the specific application and desired performance characteristics. This article will explore the impact of diesel injection nozzles on fuel economy and the trade-offs between power, efficiency, and emissions.
| Characteristics | Values |
|---|---|
| Injector nozzle design | Affects the combustion characteristics of the diesel engine, the stability of emissions, and performance over the engine's lifetime |
| Injector nozzle size | Smaller nozzles have smaller spray orifices, while larger nozzles have larger spray orifices |
| Fuel atomization | Smaller nozzles atomize fuel better, while larger nozzles flow more fuel in the same amount of time |
| Fuel flow rate | Larger nozzles empty fuel quicker, which helps with making more power at higher RPMs |
| Fuel efficiency | Increasing the number of injector nozzle holes and fuel injection pressures can improve fuel economy |
| Fuel consumption | Reducing the sac volume of the fuel nozzle can reduce fuel consumption |
| Fuel injection rate | Higher injection rates deliver more fuel in very short and precise shots for efficient combustion |
| Fuel pressure | Higher fuel pressures help optimize the fuel-air mixture in the engine, leading to more efficient and effective combustion |
| Fuel emissions | The use of hydro-ground nozzles decreases most pollutants, while increasing the number of holes can reduce smoke and NOx emissions |
Explore related products
What You'll Learn
- Smaller nozzles produce better atomization, reducing fuel consumption
- Larger nozzles increase power but also heat and smoke
- Nozzle hole count and spray angle are designed to meet power and emissions targets
- Reducing nozzle sac volume and hole size lowers smoke and NOx emissions
- Higher fuel injection pressure improves atomization and combustion but can cause poor mixing
Smaller nozzles produce better atomization, reducing fuel consumption
The nozzle is the last part of the injector before fuel enters the cylinder to be combusted. Its main function is to spray the fuel in an atomized state (a fine mist) so it can be easily ignited to run the engine. The atomization of fuel is critical to the performance and emissions of diesel engines.
Smaller nozzles produce smaller spray orifices. With the same injection pressure, smaller nozzles will atomize the fuel better due to the smaller spray holes. This atomization increases with higher fuel injection pressure (IP). Higher IPs also result in better spray characteristics and improved premixed combustion, leading to improved engine performance and lower emissions.
The improved atomization of fuel from smaller nozzles also means that less fuel is required to be combusted to run the engine. This reduction in fuel consumption is further enhanced by the fact that smaller nozzles can flow the same amount of fuel as larger nozzles in a shorter amount of time.
However, there is no "one size fits all" when it comes to nozzle sizing. While smaller nozzles generally produce better atomization, larger nozzles can make more power when paired with the right size injector. Additionally, smaller nozzles can increase the risk of fuel coking, especially at high power conditions. Therefore, the appropriate nozzle size depends on the specific needs of the application.
Do Diesel Additives Expire?
You may want to see also
Explore related products
$104.99
Larger nozzles increase power but also heat and smoke
The nozzle is the last part of the injector before the fuel enters the cylinder to be combusted. The size of the nozzle can impact the performance of the engine. A larger nozzle will not atomize fuel as well as a smaller nozzle, but it will flow more fuel in the same amount of time. This means that a larger nozzle will make more power when paired with the right size injector. For instance, a 30% nozzle can produce enough power to make 600 horsepower at the rear wheels while still running clean and cool.
However, there are trade-offs to using larger nozzles. While a larger nozzle will increase power, it will also cause the engine to run hotter and produce more smoke. This is because a larger nozzle will not atomize the fuel as well as a smaller nozzle, which can lead to increased fuel consumption and soot emission. Additionally, the increased fuel flow can place greater demands on the fuel system, which may not be able to keep up with the larger nozzle.
The appropriate decrease in nozzle tip penetration (NTP) and increase in nozzle-hole diameter can contribute to reducing fuel consumption and soot emission. This is because a smaller nozzle will have better atomization, which can improve fuel efficiency and reduce soot emissions.
Ultimately, the ideal nozzle size depends on the specific use case and engine design. While larger nozzles can increase power, they may not be suitable for all applications due to the trade-offs in heat and smoke production. Smaller nozzles may be preferred for applications where fuel efficiency and emissions are a priority.
Mixing Fertilizer and Diesel: A Guide to the Process
You may want to see also
Explore related products
Nozzle hole count and spray angle are designed to meet power and emissions targets
The design of diesel fuel injector nozzles is critical to the performance and emissions of modern diesel engines. The nozzle is the last part of the injector before fuel enters the combustion chamber to be ignited and run the engine. The nozzle's main function is to spray the fuel in the cylinder in an atomized state (a fine mist) so it can be easily ignited to burn.
A nozzle with a higher hole count and a narrow spray angle can reduce rough combustion concerns at high loads. A narrow spray angle nozzle is beneficial at low loads with earlier pilot injection. It also reduces the risk of rough combustion at high loads. A nozzle with a lower hole count and a wide spray angle is more suitable for high loads.
The appropriate nozzle hole count and spray angle can contribute to reducing fuel consumption and emissions. For example, a narrow spray angle of 156° reduced brake specific fuel consumption (BSFC) by 16% at an engine speed of 4000 r/min compared to a spray angle of 150°. Similarly, a diesel nozzle with a double-layer hole and a narrow spray angle improved the air utilization of the central part of the pre-mixed natural gas, resulting in lower CO and THC emissions.
The Power Behind Reefers: Diesel Fuel Explained
You may want to see also
Explore related products
$92.99
Reducing nozzle sac volume and hole size lowers smoke and NOx emissions
The design of diesel fuel injector nozzles is critical to the performance and emissions of diesel engines. The nozzle's main function is to spray the fuel into the cylinder in an atomized state (a fine mist) so that it can be easily ignited to run the engine. The size of the nozzle will determine the spray orifice size.
The nozzle tip penetration (NTP), nozzle-hole diameter, and the number of nozzle holes are important parameters that affect the combustion characteristics of the diesel engine, as well as the stability of emissions and performance over the engine's lifetime. A reduction in nozzle sac volume and hole size has been shown to lower smoke and NOx emissions.
The nozzle sac volume in a standard design fuel nozzle has a negative influence on the formation of soot particles and HC. The relatively large sac volume contributes to the emission of smoke and unburnt HC, as well as increased deposits in the combustion chamber. By reducing or eliminating the sac volume, MAN Diesel's 'mini-sac' fuel valve design for larger low-speed engines was able to reduce smoke and NOx emissions.
The use of hydro-ground nozzles, which improve atomization, has also been shown to increase NOx generation while decreasing other pollutants. Similarly, increasing the number of nozzle holes reduces most pollutants except for nitrogen oxides.
While smaller nozzles improve atomization, they may not be suitable for applications requiring more power. In such cases, larger nozzles can be used to increase power, but this comes at the cost of increased smoke and exhaust gas temperatures. Ultimately, the choice of nozzle size and design depends on the specific requirements of the engine and the intended use of the vehicle.
Tractor Fuel Options: Can You Use Diesel Truck Fuel?
You may want to see also
Explore related products
$137.33
Higher fuel injection pressure improves atomization and combustion but can cause poor mixing
The nozzle is the last part of the injector before fuel enters the cylinder to be combusted. The nozzle's main function is to spray the fuel in the cylinder in an atomized state (a fine mist) so it can be easily ignited to burn and run the engine. The size of the nozzle hole and the injection pressure are critical factors in the atomization of the fuel.
Smaller nozzle holes result in better atomization due to the smaller spray holes, while larger nozzle holes will not atomize as well but will flow more fuel in the same amount of time. This means that smaller nozzles are better for towing and daily driving, as they keep exhaust gas temperatures down, while larger nozzles will make more power when paired with the right size injector.
Higher fuel injection pressure improves atomization, as it creates smaller fuel droplets. This also improves combustion, as the concentration distribution of the combustible mixture in the cylinder is more uniform, which is conducive to the propagation of the flame in the cylinder. However, higher injection pressure can also cause poor mixing, as the fuel spray characteristics directly affect the combustion performance of the engine.
The design of the diesel fuel injector nozzle is critical to the performance and emissions of modern diesel engines. The nozzle hole size and geometry, as well as the injector seat and sac, affect the combustion characteristics of the engine, the stability of emissions and performance over the lifetime of the engine, and the mechanical durability of the injector.
Advances in electronics have allowed for more control over injection timing, duration, and dosing processes, which can improve fuel economy and reduce emissions. For example, optimization of injection rate shaping can improve brake specific fuel consumption (BSFC) and reduce soot emissions.
Setting Timing on Competition Diesel Fuel Pumps: A Guide
You may want to see also
Frequently asked questions
The nozzle sprays atomized fuel into the cylinder, where it is ignited to run the engine.
The performance of a nozzle is influenced by its size, shape, and the number and size of its holes. The size of the nozzle tip penetration (NTP) and the nozzle-hole diameter are also important factors.
Increasing the number of holes in a nozzle and fuel injection pressure (IP) can lead to improved fuel atomization, combustion, and engine efficiency, which can contribute to better fuel economy.
There is no "one size fits all" when it comes to nozzle sizing. Smaller nozzles generally provide better atomization, while larger nozzles can deliver more power. The optimal size depends on the specific use case and desired performance characteristics.
