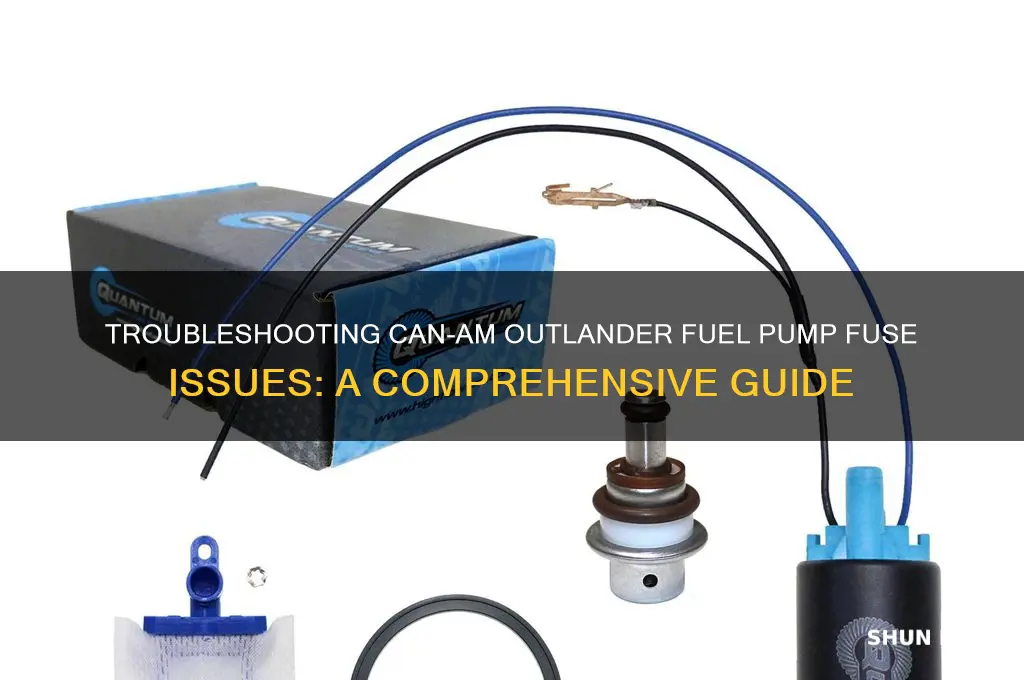

The Can-Am Outlander's fuel pump fuse is a critical component in its fuel delivery system, ensuring the pump operates efficiently to supply the engine with the necessary fuel. Located typically in the vehicle's fuse box, this fuse acts as a protective device, preventing electrical overloads that could damage the fuel pump or other related components. Understanding its location, function, and how to diagnose or replace it is essential for Outlander owners, especially when troubleshooting issues like engine stalling or failure to start, which may indicate a blown fuse. Regular maintenance and awareness of this fuse can help prevent unexpected breakdowns and ensure the ATV's reliable performance.
| Characteristics | Values |
|---|---|
| Model Compatibility | Can-Am Outlander ATV models (specific years vary, typically 2012-2023) |
| Fuse Type | Blade-type fuse |
| Fuse Rating | Typically 15A or 20A (check specific model for exact rating) |
| Fuse Location | Usually located in the main fuse box under the hood or near the battery |
| Purpose | Protects the fuel pump circuit from electrical overloads |
| Symptoms of Failure | Engine not starting, stalling, or difficulty starting |
| Replacement Part Number | Varies by model (e.g., 420679030 for some Outlander models) |
| Price Range | $5 - $20 USD (depending on retailer and model) |
| Material | Plastic and metal components |
| Dimensions | Standard blade fuse size (approx. 19.1mm x 5.1mm x 15.6mm) |
| Voltage | Operates within the vehicle's 12V electrical system |
| Warranty | Typically covered under vehicle warranty (check manufacturer details) |
| DIY Replaceable | Yes, easily replaceable with basic tools |
| Common Issues | Blown fuse due to electrical faults or fuel pump malfunctions |
| Diagnostic Tool | Multimeter to test continuity and voltage |
Explore related products
What You'll Learn
Fuse location and diagram
The Can-Am Outlander's fuel pump fuse is a critical component ensuring the proper functioning of the fuel system. Locating and understanding the fuse layout is essential for troubleshooting and maintenance. The fuse box in the Can-Am Outlander is typically located under the front hood, near the battery or on the side panel, depending on the model year. For most Outlander models, the fuse box is housed in a protective cover that needs to be removed to access the fuses. This cover is usually secured with a few screws or clips, making it relatively easy to open with basic tools.
Once the fuse box cover is removed, you’ll find a diagram on the inside of the cover or on a separate label nearby. This diagram is crucial as it identifies the specific fuse for the fuel pump. The fuel pump fuse is often labeled as "Fuel Pump," "EFI" (Electronic Fuel Injection), or "Main Relay" depending on the model. Refer to the diagram to locate the correct fuse, as the position may vary between different Outlander years and trims. The diagram will also indicate the fuse rating, typically ranging from 10 to 20 amps for the fuel pump.
To access the fuse, use a fuse puller tool or a pair of needle-nose pliers to carefully remove it from its slot. Inspect the fuse for signs of damage, such as a broken filament or discoloration. If the fuse is blown, replace it with one of the same amperage rating, which can usually be found at automotive stores or ordered from a Can-Am dealer. It’s a good practice to keep spare fuses in your vehicle for emergencies.
For a more detailed understanding, consult the Can-Am Outlander service manual specific to your model year. The manual provides a comprehensive fuse box diagram and additional troubleshooting steps related to the fuel pump system. If you’re unsure about the process, it’s recommended to seek assistance from a certified Can-Am technician to avoid potential damage to the electrical system.
In summary, locating the fuel pump fuse in a Can-Am Outlander involves accessing the fuse box, referring to the diagram for the correct fuse position, and inspecting or replacing the fuse as needed. Understanding the fuse layout and having the necessary tools on hand can save time and prevent issues related to the fuel pump’s operation. Always prioritize safety and accuracy when working with electrical components.
