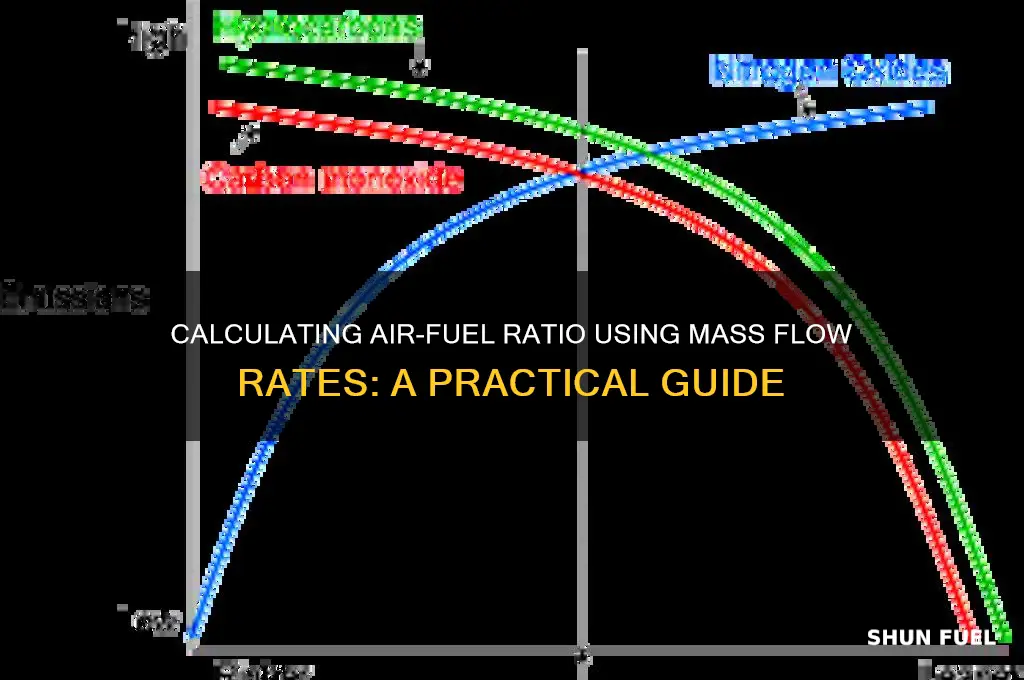

The air-fuel ratio (AFR) is a critical parameter in combustion processes, particularly in internal combustion engines, as it directly influences performance, efficiency, and emissions. While AFR is commonly expressed as a volumetric ratio, it can also be calculated using mass flow rates, which offers a more precise method for engineering and control applications. By measuring the mass flow rates of both air and fuel, the AFR can be determined by dividing the mass flow rate of air by the mass flow rate of fuel. This approach is advantageous because it accounts for variations in temperature, pressure, and humidity, ensuring accuracy in real-world conditions. Utilizing mass flow rates for AFR calculation is especially valuable in high-performance engines, industrial combustion systems, and applications requiring tight control over fuel efficiency and emissions.
| Characteristics | Values |
|---|---|
| Definition | The air-fuel ratio (AFR) can indeed be calculated using mass flow rates. It is the ratio of the mass of air to the mass of fuel in a combustion process. |
| Formula | AFR = (Mass Flow Rate of Air) / (Mass Flow Rate of Fuel) |
| Units | Typically expressed as a dimensionless ratio (e.g., 14.7:1 for stoichiometric gasoline combustion). |
| Stoichiometric Ratio | Varies by fuel type: Gasoline ≈ 14.7:1, Diesel ≈ 14.5:1, Ethanol ≈ 9:1, Methane ≈ 17.2:1. |
| Measurement Methods | Mass flow meters, wideband oxygen sensors, or calculated from volumetric flow rates and densities. |
| Applications | Critical in internal combustion engines for optimizing performance, emissions, and fuel efficiency. |
| Lean vs. Rich | Lean: AFR > stoichiometric (excess air), Rich: AFR < stoichiometric (excess fuel). |
| Limitations | Requires accurate measurement of both air and fuel mass flow rates; sensitive to measurement errors. |
| Advantages | Provides precise control over combustion processes, especially in high-performance engines. |
| Relevance | Essential in automotive, aerospace, and industrial combustion systems for efficiency and emissions compliance. |
Explore related products
What You'll Learn
Understanding Air-Fuel Ratio Basics
The air-fuel ratio (AFR) is a critical parameter in combustion processes, particularly in internal combustion engines, as it directly influences performance, efficiency, and emissions. At its core, AFR represents the mass ratio of air to fuel in the combustion chamber. This ratio can be expressed as either air-to-fuel or fuel-to-air, with the former being more commonly used. Understanding AFR is essential because an optimal ratio ensures complete combustion, maximizing energy extraction from the fuel while minimizing harmful byproducts. For gasoline engines, the stoichiometric AFR—the chemically ideal ratio for complete combustion—is approximately 14.7:1 by mass. Deviations from this ratio result in either a rich mixture (excess fuel) or a lean mixture (excess air), each with distinct implications for engine operation.
Calculating AFR using mass flow rates is a practical and accurate method, especially in dynamic systems like engines. Mass flow rates of both air and fuel can be measured directly using flow meters or derived from other measurable parameters, such as pressure, temperature, and volumetric flow rates. The AFR is then determined by dividing the mass flow rate of air by the mass flow rate of fuel. This approach is advantageous because mass flow rates are inherently independent of environmental conditions like temperature and pressure, ensuring consistent and reliable results. For example, if an engine draws in 20 kg/h of air and injects 1.36 kg/h of fuel, the AFR is 14.7:1 (20 ÷ 1.36), indicating a stoichiometric mixture.
To implement this calculation, it is crucial to ensure that the mass flow rates of both air and fuel are measured accurately. In automotive applications, this is often achieved using sensors such as mass airflow (MAF) sensors for air and fuel flow meters for fuel. These sensors provide real-time data, allowing engine control units (ECUs) to adjust fuel injection rates dynamically to maintain the desired AFR. For experimental or custom setups, calibration of these sensors is essential to account for variations in fuel density, air density, and system-specific characteristics.
While mass flow rates are a direct and effective method for calculating AFR, it is important to recognize that other methods exist, such as using volumetric flow rates or lambda (λ) sensors. However, mass flow rates offer the advantage of being directly tied to the physical quantities involved in combustion, making them a preferred choice in precision-critical applications. Additionally, understanding the relationship between AFR and mass flow rates enables engineers and enthusiasts to diagnose and optimize engine performance, whether for efficiency, power, or emissions compliance.
In summary, the air-fuel ratio is a fundamental concept in combustion engineering, and its calculation using mass flow rates provides a robust and accurate approach. By measuring the mass flow rates of air and fuel and dividing them, one can determine the AFR, ensuring optimal engine operation. This method’s reliability and applicability make it a cornerstone in both theoretical understanding and practical implementation of combustion systems. Whether for automotive, industrial, or experimental purposes, mastering AFR basics through mass flow rate calculations is indispensable for achieving desired performance outcomes.
