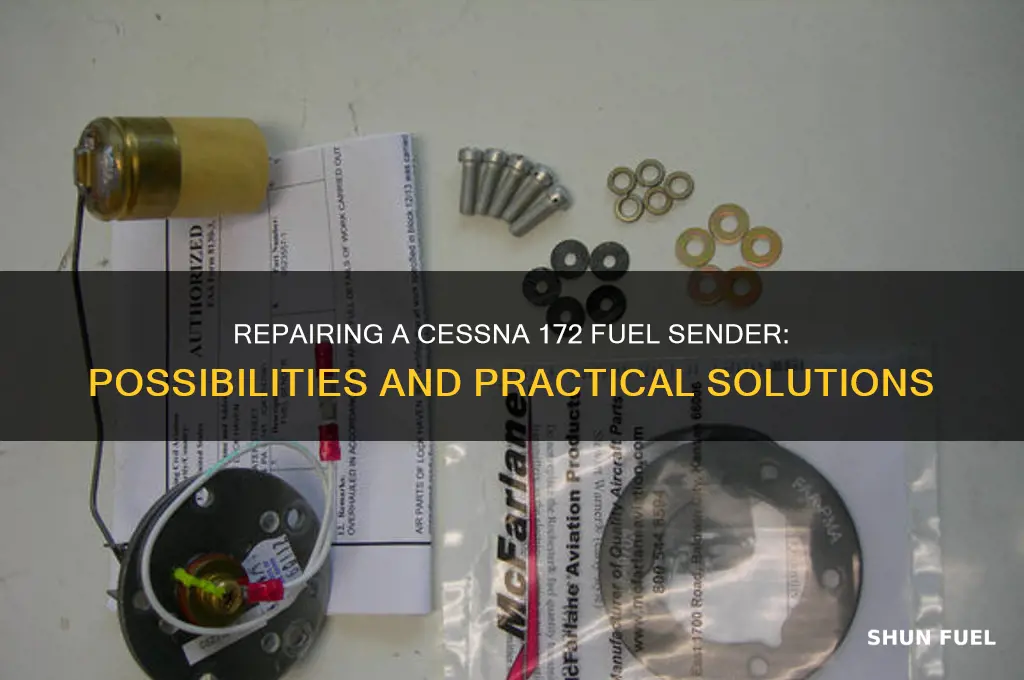

The Cessna 172, a popular single-engine aircraft, relies on a fuel sender unit to accurately measure and display the fuel level in its tanks. Over time, these senders can malfunction due to wear, corrosion, or electrical issues, leading pilots to question whether they can be repaired rather than replaced. Repairing a fuel sender involves diagnosing the specific problem, such as a faulty resistor card, broken float arm, or wiring issues, and determining if the components can be fixed or replaced. While some minor issues, like cleaning contacts or adjusting the float, can be addressed by skilled technicians, more severe damage may require professional overhaul or replacement. Understanding the feasibility of repairing a Cessna 172 fuel sender is crucial for maintaining accurate fuel readings and ensuring safe flight operations.
| Characteristics | Values |
|---|---|
| Repair Possibility | Yes, Cessna 172 fuel senders can often be repaired, depending on the specific issue. |
| Common Issues | Corrosion, faulty wiring, worn-out components, float arm misalignment, or damaged resistive elements. |
| Repairable Components | Float arm, resistive element, wiring connections, sender housing (in some cases). |
| Non-Repairable Issues | Severe physical damage, cracked housing, or irreparable internal components may require replacement. |
| Repair Process | Diagnosis, disassembly, cleaning, component replacement, recalibration, and testing. |
| Tools Required | Multimeter, soldering iron, cleaning supplies, calibration tools, and replacement parts. |
| Cost | Repairing is generally more cost-effective than replacing the entire unit, but costs vary based on the issue and labor. |
| Professional vs. DIY | Simple issues (e.g., wiring) can be DIY, but complex repairs (e.g., resistive element) often require professional expertise. |
| Replacement Alternative | If repair is not feasible, replacement with a new or remanufactured fuel sender is recommended. |
| Preventive Maintenance | Regular inspection, cleaning, and testing can extend the life of the fuel sender and prevent issues. |
Explore related products
What You'll Learn
Identifying Common Fuel Sender Issues
The Cessna 172's fuel sender unit is a critical component responsible for accurately measuring and displaying the fuel level in the aircraft's tanks. Over time, these senders can develop issues that affect their reliability, leading to inaccurate fuel readings or complete failure. Identifying common fuel sender issues early can prevent in-flight emergencies and costly repairs. One of the most frequent problems is inaccurate fuel gauge readings, where the sender fails to provide a precise measurement of the fuel level. This can be caused by wear and tear on the sender's internal components, such as the float or rheostat, which may become corroded, stuck, or misaligned. Pilots should be alert to sudden fluctuations in the fuel gauge or persistent discrepancies between the indicated and actual fuel levels.
Another common issue is complete gauge failure, where the fuel level indicator remains at zero or full regardless of the actual fuel quantity. This often indicates a broken or disconnected wire within the sender unit or a failed electrical connection between the sender and the gauge. Physical damage to the sender, such as cracks or leaks in the housing, can also lead to failure. Inspecting the sender unit for visible damage and checking the wiring harness for loose or corroded connections can help diagnose this problem. Additionally, intermittent gauge operation, where the fuel level fluctuates unpredictably, may suggest a faulty rheostat or a loose internal connection within the sender.
Corrosion is a significant concern for fuel senders, especially in older Cessna 172s. Moisture and contaminants in the fuel can cause the sender's metal components to corrode, leading to poor electrical conductivity and inaccurate readings. Regular inspection of the sender for signs of corrosion, such as discoloration or pitting, is essential. In some cases, float issues can also arise, where the float becomes waterlogged, damaged, or detached from the sender arm. This results in the float failing to rise or fall with the fuel level, causing incorrect gauge readings. Pilots should be aware of these symptoms and consider removing the sender for inspection if they suspect float-related problems.
Lastly, mechanical wear on the sender's moving parts can lead to gradual failure over time. The constant movement of the float and arm can cause friction, leading to wear on the pivot points or the rheostat. This wear may result in the sender becoming less responsive or failing to make proper electrical contact. Regular maintenance and periodic testing of the fuel sender can help identify these issues before they escalate. While some problems can be repaired, such as cleaning corroded contacts or replacing a damaged float, others may require the sender unit to be overhauled or replaced entirely. Understanding these common issues enables pilots and mechanics to take proactive steps in maintaining the Cessna 172's fuel system.
Can You Claim VAT on Fuel? A Comprehensive Guide for Businesses
You may want to see also
Explore related products
Tools Needed for Repair or Replacement
When undertaking the repair or replacement of a Cessna 172 fuel sender, having the right tools is essential to ensure the job is done accurately and safely. The fuel sender is a critical component of the aircraft’s fuel system, and improper handling can lead to malfunctions or safety hazards. Below is a detailed list of tools needed for this task, organized by the steps involved in the process.
Basic Hand Tools and Safety Equipment: Before beginning, ensure you have basic hand tools such as screwdrivers (both flathead and Phillips), wrenches (including adjustable and socket wrenches), and pliers. These tools are necessary for removing panels, disconnecting wires, and loosening fasteners. Additionally, safety equipment like gloves, safety goggles, and a fire extinguisher is crucial due to the presence of fuel. A non-sparking toolset is highly recommended to minimize the risk of ignition in the fuel tank area.
Specialized Fuel System Tools: Repairing or replacing a fuel sender often requires specialized tools. A fuel sender removal tool or a universal sender wrench is essential for safely extracting the sender unit without damaging the tank or the sender itself. If the sender is being repaired, a multimeter is necessary to test the resistance and functionality of the sender’s rheostat. For replacements, a fuel sender installation kit, which may include gaskets, seals, and locking rings, is often required to ensure a leak-free installation.
Cleaning and Preparation Tools: Before installing a new or repaired fuel sender, the fuel tank and sender unit must be thoroughly cleaned to prevent contamination. Tools such as a soft brush, lint-free cloths, and a vacuum pump or siphon for fuel removal are essential. A cleaning solvent approved for aviation fuel systems should also be used to remove any debris or residue. For tanks with significant corrosion or buildup, a tank cleaning kit with specialized brushes and cleaning agents may be necessary.
Testing and Calibration Equipment: After installation, the fuel sender must be tested to ensure it accurately reads fuel levels. A fuel gauge tester or simulator can be used to verify the sender’s output. Additionally, a fuel quantity indicator (FQI) tester may be required to calibrate the system and ensure the gauge in the cockpit displays the correct fuel levels. These tools are critical for confirming the functionality and reliability of the repaired or replaced sender.
Optional but Helpful Tools: While not strictly necessary, certain tools can make the process smoother. A work light or headlamp is useful for illuminating the fuel tank area, which is often dimly lit. A magnetic parts tray can help keep small components organized and prevent them from being lost during the repair. Finally, a service manual specific to the Cessna 172 model is invaluable for providing detailed instructions and diagrams to guide the repair or replacement process.
By gathering these tools and equipment, you can approach the repair or replacement of a Cessna 172 fuel sender with confidence, ensuring the work is completed efficiently and to the highest safety standards.
Fuel Costs as Business Expenses: What’s Deductible and How to Claim
You may want to see also
Explore related products
Step-by-Step Repair Guide
Step 1: Assess the Fuel Sender for Damage
Begin by removing the fuel sender unit from the aircraft’s fuel tank. This involves draining the fuel tank to a safe level, disconnecting the electrical wiring, and unscrewing the sender assembly. Inspect the unit for common issues such as a cracked housing, corroded electrical contacts, or a malfunctioning float arm. Use a multimeter to test the sender’s resistance range across its operating spectrum. Compare the readings to the manufacturer’s specifications to determine if the sender is out of calibration or electrically faulty.
Step 2: Disassemble the Fuel Sender
Carefully disassemble the fuel sender unit by removing the retaining screws or clips that hold the cover in place. Take note of the orientation of internal components, such as the float arm and pivot points, to ensure proper reassembly. Clean all parts using aviation-approved solvents to remove debris, varnish, or corrosion. Inspect the float for cracks or leaks, as a compromised float can cause inaccurate fuel level readings.
Step 3: Repair or Replace Faulty Components
If the float is damaged, replace it with a compatible part from a certified aviation supplier. For corroded electrical contacts, gently clean them using fine-grit sandpaper or a contact cleaner. If the sender’s resistance wire is damaged, it may be possible to repair it by carefully soldering a new section of wire, ensuring the resistance matches the original specifications. However, if the housing is cracked or the internal mechanism is severely worn, consider replacing the entire unit to ensure reliability.
Step 4: Reassemble and Test the Fuel Sender
Reassemble the fuel sender unit, ensuring all components are securely in place and aligned correctly. Reattach the cover and secure it with the appropriate screws or clips. Before reinstalling the sender, perform a bench test by submerging it in a container of fuel or simulated fuel (such as water with a density similar to aviation fuel). Use a multimeter to verify that the resistance readings correspond accurately to the fuel level. Adjust the float arm if necessary to achieve correct calibration.
Step 5: Reinstall and Verify Operation
Reinstall the fuel sender unit into the aircraft’s fuel tank, ensuring all gaskets are intact to prevent leaks. Reconnect the electrical wiring and secure all connections. Refill the fuel tank and power on the aircraft’s fuel gauge system. Monitor the gauge for accurate readings across the full range of fuel levels. If discrepancies persist, recheck the sender’s calibration or consult a certified aviation mechanic for further assistance.
By following this step-by-step guide, you can effectively repair a Cessna 172 fuel sender, restoring accurate fuel level readings and ensuring safe operation of the aircraft. Always adhere to FAA regulations and manufacturer guidelines when performing repairs on critical aviation components.
Driving with a Failing Fuel Pump: Risks and Limits Explained
You may want to see also
Explore related products
Cost Comparison: Repair vs. Replace
When considering whether to repair or replace a Cessna 172 fuel sender, a cost comparison is essential to make an informed decision. The fuel sender is a critical component in the aircraft's fuel system, providing accurate readings of fuel levels to the pilot. If it malfunctions, the options are typically to repair the existing unit or replace it with a new or refurbished one. Repairing a fuel sender can be a cost-effective solution if the damage is minor and the part is still serviceable. Common issues such as faulty wiring, corroded connections, or a malfunctioning float arm can often be fixed by a skilled technician. The cost of repairs generally includes labor and any replacement parts needed, which can range from $100 to $300, depending on the extent of the damage and local labor rates.
On the other hand, replacing the fuel sender involves purchasing a new or overhauled unit and installing it. A new Cessna 172 fuel sender can cost between $400 and $600, while a refurbished or overhauled unit may be slightly cheaper, ranging from $300 to $500. Installation costs can add another $100 to $200, depending on the mechanic's hourly rate and the complexity of the job. While replacement is more expensive upfront, it offers the advantage of a fully warranted part and potentially longer-term reliability, especially if the original sender was nearing the end of its service life.
Another factor to consider is the downtime associated with each option. Repairing a fuel sender typically takes less time, as it involves fixing specific issues rather than removing and installing a new unit. This can be particularly important for aircraft owners who rely on their Cessna 172 for regular flights. Replacement, however, may require more time, especially if the new sender needs to be ordered or if additional adjustments are required during installation.
In terms of long-term cost-effectiveness, repairing the fuel sender is often the more economical choice if the damage is minor and the unit has been well-maintained. However, if the sender has a history of issues or is an older model, repeated repairs can become costly over time. In such cases, investing in a replacement may be more prudent, as it reduces the likelihood of future failures and associated expenses.
Ultimately, the decision to repair or replace a Cessna 172 fuel sender should be based on a thorough assessment of the unit's condition, the cost of each option, and the aircraft owner's specific needs. Consulting with a qualified aviation mechanic can provide valuable insights into the most cost-effective and reliable solution. By weighing the immediate and long-term costs, owners can ensure their fuel system remains accurate and dependable while minimizing expenses.
Can a Faulty Ignition Switch Cause Fuel Shutoff? Explained
You may want to see also
Explore related products
Safety Checks Post-Repair
After researching the topic, it becomes clear that repairing a Cessna 172 fuel sender is possible, but it requires careful attention to detail and expertise. The fuel sender is a critical component in the aircraft's fuel system, providing accurate fuel level readings to the pilot. A faulty fuel sender can lead to inaccurate readings, potentially causing fuel starvation or other hazardous situations. Therefore, post-repair safety checks are essential to ensure the fuel sender is functioning correctly and safely.
Initial Inspection and Testing
The first step in post-repair safety checks is a thorough inspection of the fuel sender. This includes examining the sender for any signs of damage, corrosion, or wear. The technician should verify that all connections are secure and that the sender is properly seated in the fuel tank. A visual inspection of the float arm, pivot point, and electrical contacts is crucial to ensure they are free from debris and functioning smoothly. After the inspection, a bench test should be conducted to verify the sender's accuracy and reliability. This involves simulating various fuel levels and comparing the sender's output to known values.
Fuel System Integrity Check
Before reinstalling the repaired fuel sender, it is essential to check the integrity of the fuel system. This includes inspecting the fuel tank for any signs of damage, corrosion, or leaks. The fuel lines, filters, and pumps should also be examined to ensure they are in good condition and free from contamination. A pressure test can be performed to verify the system's integrity and identify any potential leaks. Additionally, the fuel system should be flushed and cleaned to remove any debris or contaminants that may have accumulated during the repair process.
Calibration and Accuracy Verification
Once the fuel sender is reinstalled, it must be calibrated to ensure accurate fuel level readings. This involves adjusting the sender's output to match the actual fuel levels in the tank. A calibration procedure should be followed, which typically includes filling the tank to specific levels and verifying the sender's output using a known reference. The accuracy of the fuel sender should be verified across the entire range of fuel levels, from empty to full. Any discrepancies or inconsistencies should be addressed and corrected before the aircraft is returned to service.
Functional Testing and Pilot Verification
After calibration, a series of functional tests should be conducted to ensure the fuel sender is operating correctly. This includes simulating various flight conditions, such as takeoff, climb, cruise, and descent, to verify the sender's performance. The pilot should also perform a pre-flight inspection, including a visual check of the fuel level and a verification of the fuel quantity indicator. A test flight should be conducted to ensure the fuel sender provides accurate and reliable readings during actual flight conditions. The pilot should monitor the fuel level throughout the flight and report any anomalies or discrepancies.
Documentation and Record-Keeping
Throughout the post-repair safety checks, detailed documentation should be maintained to record the inspection, testing, and calibration procedures. This includes noting any repairs, adjustments, or replacements made to the fuel sender and the fuel system. The documentation should also include the results of the bench test, fuel system integrity check, calibration, and functional testing. Proper record-keeping is essential for traceability, accountability, and future reference. The aircraft's logbook should be updated to reflect the repair and post-repair safety checks, ensuring compliance with regulatory requirements and maintaining the aircraft's airworthiness. By following these comprehensive post-repair safety checks, technicians and pilots can ensure the Cessna 172 fuel sender is functioning correctly, accurately, and safely, minimizing the risk of fuel-related incidents and promoting overall aviation safety.
Where to Find Mountain Dew Game Fuel: Ultimate Guide for Gamers
You may want to see also
Frequently asked questions
Yes, a Cessna 172 fuel sender can often be repaired, depending on the type and extent of the damage. Common issues like faulty resistors, corroded connections, or worn components can be fixed by a qualified avionics technician.
Common signs include inconsistent fuel gauge readings, a stuck gauge, or fluctuating fuel levels. These symptoms often indicate a malfunctioning sender unit that may require repair or replacement.
The cost to repair a Cessna 172 fuel sender varies depending on the issue and labor rates. Minor repairs may cost $100–$300, while more extensive work or replacement could range from $500–$1,000 or more.
Repairing is often more cost-effective if the damage is minor. However, if the sender is severely corroded, outdated, or repeatedly fails, replacement with a new or overhauled unit may be the better long-term solution. Consult a technician for the best option.
