The question of whether a 1976 Chrysler fuel gauge sender can be removed is a common concern among classic car enthusiasts and mechanics. This component, responsible for transmitting fuel level readings to the gauge, is often located inside the fuel tank, making its removal a potentially complex task. Factors such as the vehicle's design, the sender's condition, and the tools available can significantly influence the feasibility of this process. Understanding the specific model and its fuel system is crucial, as some Chrysler vehicles from this era may have unique configurations that require specialized knowledge or equipment. Proper research and preparation are essential to ensure a successful removal without causing damage to the fuel tank or other components.
| Characteristics | Values |
|---|---|
| Year and Model | 1976 Chrysler |
| Component | Fuel Gauge Sender |
| Removability | Yes, the fuel gauge sender can be removed |
| Location | Typically located inside the fuel tank |
| Tools Required | Socket wrench, screwdriver, fuel line disconnect tool (if applicable) |
| Procedure | 1. Relieve fuel system pressure 2. Disconnect battery 3. Drain fuel tank (if necessary) 4. Remove fuel tank or access panel 5. Disconnect wiring harness 6. Unscrew or unclip the sender unit 7. Install new sender (if replacing) |
| Common Issues | Faulty readings, stuck float, corrosion |
| Replacement Parts | Fuel gauge sender unit, gasket, locking ring |
| Difficulty Level | Moderate (requires mechanical skill and safety precautions) |
| Safety Precautions | Work in well-ventilated area, avoid sparks, use proper tools |
| Compatibility | Specific to 1976 Chrysler models with similar fuel tank designs |
Explore related products
What You'll Learn
Tools needed for removal

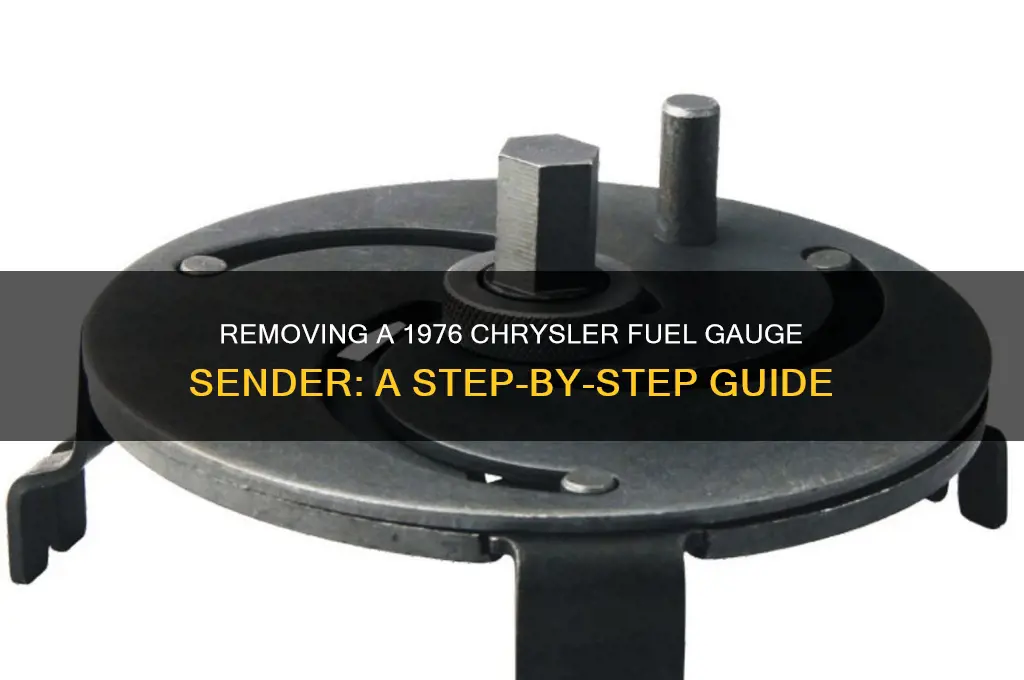

When removing the fuel gauge sender from a 1976 Chrysler, having the right tools is essential to ensure the job is done safely and efficiently. The process involves working with the fuel tank, which requires specific tools to avoid damage and minimize the risk of fuel spills or other hazards. Below is a detailed list of tools needed for the removal process.
