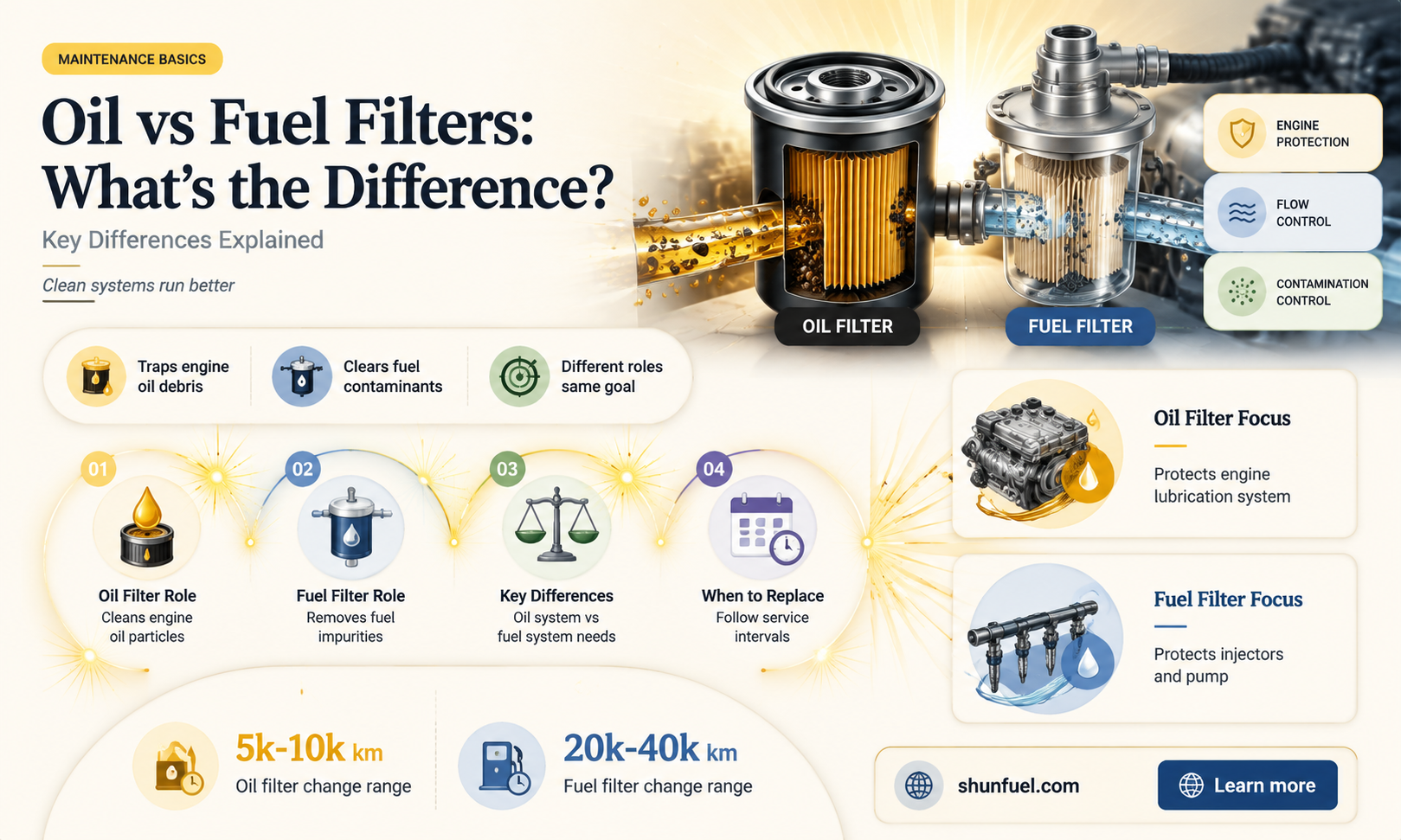

Fuel and oil filters are two vital components of an engine system. While they serve the same purpose of keeping the engine running smoothly, their functions, placements, and designs differ. Fuel filters, as the name suggests, purify the fuel by removing contaminants and impurities before it enters the engine. On the other hand, oil filters preserve the engine's integrity by filtering out debris, metal shavings, and combustion byproducts from the lubricating oil. These differences in function lead to variations in their structure, placement, and maintenance requirements, which are essential to understand for proper engine maintenance and optimal performance.
Characteristics and Values of Oil and Fuel Filters
| Characteristics | Values |
|---|---|
| Function | Fuel filters remove contaminants and impurities from fuel before it enters the engine. Oil filters remove metal shavings and debris from oil to preserve the engine's integrity. |
| Placement | Fuel filters are found along the fuel line or within the fuel tank. Oil filters are located near the engine block for easy access during oil changes. |
| Design | Fuel filters have a simpler design and consist of a housing with a filtering medium like paper or mesh. Oil filters are more robust and replaceable, often featuring a cylindrical metal casing with a removable top or bottom plate. |
| Size | Fuel filters tend to be smaller than oil filters due to their different roles and the fluids they deal with. |
| Maintenance | Most diesel fuel filters need replacing every 10,000 to 25,000 miles, while petrol filters can last up to 30,000-40,000 miles. Oil filters need to be changed more frequently, typically every 3-6 months. |
| Bypass Valve | Fuel filters do not have a bypass valve, unlike some oil filters which have a high-pressure bypass valve to maintain oil flow when cold or clogged. |
| Viscosity | Fuel filters are designed for low-viscosity liquids (gas), while oil filters handle higher viscosity oils. |
| Mesh Size | Fuel filters have a finer mesh size compared to oil filters. |
| Water Contamination | Diesel fuel filters are designed to handle water contamination with features like water separators. |
| Types of Oil Filters | Spin-on, Cartridge, High-Performance, and Extended Life oil filters offer varying levels of filtration efficiency, flow rates, and longevity. |
Explore related products
What You'll Learn
Fuel filters have a simpler design compared to oil filters
Fuel filters and oil filters are two vital parts of an engine system. While they share the same purpose of keeping the engine running smoothly, their functions, placements, and designs differ. Fuel filters tend to be smaller than oil filters, and their size difference reflects their respective roles and the fluids they deal with.
Oil filters, on the other hand, are designed to be more robust and replaceable. They often feature a cylindrical metal casing with a removable bottom or top plate for easy access. Within this casing is a tightly wound paper or synthetic filter media, providing a large surface area for trapping contaminants as the oil flows through. Oil filters are built to withstand pressure and filter out small metal particles that build up due to lubrication. These metal particles, if left unchecked, can accelerate wear and tear, leading to premature engine failure.
The differences in design between fuel and oil filters are important to understand, as confusing the two can result in significant problems, such as engine damage or decreased performance.
Fuel Filter Cleaning for Your Chevy Cruze: How Often?
You may want to see also
Explore related products
Fuel filters are smaller than oil filters
Fuel filters and oil filters are both crucial components of heavy equipment machines, but they differ in size and function. Fuel filters are smaller than oil filters, and they are usually cylindrical in shape. They are typically attached to the fuel line between the fuel tank and the engine's injectors, located in the engine bay for easy access.
The primary role of a fuel filter is to remove impurities and debris from the fuel before it reaches the engine's combustion chamber. Fuel filters ensure the proper functioning of the engine by preventing damage to fuel injectors. They create a meshed barrier to capture contaminants such as dirt, water, bacteria, and rust particles, which can cause blockages and engine wear if not removed.
On the other hand, oil filters are designed to remove contaminants from the oil used in the machine's engine. Oil plays a crucial role in lubricating the moving parts of the engine, reducing friction and wear. Over time, the oil accumulates impurities such as sludge and tiny metal particles. Oil filters eliminate these contaminants, keeping the oil clean and protecting the engine's moving parts from excessive wear and tear.
It is important to regularly replace fuel and oil filters to maintain optimal engine performance. Failing to replace fuel filters on time can lead to issues with the fuel pump or injection system. Oil filters, on the other hand, typically need to be changed along with oil changes every 3 to 6 months, depending on the vehicle's service schedule.
Changing Your Rail Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel filters have no bypass valve
Fuel filters and oil filters are both crucial components in heavy equipment machines, but they have distinct functions and locations. Oil filters are designed to remove contaminants, such as sludge, from the oil used to lubricate a machine's engine and protect its moving parts. On the other hand, fuel filters ensure the proper functioning of the engine by removing impurities and debris from the fuel before it reaches the combustion chamber. Fuel filters are typically found attached to the fuel line between the fuel tank and the engine's injectors, while oil filters are usually located in the engine bay or maintenance compartments.
Now, regarding the topic of bypass valves in fuel filters, it is important to note that fuel filters do not typically have bypass valves. This is in contrast to oil filters, which often include a bypass valve that allows oil to bypass the filter in certain situations. The absence of a bypass valve in fuel filters means that if the filter becomes clogged, the fuel pressure to the engine will drop, potentially starving the engine of fuel. This could lead to damage, especially in a petrol engine.
The purpose of a bypass valve in an oil filter is to keep oil flowing when the filter media is clogged or when the oil is cold and thick. It helps to maintain the necessary oil flow and prevent excessive pressure build-up. However, the absence of a bypass valve in fuel filters is due to the fact that fuel filters are designed to filter low-viscosity liquids, such as gasoline, rather than thicker fluids like motor oil.
It is worth noting that some fuel systems, particularly in diesel engines, may have a fuel filter setup with a bypass valve. These valves serve a different purpose than those in oil filters. In fuel systems, bypass valves help ease the load on the pickup fuel pump during low fuel demand. They allow excess fuel to be sent back to the tank, reducing unnecessary work, electricity usage, and fuel pressure.
While fuel filters typically lack bypass valves, it is crucial to follow the recommended replacement intervals specified in the machine's operating manual. Regularly changing the fuel filter, at least once a year for machines like excavators, skid steers, or tractors, is essential to prevent breakdowns and ensure the smooth operation of the engine.
Husqvarna 125B Fuel Filter: What You Need to Know
You may want to see also
Explore related products
Oil filters need to be changed more frequently than fuel filters
Oil filters and fuel filters are both crucial components of any engine, but they have distinct functions and characteristics. Oil filters are specifically designed to remove contaminants, such as sludge and tiny metal particles, from the oil used to lubricate the engine's moving parts. On the other hand, fuel filters focus on eliminating impurities, such as dust, paint, rust, and water particles, from the fuel before it reaches the engine's combustion chamber.
While both types of filters are essential for maintaining engine health, oil filters tend to require more frequent replacement. This is primarily due to the nature of the oil's function in the engine. As the oil lubricates the engine's moving parts, it accumulates metal shavings, causing the oil to darken and its texture to become gritty over time. These metal particles can lead to increased engine wear and potential issues such as overheating if not filtered out regularly. Therefore, oil filters typically need to be changed every 3 to 6 months, along with oil changes.
In contrast, fuel filters generally have a longer lifespan. For machines like excavators, skid steers, or tractors, it is recommended to change the fuel filter at least once a year. Modern cars with finely tuned engines may require more frequent fuel filter replacements, but this is still less often than oil filters. This is because the fuel filter's primary purpose is to ensure that the fuel entering the engine is free of contaminants, and this function is crucial for the engine to operate optimally.
The difference in replacement frequency between oil and fuel filters can also be attributed to their distinct locations within the engine. Fuel filters are usually attached to the fuel line between the fuel tank and the engine's injectors, often located in the engine bay for easy access. Oil filters, on the other hand, are typically found in the engine bay or one of the machine's maintenance compartments, depending on the machine's size. Their location and accessibility may contribute to the varying replacement intervals.
Additionally, the mesh size of the filters plays a role in the replacement frequency. Fuel filters have a finer mesh designed to filter low-viscosity liquids like gas, while oil filters have a slightly larger mesh to accommodate the thicker engine oil. As a result, the oil filter's mesh can become clogged more quickly, necessitating more frequent changes to maintain effective filtration.
Generac 7500E Fuel Filter: Where is it?
You may want to see also
Explore related products
![[Original] Waterdrop Filter Replacement for All Waterdrop Pitcher Filtration System, WD-PF-01A Plus, Reduces PFAS, PFOA/PFOS, Chlorine, Last Up to 3 Months or 200 Gallons (Pack of 3)](https://m.media-amazon.com/images/I/71Vbn7UTt-L._AC_UY218_.jpg)
Diesel fuel filters are designed to handle water contamination
Diesel engines have separate filters for fuel and oil. Diesel fuel filters are designed to handle water contamination and protect the engine from water contamination. Water contamination in diesel fuel can cause serious engine damage, leading to costly repairs. It can also result in reduced fuel efficiency and fuel system issues.
To tackle water contamination, diesel fuel filters are designed to remove small amounts of water from the fuel. However, they are not as effective as dedicated water separators in handling large amounts of water. Water separators are designed to remove water from diesel fuel before it enters the engine, while diesel fuel filters focus on removing particulates and small amounts of water. For maximum protection, especially in environments with a high risk of water contamination, it is recommended to use both a water separator and a diesel fuel filter together.
When selecting a diesel fuel filter, it is important to consider its specifications and efficiency in removing water. Coalescing filters are effective in collecting and merging small water droplets into larger ones, making them easier to remove. Hydrophobic filters, which repel water, are another option. The micron rating of the filter is also crucial, as a lower micron rating indicates a finer ability to catch contaminants and water droplets.
Regular maintenance of diesel fuel filters is crucial to ensure they effectively protect the engine from water contamination. Signs that the filter needs to be changed include difficulty starting the engine, lack of engine power, and excessive smoke from the exhaust. These issues can occur when water passes through a dirty or worn filter and enters the engine.
In addition to fuel filters, there are other methods to manage water contamination in diesel fuel. These include using diesel additives to disperse water, regularly cleaning fuel tanks, and installing desiccant breathers on storage tanks to prevent moisture intrusion. Proper storage, handling, and maintenance are essential to prevent water contamination.
Easy Steps to Install a Lawn Mower Fuel Filter
You may want to see also
Frequently asked questions
No, they are two different parts of an engine system. While they are both important for keeping the engine running smoothly, their functions, placements, and designs are quite different.
Oil filters trap metal shavings and other debris that accumulate in the oil as it lubricates the engine. They need to be replaced regularly, usually every 3-6 months.
Fuel filters create a meshed barrier to trap contaminants in the fuel before it enters the engine. Diesel fuel filters often include water separators to prevent water from entering the injection system. Petrol fuel filters tend to be replaced less frequently than diesel fuel filters.
